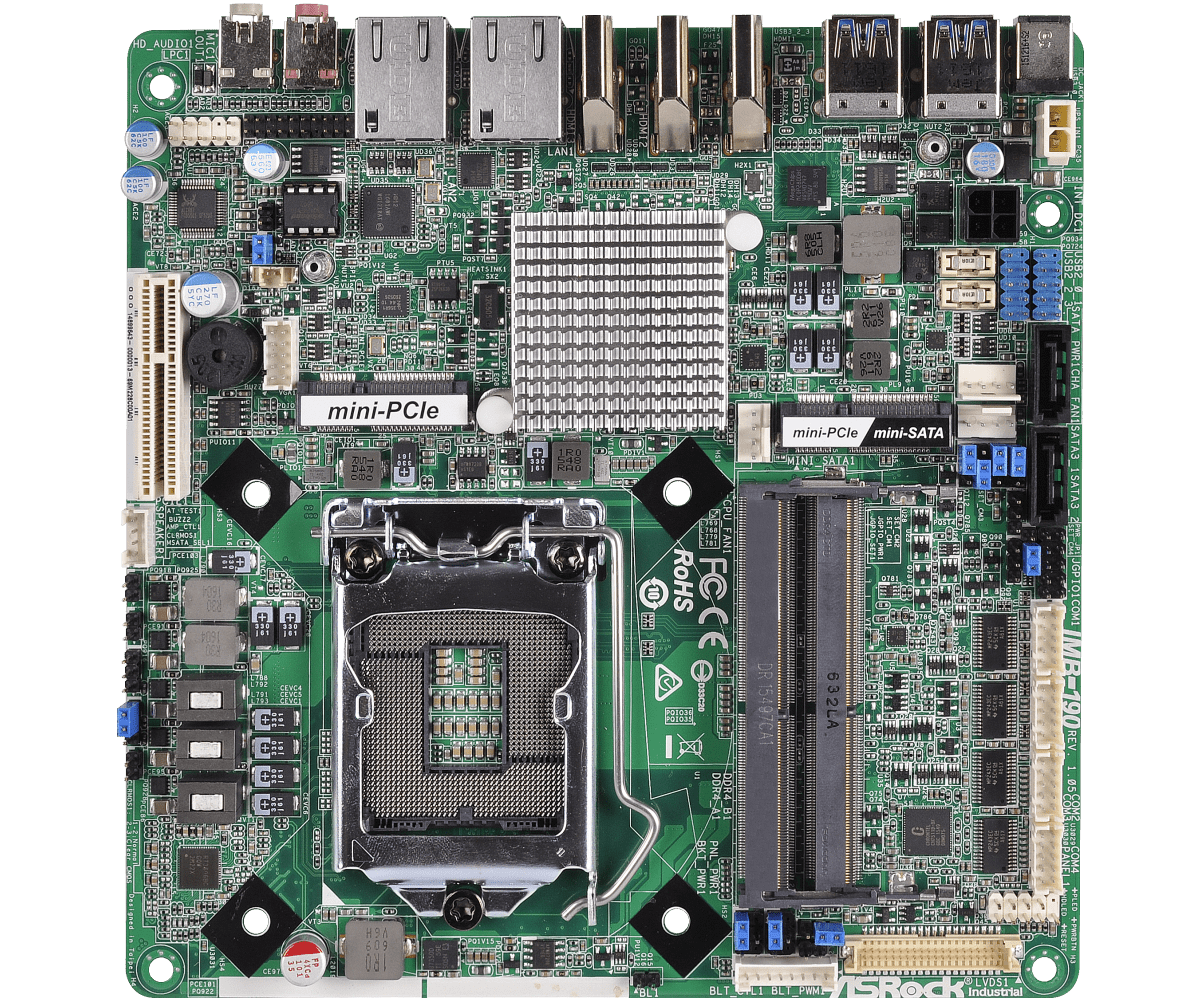

-->> Asrock MINI-ITX motherboard Socket LGA1151 Skylake-S Triple Display IMB-190 <<--

IMB-190
Socket LGA1151 for Intel? Core i7 / i5 / i3 / Celeron? (Skylake-S)
Intel? Gen9 Intel? Graphics DX 11/12, OGL4.3/4.4
Supports Dual Channel DDR4 2133MHz, 2 x SO-DIMM, up to 32GB system memory
3 x HDMI, 1 x Dual Channel 24-bit LVDS/eDP
4 xUSB 3.0, 4 x USB 2.0, 2 x SATA3
1 x Mini-PCIe, 1 x PCIe x4 Slot ,1 x mSATA
Gigabit LAN : 2 x Intel? Lan
1 x TPM Header
12V / 19~24V DC-in

Form Factor
Dimensions - Mini-ITX (6.7-in x 6.7-in)

Processor System
CPU - Socket LGA1151 for Intel? Core i7 / i5 / i3 / Celeron? (Skylake-S)
Core Number - (By CPU, Max 4)
Max Speed - (By CPU)
L3 Cache - (By CPU)
Chipset - Q170
BIOS - UEFI

Expansion Slot
PCIe - 1 x PCIe x4 slot
Mini-PCIe - 2 x Mini-PCIe (1 x full size colay with mSATA, 1 x half size, both with USB signal)
mSATA - 1 (colay with full size Mini-PCIe)

Memory
Technology - Dual Channel DDR4 2133 MHz SDRAM
Max. - 32G
Socket - 2 x SO-DIMM

Graphics
Controller - Intel? Gen9 Intel? Graphics DX 11/12, OGL4.3/4.4
VRAM - Shared Memory
VGA - Supports max. resolution 1920 x 1200
DVI - No
LVDS - Dual channel 24-bit co-lay with eDP, max resolution 1920 x 1200@60Hz
HDMI
- HDMI1: Supports HDMI, max resolution 4096 x 2160@60Hz
- HDMI2, 3: Supports HDMI, max resolution 4096 x 2160@30Hz
DisplayPort - No
MultiDisplay - Yes (Triple Display)

Ethernet
Ethernet
- 10/100/1000 Mbps
Controller - 1 x Intel? i210 , 1 x Intel? i219LM
Connector - 2 x RJ45

Storage
Max Data Transfer Rate - SATA3 (6.0Gb/s), Supports RAID 0/1/5/10

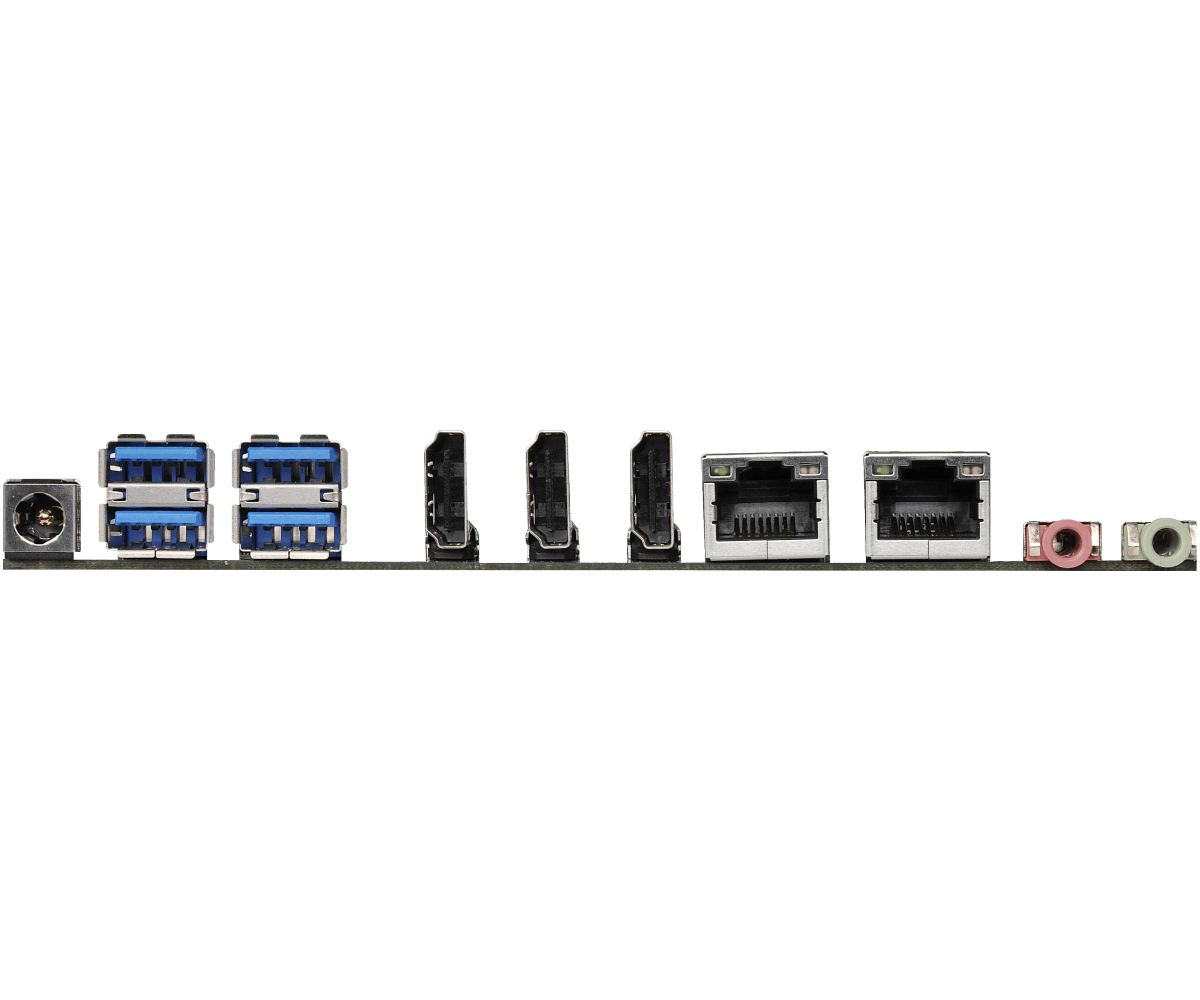

Rear I/O
VGV - 0
DVI - 0
HDMI - 3
DisplayPort - 0
Ethernet - 2
USB - 4 x USB 3.0
Audio - 2 (Mic-in, Line-out)
Serial - 0
eSATA - 0
PS2 - 0

Internal Connector
USB - 4 ( 2 x 2.54 pitch header USB 2.0 compliant)
LVDS / inverter - 1/1
VGA - 1
Serial - 4 x RS-232 (COM1, 2 support RS-232/422/485)
SATA - 2 x SATA3 (6.0Gb/s), Supports RAID 0/1/5/10
mPCIe - 2
Parallel - 0
mSATA - 1
IrDA - 0
GPIO 8-bit - 4 x GPI + 4 x GPO
SATA PWR Output Con - 1
Speaker Header - 1

Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2...255sec/min

Power Requirements
Input PWR - 12V or 19~24V DC-in (DC Jack or 4-pin ATX PWR Con)
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment
Temperature - 0oC – 60oC
