-->> Asrock MINI-ITX motherboard Socket LGA1151 Skylake-S Dual Display IMB-191 <<--

IMB-191
Socket LGA1151 for Intel? Core i7 / i5 / i3 / Celeron? (Skylake-S)
Intel? Gen9 Intel? Graphics DX 11/12, OGL4.3/4.4
Supports Dual Channel DDR4 2133MHz, 2 x SO-DIMM, up to 32GB system memory
2 x HDMI, 1 x Dual Channel 24-bit LVDS/eDP
4 xUSB 3.0, 4 x USB 2.0, 2 x SATA3
1 x Mini-PCIe, 1 x PCIe x4 Slot ,1 x mSATA
Gigabit LAN : 2 x Intel? Lan
1 x TPM Header
12V / 19~24V DC-in

Form Factor Dimensions- Mini-ITX (6.7-in x 6.7-in)
Processor System
CPU - Socket LGA1151 for Intel? Core i7 / i5 / i3 / Celeron? (Skylake-S)
Core Number - (By CPU, Max 4)
Max Speed - (By CPU)
L3 Cache - (By CPU)
Chipset - H110
BIOS - UEFI
Expansion Slot
PCIe - 1 x PCIe x4 slot
Mini-PCIe - 1 (1 x half size)
mSATA - 1
Memory
Technology - Dual Channel DDR4 2133 MHz SDRAM
Max. - 32G
Socket - 2 x SO-DIMM
Graphics
Controller
- Intel? Gen9 Intel? Graphics DX 11/12, OGL4.3/4.4
VRAM - Shared Memory
VGA - Supports max. resolution 1920 x 1200
DVI - No
LVDS - Dual channel 24-bit co-lay with eDP, max resolution 1920 x 1200@60Hz
HDMI - Supports HDMI, max resolution 4096 x 2160@30Hz
DisplayPort - No
MultiDisplay - Yes (Dual Display)
Ethernet
Ethernet - 10/100/1000 Mbps
Controller
- 1 x Intel? i210
- 1 x Intel? 219V
Connector
- 2 x RJ45
Storage
Max Data Transfer Rate - SATA3 (6.0Gb/S)

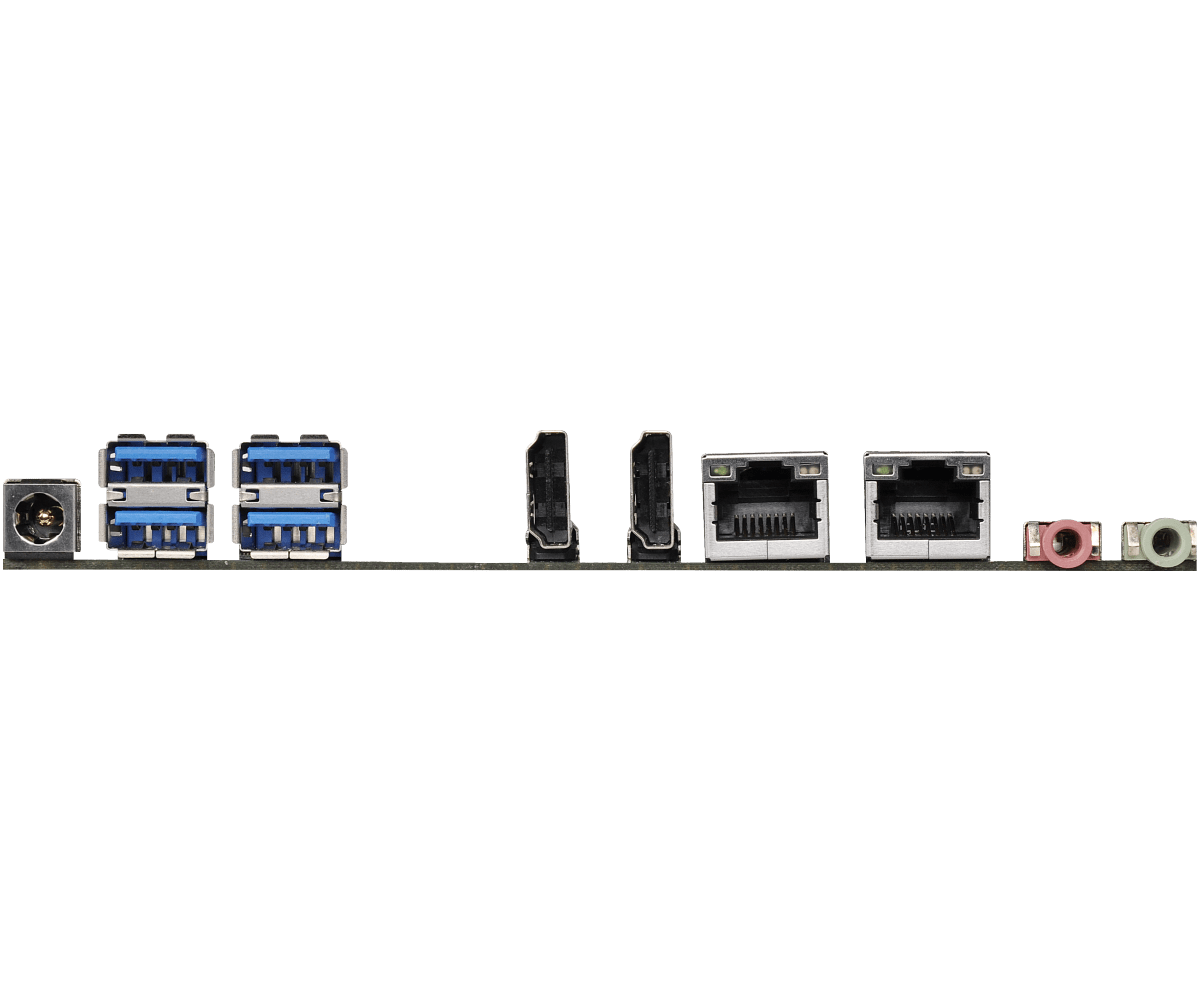

Rear I/O
VGA - 0
DVI - 0
HDMI - 2
DisplayPort - 0
Ethernet - 2
USB - 4 x USB 3.0
Audio - 2 (Mic-in, Line-out)
Serial - 0
eSATA - 0
PS2 - 0
Internal Connector
USB
- 4 ( 2 x 2.54 pitch header USB 2.0 compliant)
LVDS / inverter - 1/1
VGA - 1
Serial - 4 x RS-232 (COM1, 2 support RS-232/422/485)
SATA - 2 x SATA3 (6.0Gb/s)
mPCIe - 1
Parallel - 0
mSATA - 1
IrDA - 0
GPIO 8-bit
- 4 x GPI + 4 x GPO
SATA PWR Output Con - 1
Speaker Header - 1
Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2...255sec/min
Power Requirements
Input PWR
- 12V / 19~24V DC-in (DC Jack / 4-pin ATX PWR Con)
Power On
- AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Temperature - 0oC – 60oC
