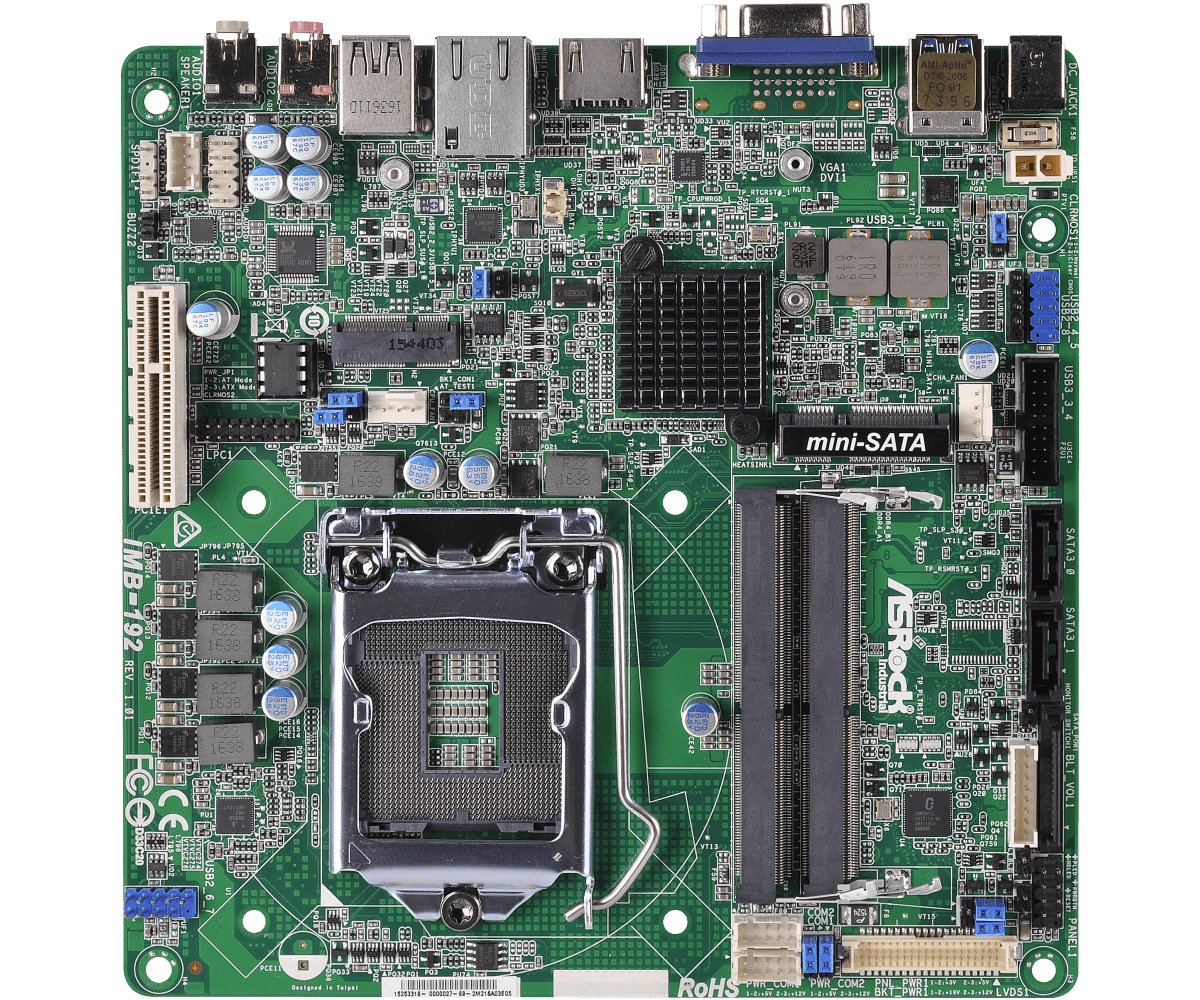

-->> Asrock MINI-ITX motherboard Socket LGA1151 Skylake-S Dual Display IMB-192 <<--

IMB-192
Socket LGA1151 for Intel? Core i7 / i5 / i3 / Pentium? / Celeron? (Skylake)
Integrated Intel? HD Graphics Built-in Visuals
Supports DDR4 2133MHz, 2 x SO-DIMM, up to 32GB system memory
1 x VGA , 1 x HDMI , 1 x LVDS
4 x USB 3.0 , 5 x USB 2.0 , 2 x SATA3
1 x M.2 (Key E) , 1 M.2 (Key M)
Gigabit LAN : 1 x IntelLAN
DC 19V power input
TPM Header

Form Factor
Dimensions - Mini-ITX (6.7-in x 6.7-in)

Processor System
CPU - Socket LGA1151 for Intel? Core i7 / i5 / i3 / Pentium? / Celeron? (Skylake)
Core Number - (By CPU, Max 4)
Max Speed - (by CPU)
L3 Cache - (By CPU)
Chipset - H110
BIOS - UEFI

Expansion Slot
PCIe - 1 x PCI Express 3.0 x 4 Slot
Mini-PCIe - 0
mSATA - 0
M.2 - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module 1 x M.2 Socket (Key M), supports type 2242/2260

Memory
Technology - Dual Channel DDR4 2133 MHz
Max. - 32GB
Socket - 2 x SO-DIMM

Graphics
Controller - Intel? HD Graphics 510/530
VRAM - Shared Memory
VGA - Supports max resolution up to 1920x1200 @ 60Hz
DVI - No
LVDS - Supports max resolution up to 1920 x 1200@60Hz @60Hz
HDMI - Supports max resolution up to 4K x 2K (4096x2160) @ 24Hz /(3840x2160) @ 30Hz
DisplayPort - No
MultiDisplay - Dual

Ethernet
Ethernet - 10/100/1000 Mbps
Controller - 1 x Intel? I219V
Connector - 1 x RJ45

Storage
Max Data Transfer Rate - SATA3 (6.0Gb/s)

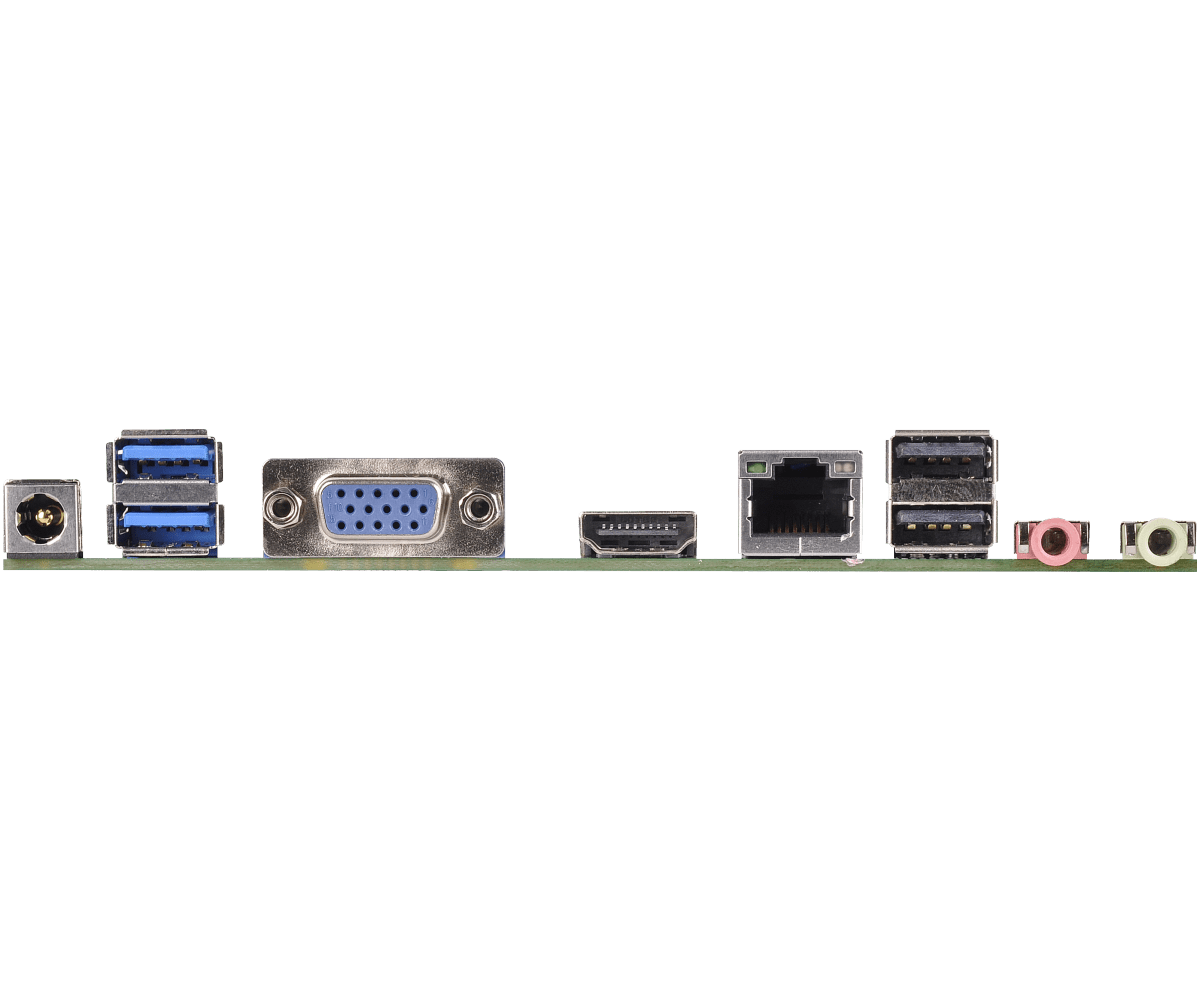

Rear I/O
VGA - 1
DVI - 0
HDMI - 1
DisplayPort - 0
Ethernet - 1
USB - 4 x USB3.0
Audio- 2 (Mic-in, Line-out)
Serial - 0
PS2 - 0

Internal Connector
USB - 5 x USB 2.0 (2 x 2.54 pitch header , 1 x Type A)
LVDS / inverter - 1/1
VGA - 0
Serial - 2 x 2.0 pitch header RS-232
SATA 2 x SATA3 (6.0Gb/s)
mPCIe - 0
Parallel - 0
mSATA - 0
IrDA - 0
GPIO 8-bit - 0
SATA PWR Output Con - 1
Speaker Header - 1

Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2...255sec/min

Power Requirements
Input PWR - 19V phone jack DC-In
Power On
- AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready

Environment
Operating Temp - 0oC – 60oC
