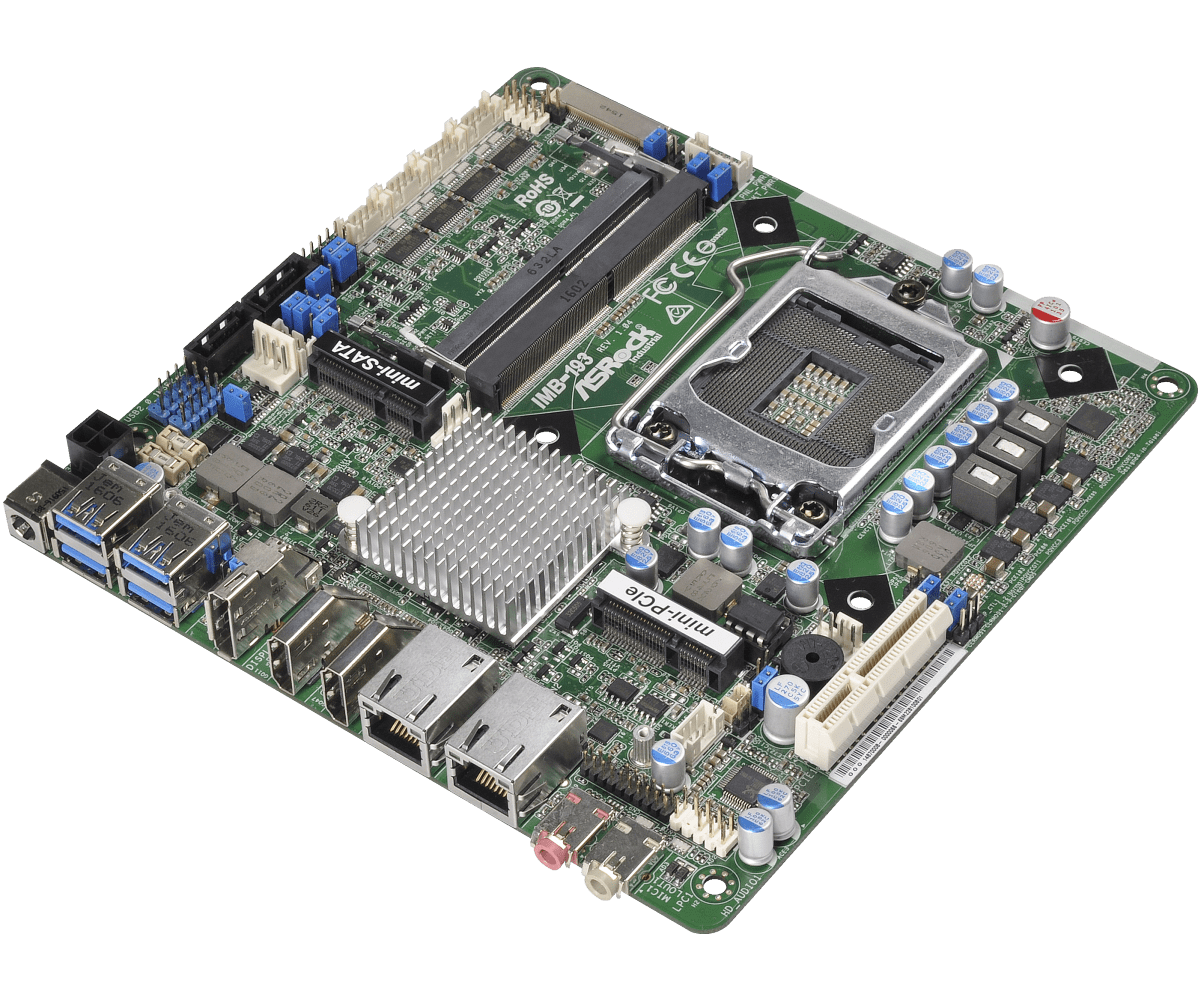

-->> Asrock MINI-ITX motherboard Socket LGA1151 Skylake-S Dual Display IMB-193 <<--

IMB-193
Socket LGA1151 for Intel? Core i7 / i5 / i3 / Celeron? (Skylake-S)
Intel? Gen9 Intel? Graphics DX 11/12, OGL4.3/4.4
Supports Dual Channel DDR4 2133MHz, 2 x SO-DIMM, up to 32GB system memory
2 x HDMI, 1 x Displayport, 1 x eDP
4 xUSB 3.0, 4 x USB 2.0, 2 x SATA3 x Mini-PCIe, 1 x PCIe x4 Slot ,1 x mSATA
Gigabit LAN : 1 x Intel? LAN, 1 x Realtek LAN
1 x TPM Header
19V DC-in

Form Factor
Dimensions - Mini-ITX (6.7-in x 6.7-in)

Processor System
CPU - Socket LGA1151 for Intel? Core i7 / i5 / i3 / Celeron? (Skylake-S)
Core Number - (By CPU, Max 4)
Max Speed - (By CPU)
L2 Cache - (By CPU)
Chipset - Intel? H110
BIOS - UEFI

Expansion Slot
PCIe - 1 x PCIe x4 slot
Mini-PCIe - 1 (half size, supports PCIe x1 and USB device)
mSATA - 1 (full size, supports SATA and USB device)

Memory
Technology - Dual Channel DDR4 2133 MHz SDRAM
Max. - 32GB
Socket - 2 x SO-DIMM

Graphics
Controller - Intel? Gen9 Graphics DX 11/12, OGL4.3/4.4
VRAM - Shared Memory
VGA - No
DVI - No
LVDS - No
HDMI - Supports HDMI, Max. resolution 4096 x 2160@30Hz
DisplayPort - Supports DP 1.2, Max. resolution 4096 x 2160@60Hz
MultiDisplay- Yes (Dual Display)

Ethernet
Ethernet - 10/100/1000 Mbps
Controller - 1 x Intel? I219v , 1 x Realtek RTL8111G
Connector- 2 x RJ45

Storage
Max Data Transfer Rate - SATA3 (6.0Gb/s)

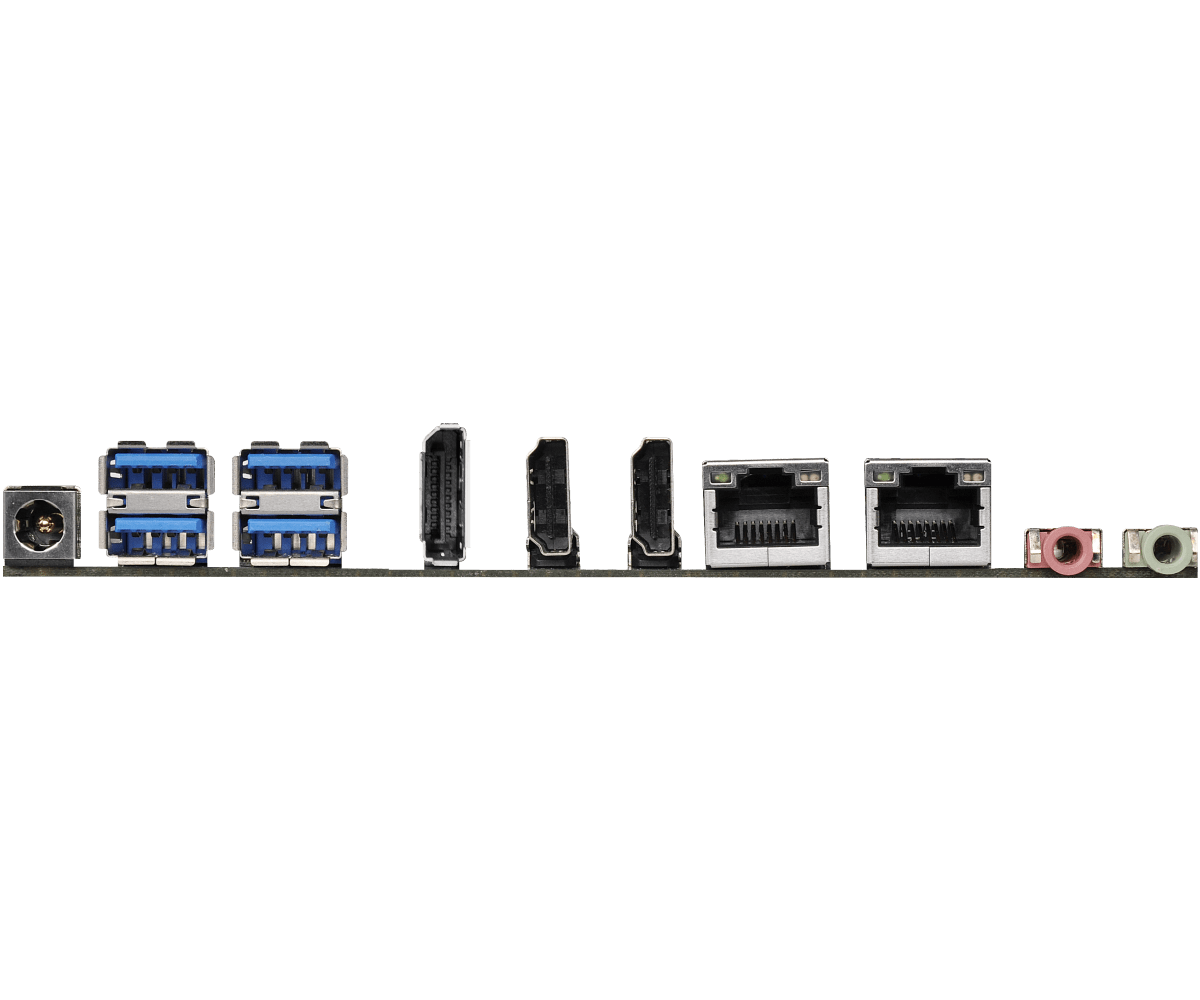

Rear I/O
VGA - 0
DVI - 0
HDMI - 2
DisplayPort - 1
Ethernet - 2
USB - 4 x USB 3.0
Audio - 2 (Mic-in, Line-out)
Serial - 0
PS2 - 0

Internal Connector
USB - 4 x USB 2.0 (2 x 2.54 pitch header)
LVDS / inverter - 0/0
eDP - 1
VGA - 0
Serial - 4 x RS-232 (COM1 supports RS-232/422/485)
SATA - 2
mPCIe - 1
Parallel - 0
mSATA - 1
IrDA - 0
GPIO 8-bit - 4 x GPI, 4 x GPO
SATA PWR Output Con - 1
Speaker Header - 1

Watchdog Timer
Interval - 1,2...255 Sec

Power Requirements
Input PWR - 19V DC-in (DC Jack / 4-pin ATX PWR Con)
Power On
- AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment
Temperature - 0oC – 60oC
