IMB-194-D
Socket LGA1151 for Intel? Core i7 / i5 / i3 / Celeron? (Skylake-S)
Intel? Gen9 Intel? Graphics DX 11/12, OGL4.3/4.4
Supports Dual Channel DDR4 2133MHz, 2 x SO-DIMM, up to 32GB system memory
1 x HDMI, 2 x Displayport, 1 x eDP
4 x USB 3.0, 4 x USB 2.0, 4 x SATA3
1 x Mini-PCIe, 1 x PCIe x16 Slot ,1 x mSATA
Gigabit LAN : 2 x Intel? LAN
1 x TPM 2.0 IC onboard
ATX PWR Con (24+4-pin)
Supports RAID 0, 1, 5, 10

Form Factor
Dimensions - Mini-ITX (6.7-in x 6.7-in)

Processor System
CPU - Socket LGA1151 for Intel? Core i7 / i5 / i3 / Celeron? (Skylake-S)
Core Number - (By CPU, Max 4)
Max Speed - (By CPU)
L2 Cache - (By CPU)
Chipset - Intel? Q170
BIOS - UEFI

Expansion Slot
PCIe - 1 x PCIe x16 slot
Mini-PCIe - 1 (half/full size, supports PCIe x1 and USB device)
mSATA - 1 (full size, shared SATA and USB device)

Memory
Technology - Dual Channel DDR4 2133 MHz
Max. - 32GB
Socket - 2 x SO-DIMM

Graphics
Controller
- Intel? Gen9 Graphics DX 11/12, OGL4.3/4.4
VRAM - Shared Memory
VGA - Supports Max resolution up to 1920 x 1200
DVI - No
LVDS - Supports Max resolution up to 1920 x 1200@60Hz
HDMI - Supports Max resolution up to 4096 x 2160@30Hz
DisplayPort - Supports Max resolution up to 4096 x 2160@60Hz
MultiDisplay - Yes (Triple Display)

Ethernet
Ethernet - 10/100/1000 Mbps
Controller - 1 x Intel? I219LM, 1 x Intel? I210
Connector - 2 x RJ45

Storage
Max Data Transfer Rate Storage - SATA3 (6.0Gb/s)

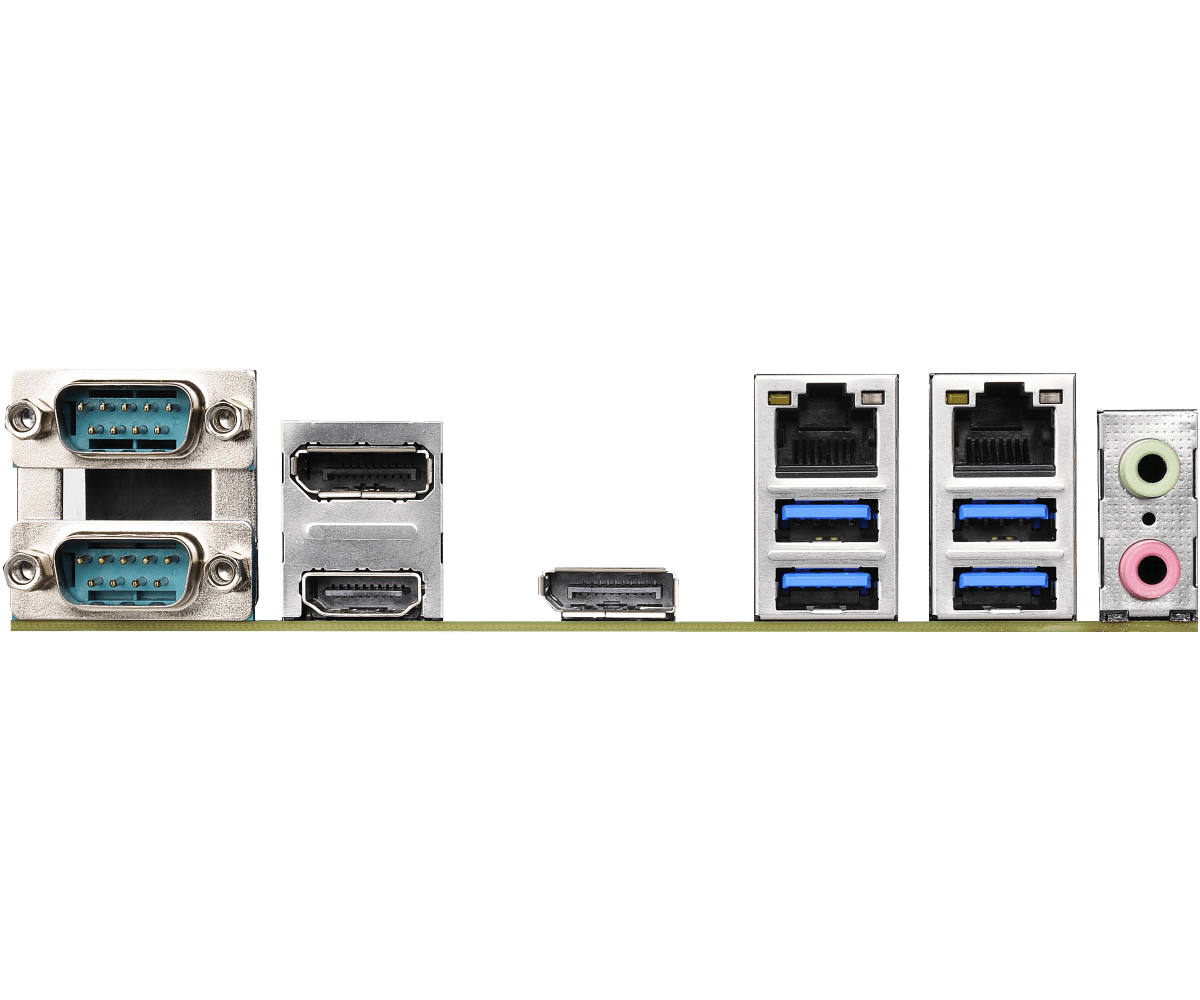

Rear I/O
VGA - 0
DVI - 0
HDMI - 1
DisplayPort - 2
Ethernet - 2
USB - 4 x USB 3.0
Audio - 2 (Mic-in, Line-out)
Serial - 2 x COM (RS-232/422/485)
PS2 - 0

Internal Connector
USB - 4 x USB 2.0 (2 x 2.54 pitch header)
LVDS / inverter - 0/0
eDP - 1
VGA - 0
Serial - 3 x COM (Supports RS-232 only)
SATA - 4
mPCIe - 1
Parallel - 0
mSATA - 1
IrDA - 0
GPIO 8-bit - 4 x GPI + 4 x GPO
SATA PWR Output Con - 0
Speaker Header - 1

Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2...255sec/min

Power Requirements
Input PWR - ATX PWR Con (24+4-pin)
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment
Temperature - 0oC – 60oC
