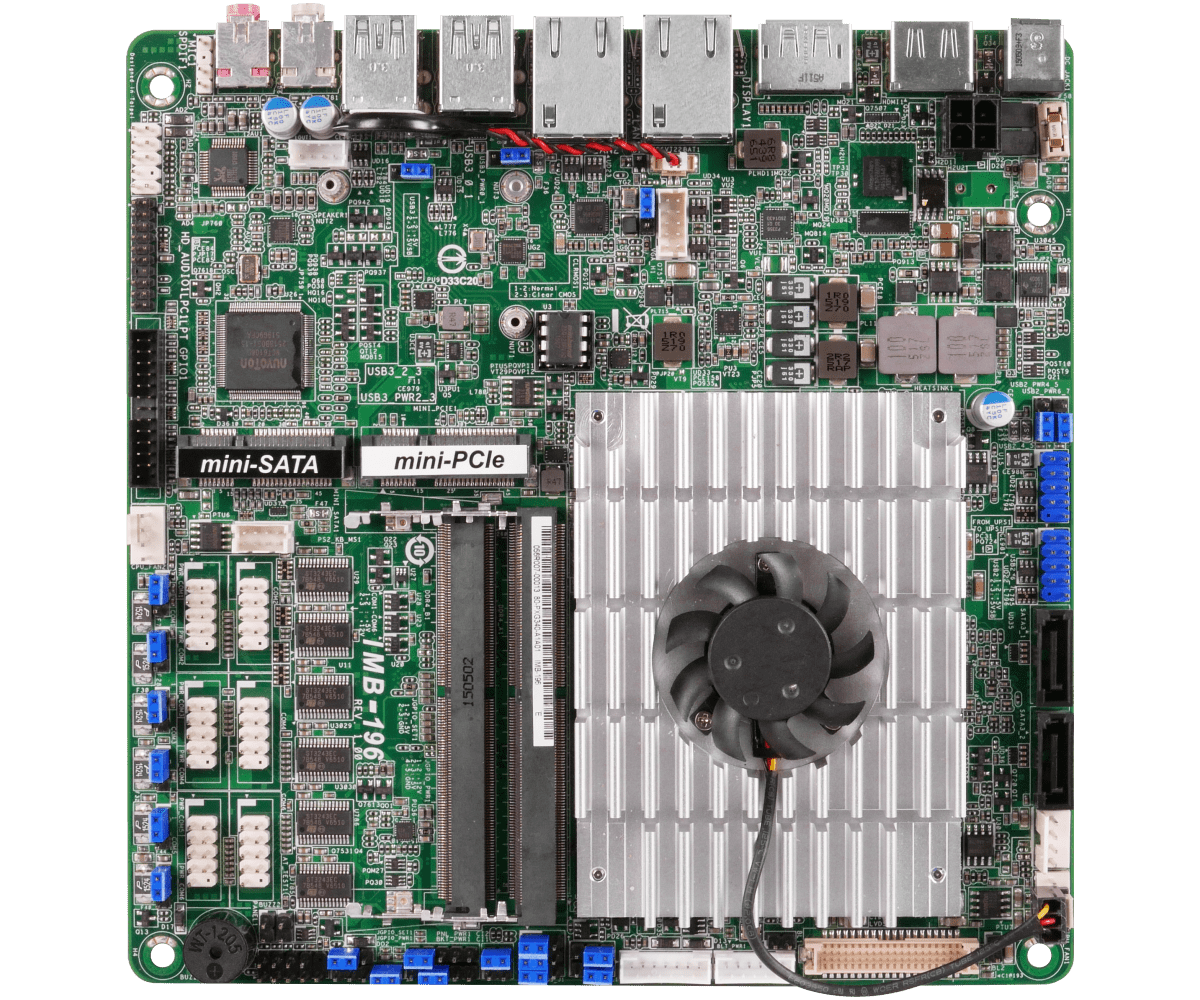

-->> Asrock MINI-ITX motherboard BGA1356 Skylake-U Dual Display IMB-196 <<--

IMB-196
BGA1356 for Intel? Core i7/i5 (Skylake-U)
Integrated Intel? HD Graphics Built-in Visuals
Supports DDR4 2133MHz, 2 x SO-DIMM, up to 32GB system memory
1 x Displayport, 1 x HDMI, 1 x 24 bit Dual Channel LVDS colay with eDP
4 x USB 3.0, 4 x USB 2.0,2 x SATA3
1 x mini-PCIe, 1x mSATA
Gigabit LAN : 1 x Intel? LAN, 1 x Realtek LAN
1 x TPM Header
12V / 19~24V DC-in





Form Factor

Dimensions - Mini-ITX (6.7-in x 6.7-in)

Processor System
CPU - BGA1356 for Intel? Core i7 / i5 (Skylake-U)
Core Number - (By CPU, Max 2)
Max Speed - (By CPU)
L2 Cache - (By CPU)
Chipset - No
BIOS - UEFI

Expansion Slot
PCIe - 0
Mini-PCIe - 1 (full/half size, supports PCIe x1 and USB devices)
mSATA - 1 (full size, supports SATA devices only)

Memory
Technology - Dual Channel DDR4 2133 MHz SDRAM
Max. - 32GB
Socket - 2 x SO-DIMM

Graphics
Controller - Intel? HD Graphics 520
VRAM - Shared Memory
VGA - Supports max. resolution 1920 x 1200
DVI - No
LVDS - Dual channel 24-bit co-lay with eDP, max resolution 1920 x 1200@60Hz
HDMI - Supports HDMI, max resolution 4096 x 2160@60Hz
DisplayPort - Supports DP 1.2, max resolution 4096 x 2160@60Hz
MultiDisplay - Yes (Triple Display)

Ethernet
Ethernet - 10/100/1000 Mbps
Controller - 1 x Intel? I219LM, 1 x Realtek RTL8111G
Connector - 2 x RJ45

Storage
Max Data Transfer Rate - SATA3 (6.0Gb/s)

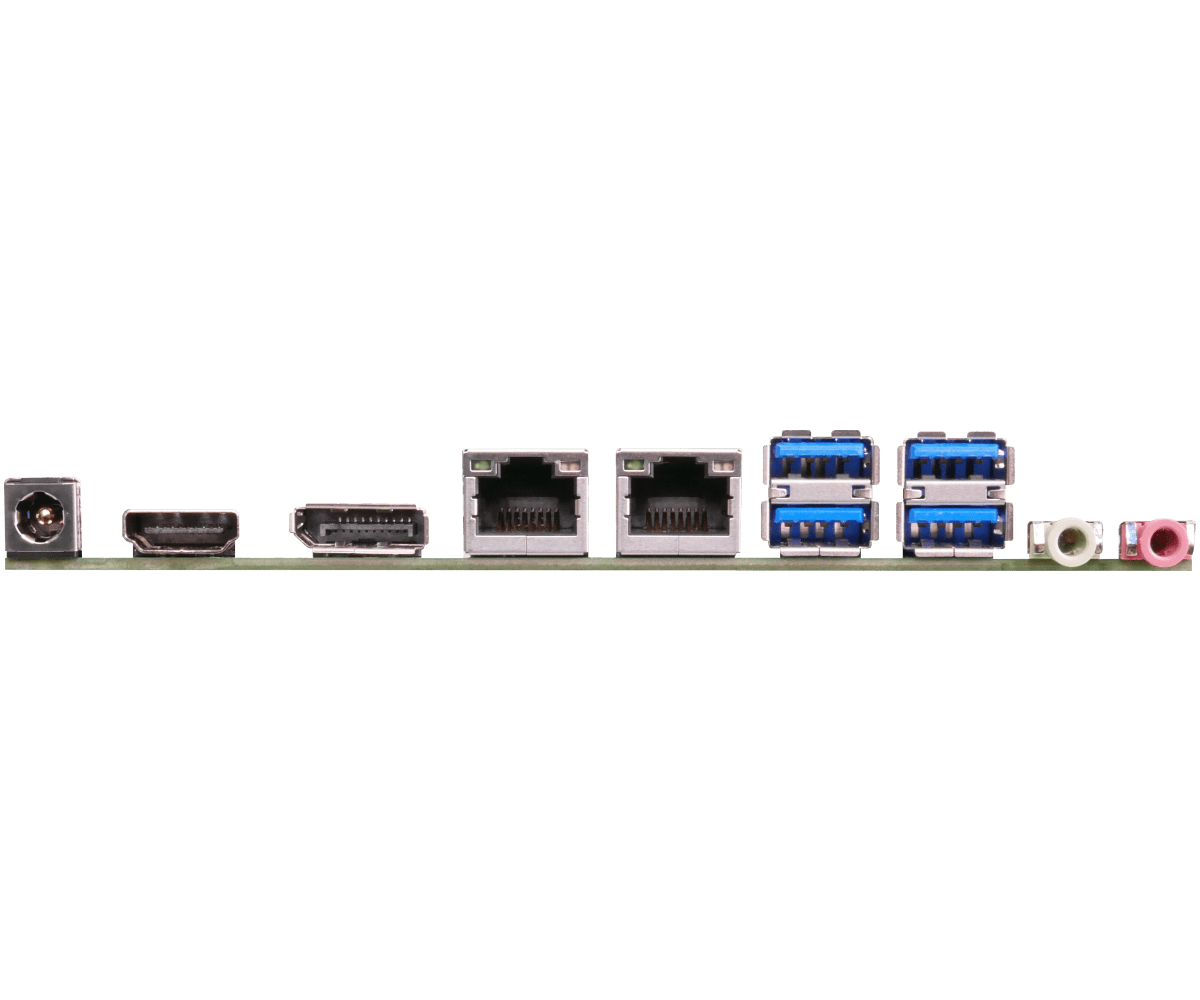

Rear I/O
VGA - 0
DVI - 0
HDMI - 1
DisplayPort - 1
Ethernet - 2
USB - 4 x USB 3.0
Audio - 2 (Mic-in. Line-out)
Serial - 0
PS2 - 0

Internal Connector
USB - 4 x USB 2.0 (2 x 2.54 pitch header)
LVDS / inverter - 1/1
eDP - 1 (colay with LVDS)
VGA - 1 (Optional)
Serial - 6 x RS-232 (COM1, 2 support RS-232/422/485)
SATA - 2
mPCIe - 1
Parallel - 0
mSATA - 1
IrDA - 0
GPIO 8-bit - 8 x GPI, 8 x GPO
SATA PWR Output Con - 1
Speaker Header - 1

Watchdog Timer
Interval - 1,2...255 Sec

Power Requirements
Input PWR - 12V / 19~24V DC-in (DC Jack / 4-pin ATX PWR Con)
Power On
- AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment
Temperature - 0oC – 60oC
