-->> Asrock MINI-ITX motherboard BGA1356 Skylake-U Triple Display IMB-198 <<--

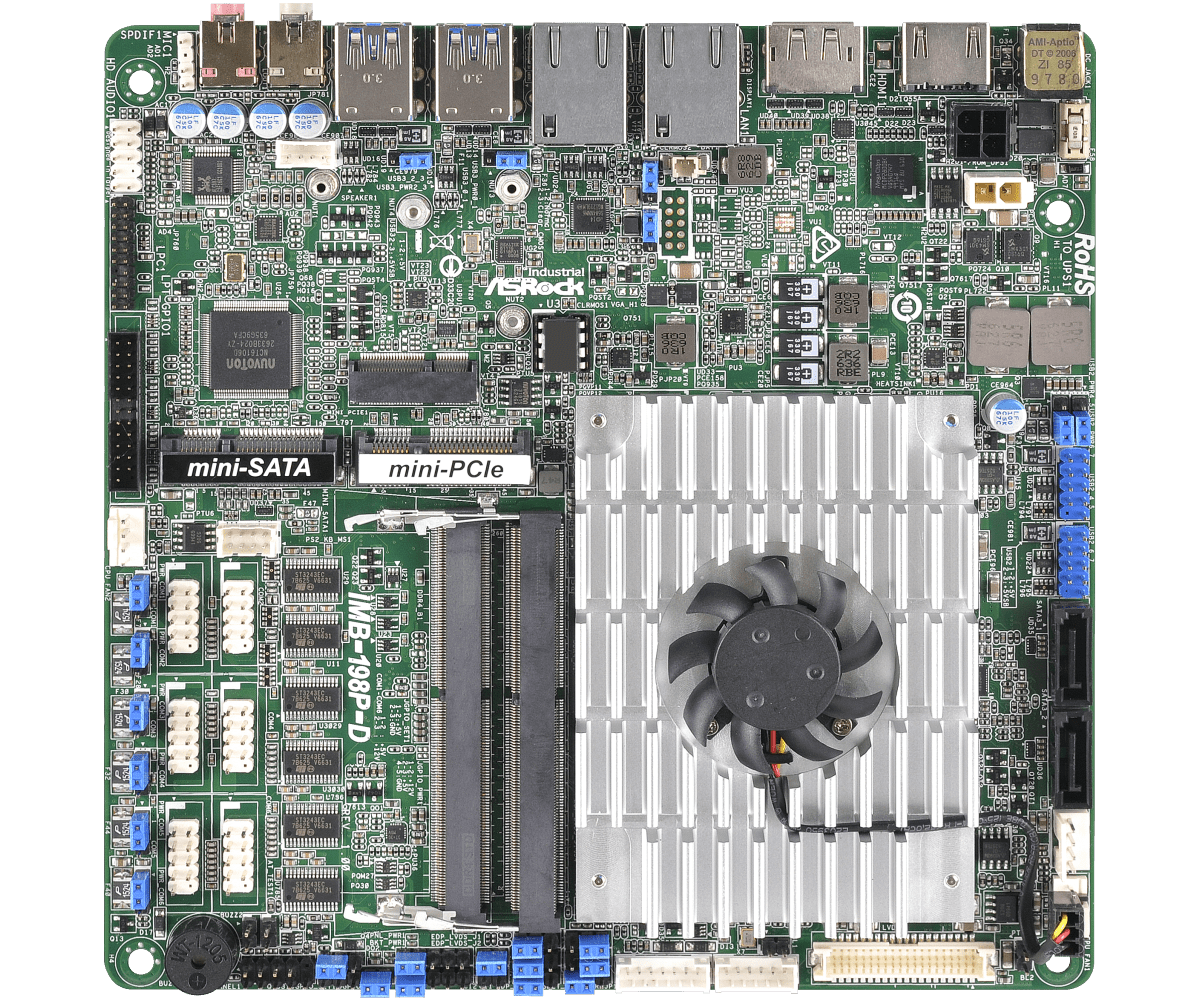

IMB-198
BGA1356 for Intel? Core i7/i5 (Skylake-U)
Intel? Gen9 Intel? Graphics DX 11/12, OGL4.3/4.4
Supports Dual Channel DDR4 2133MHz, 2 x SO-DIMM, up to 32GB system memory
1 x VGA, 1 x HDMI, 1 x Displayport, 1 x eDP
4 xUSB 3.0, 4 x USB 2.0, 2 x SATA3
1 x Mini-PCIe, 1 x mSATA
1 x M.2(Key E)
Gigabit LAN : 1 x Intel? LAN, 1 x Realtek LAN
1 x TPM Header
+12V or +19V~+24V DC-In (DC Jack / 4-pin ATX PWR Con)




Form Factor
Dimensions - Mini-ITX (6.7-in x 6.7-in)
Processor System
CPU - BGA1356 for Intel? Core i7 / i5 (Skylake-U)
Max Speed - (By CPU)

Memory
Technology - Dual Channel DDR4 2133 MHz
Max. - 32GB
Socket - 2 x SO-DIMM

Graphics
Controller - Intel? Gen9 Graphics DX 11/12, OGL4.3/4.4
VRAM - Shared Memory
VGA - Supports max resolution up to 1920 x 1200
DVI - No
LVDS - Supports max resolution up to 1920 x 1200@60Hz
HDMI - Supports max resolution up to 4096 x 2160@24Hz
DisplayPort - Supports max resolution up to 4096 x 2160@60Hz
MultiDisplay - Yes (Triple Display)

Ethernet
Ethernet - 10/100/1000 Mbps
Controller
- 1 x Intel? I219LM(vPro)
- 1 x Realtek RTL8111G
Connector - 2 x RJ45

Storage
Max Data Transfer Rate - SATA3 (6.0Gb/s)

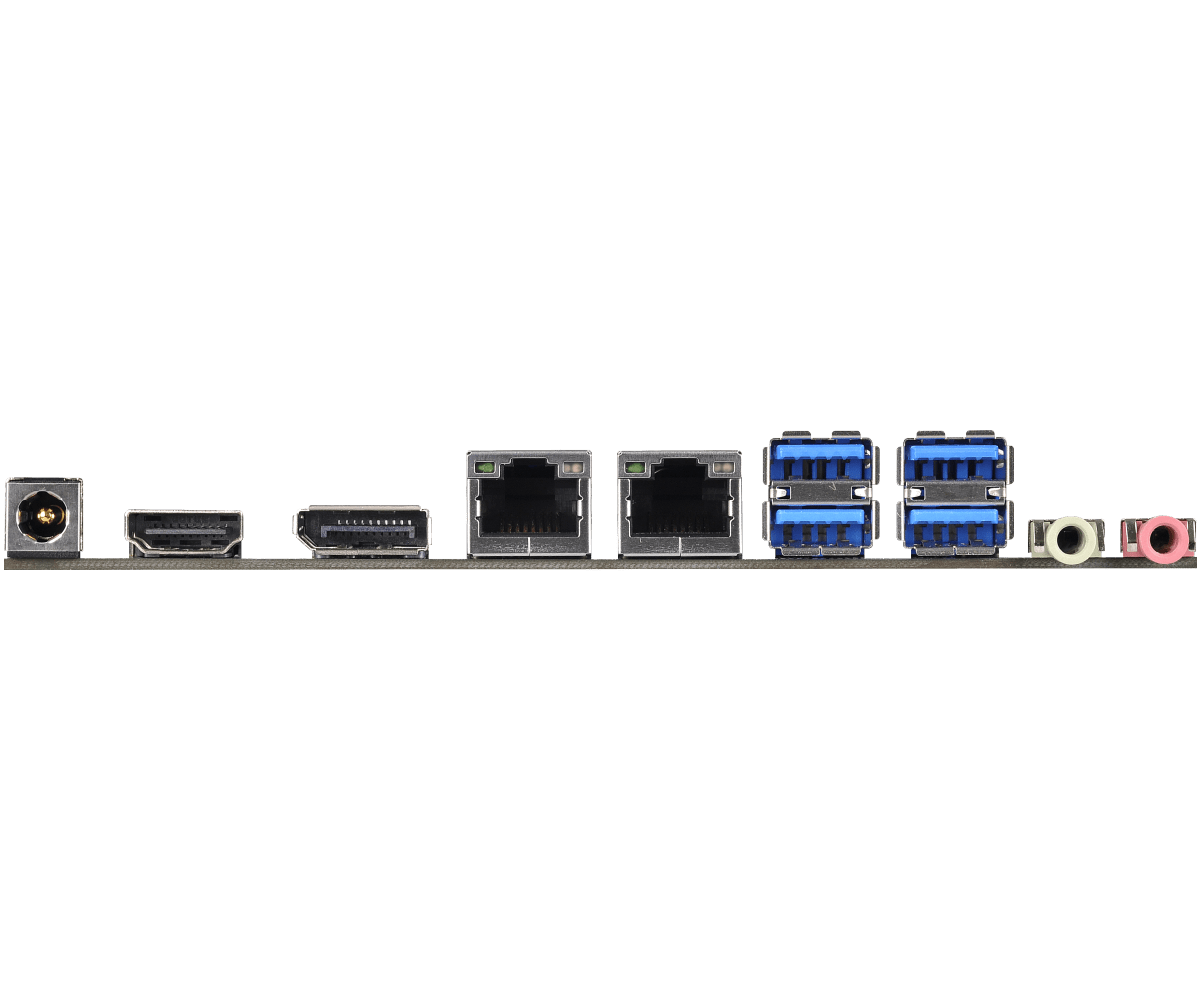

Rear I/O
VGA - 0
DVI - 0
HDMI - 1
DisplayPort - 1
Ethernet - 2
USB - 4 x USB 3.0
Audio - 2 (Mic-in, Line-out)
Serial - 0
PS2 - 0

Internal Connector
USB - 4 x USB 2.0 (2 x 2.54 pitch header)
LVDS / inverter - 1/1
eDP - 1
VGA - 1
Serial - 6 x COM (COM1 and COM2 with RS-232/422/485)
SATA - 2
mPCIe - 1
Parallel - 1 (shared with GPIO)
mSATA - 1
IrDA - 0
GPIO 8-bit - 8 x GPI + 8 x GPO
SATA PWR Output Con - 1
Speaker Header - 1

Watchdog Timer
Outpu - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2...255sec/min

Power Requirements
Input PWR - +12V or +19V~+24V DC-In (DC Jack / 4-pin ATX PWR Con)
Power On
- AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment
Temperature - 0oC – 60oC
