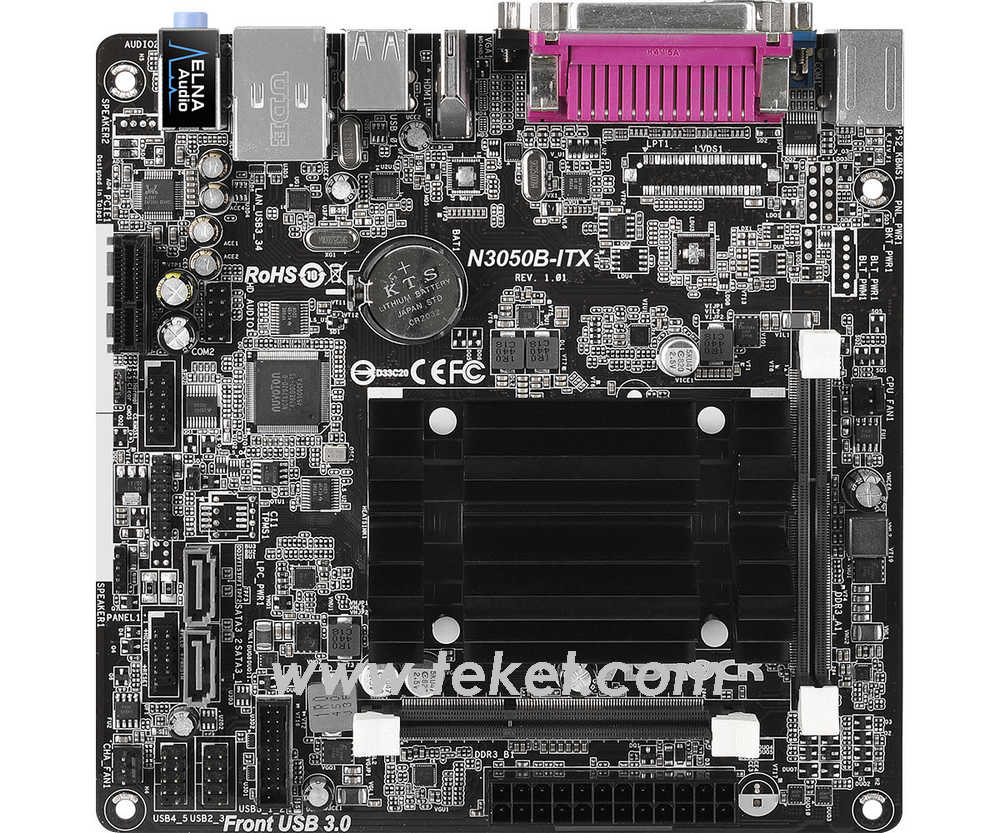

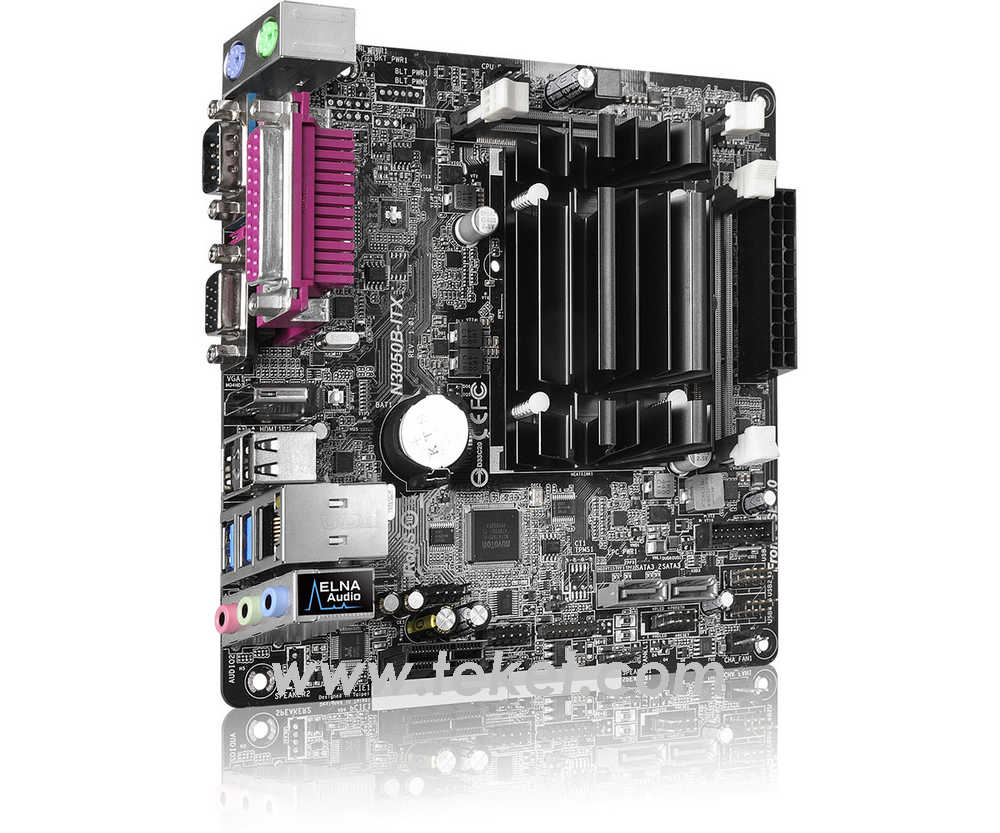

-->> Asrock MINI-ITX motherboard Intel Celeron N3050 2.16Ghz with Intel HD Graphic N3050B-ITX <<--

N3050B-ITX
Small, Fast and Furious with Power Gear
Intel? Dual-Core Processor N3050
Solid Capacitor for CPU power
Supports DDR3/DDR3L 1600 memory, 2 SO-DIMM slots
1 PCIe 2.0 x1
Graphics Output Options : D-Sub, HDMI
Built-in Intel? 8th generation (Gen 8) graphics, DirectX 11.1, Pixel Shader 5.0
7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
2 SATA3, 4 USB 3.0 (2 Front, 2 Rear), 6 USB 2.0 (4 Front, 2 Rear)
1 x Parallel Port, 1 x COM Port
1 x TPM Header, 1 x COM Port Header
Supports ASRock APP Shop, Full Spike Protection



N3050B-ITX
Product Specifications
General
Unique Feature ASRock Full Spike Protection
ASRock APP Shop
CPU - Intel? Dual-Core Processor N3050 (up to 2.16 GHz)
Memory - Dual Channel DDR3/DDR3L Memory Technology
- 2 x DDR3/DDR3L SO-DIMM Slots
- Supports DDR3/DDR3L 1600/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows? 32-bit OS. For Windows? 64-bit OS with 64-bit CPU, there is no such limitation.
**If only one SO-DIMM module is installed, please install it into DDR3_A1.

BIOS - 64Mb AMI UEFI Legal BIOS with GUI support
- Supports Plug and Play
- ACPI 5.0 Compliant wake up events
- Supports jumperfree
- SMBIOS 2.7 Support
Audio, Video and Networking
Graphics - Intel? 8th generation (Gen 8) graphics: up to 12 EUs inside
- DirectX 11.1, Pixel Shader 5.0
- Dual graphics output: Support HDMI and D-Sub ports by independent display controllers
- Supports HDMI with max. resolution up to 2560x1600 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HW Accelerated Decoders: H.264 @ level 5.2, H.265/HEVC @ level 5 (GPU accelerated), JPEG, VP8
- Supports HDCP with HDMI Port
- Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port
Audio - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
- Supports Surge Protection (ASRock Full Spike Protection)
- ELNA Audio Caps
*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
- Supports Wake-On-WAN
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Expansion / Connectivity
Slots - 1 x PCI Express 2.0 x1 Slot
Storage - 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector - 1 x COM Port Header
- 1 x TPM Header
- 1 x Chassis Intrusion Header
- 1 x CPU Fan Connector (3-pin)
- 1 x Chassis Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))*
*USB3_1_2 is shared with USB2_3.

Rear Panel I/O - 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Parallel Port (ECP/EPP Support)
- 1 x Serial Port: COM1
- 1 x D-Sub Port
- 1 x HDMI Port
- 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Software and BIOS Software
- ASRock USB Key
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Restart to UEFI*
UEFI
- ASRock Power Gear
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
*These utilities can be downloaded from the APP Shop.

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories - Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
Hardware Monitor - CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor - Mini-ITX Form Factor
- Solid Capacitor for CPU power
- High Density Glass Fabric PCB
OS - Microsoft? Windows? 10 64-bit / 8.1 64-bit / 7 64-bit*
- Linux: Ubuntu 14.04.3 LTS / Ubuntu 15.04 / Ubuntu 15.10 / Fedora 23 / Zorin OS 10 / Arch Linux 2015.10.01 / clonezilla-live-20150915-wily-amd64 / Android-x86-4.4-r3
*To install Windows? 7 64-bit OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.
For the updated Windows? 10 driver, please visit ASRock's website for details.

Certifications - FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)

Caution:
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
