>>Your Current Position: Asrock Motherboard

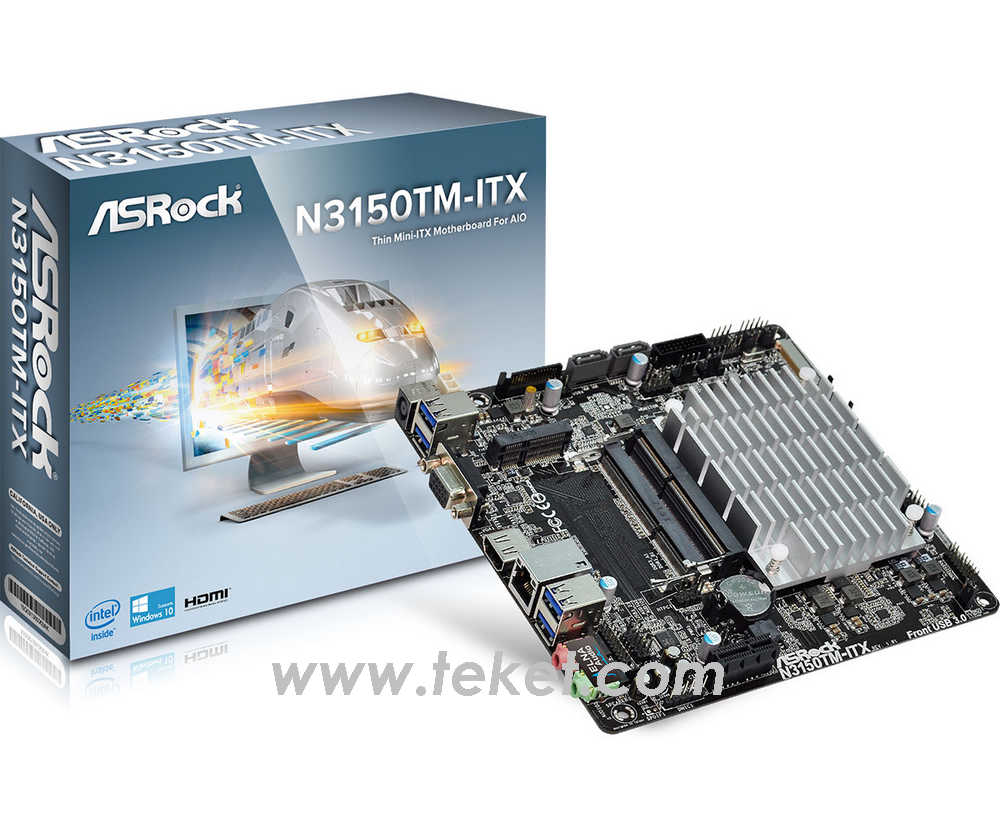

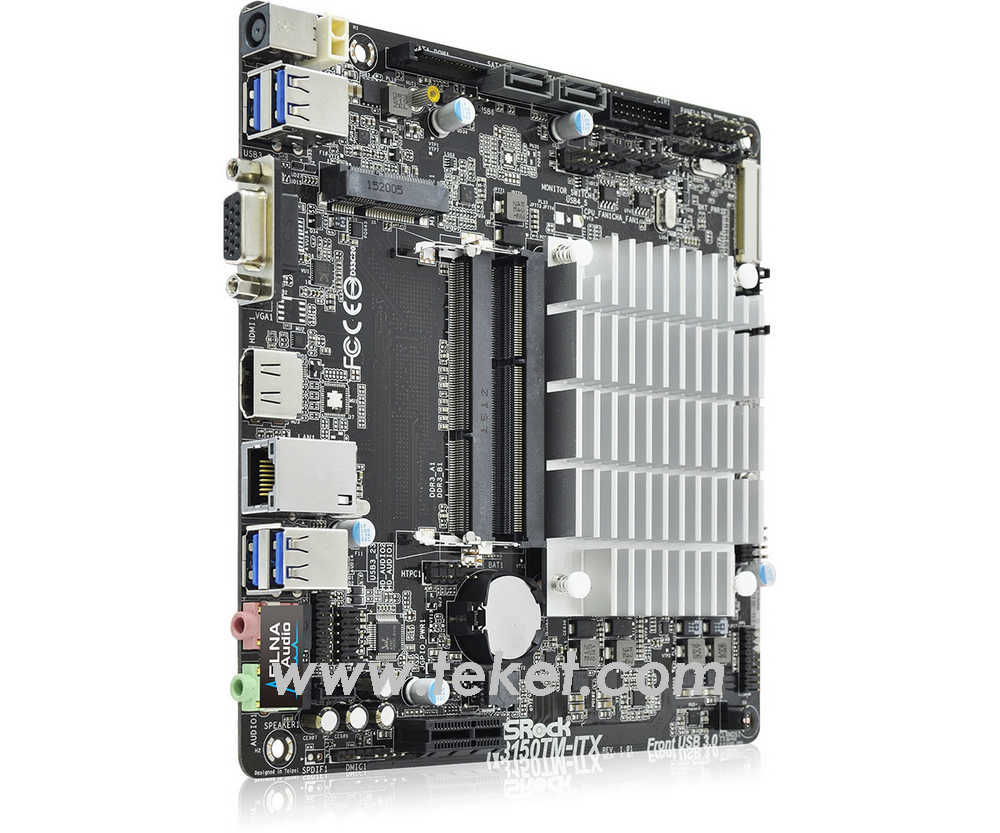

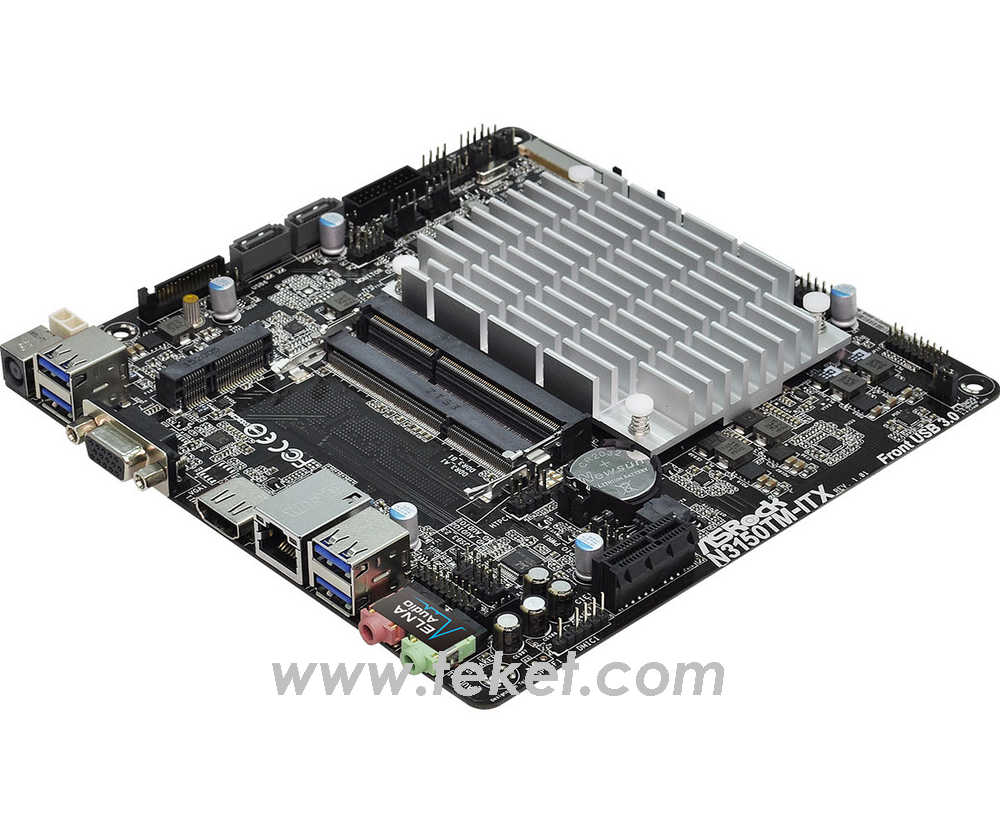

-->> Asrock MINI-ITX motherboard Intel Celeron N3150 2.08Ghz with Intel HD Graphic N3150TM-ITX <<--

N3150TM-ITX
Intel? Quad-Core Processor N3150
Solid Capacitor design
Supports DDR3/DDR3L 1600 memory, 2 SO-DIMM slots
1 PCIe 2.0 x1, 1 Half-size mini-PCIe
Graphics Output Options : D-Sub, HDMI, LVDS
Built-in Intel? 8th generation (Gen 8) graphics, DirectX 11.1, Pixel Shader 5.0
7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), ELNA Audio Caps
2 SATA3, 6 USB 3.0 (2 Front, 4 Rear), 5 USB 2.0
1 x TPM Header, 1 x COM Port Header
1 x DC Jack (Compatible with the 19V power adapter)
Supports ASRock APP Shop, Full Spike Protection



Intel? Quad-Core Processor N3150 (Up to 2.08 GHz)
Improved performance, lower power consumption, and new multimedia capabilities.

14nm CPU Core Inside SoC Motherboards
Built around an Intel? N3000 Series processor, this motherboard packs plenty of expandability, superb integrated performance, and abundant graphics outputs. With its excellent hardware configuration and software support, it is your ideal solution to do business work, play games, or enjoy video and music entertainment. ASRock presents you the best motherboard to build your own mini PC!

Supports Up to 48CH H.265 IP Cameras
ASRock motherboard is able to work as an industrial grade 48 channel NVR (Networking Video Recorder) system. It is also capable of HEVC (H.265) recording for up to 48 IP cameras in D1 (704x576) resolution.

DC-In Jack
Allocate the internal space of your chassis more smartly! The DC-In jack is compatible with 19V wide range power adapters. Without the bulky power supply unit, this unique design allows the motherboard to fit in compact chassis.

mini-PCIe Slot
The mini-PCIe slot is a convenient peripheral interface that can be used for connecting WiFi card.

Supports Standard & Low Voltage SO-DIMMs
Capable of supporting both standard and low-voltage SO-DIMMs.

16GB Memory Support
Each slot supports 8GB memory modules, thus delivering a maximum capacity up to 16GB.

4K Support
4K is a new standard for display resolutions with a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format and four times as many pixels overall. Get ready to lose yourself in this eye popping virtual reality.

Passive Heatsink Design
The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment.

ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Product Specifications

General
Unique Feature ASRock Full Spike Protection
ASRock Live Update & APP Shop
CPU - Intel? Quad-Core Processor N3150 (up to 2.08 GHz)
Memory - Dual Channel DDR3/DDR3L Memory Technology
- 2 x DDR3/DDR3L SO-DIMM Slots
- Supports DDR3/DDR3L 1600/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB**
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows? 32-bit OS. For Windows? 64-bit OS with 64-bit CPU, there is no such limitation.
*If only one SO-DIMM module is installed, please install it into DDR3_A1.
BIOS - 64Mb AMI UEFI Legal BIOS with GUI support
- Supports Plug and Play
- ACPI 5.0 Compliant wake up events
- Supports jumperfree
- SMBIOS 2.7 Support
Audio, Video and Networking
Graphics - Intel? 8th generation (Gen 8) graphics: up to 12 EUs inside
- DirectX 11.1, Pixel Shader 5.0
- Three graphics output options: D-Sub, HDMI and LVDS
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 2560x1600 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports LVDS with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HW Accelerated Decoders: H.264 @ level 5.2, H.265/HEVC @ level 5 (GPU accelerated), JPEG, VP8
- Supports HDCP with HDMI Port
- Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port
Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
- Premium Blu-ray Audio support
- Supports Surge Protection (ASRock Full Spike Protection)
- ELNA Audio Caps
*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
- Supports Wake-On-WAN
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Expansion / Connectivity
Slots - 1 x PCI Express 2.0 x1 Slot
- 1 x Half-size Mini-PCI Express Slot (Bluetooth function in WiFi module is not supported)*
*Due to the power limitation and PCIe bandwidth (x1), the VGA card is not supported.
Storage - 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector - 1 x Backlight Power Selection Jumper
- 1 x Panel Power Selection Jumper
- 1 x Backlight Control Header
- 1 x Digital Input / Output Pin Header
- 1 x Digital Input / Output Power Selection Jumper
- 1 x Home Theater PC Header
- 1 x Monitor Switch Header
- 1 x Digital MIC Header
- 1 x 3W Audio AMP Output Wafer Header
- 1 x LVDS Connector
- 1 x CIR Header
- 1 x COM Port Header
- 1 x Power LED Header
- 1 x TPM Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (4-pin)
- 1 x SATA Power Connector
- 1 x Internal Power Header
- 1 x Front Panel Audio Connector
- 1 x Analog Surround Audio Connector
- 3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.0 Header by Etron EJ188 (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

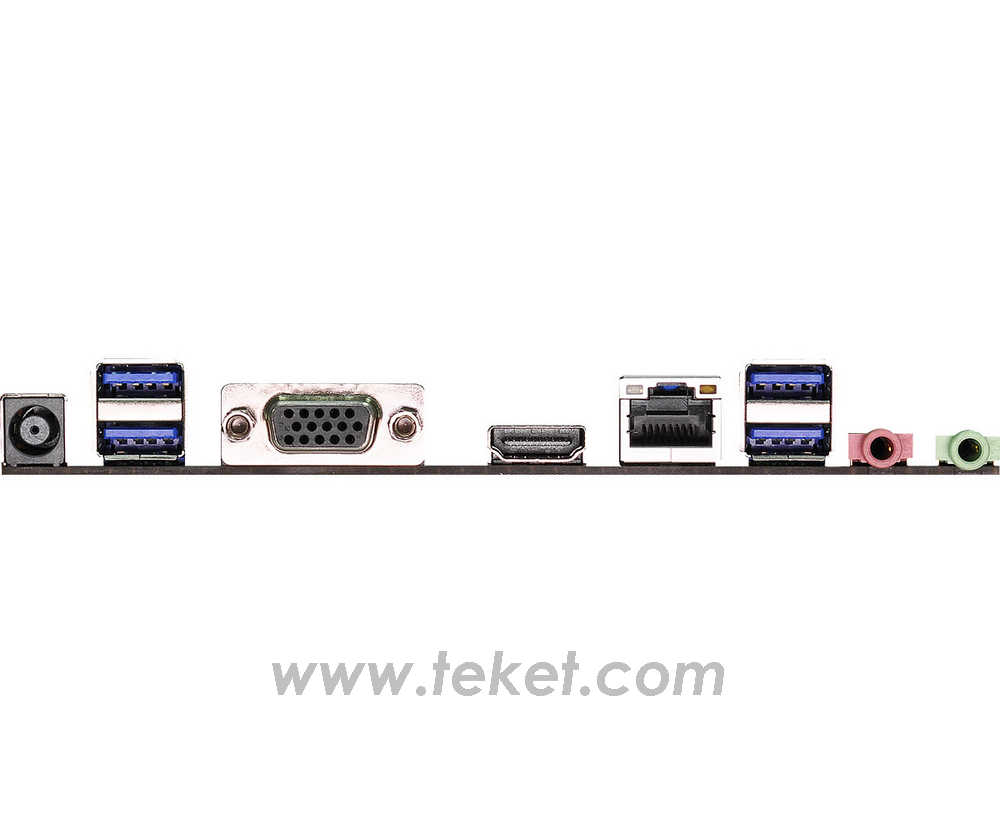

Rear Panel I/O - 1 x DC Jack (Compatible with the 19V power adapter)
- 1 x D-Sub Port
- 1 x HDMI Port
- 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Microphone / Front Speaker (Supports SPDIF Optical)

*Please use a 19V power adapter for the DC jack. his jack accepts dual barrel plugs with an inner diameter of 5.1 mm and an outer diameter of 7.4 mm, where the inner contact is +19 (±10%) VDC and the shell is GND.
Other Features / Miscellaneous
Software and BIOS Software
- ASRock USB Key
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Restart to UEFI*
UEFI
- ASRock Power Gear
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
*These utilities can be downloaded from the APP Shop.
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories - Quick Installation Guide, Support CD, I/O Shields
- 2 x SATA Data Cables
- 1 x SATA 1 to 2 Power Cable
- 1 x WiFi Module Screw
Hardware Monitor - CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor - Thin Mini-ITX Form Factor (Compatible with Mini-ITX)
- Solid Capacitor design
- High Density Glass Fabric PCB
OS - Microsoft? Windows? 10 64-bit / 8.1 64-bit / 7 64-bit*
- Linux: Ubuntu 14.04.3 LTS / Ubuntu 15.04 / Ubuntu 15.10 / Fedora 23 / Zorin OS 10 / Arch Linux 2015.10.01 / clonezilla-live-20150915-wily-amd64 / Android-x86-4.4-r3
*To install Windows? 7 64-bit OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.
For the updated Windows? 10 driver, please visit ASRock's website for details.
Certifications - FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
Caution:
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
