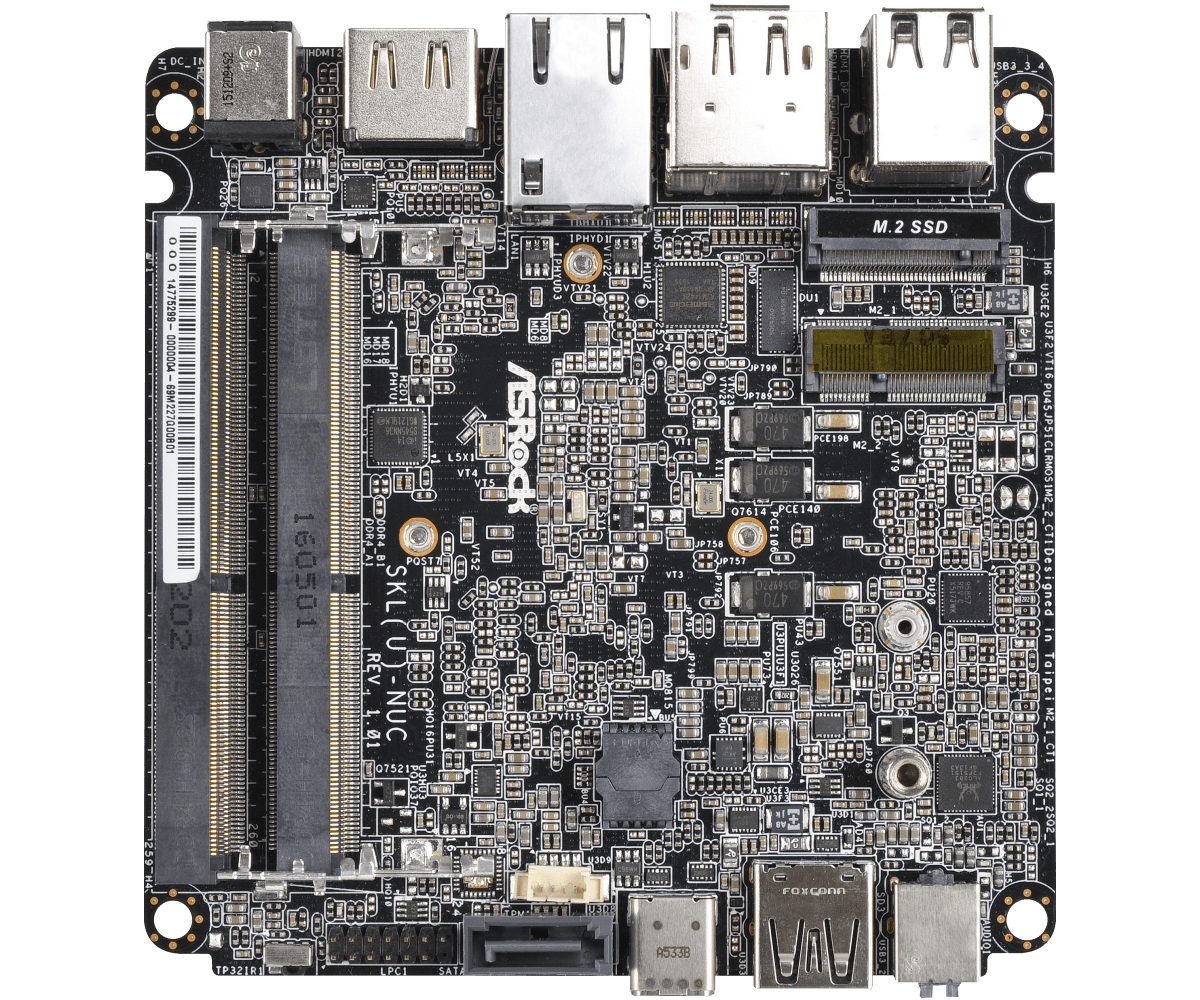

-->> Asrock Embedded NUC size 104x102mm NUC-6100U <<--

NUC-6100U
Intel? Skylake-U SoC
Supports Dual Channel DDR4 2133MHz, 2 x SO-DIMM, up to 32GB system memory
2 x HDMI, 1 x DP
Supports Dual Display (HDMI 1 + DP or HDMI 1 + HDMI 2)
3 xUSB 3.0, 1 x USB 3.1 (Type C), 1 x IR
Gigabit LAN : 1 x Intel? i219V with non vPro (NUC-6100U)
19V DC-in

Form Factor
Dimensions - 4.09" x 4.02" (104 x 102mm)
Processor System
CPU - Intel? 6th Gen Core U Processor (Core i3-6100U)
Core Number - 2
Max Speed - (By CPU)
L2 Cache - 3MB
Chipset - (By CPU)
BIOS - UEFI
Memory
Technology - Dual Channel DDR4 2133 MHz
Max. - 32 GB
Socket - 2 x SO-DIMM
Graphics
Controller - Intel? HD Graphics 520
VRAM - share Memory
VGA - no
DVI - no
LVDS - no
HDMI
- HDMI 1 : Supports max resolution up to 4K x 2K@60Hz
- HDMI 2 : Supports max resolution up to 4Kx2K@30Hz
DisplayPort - Supports max resolution up to 4096x2160@60Hz
MultiDisplay - Yes (Dual Display, supports HDMI 1 + DP or HDMI 1 + HDMI 2)
Ethernet
Ethernet - 10/100/1000 Mbps
Controller - 1 x Intel? i219V (non vPro)
Connector - 1 x RJ45
Storage
Max Data Transfer Rate - SATA3 (6.0Gb/S)

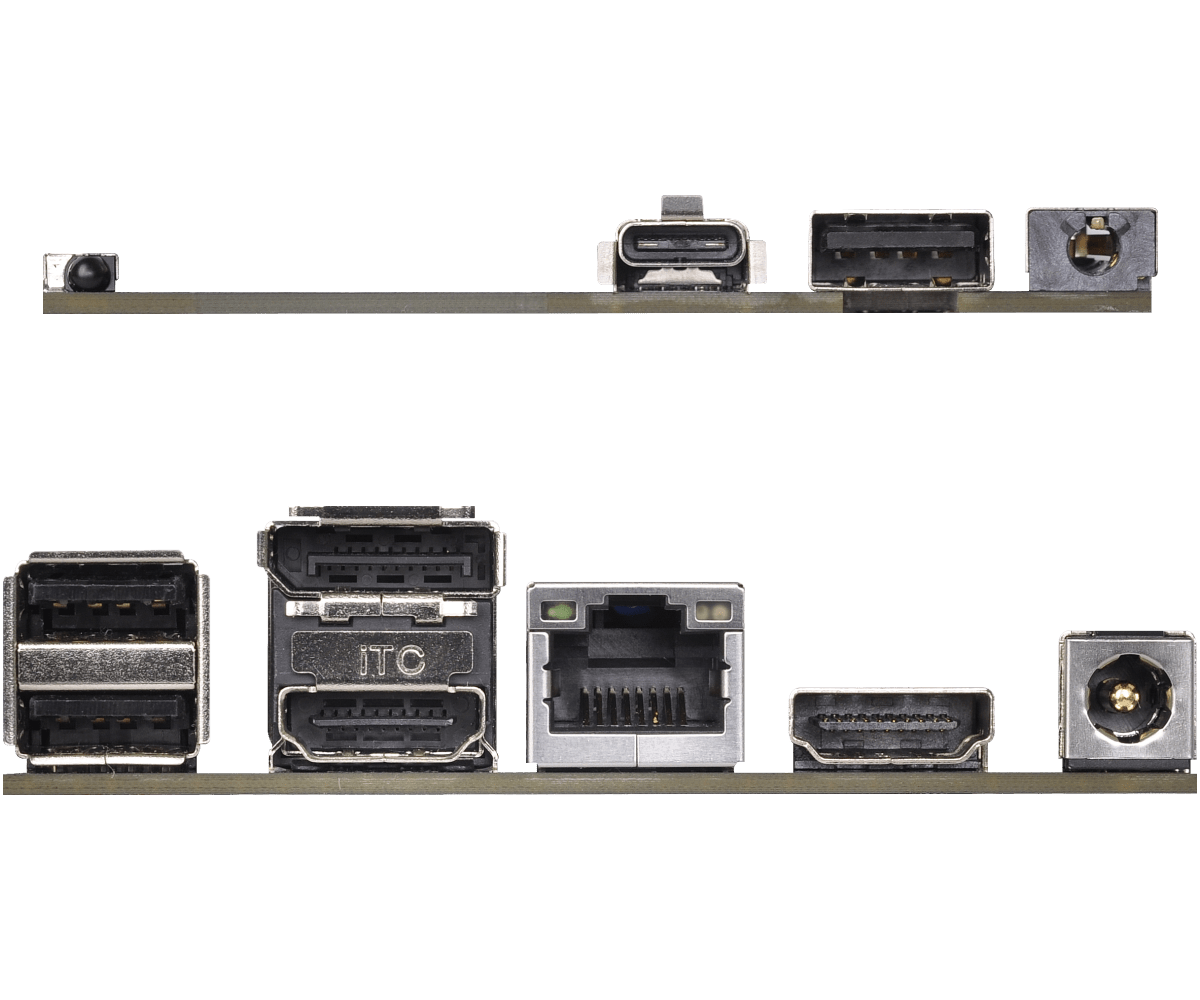

Rear I/O
VGA - 0
DVI - 0
HDMI - 2
DisplayPort - 1
Ethernet - 1
USB - 4 (3 x USB 3.0 compliant, 1 x USB 3.1 Type C)
Audio - 1 (Mic-in, Line-out)
Serial - 0
eSATA - 0
PS2 - 0
Internal Connector
USB - 0
LVDS / inverter - 0
VGA - 0
Serial - 0
SATA - 1 x SATA3 (6.0Gb/s)
Parallel - 0
M.2 - 1 for Wi-Fi (TYPE 2230), 1 for SSD (TYPE 2260)
IrDA - 1
GPIO 8-bit - 0
SATA PWR Output Con - 1
Speaker Header - 0
Watchdog Timer
Output - 0
Interval - 0
Power Requirements
Input PWR
- 19V / 65W DC-In (DC Jack)
Power On
- ATX Supported
- ATX: Press Button to PWR on after Power input ready
Environment
Temperature - 0oC – 60oC
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
