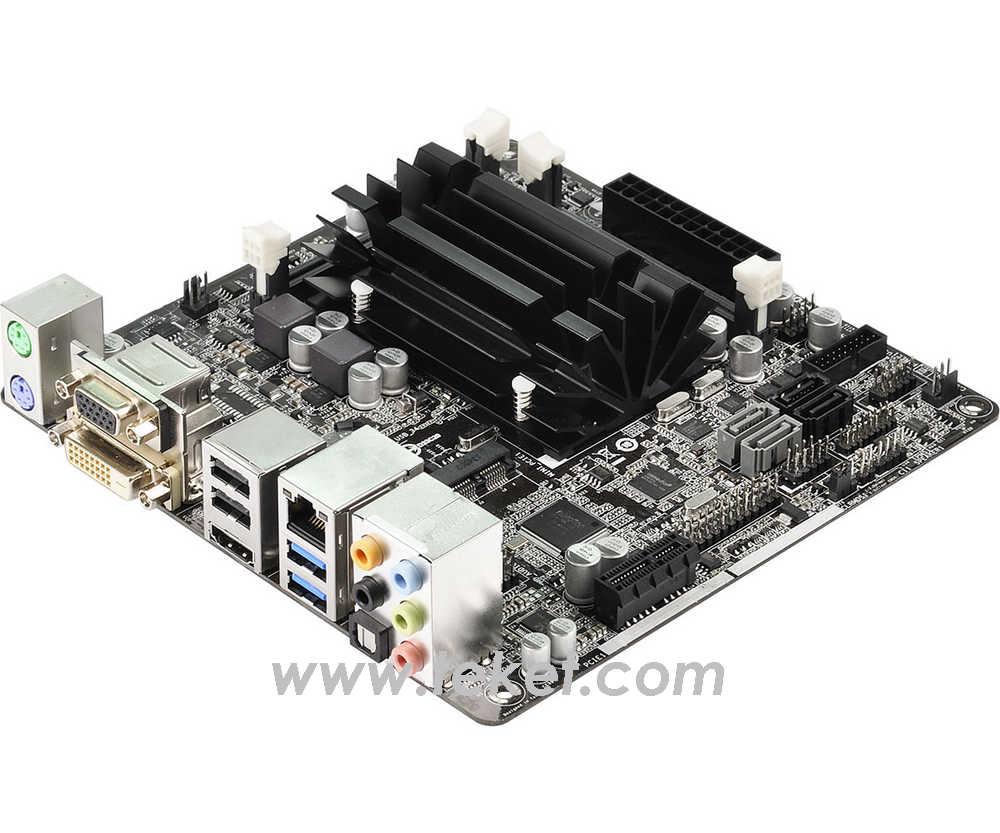

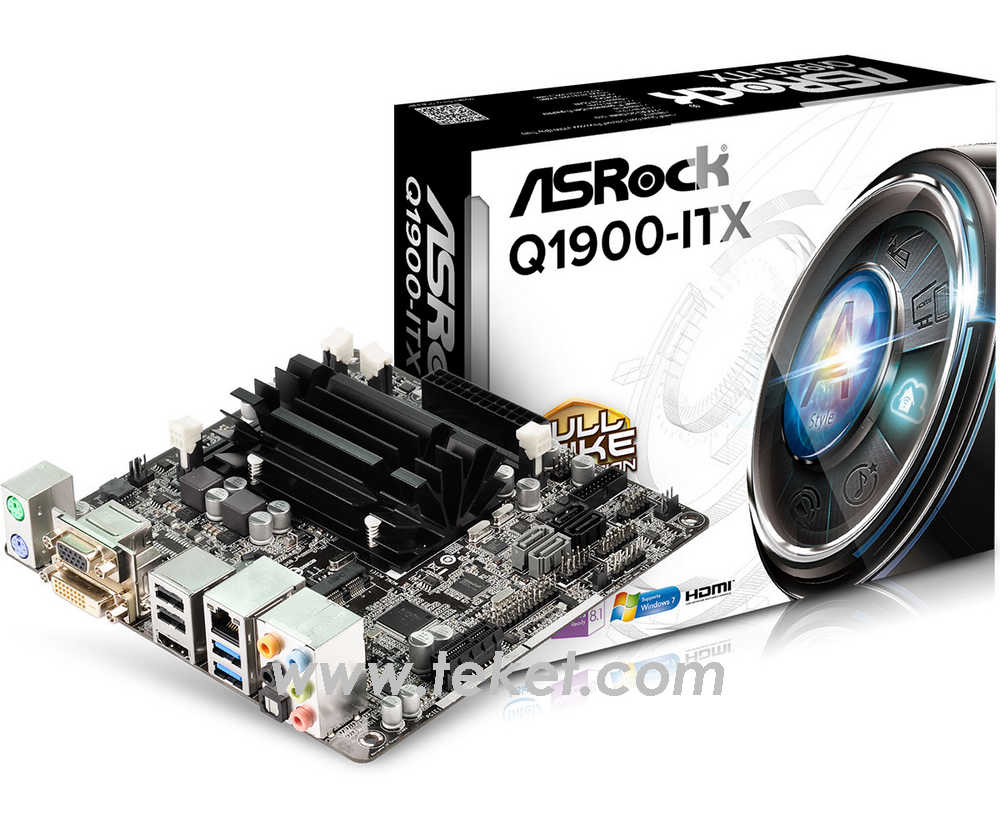

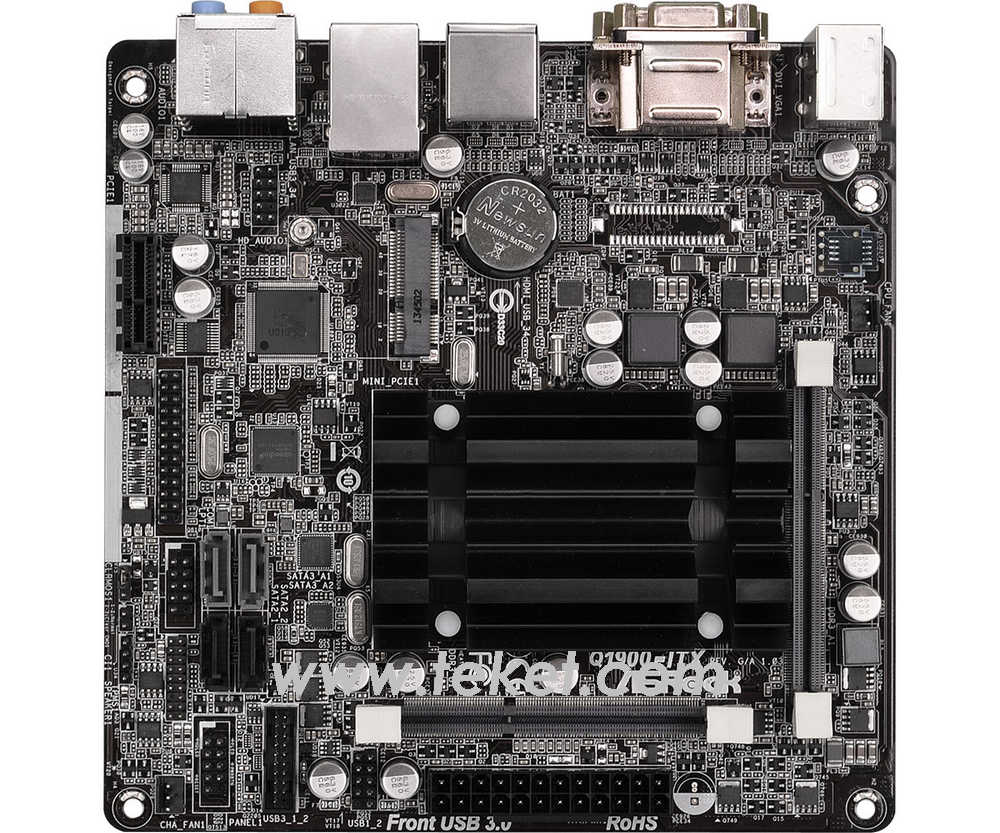

-->> Asrock MINI-ITX motherboard Intel Celeron J1900 2.41Ghz with Intel HD Graphic Q1900-ITX <<--

Q1900-ITX
Compact and fanless Mini-ITX motherboard with plenty of storage options!
Intel? Quad-Core Processor J1900 + Mini-ITX Motherboard
All Solid Capacitor design
Supports DDR3/DDR3L 1333 memory, 2 x SO-DIMM slots
1 PCIe 2.0 x1, 1 mini-PCIe
Graphics Output Options : D-Sub, DVI-D, HDMI
Built-in Intel? 7th generation (Gen 7) graphics, DirectX 11.0, Pixel Shader 5.0
7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
2 SATA3, 2 SATA2, 4 USB 3.0 (2 Front, 2 Rear), 4 USB 2.0 (2 Front, 2 Rear)
1 x Print Port Header, 1 x COM Port Header
Supports A-Tuning, XFast LAN, XFast RAM, USB Key

Q1900-ITX
Product Specifications
General
Unique Feature - ASRock Full Spike Protection
- ASRock Cloud
CPU - Intel? Quad-Core Processor J1900 (2 GHz)
Memory - Dual Channel DDR3/DDR3L Memory Technology
- 2 x DDR3/DDR3L SO-DIMM Slots
- Supports DDR3/DDR3L 1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows? 32-bit OS. For Windows? 64-bit OS with 64-bit CPU, there is no such limitation.
**If only one SO-DIMM module is installed, please install it into DDR3_A1.

BIOS - 64Mb AMI UEFI Legal BIOS with GUI support
- Supports Plug and Play
- ACPI 5.0 Compliant wake up events
- Supports jumperfree
- SMBIOS 2.7 Support
Audio, Video and Networking
Graphics - Intel? 7th generation (Gen 7) graphics
- DirectX 11.0, Pixel Shader 5.0
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with DVI-D and HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection (ASRock Full Spike Protection)
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
- Supports Wake-On-WAN
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Expansion / Connectivity
Slots - 1 x PCI Express 2.0 x1 Slot
- 1 x Half Size mini-PCI Express Slot
Storage - 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
Connector - 1 x Print Port Header
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Chassis Intrusion Header
- 1 x CPU Fan Connector (3-pin)
- 1 x Chassis Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.0 Header by ASMedia ASM1074 (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

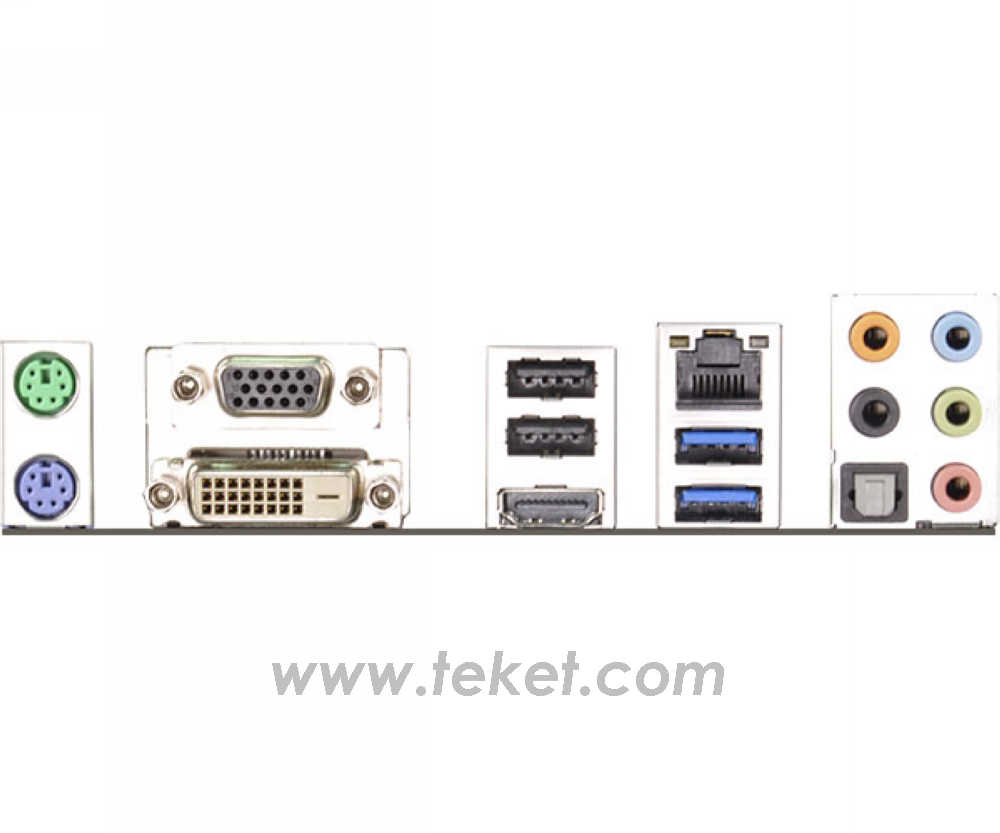

Rear Panel I/O - 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Software and BIOS Software
- ASRock A-Tuning
- ASRock APP Shop
- ASRock USB Key
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Restart to UEFI
UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial)
Accessories - Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 1 x WiFi Module Screw
Hardware Monitor - CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor - Mini-ITX Form Factor
- All Solid Capacitor design
- High Density Glass Fabric PCB
OS - Microsoft? Windows? 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Certifications - FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
Caution:
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
