-->> Asrock MINI-ITX motherboard Intel Celeron J1900 2.00Ghz with Intel HD Graphic Q1900TM-ITX <<--

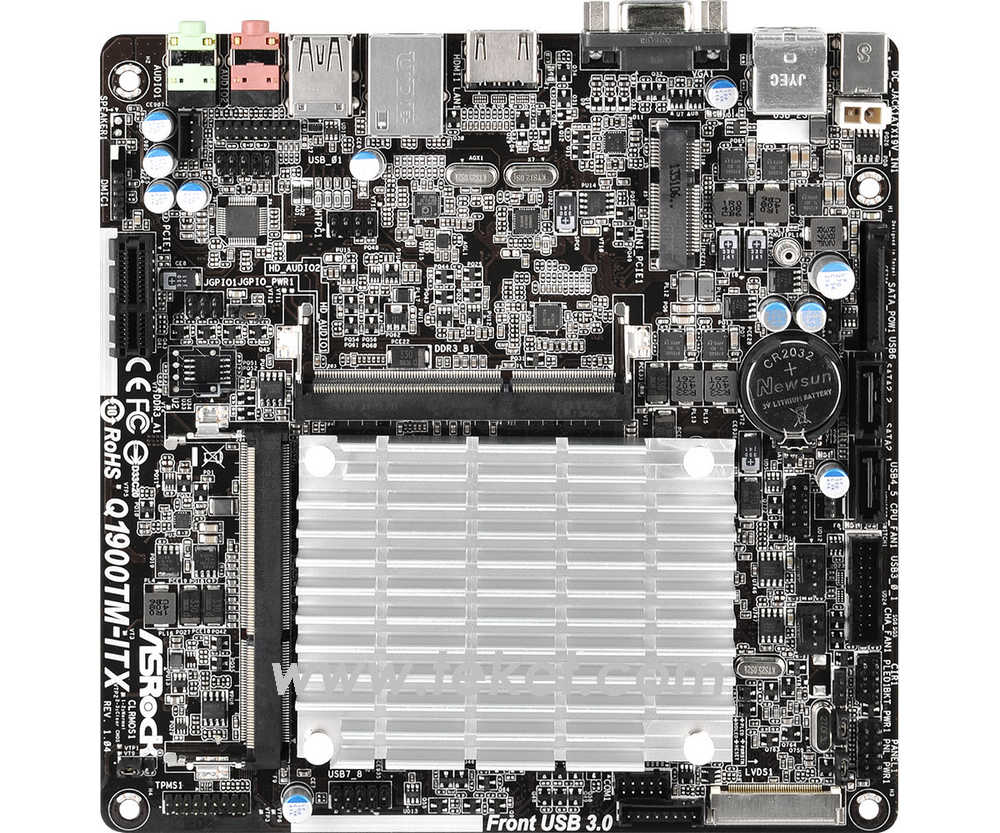

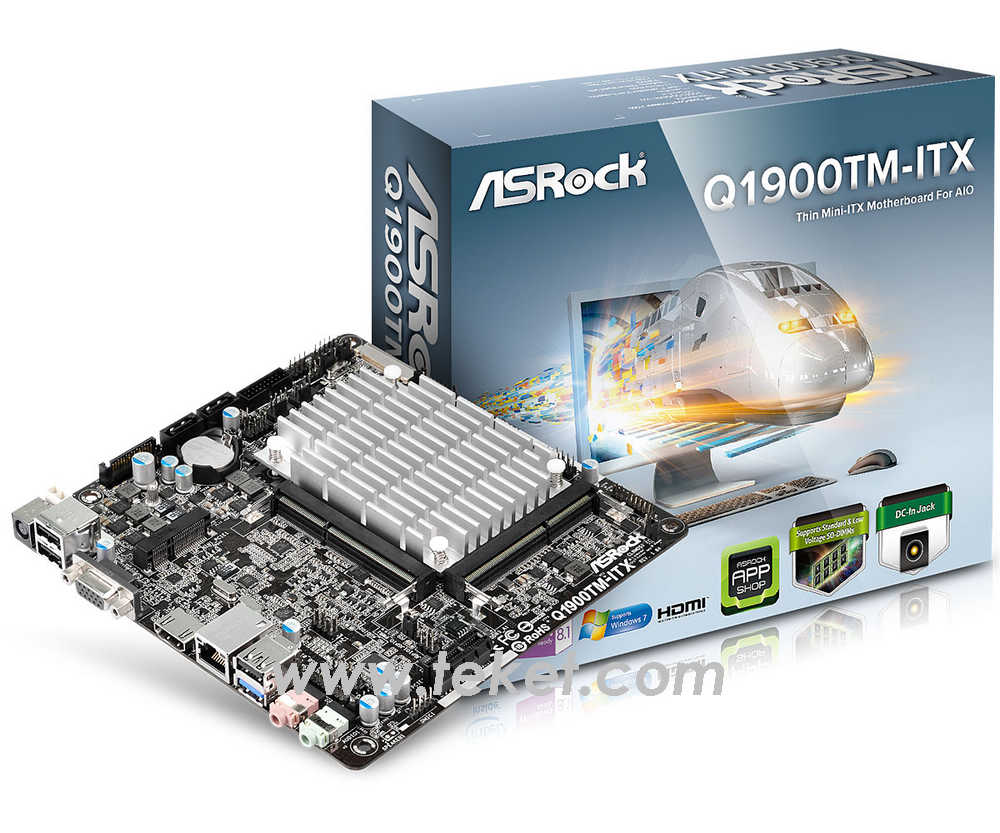

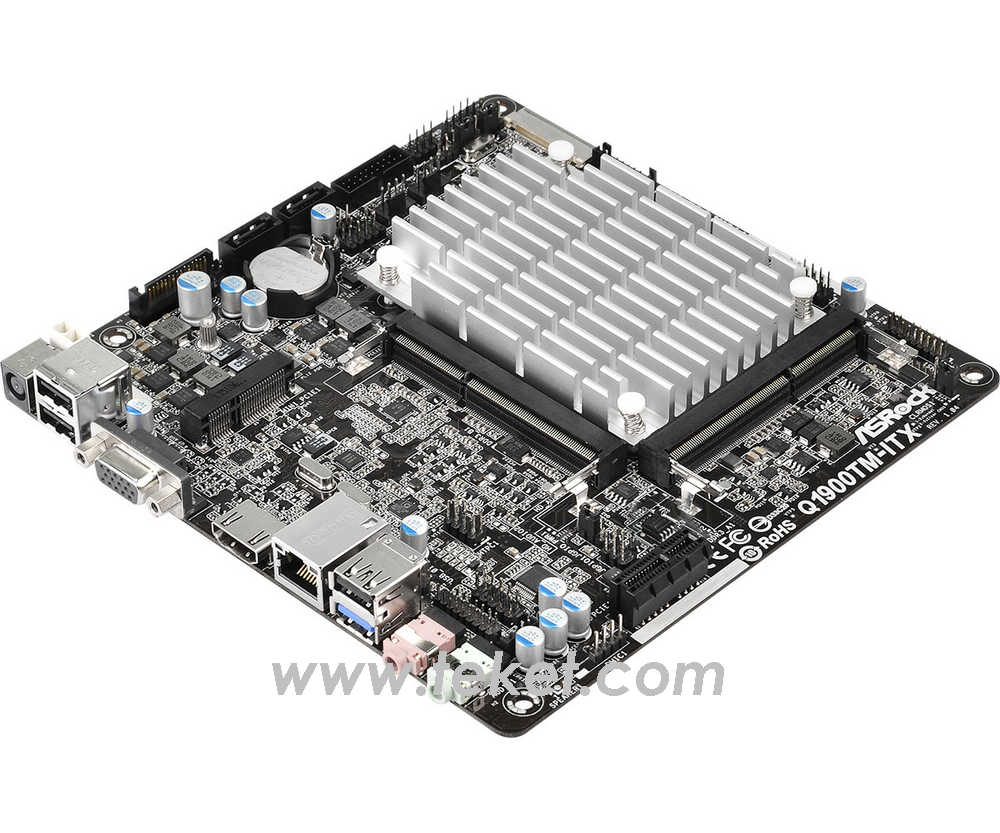

Q1900TM-ITX
A Thin Mini-ITX motherboard and Quad-Core J1900 processor combo for AIO solution
Intel? Quad-Core Processor J1900 + Thin Mini-ITX Motherboard
ASRock DuraCap (2.5 x longer life time)
Supports DDR3/DDR3L 1333 memory, 2 SO-DIMM slots
1 PCIe 2.0 x1, 1 mini-PCIe
Graphics Output Options : D-Sub, HDMI, LVDS
Built-in Intel? 7th generation (Gen 7) graphics, DirectX 11.0, Pixel Shader 5.0
7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
2 SATA2, 3 USB 3.0 (2 Front, 1 Rear), 8 USB 2.0 (5 Front, 3 Rear)
1 x COM Port Header, 1 x DC-In Jack (Compatible with 19V power adapter)
Supports A-Tuning, XFast LAN, XFast RAM, USB Key



Intel? Quad-Core Processor J1900
Intel? Processor J1900 brings whole new computing experiences to life with improved performance, lower power consumption and new multimedia capabilities.

The Best Motherboard for building a Mini PC
Built with an Intel? Quad-Core J1900 Processor and a Thin Mini-ITX motherboard, this motherboard packs plenty of expandability, superb integrated performance, and abundant graphics outputs. With its excellent hardware configuration and software support, it is your ideal solution to do business work, play games, or enjoy video and music entertainment. ASRock presents you the best motherboard to build your own all-in-one PC!

LVDS
This motherboard packs one LVDS connector for more graphics expandabilities. LVDS is able to run at high data transfer speeds and operate at low power. With 1920x1200 high resolution support and low power consumption, this motherboard is very ideal for AIO and extreme compact chassis.

Supports Standard & Low Voltage SO-DIMM
Compared with other counterparts that support DDR3 low-voltage SO-DIMM only, this motherboard is capable of supporting both standard and low-voltage SO-DIMM, therefore provides more DRAM compatibilities.

DuraCap
This motherboard uses ASRock DuraCaps that are 100% made in Japan. These special capacitors feature an all solid high quality conductive polymer design that brings ultra stable performance and long lasting durability to up to 2.5 times longer lifespan.

Fanless Design
The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment.

Supports Windows? 7 & 8/8.1
This motherboard supports not only Windows? 8/8.1 but also Windows? 7 32-bit/64-bit. Therefore, users have more options to install their operating systems.

DC-In Jack
Allocate the internal space of your chassis more smartly! The DC-In jack is compatible with the 19V power adapter. Without the bulky power supply unit, this unique design allows the motherboard to fit in compact chassis.

Q1900TM-ITX
Product Specifications
General
Unique Feature ASRock Full Spike Protection
ASRock Cloud
ASRock APP Shop
CPU - Intel? Quad-Core Processor J1900 (2 GHz)
Memory - Dual Channel DDR3/DDR3L Memory Technology
- 2 x DDR3/DDR3L SO-DIMM Slots
- Supports DDR3/DDR3L 1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows? 32-bit OS. For Windows? 64-bit OS with 64-bit CPU, there is no such limitation.
**If only one SO-DIMM module is installed, please install it into DDR3_A1.
BIOS - 64Mb AMI UEFI Legal BIOS with GUI support
- Supports Plug and Play
- ACPI 5.0 Compliant wake up events
- SMBIOS 2.7 Support
Audio, Video and Networking
Graphics - Intel? 7th generation (Gen 7) graphics (Supports Intel? Quick Sync Video)
- DirectX 11.0, Pixel Shader 5.0
- Three graphics output options: D-Sub, HDMI and LVDS
- Supports HDMI with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports LVDS with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with HDMI Port
- Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port
Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
- Premium Blu-ray Audio support
- Supports Surge Protection (ASRock Full Spike Protection)
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Qualcomm? Atheros? AR8171
- Supports Qualcomm? Atheros? Security Wake On Internet Technology
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Expansion / Connectivity
Slots - 1 x PCI Express 2.0 x1 Slot
- 1 x mini-PCI Express Slot (Bluetooth function in WiFi module is not supported)
Storage - 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector - 1 x Backlight Power Selection Jumper
- 1 x Panel Power Selection Jumper
- 1 x Backlight Control Header
- 1 x Digital Input / Output Pin Header
- 1 x Digital Input / Output Power Selection Jumper
- 1 x Home Theater PC Header
- 1 x Monitor Switch Header
- 1 x Digital MIC Header
- 1 x 3W Audio AMP Output Wafer Header
- 1 x LVDS Connector
- 1 x CIR Header
- 1 x COM Port Header
- 1 x Power LED Header
- 1 x TPM Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (4-pin)
- 1 x SATA Power Connector
- 1 x Front Panel Audio Connector
- 3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.0 Header by Etron EJ188 (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

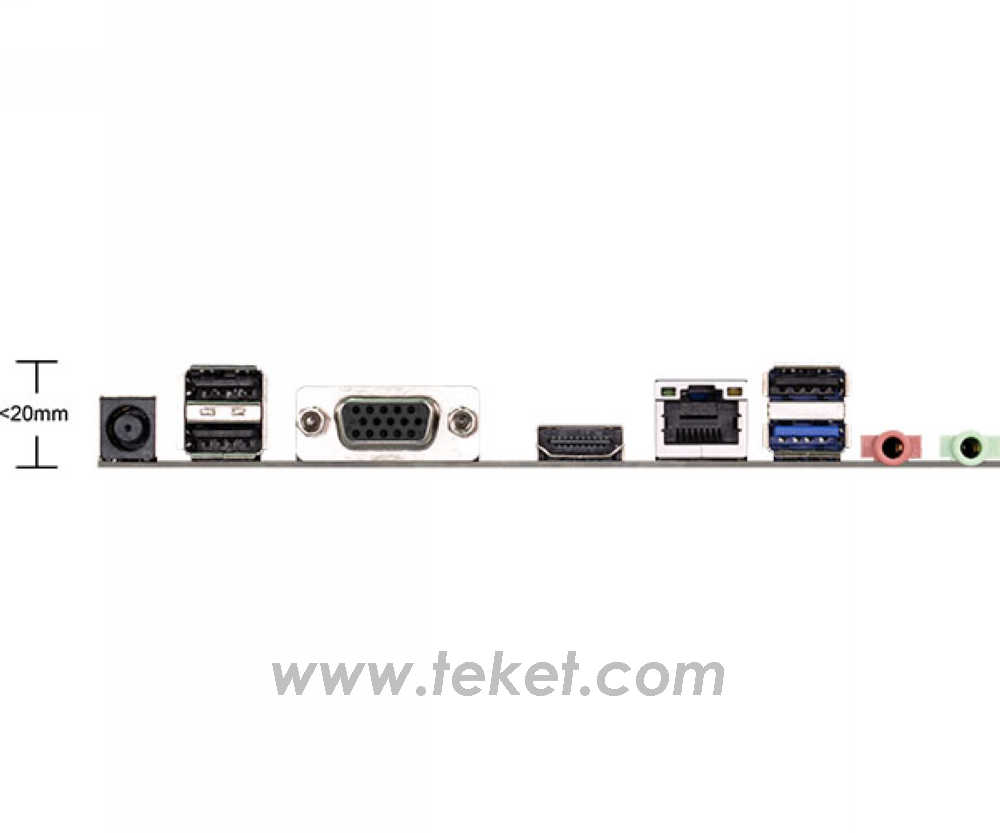

Rear Panel I/O - 1 x DC Jack (Compatible with the 19V power adapter)
- 1 x D-Sub Port
- 1 x HDMI Port
- 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Microphone / Front Speaker (Supports SPDIF Optical)
*Please use a 19V power adapter for the DC jack. his jack accepts dual barrel plugs with an inner diameter of 5.1 mm and an outer diameter of 7.4 mm, where the inner contact is +19 (±10%) VDC and the shell is GND.
Other Features / Miscellaneous
Software and BIOS Software
- ASRock A-Tuning
- ASRock USB Key
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Restart to UEFI
UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial), Kloudian Orbweb.ME Professional (Win 8.1 / 7)
Accessories - Quick Installation Guide, Support CD, I/O Shields
- 2 x SATA Data Cables
- 1 x SATA 1 to 2 Power Cable
- 1 x WiFi Module Screw
Hardware Monitor - CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor - Thin Mini-ITX Form Factor (Compatible with Mini-ITX)
- ASRock DuraCap (2.5 x longer life time) (100% Japan-made high-quality conductive polymer capacitors)
- High Density Glass Fabric PCB
OS - Microsoft? Windows? 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Certifications - FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
Caution:
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
