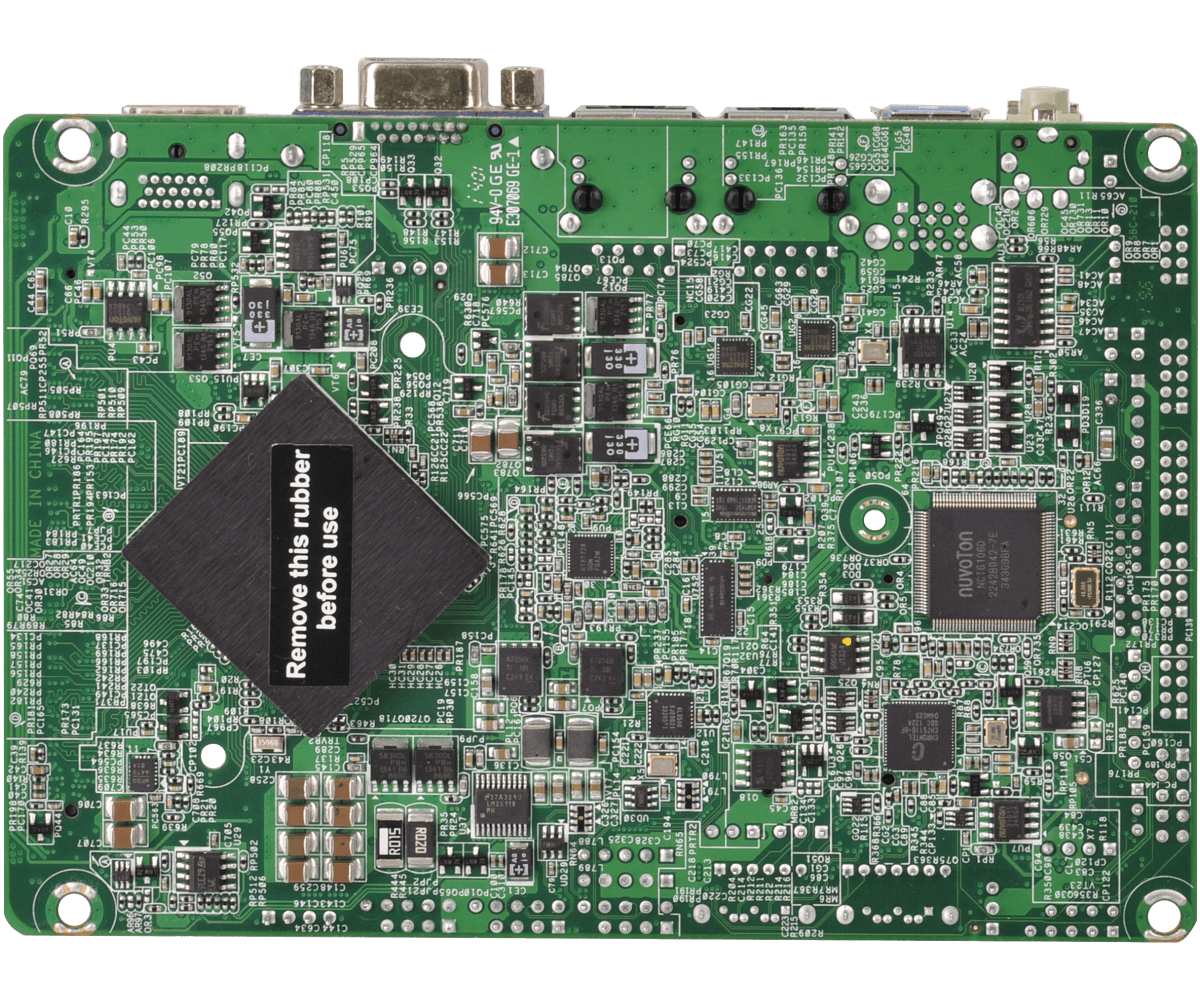

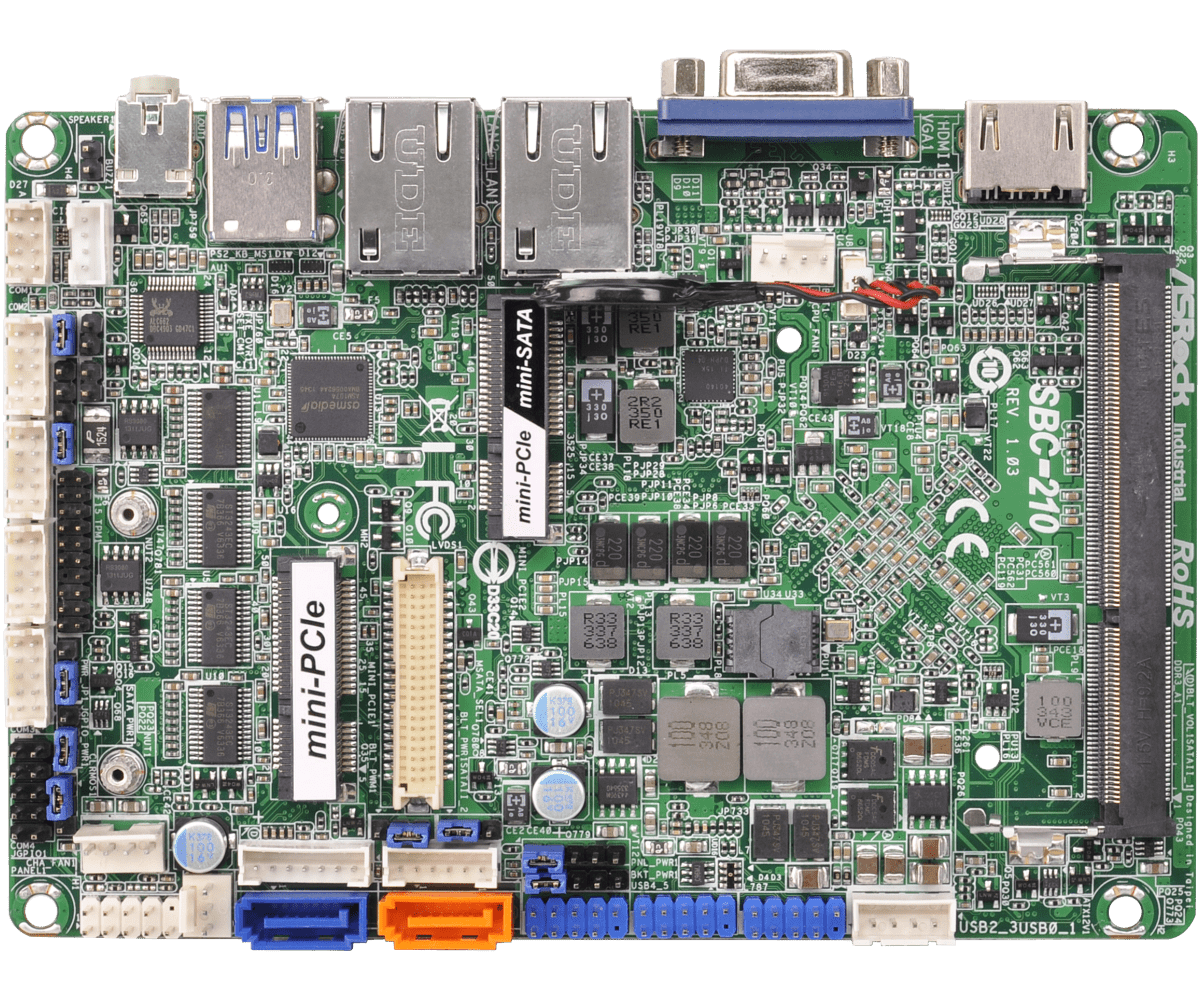

-->> Asrock Embedded 3.5" Single Board Computer SBC-210 <<--

SBC-210
Intel? Celeron? Processor J1900/N2930/N2920
Integrated Intel? Gen7 Intel? Graphics DX 11, OGL3.2
Supports Single Channel DDR3L 1333MHz, 1 x SO-DIMM, up to 8GB system memory
1 x COM (RS-232/422/485), 3 x COM (RS-232)
1 x HDMI, 1 x D-Sub, 1 x Dual Channel 24-bit LVDS
2 x USB 3.0, 6 x USB 2.0, 2 x SATA2
1 x mini-PCIe, 1x mSATA (shared)
Gigabit LAN : 2 x Realtek Lan
1 x TPM Header
9~36 V DC-in

Form Factor
Dimensions - 3.5" SBC (5.8-in x 4.0-in) / ( 146 x 102 mm)
Processor System
CPU - Intel? Celeron? Processor J1900 / N2930 / N2920
Core Number - 4
Max Speed - (By CPU)
L3 Cache - 2MB
Chipset - N/A
BIOS - UEFI
Expansion Slot
PCIe - 0
PCI - 0
Mini-PCIe - 1 (Half Size) + 1 (Full Size) shared with mSATA
mSATA - 1 (Full Size) shared with SATA2
CFast Card Socket - 0
Memory
Technology - Single Channel DDR3L 1333 MHz SDRAM
Max. - 8GB
Socket - 1 x SO-DIMM
Graphics
Controller - Intel? Gen7 Intel? Graphics DX 11, OGL3.2
VRAM - Shared Memory
VGA - Supports max. resolution 1920x1200
DVI - No
LVDS - Dual Channel 24-bit, max resolution 1920 x 1200@60Hz
HDMI - Supports HDMI, max resolution 1920 x 1200
DisplayPort - No
MultiDisplay - Yes (Dual Display)
Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN: Realtek RTL8111G-CG
Connector - 2 x RJ45
Storage
Max Data Transfer Rate - SATA2 (3.0Gb/s)

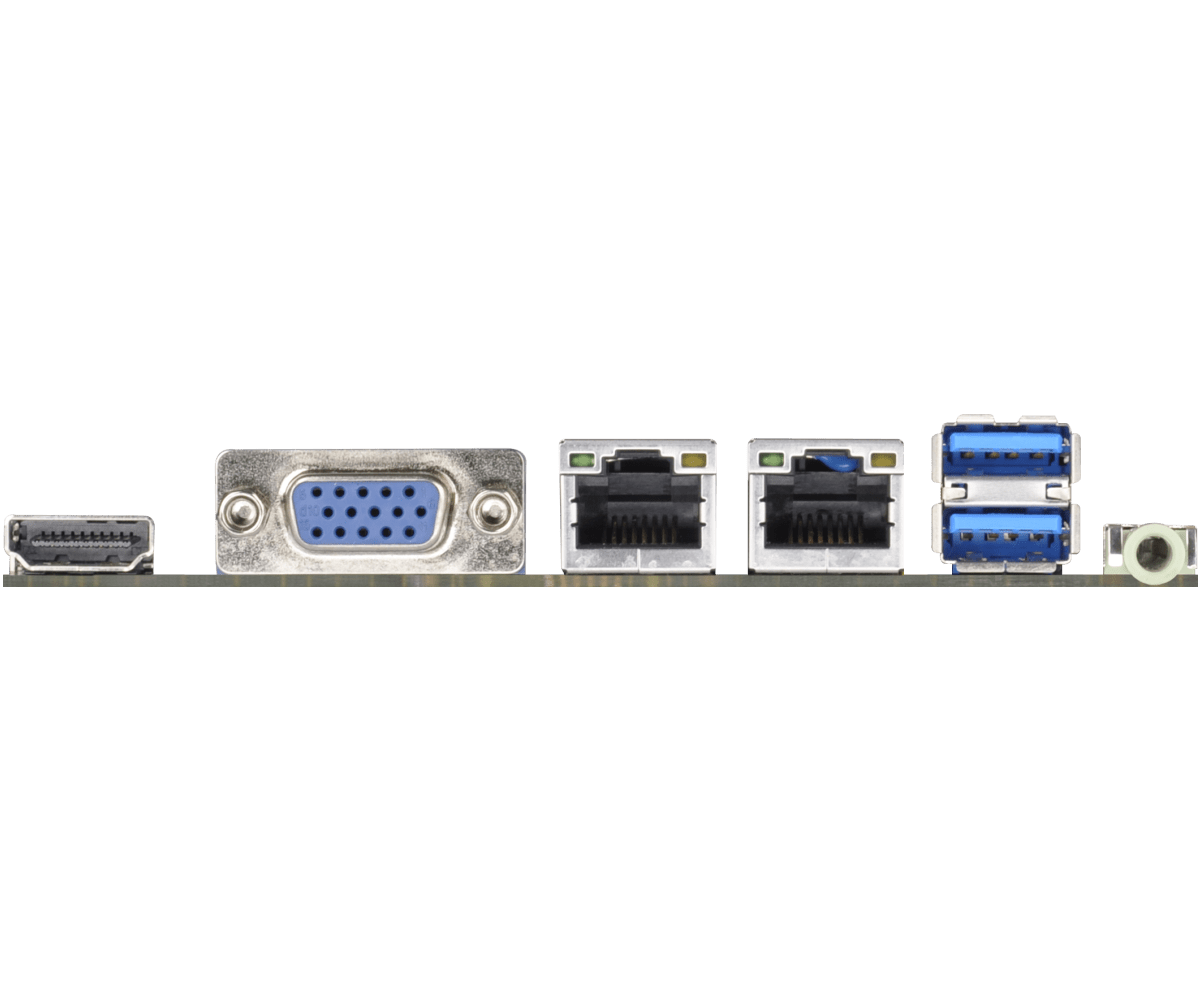

Rear I/O
VGA - 1
DVI - 0
HDMI - 1
DisplayPort - 0
Ethernet - 2
USB - 2 (USB 3.0)
Audio - 1 (Line out)
Serial - 0
eSATA - 0
PS2 - 0
Internal Connector
USB - 6 (3 x 2.54 pitch header USB 2.0 compliant)
LVDS / inverter - 1/1
VGA - 0
Serial - 1 x COM (RS-232/422/485), 3 x COM (RS-232)
SATA - 2 x SATA2 (3.0Gb/s)
mPCIe - 1
Parallel - 0
mSATA - 1 (shared)
IrDA - 0
GPIO 8-bit - 4 x GPI + 4 x GPO
SATA PWR Output Con - 1
Speaker Header - 1
Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2...255sec/min
Power Requirements Input PWR
- 9-36V DC-In using 4-pin ATX PWR Con
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Environment
Temperature - 0oC – 60oC
Others
Ordering Information
- SBC-210D (90-PXG1U1-A0UAYZ, Gift package) : SBC-210 with Intel? Celeron? J1900, 4 Cores, 2.0GHz, 10W, 2M
- SBC-210N (90-PXG1U2-A0UAYZ, Gift package) : SBC-210 with Intel? Celeron? N2930, 4 Cores, 1.83GHz, 7.5W, 2M
*The P/N is set up for gift package only. If you want to order bulk package please contact with your regional sales manager or local distributor.
Packing List
- 1 x Jumper setting guide
- 1 x Driver DVD
- 1 x COM cable
- 1 x SATA cable
- 1 x SATA power cable
- 1 x DC-IN power cable
- 1 x Heatsink
- 2 x Screw for mini card
