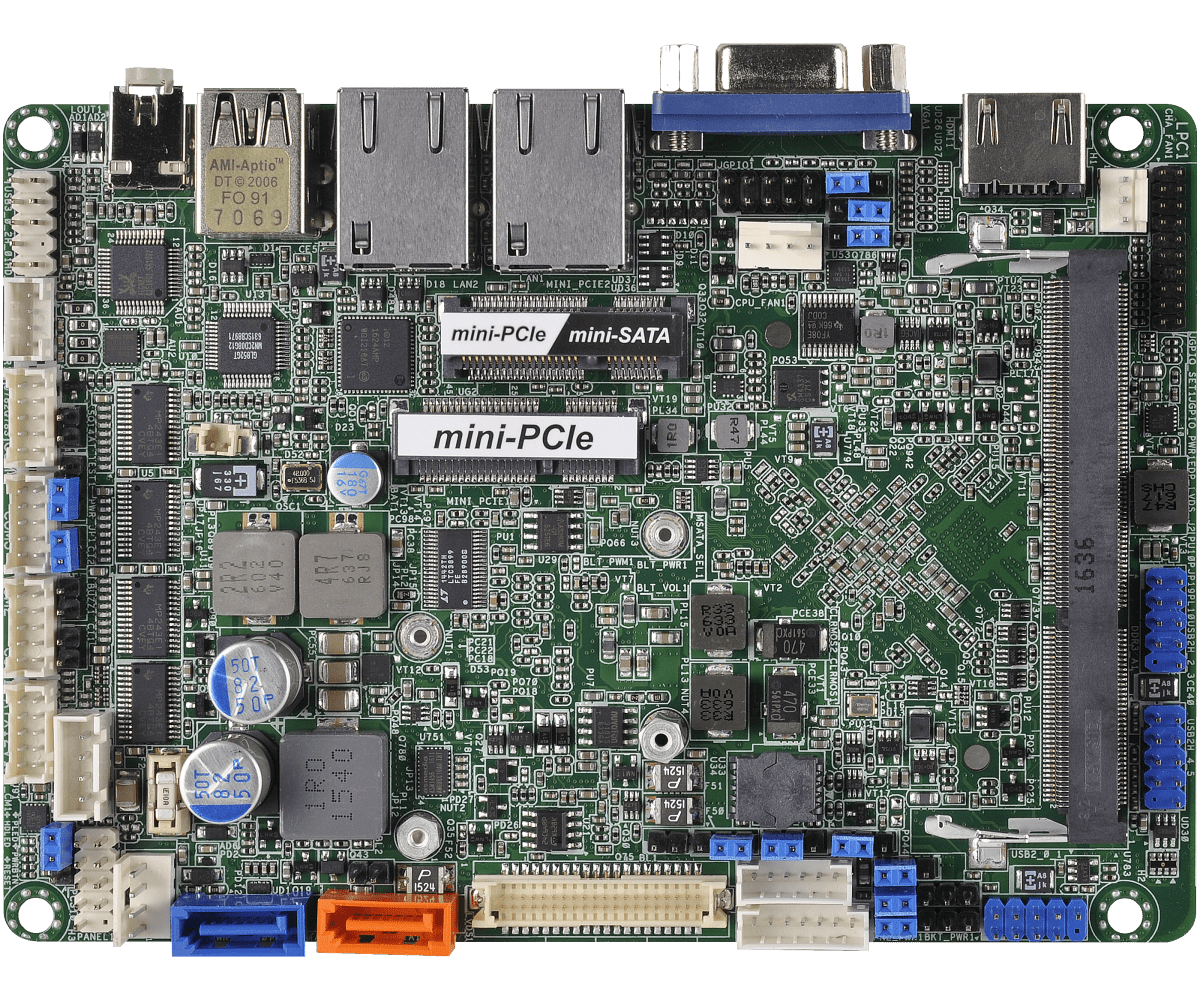

-->> Asrock Embedded 3.5" Single Board Computer SBC-212-WT <<--

SBC-220
Intel? Pentium? / Celeron? Braswell SoC Processor
Integrated Intel? Gen8 Intel? Graphics DX 11, OGL3.2
Supports Single Channel DDR3L 1333/1600MHz, 1 x SO-DIMM, up to 8GB system memory
1 x HDMI, 1 x D-Sub, 1 x Dual Channel 24-bit LVDS/eDP
4 xUSB 3.0, 2 x USB 2.0, 1 x SATA3
1 x mini-PCIe, 1 x mSATA
Gigabit LAN : 2 x Intel? Lan
1 x TPM Header
12~24 V DC-in



Form Factor
Dimensions - 3.5" SBC (5.8-in x 4.0-in) / ( 146 x 102 mm)
Processor System
CPU
- Intel? Pentium? / Celeron? Braswell SoC
- Supports Hyper-Threading Technology
- Default N3150 Quad core 6W processor
Core Number - (By CPU, Max 4)
Max Speed - (By CPU)
L3 Cache - (By CPU)
Chipset - (By CPU)
BIOS - UEFI
Expansion Slot
PCIe - 0
PCI - 0
Mini-PCIe - 1 x Full/half size mini-PCIe slot
mSATA - 1
CFast Card Socket - 0
Memory
Technology - Single Channel DDR3L 1333 / 1600 MHz SDRAM
Max. - 8GB
Socket - 1 x SO-DIMM
Graphics
Controller - Intel? Gen8 Intel? Graphics DX 11, OGL3.2
VRAM - Shared Memory
VGA - Supports max. resolution 1920x1200
DVI - No
LVDS - Dual channel 24-bit co-lay with eDP, max resolution 1920 x 1200@60Hz
HDMI - Supports HDMI, max resolution 1920 x 1200
DisplayPort - No
MultiDisplay - Yes (Triple Display)
Ethernet
Ethernet - 10/100/1000 Mbps
Controller - 2 x Intel? i210
Connector - 2 x RJ45
Storage
Max Data Transfer Rate - SATA3 (6.0Gb/s)

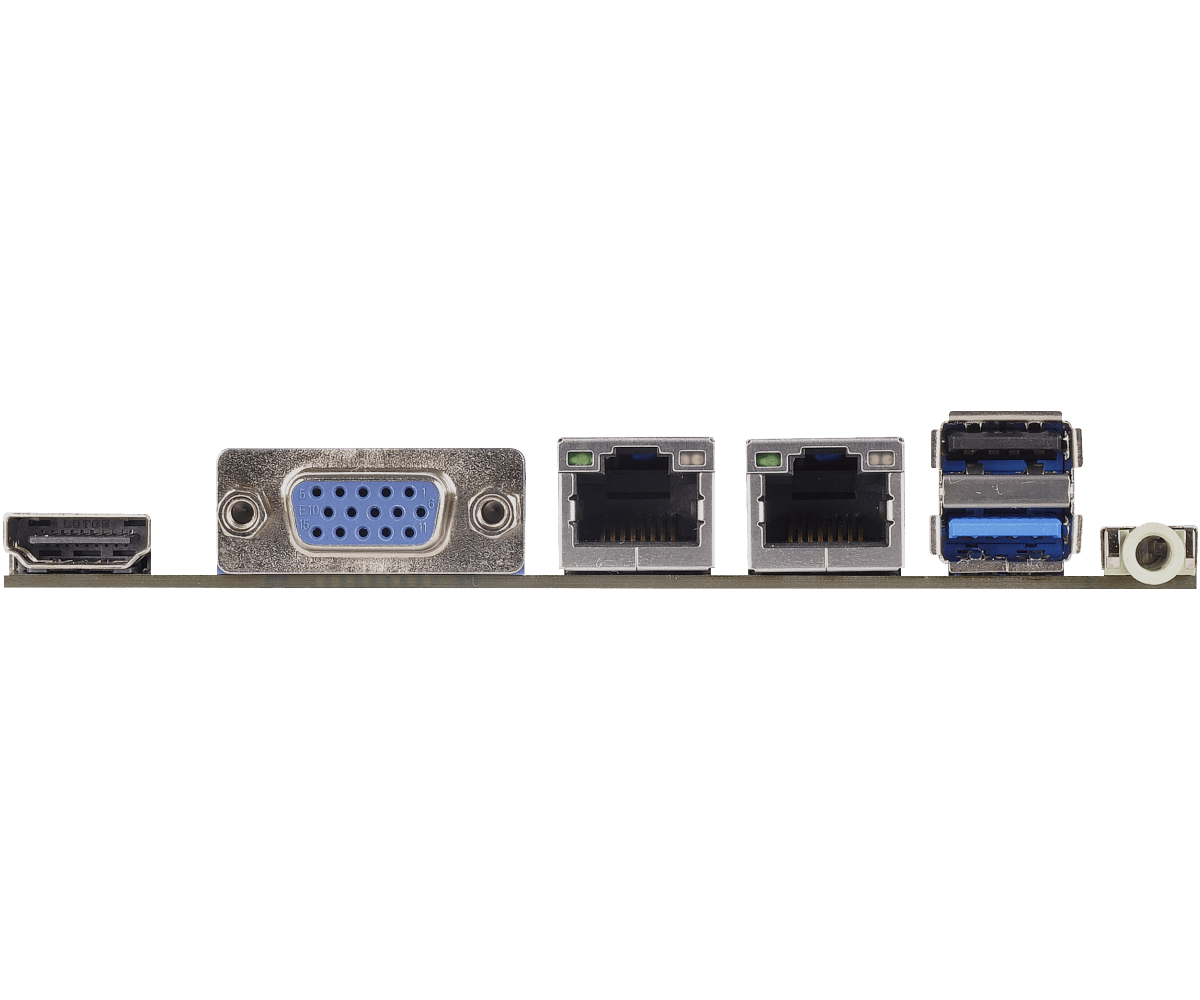

Rear I/O
VGA - 1
DVI - 0
HDMI - 1
DisplayPort - 0
Ethernet - 2
USB - 4 (USB 3.0)
Audio - 2 (Mic-in, Line-out)
Serial - 0
eSATA - 0
PS2 - 0
Internal Connector
USB - 4 ( 2 x 2.54 pitch header USB 2.0 compliant)
LVDS / inverter - 1/1
VGA - 0
Serial - 4 x 2.0 pitch header RS-232 (COM1 support RS-232/RS-422/485)
SATA - 1 x SATA3 (6.0Gb/s)
mPCIe - 1
Parallel - 0 (Co-lay with 4in/4out DIO)
mSATA - 1
IrDA - 0
GPIO 8-bit - 4 x GPI + 4 x GPO
SATA PWR Output Con - 1
Speaker Header - 1
Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2...255sec/min
Power Requirements
Input PWR - 12 / 19~24 VDC
Power On
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Environment
Temperature - 0oC – 60oC
Others
Ordering Information
- SBC-220D ( TBD Gift package) : SBC-220 with Intel? Celeron? N3150, 4 Cores, 1.6GHz, 6W, 2M
*The P/N is set up for gift package only. If you want to order bulk package please contact with your regional sales manager or local distributor.
Packing List
- 1 x Jumper setting guide
- 1 x Driver DVD
- 1 x COM cable
- 1 x SATA cable
- 1 x SATA power cable
- 1 x DC-IN power cable
- 1 x Heatsink
- 2 x Screw for mini card
