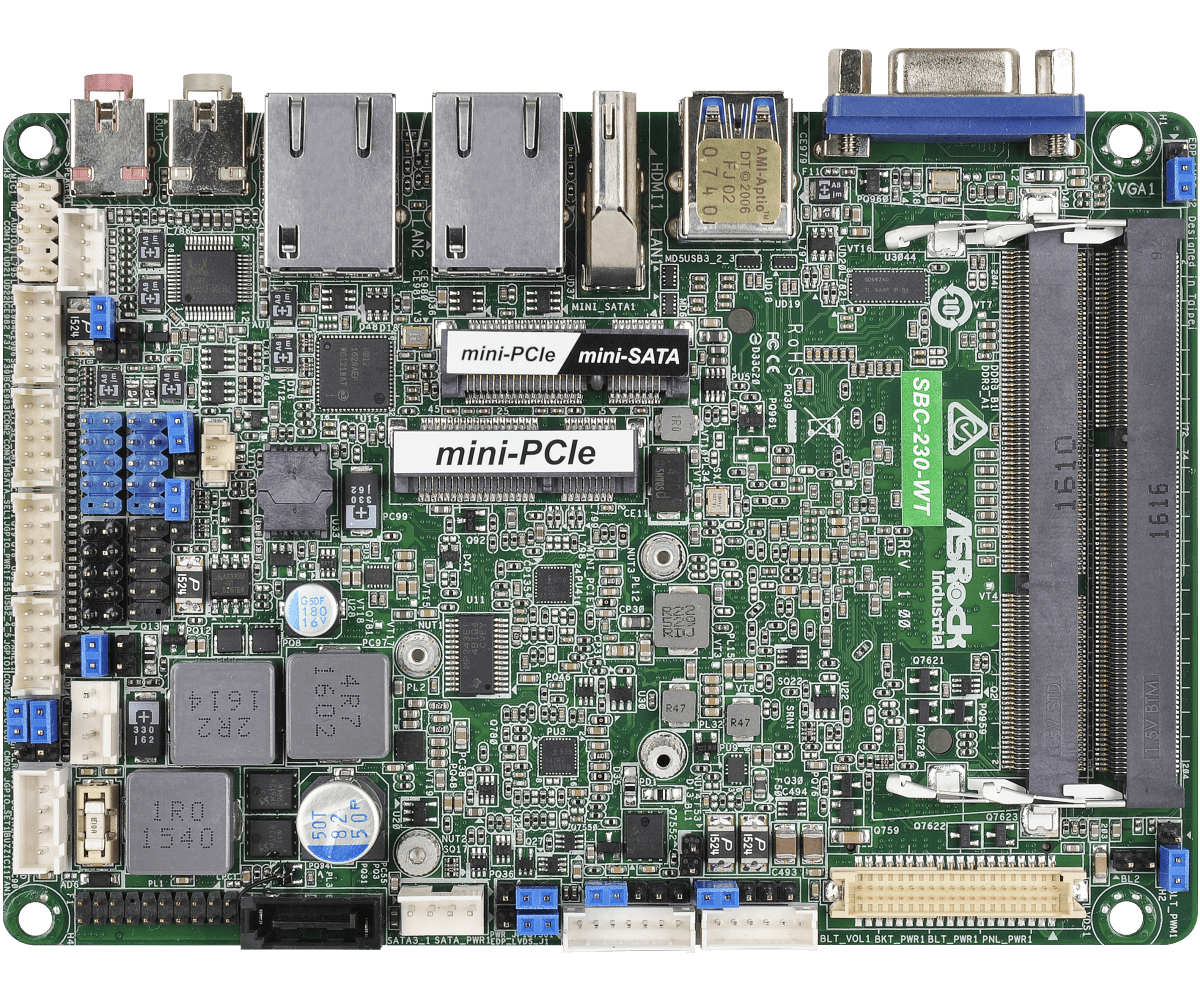

-->> Asrock Embedded 3.5" Single Board Computer SBC-230 <<--

SBC-230
BGA1296 for Intel? Apollo Lake SoC
Intel? Gen9 Intel? Graphics 4K Codec Decode& Encode
Supports Dual Channel DDR3L 1867MHz, 2 x SO-DIMM, up to 16GB system memory
1 x VGA, 1 x HDMI, 1 x LVDS or eDP (Jumper Switch)
2 xUSB 3.0, 4 x USB 2.0, 1 x SATA3
1 x Mini-PCIe, 1 x Mini-PCIe / mSATA Colay
Gigabit LAN : 2 x Intel? LAN
1 x TPM Header
9V~36V DC-in (4-pin PWR Con)



Form Factor
Dimensions - SBC-3.5" (5.8-in x 4.0-in)
Processor System
CPU - BGA1296 for Intel? Apollo Lake SoC
Core Number - (By CPU, Max 4)
Max Speed - (By CPU)
L2 Cache - (By CPU)
Chipset - N/A
BIOS - UEFI
Expansion Slot
PCIe - 0
Mini-PCIe - 1 x mini-PCIe (half/full/ size, PCIex1 + USB) , 1 x mini-PCIe (full size, PCIe x1 + USB, colay with MSATA)
mSATA - 1 (full size, SATA3 + USB, colay with Mini-PCIe)
M.2 - 0
Memory
Technology - Dual Channel DDR3L 1867MHz
Max. - 16GB
Socket - 2 x SO-DIMM
Graphics
Controller - Intel? Gen9 Graphics 4K Codec Decode & Encode
VRAM - Shared Memory
VGA - Supports Max resolution up to 1920 x 1200
DVI - No
LVDS - Supports Max resolution up to 1920 x 1200@60Hz
HDMI - Supports HDMI, Max resolution up to 4096 x 2160@24Hz
DisplayPort - No
MultiDisplay - Yes (Triple Display)
Ethernet
Ethernet - 10/100/1000 Mbps
Controller - 2 x Intel? I210
Connector - 2 x RJ45
Storage
Max Data Transfer Rate - SATA3 (6.0Gb/s)

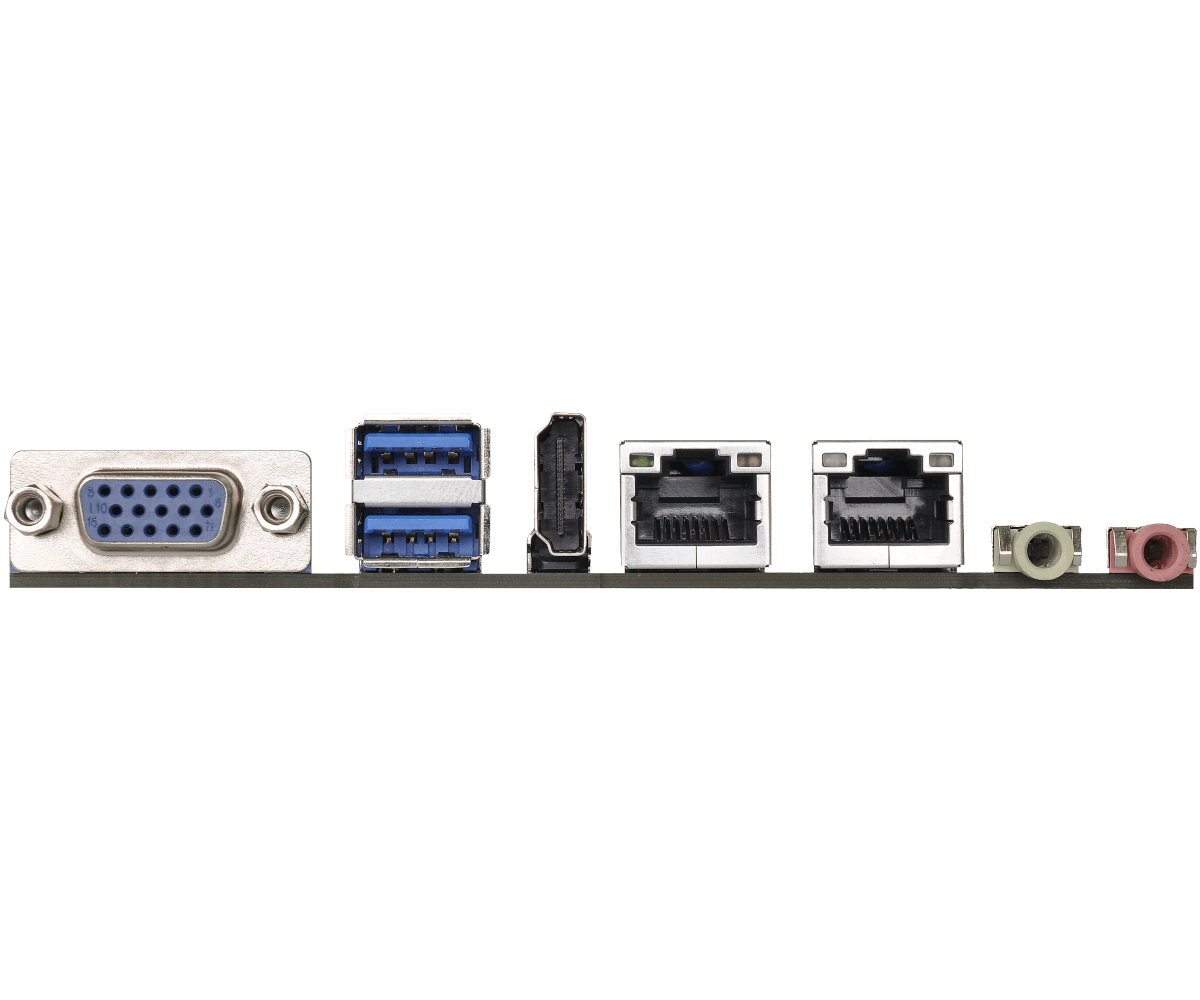

Rear I/O
VGA - 1
DVI - 0
HDMI - 1
DisplayPort - 0
Ethernet - 2
USB - 2 x USB 3.0
Audio - 2 (Mic-in, Line-out)
Serial - 0
PS2 - 0
Internal Connector
USB - 4 x USB 2.0 (2 x 2.54 pitch header)
LVDS / inverter - 1/1
eDP - 1
VGA - 0
Serial - 4 x COM (COM1 supports RS-232/422/485)
SATA - 1
mPCIe - 2
Parallel - 0
mSATA - 1 (shared with mini-PCIe)
IrDA - 0
GPIO 8-bit - 4 x GPI + 4 x GPO
SATA PWR Output Con - 1
Speaker Header - 1
Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2...255sec/min
Power Requirements
Input PWR
- 9V~36V DC-in (4-pin PWR Con)
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Temperature - 0oC – 60oC
