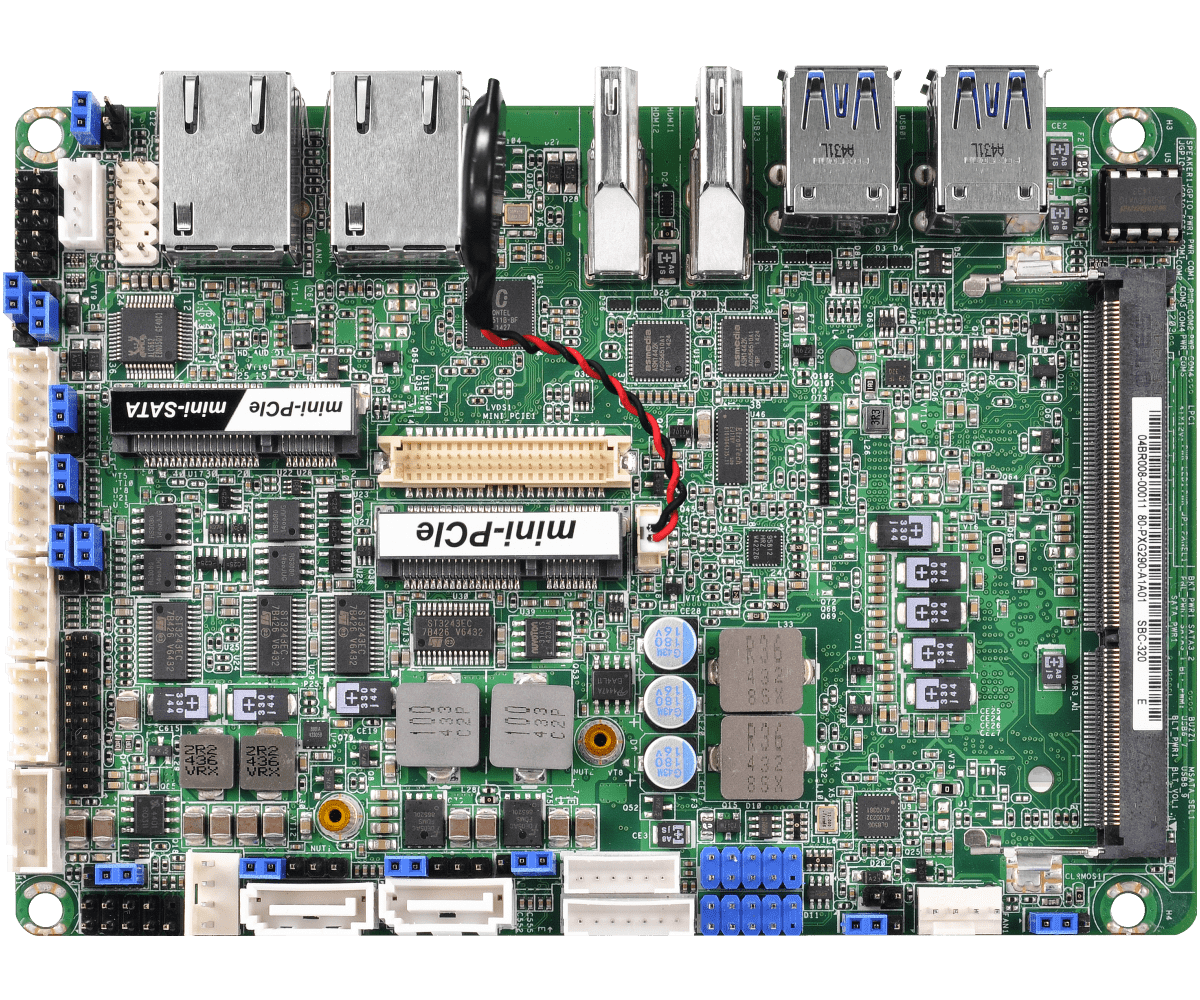

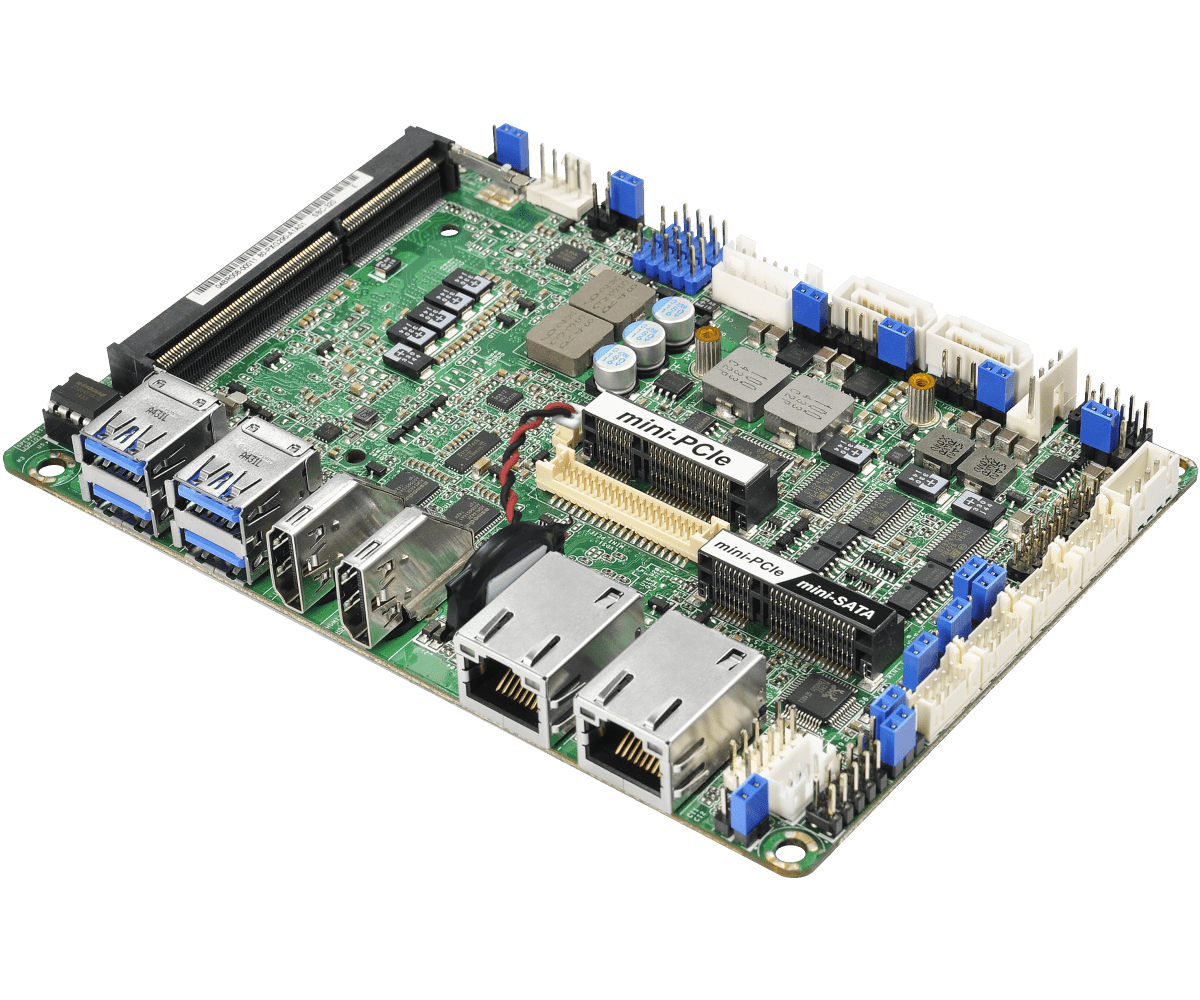

-->> Asrock Embedded 3.5" Single Board Computer SBC-310 <<--

SBC-310
BGA Haswell MCP for Intel? Core i5 / Celeron? (Haswell ULT)
Integrated Intel? HD Graphics Built-in Visuals
Supports DDR3L 1333 / 1600MHz, 1 x SO-DIMM, up to 8GB system memory
2 x HDMI, 1 x 24 bit Dual Channel LVDS co-lay with eDP
4 x USB 3.0, 4 x USB 2.0,2 x SATA3
1 x mini-PCIe, 1x mSATA,
Gigabit LAN : 1 x RTL8111G x 1, 1 x Intel? I218LM(4300U SKU)
Gigabit LAN : 1 x RTL8111G x 1, 1 x Intel? I218V(2890U SKU)
1 x TPM Header

Form Factor
Dimensions - 3.5" SBC (5.8-in x 4.0-in) / ( 146 x 102 mm)
Processor System
CPU
- BGA type for Intel? Core i5-4300 / Celeron? 2980U mobile
- processor (Haswell ULT MCP) Default 2980U Dual core MCP
Core Number - (By CPU, Max 4)
Max Speed - (By CPU)
L2 Cache - (By CPU)
Chipset - (By CPU)
BIOS - UEFI
Expansion Slot
PCIe - 0
PCI - 0
Mini-PCIe - 1 (Half Size) + 1 (Full Size ) shared with mSATA
mSATA - 1 (Full Size) shared with SATA2
CFast Card Socket - 0
Memory
Technology - Single Channel DDR3L 1333 / 1600 MHz SDRAM
Max. - 8GB
Socket - 1 x SO-DIMM
Graphics
Controller - Intel? HD Graphics (By CPU)
VRAM - Shared Memory
VGA - 0
DVI - 0
LVDS - 1 co-lay with eDP
HDMI - Supports HDMI, supported with Level Shift, resolution up to 4096x2304 (1x HDMI)
DisplayPort - 0
MultiDisplay - Yes(Three Display)
Ethernet
Ethernet - 10/100/1000 Mbps
Controller
- GbE LAN1:RTL8111G , LAN2: Intel? I218LM (4300U SKU)
- GbE LAN1:RTL8111G , LAN2: Intel? I218V (2980U SKU)
Connector - 2 x RJ45
Storage
Max Data Transfer Rate - SATA3 (6.0Gb/S)

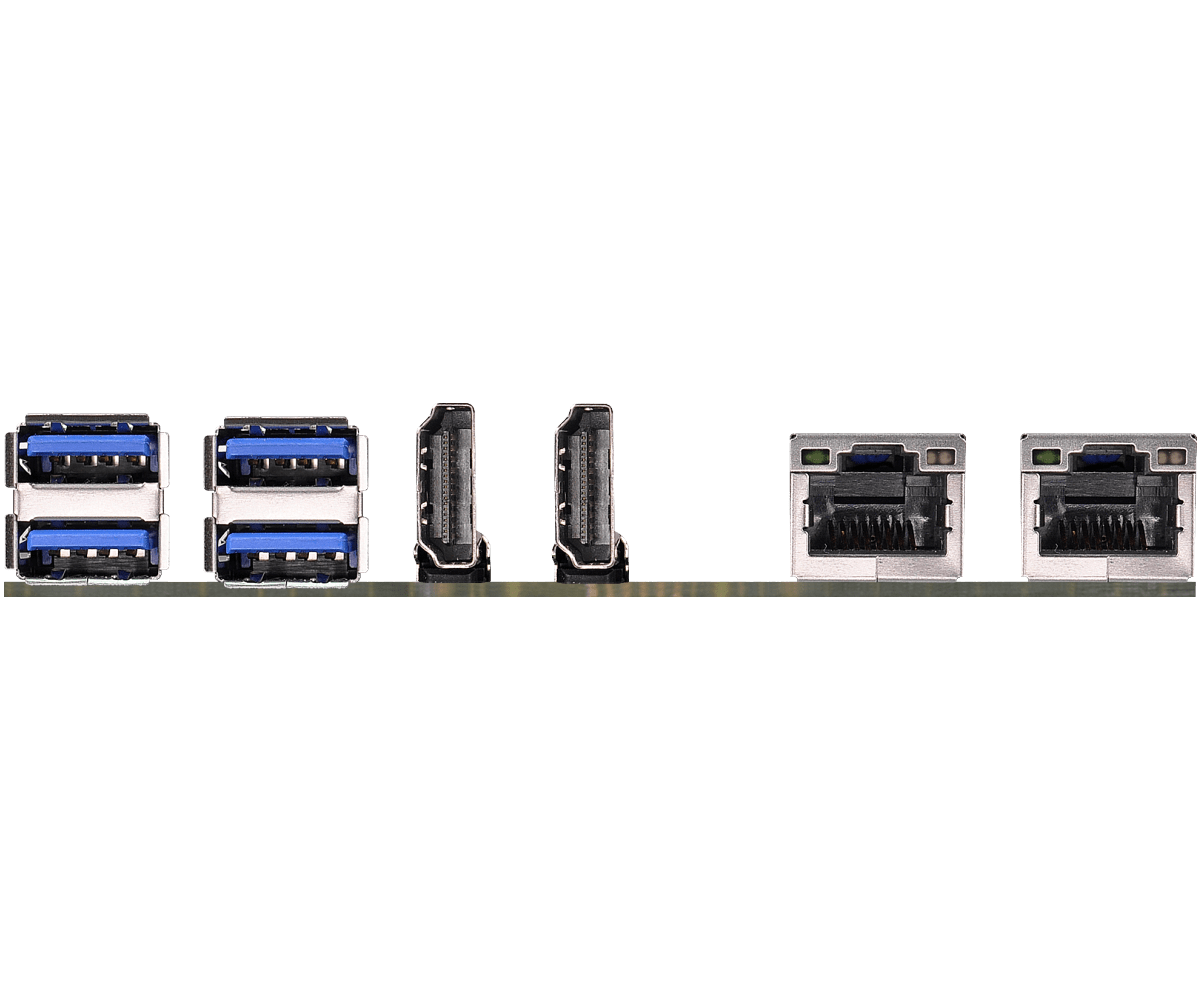

Rear I/O
VGA - 0
DVI - 0
HDMI - 2
DisplayPort - 0
Ethernet - 2
USB - 4 x USB 3.0
Audio - 0
Serial - 0
eSATA - 0
PS2 - 0
Internal Connector
USB - 4 (2 x USB Header 2.54mm pitch)
LVDS / inverter - 24 bit dual channel LVDS co-lay with eDP
VGA - 0
Serial - 4 (2 RS-232/422/485, 2 RS-232)
SATA - 2 x SATA3 (6.0Gb/s)
mPCIe - 1
Parallel - 0
mSATA - 1(shared)
IrDA - 0
GPIO 8-bit - 4 x GPI + 4 x GPO
SATA PWR Output Con - 1
Speaker Header - 1
Watchdog Timer
Output - Output from super I/O to drag RESETCON#
Interval - 256 Segments, 0,1,2...255 Sec/Min
Power Requirements
Input PWR - DC 9-36 input
Power On
- AT/ATX Supported AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Temperature - 0oC – 60oC
Others
Ordering Information
- SBC-310P (90-PXG2N0-A0UAYZ, Gift package) : SBC-310 with 4th Generation Intel? Core? i7-4650U, 2 Cores, 1.7GHz, 15W, 4M
- SBC-310M (90-PXG2N1-A0UAYZ, Gift package) : SBC-310 with 4th Generation Intel? Core? i5-4300U, 2 Cores, 1.9GHz, 15W, 3M
- SBC-311E (90-PXG2Y0-A0UAYZ, Gift package) : SBC-311 with Intel? Celeron? 2980U, 2 Cores, 1.7GHz, 15W, 2M
*The P/N is set up for gift package only. If you want to order bulk package please contact with your regional sales manager or local distributor.
Packing List
- 1 x Jumper setting guide
- 1 x Driver DVD
- 1 x COM cable
- 1 x SATA cable
- 1 x SATA power cable
- 1 x DC-IN power cable
- 1 x Heatsink
- 2 x Screw for mini card
