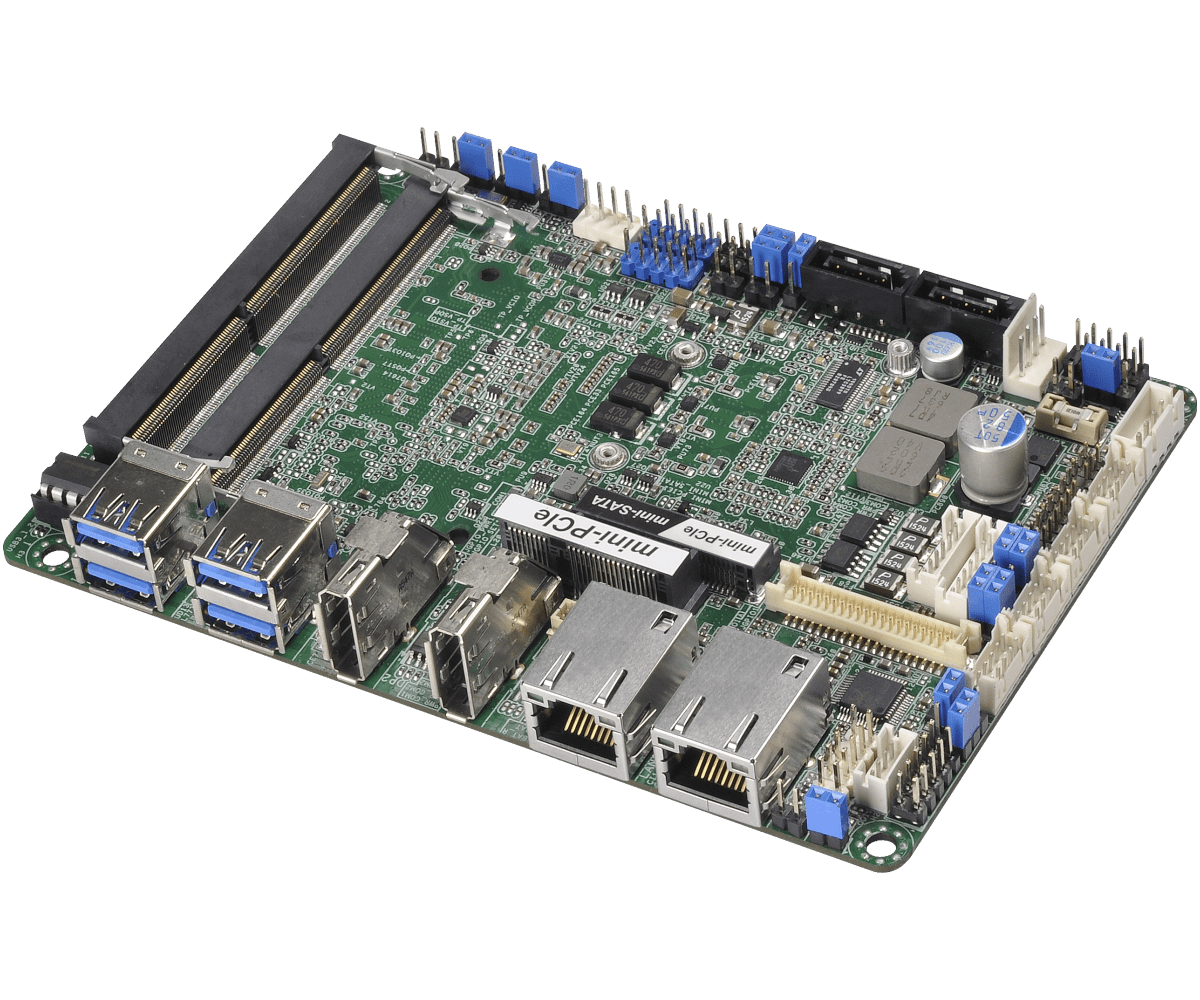

-->> Asrock Embedded 3.5" Single Board Computer SBC-330 <<--

SBC-330
BGA1356 for Intel? Skylake-U SoC
Intel? Gen9 Intel? Graphics DX 11/12, OGL4.3/4.4
Supports DDR4 2133MHz, 2 x SO-DIMM, up to 32GB system memory
2 x DP1.2, 1 x LVDS
4 x USB 3.0, 4 x USB 2.0, 2 x SATA3
1 x mini-PCIe, 1 x Mini-PCIe / MSATA colay
Gigabit LAN : 2 x IntelLAN
DC 12-36V power input

Form Factor
Dimensions - 3.5" SBC (5.8-in x 4.0-in) / (146 x 102 mm)
Processor System
CPU - BGA1356 for Intel? Skylake-U SoC
Core Number - (By CPU, Max 4)
Max Speed - (by CPU)
L3 Cache - (By CPU)
Chipset - (by CPU)
BIOS - UEFI
Expansion Slot
PCIe - 0
Mini-PCIe - 1 x mini-PCIe (half/full/ size, PCIex1 + USB2.0), 1 x mini-PCIe (full size, PCIe x1 + USB, colay with MSATA)
mSATA - 1 (full size, SATA3 + USB, colay with Mini-PCIe)
M.2 - 0
Memory
Technology - Dual Channel DDR4 2133 MHz
Max. - 32GB
Socket - 2 x SO-DIMM
Graphics
Controller - Intel? Gen9 Intel? Graphics DX 11/12, OGL4.3/4.4
VRAM - Shared Memory
VGA - No
DVI - No
LVDS - Supports max resolution up to 1920 x 1200@60Hz @60Hz
HDMI - No
DisplayPort - DP1.2 Supports max resolution up to 4096 x 2160@60Hz
MultiDisplay - Yes ( Triple Display)
Ethernet
Ethernet - 10/100/1000 Mbps
Controller - 1 x Intel? I219-LM/V , 1 x Intel? I211AT
Connector - 2 x RJ45
Storage
Max Data Transfer Rate - SATA3 (6.0Gb/s)
Rear I/O
VGA - 0
DVI - 0
HDMI - 0

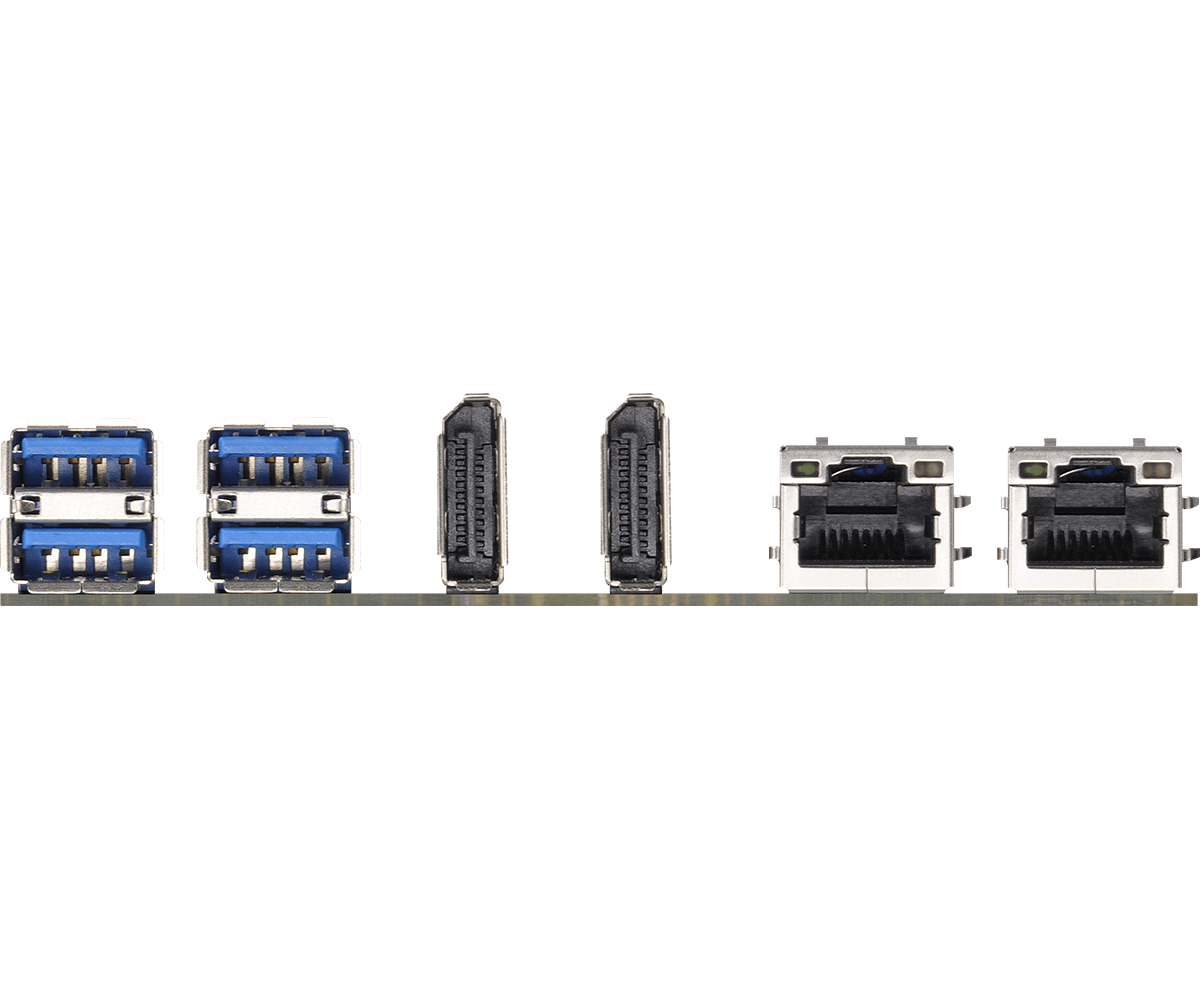

DisplayPort - 2 x DP1.2
Ethernet - 2
USB - 4 x USB3.0
Audio - 0
Serial- 0
PS2 - 0
Internal Connector
USB - 4 x USB 2.0 (2 x 2.54 pitch header)
LVDS / inverter - 1/1
VGA - 0
Serial - 4 x 2.0 pitch header RS-232 (COM1 support RS-232/422/485)
SATA - 2 x SATA3 (6.0Gb/s)
mPCIe - 0
Parallel - 0
mSATA - 0
IrDA - 0
GPIO 8-bit - 4 x GPI + 4 x GPO
SATA PWR Output Con - 1
Speaker Header - 0
Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2...255sec/min
Power Requirements
Input PWR - 12 / 19~36V phone jack DC-In
Power On
- AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Environment
Operating Temp - 0oC – 60oC
