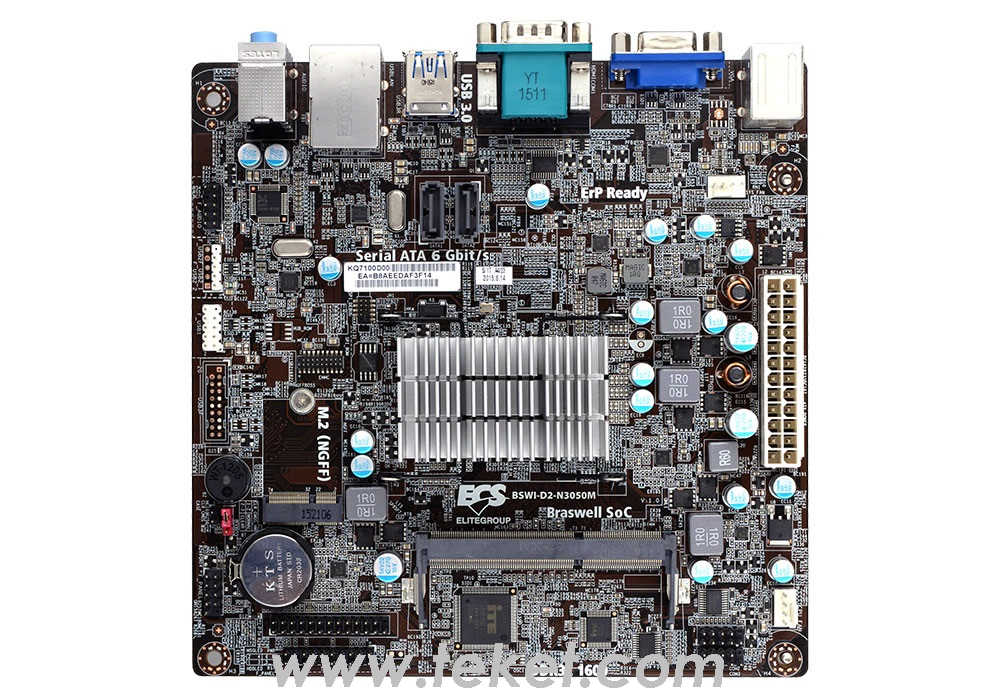

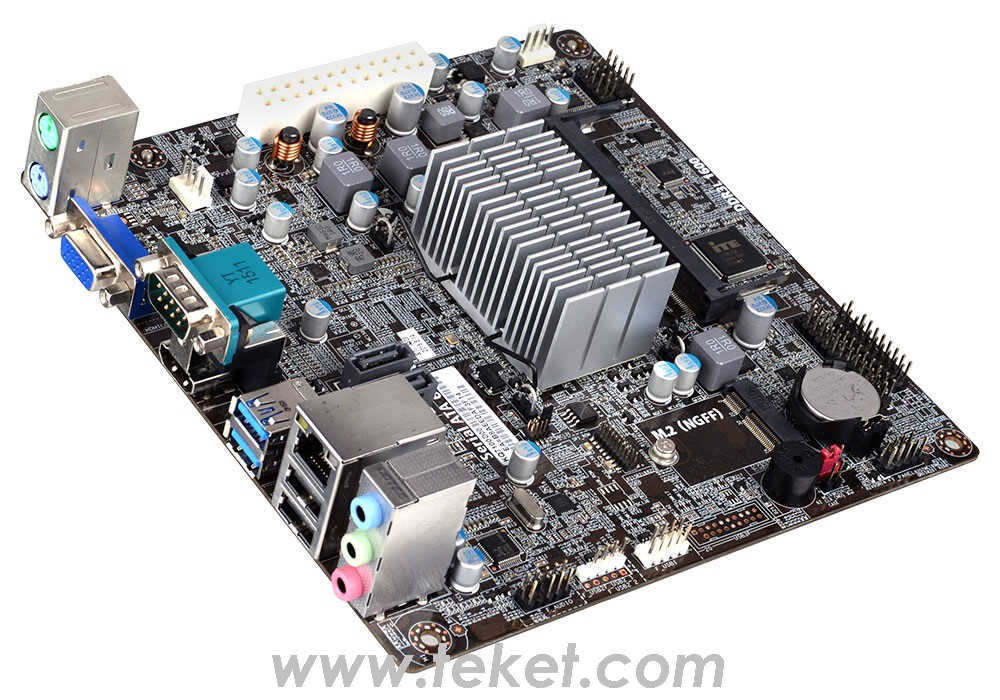

-->> ECS MINI-ITX motherboard Intel Braswell Celeron N3050 BSWI-D2-N3050M fanless <<--

BSWI-D2-N3050M
Windows 10 Workable support
Applied 100% Solid capacitor design to maximize component reliability
ECS Durathon Technology ensure the stability, reliability and performance of system.
ESD Protection prevents computers from electrostatic discharge damage to enhance
its durability and lifespan
Dual Display design for multiple output support
3 COM designed for various IPC applications
Integrated Printer (LPT) port / header to expand functionality
Intel ? VRD 12.1 Ready
Supports DirectX? 11.1 to enhance graphical performance
Supports HDMI 1.4b Technology ( resolution up to 1920X1200 ) and HDCP function
ECS Intelligent EZ Utility : eBLU, eDLU, eSF
Free Bundle: CyberLink Media Suite


CPU Onboard Intel? Braswell Celeron DC N3050 processors
VRD 12.1
100% Solid capacitor design
Supports Intel? Hyper-Threading Technology

GRAPHICS Supports DirectX? 11 .1
Supports HDMI 1.4b & Premium Audio
Supports Full HD 1080P Blu-ray / HD-DVD Playback

MEMORY Single-channel DDR3 Memory architecture
Supports DDR3L 1600MHz non-ECC, Un-buffered SO DIMM Memory
1 X DDR3 SO-DIMM socket
Support up to 8 GB*
* Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows? 32-bit OS. For Windows? 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT 1 X M.2 slot for WiFi/BT

Storage 2 X Serial ATAIII 6Gb/s
Located in SATA1,SATA2 Port

Audio 6-Channel HD audio CODEC
Realtek ALC662 6-channel High Definition audio CODEC
Realtek ALC662
Realtek ALC662 6-channel High Definition audio CODEC
Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs
Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution
Emulation of 26 sound environments to enhance gaming experience
Voice Cancellation and Key Shifting in Karaoke mode
Compatible with Direct Sound 3D?, A3D?, I3DL2
BluRay DVD/HD DVD support

LAN Realtek RTL8111H Gigabit Fast Ethernet Controller

USB 2 X USB3.0 port(s) up to 5Gb/s
Back Panel 2 port(s)
? 5 X USB2.0 port(s) Up to 480 Mb/s
Back Panel 2 port(s)
Onboard 3 port(s)

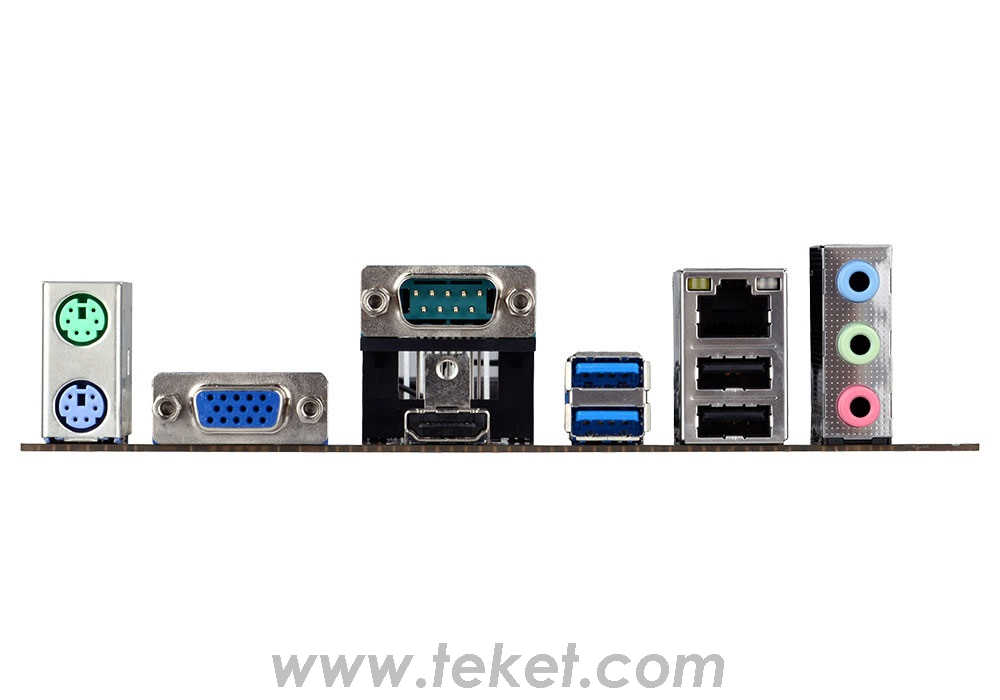

REAR PANEL I/O 1 X PS/2 Keyboard & PS/2 mouse connectors
1 X Serial port (COM)
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X HDMI port(s)
1 X D-Sub (VGA) port(s)
2 X USB3.0 port(s)
2 X USB2.0 port(s)

CONNECTORS & HEADERS 1 X 24-pin ATX Power Supply connector
1 X 4-pin CPU_FAN connector with smart fan
1 X 4-pin SYS_FAN connector with smart fan
1 X Front Panel switch/LED header
1 X Front panel audio header
1 X Onboard Buzzer
2 X USB 2.0 header
? Support additional 3 USB ports
2 X SATA III 6Gb/s connector(s)
1 X CLR_CMOS header
2 X Serial port header (COM)
1 X Parallel port header (LPT)
1 X TPM header
1 X Chassis intrusion header
1 X eMMC header (by optional EMMC-BSW-32G Card)

SYSTEM BIOS AMI BIOS with 64 MB SPI Flash ROM
Supports ACPI 5.0 & DMI
Dual Display
Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
Multi-Language BIOS
Audio, LAN, can be disabled in BIOS
Dual-Monitor function

FORM FACTOR Mini ITX Form Factor
170 mm x 170 mm

OS Support Windows 7 64-bit
Windows 8.1 64-bit
Windows 10 64-bit
Windows 10 32-bit

Certifications CE/FCC Certification
ErP/EuP Certification
WHCK Certification

Bundled Software ECS Intelligent EZ Utility : eBLU, eDLU, eSF
Free Bundle: CyberLink Media Suite
