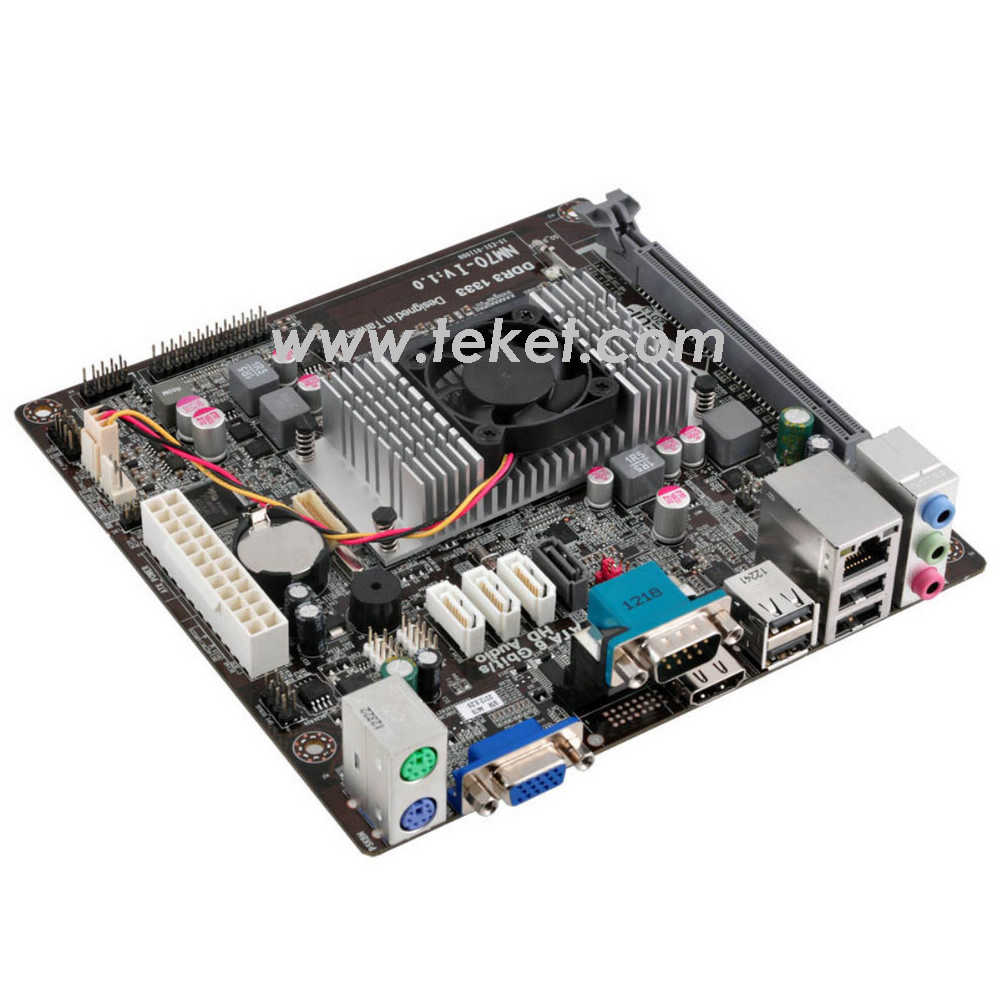

NM70-I (V1.0)
model: NM70-I-HDMI(1037U or 807U)
model: NM70-I-DVI(1037U or 807U)


NM70-I
•Integrated LVDS for an extra display option
•Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
•ECS Durathon Technology ensure the stability, reliability and performance of system.
•ESD Protection prevents computers from electrostatic discharge damage to enhance
its durability and lifespan
•Integrated Printer (LPT) port / header to expand functionality
•Microsoft Windows 8 Certified
•Supports DirectX® 10.1 to enhance graphical performance
•Supports Intel® HD Graphics
•Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function
•ECS Intelligent EZ Utility : eBLU, eDLU, eSF
•Free Bundle: CyberLink Media Suite

CPU Onboard Intel® 807(1.5G single core)/847(1.1G dual core)/1037U processors
Solid Capacitor for CPU side
Please refer to CPU support list for details

CHIPSET Intel® NM70 Express Chipset

GRAPHICS Support Intel® HD Graphics 2000
Supports DirectX® 10.1
Supports HDMI 1.4a & Premium Audio
Supports Full HD 1080P Blu-ray / HD-DVD Playback

MEMORY Single-channel DDR3 Memory architecture
Supports DDR3 1333/1066 non-ECC, Un-buffered SO DIMM Memory
1 X DDR3 SO-DIMM socket
Support up to 8 GB*
* Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation
Note:Please refer to the latest Memory support list for details

EXPANSION SLOT 1 X PCI Express X16 Gen 2.0 slot(s)
*PCI Express X16 run@ 8

Storage Support by Intel® NM70 Express Chipset
• 1 X Serial ATAIII 6Gb/s
• 3 X Serial ATAII 3Gb/s
Supports NCQ, AHCI and "Hot Plug" functions

Audio 6-Channel HD audio CODEC
Compliant with HD audio specification
VIA 1705
*VIA® VT1705 6-channel High Definition audio CODEC
*Compliant with HD audio specification for a whole new immersive surround sound experience
*3 DACs and 2 ADCs with High-performance ADCs with 100dB SNR, DACs with 100dB SNR
*Low Power Consumption
*Capability for “full rate” BluRay / DVD / HD DVD support.

LAN Realtek RTL8111E Gigabit Fast Ethernet Controller
(Realtek RTL8105 10/100Mbps Fast Ethernet Controller optional)
Wake-On-LAN

USB Support by Intel NM70 Express Chipset
• 8 X USB2.0 port(s) Up to 480 Mb/s
Back Panel 4 port(s)
Onboard 4 port(s)

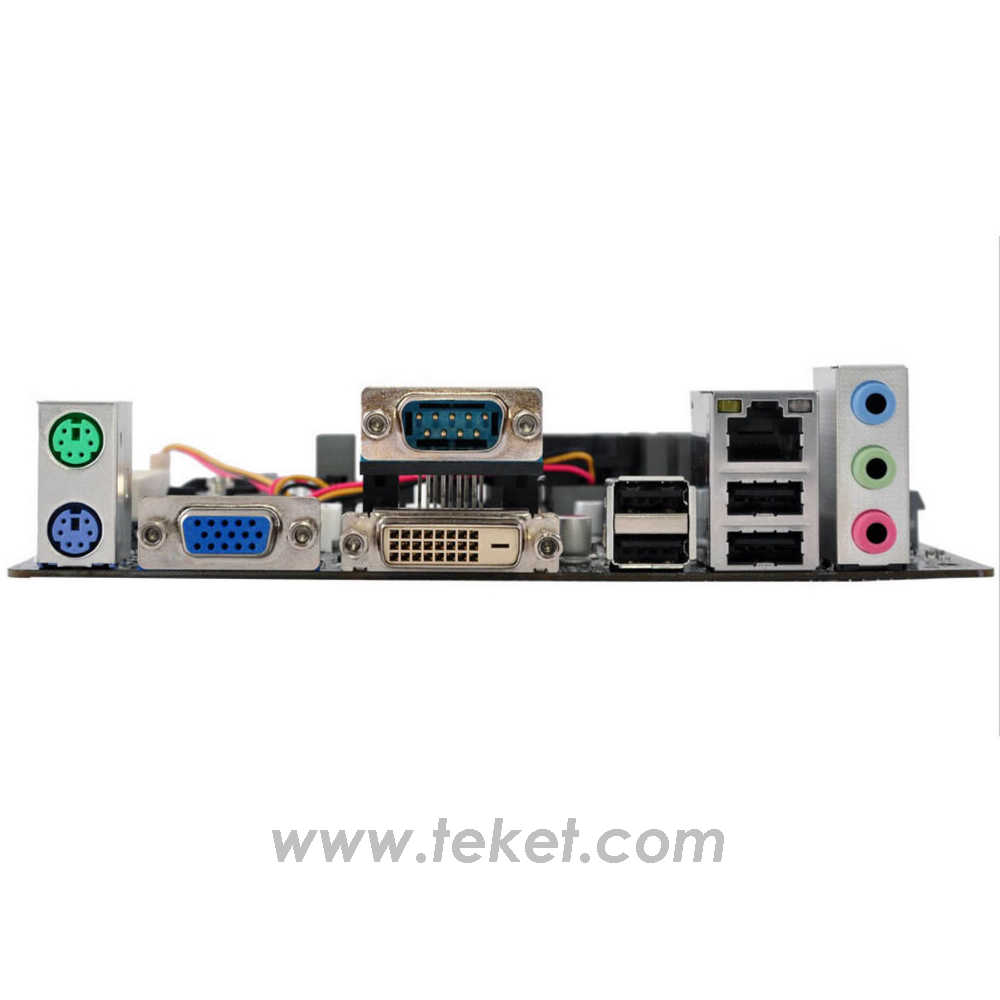

REAR PANEL I/O 1 X PS/2 Keyboard & PS/2 mouse connectors
1 X Serial port (COM)
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X HDMI port(s)
1 X DVI-D port(s) (optional)
1 X D-Sub (VGA) port(s)
4 X USB2.0 port(s)

CONNECTORS & HEADERS 1 X 24-pin ATX Power Supply connector
1 X 3-pin CPU_FAN connector with smart fan
1 X 3-pin SYS_FAN connector
1 X Front Panel switch/LED header
1 X Front panel audio header
1 X Onboard Buzzer
2 X USB 2.0 header
• Support additional 4 USB ports
1 X S/PDIF out header
1 X SATA III 6Gb/s connector(s)
3 X SATA II 3Gb/s connector(s)
1 X CLR_CMOS header
1 X Serial port header (COM)
1 X Parallel port header (LPT)
1 X Chassis intrusion header
1 X LVDS connector (optional)

SYSTEM BIOS AMI BIOS with 64 MB SPI Flash ROM
Supports ACPI 3.0 & DMI
Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
Multi-Language BIOS
Dual-Monitor function

FORM FACTOR Mini ITX Form Factor
170mm(W)*170mm(H)

OS Support Windows XP 32-bit
Windows XP 64-bit
Windows 7 32-bit
Windows 7 64-bit
Windows 8 32-bit
Windows 8 64-bit

Certifications CE/FCC Certification
ErP/EuP Certification
WHQL Certification
WHCK Certification

Bundled Software ECS Intelligent EZ Utility : eBLU, eDLU, eSF
Free Bundle: CyberLink Media Suite

Socket Family Processor Wattage Frequency Cache Stepping Since BIOS
BGA1023 Intel Celeron 1037U 17W 1.80GHz 2MB P0 12/27/2013
BGA1023 Intel Celeron 807 17W 1.50GHz 2MB Q0 8/23/2012
BGA1023 Intel Celeron 847 17W 1.10GHz 2MB Q0 8/23/2012
