>>Your Current Position: GiagaByte Motherboard

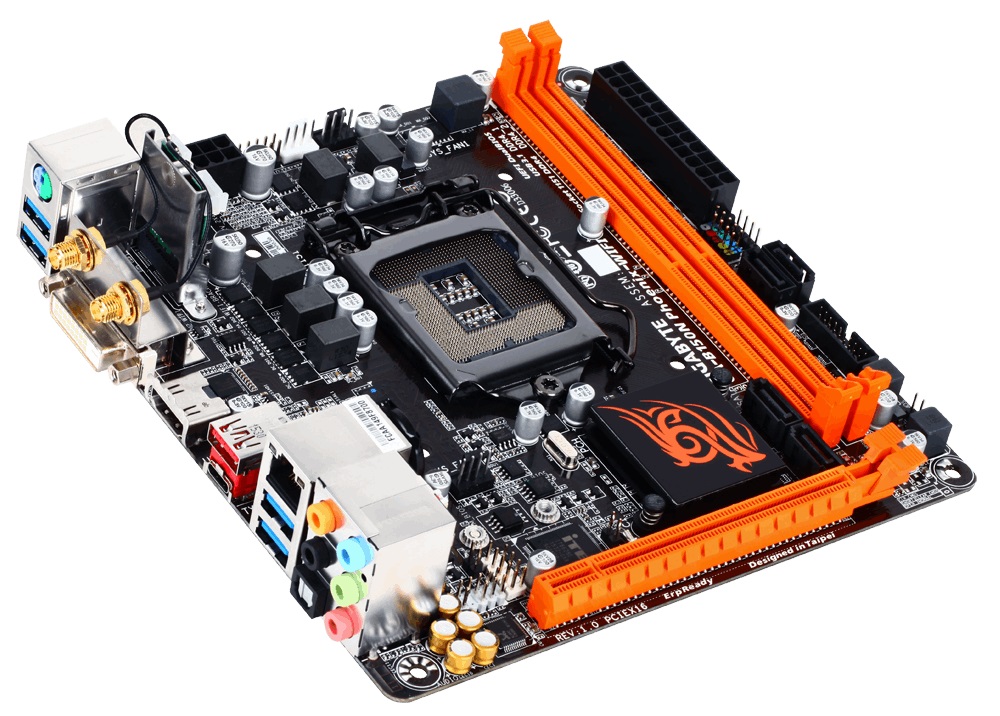

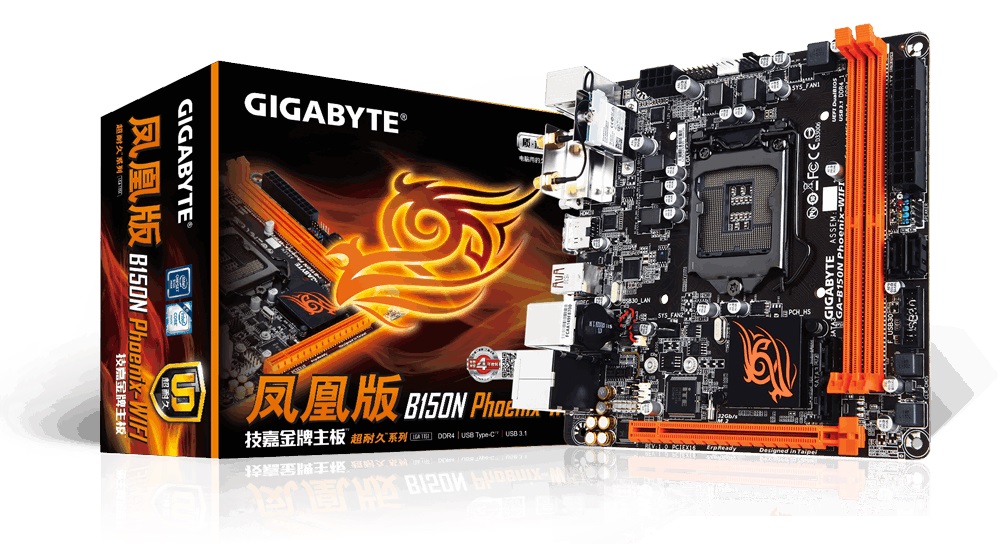

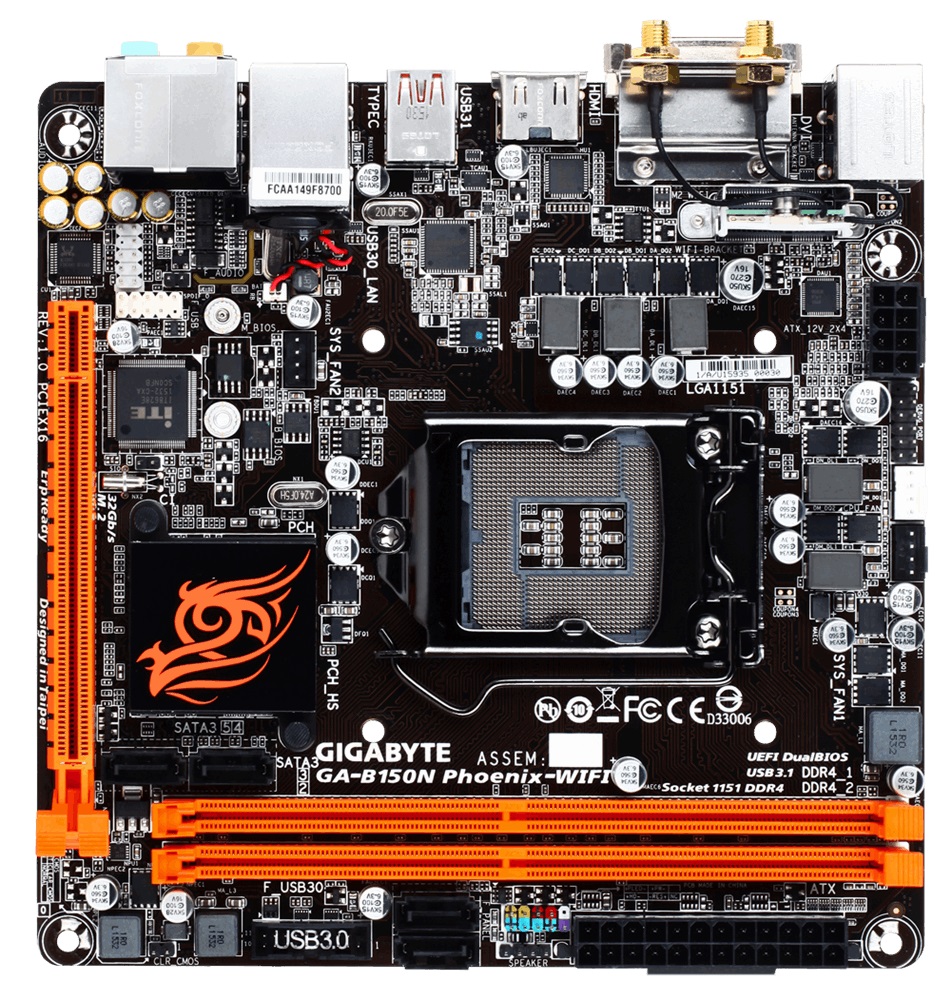

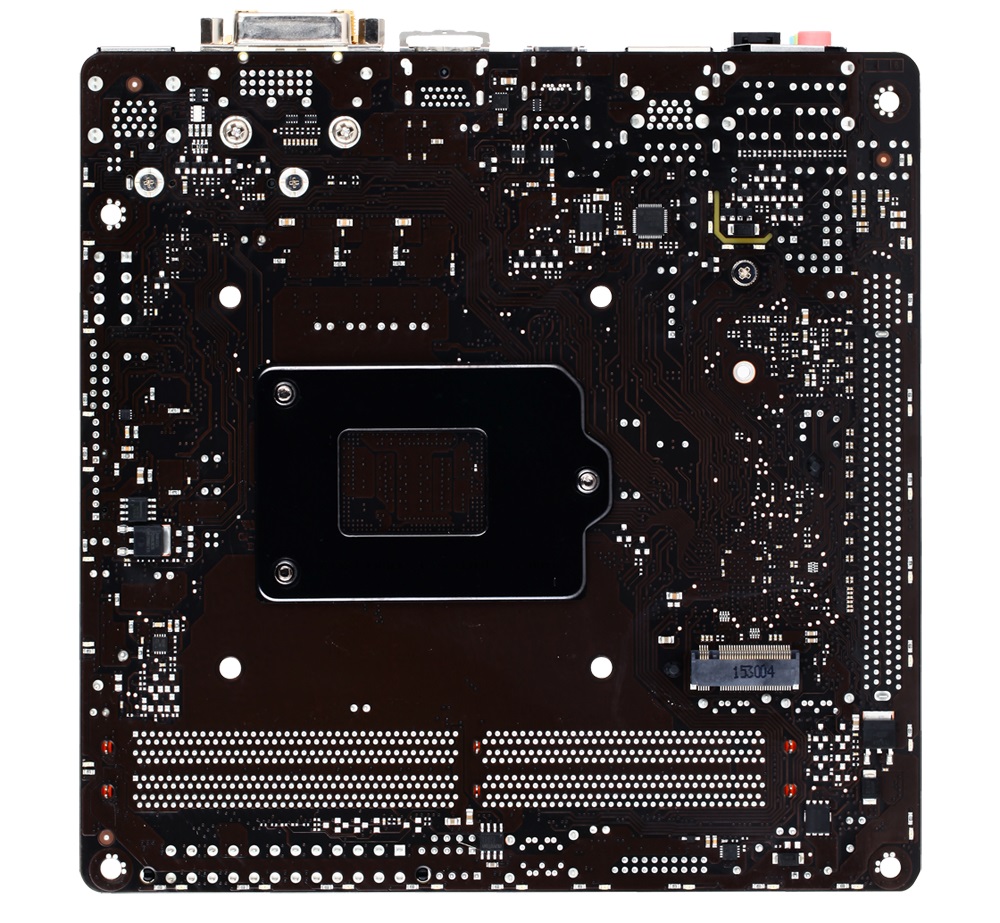

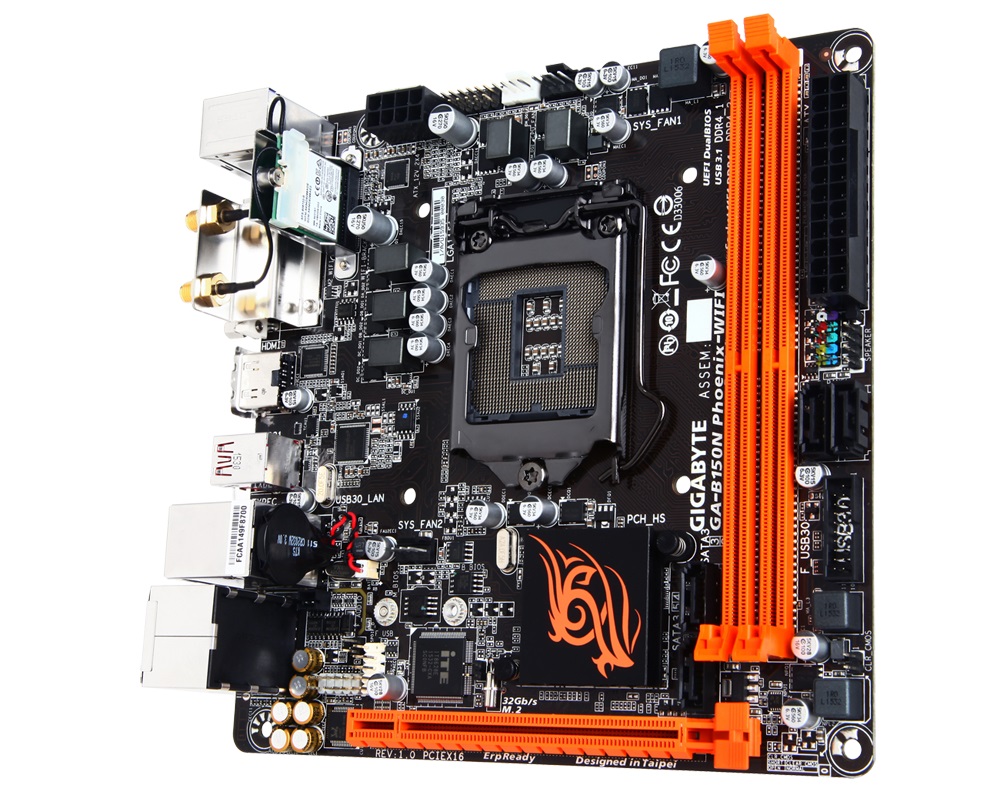

-->> GIGABYTE GA-B150N PHOENIX-WIFI LGA 1151 Intel B150 HDMI SATA 6Gb/s USB 3.1 USB 3.0 Mini ITX Intel Motherboard <<--

model: GA-B150N PHOENIX-WIFI
Intel B150
Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
DDR4 2133


Learn more about the GIGABYTE GA-B150N PHOENIX-WIFI
Model
BrandGIGABYTEModelGA-B150N PHOENIX-WIFI

Supported CPU
CPU Socket TypeLGA 1151CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)

Chipsets
ChipsetIntel B150

Onboard Video
Onboard Video ChipsetIntegrated Graphics

Memory
Number of Memory Slots2 x DIMMMemory StandardDDR4 2133Maximum Memory Supported32GBChannel SupportedDual Channel

Expansion Slots
PCI Express x161 x PCI Express x16 slot, running at x16

Storage Devices
SATA 6Gb/s4 x SATA 6Gb/sM.21 x M.2

Onboard Audio
Audio ChipsetRealtek ALC892Audio Channels8 Channels

Onboard LAN
LAN ChipsetIntelMax LAN Speed10/100/1000MbpsWireless LANWi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-BandBluetoothBluetooth 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR

Rear Panel Ports
PS/21 x PS/2 keyboard/mouse portVideo Ports1 x DVI-DHDMI1 x HDMIRJ451 x RJ45USB 3.11 x USB Type-C with USB 3.1 support
1 x USB 3.1 Type-A port (red)USB 3.04 x USB 3.0 / 2.0S/PDIF Out1 x OpticalAudio Ports5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)Antenna Connectors2 x SMA antenna connectors (2T2R)

Internal I/O Connectors
Onboard USB1 x USB 3.0/2.0 header + 1 x USB 2.0/1.1 headerOther Connectors1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header

Physical Spec
Form FactorMini ITXDimensions (W x L)6.69" x 6.69"Power Pin24-pin ATX main power connector
8-pin ATX 12V power connector

Features
FeaturesSupports 6th Generation Intel Core Processor

Dual Channel DDR4, 2 DIMMs

Fast USB 3.1 with USB Type-C -The World’s Next Universal Connector

11ac 867 Mbps dual band wireless connection + BLUETOOTH 4.2

PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)

8-channel HD Audio with High Quality Audio Capacitors

Intel GbE LAN with cFosSpeed Internet Accelerator Software

Audio Noise Guard with Ambient LED Trace Path Lighting

APP Center Including EasyTune and Cloud Station Utilities

GIGABYTE UEFI DualBIOS Technology
