>>Your Current Position: GiagaByte Motherboard

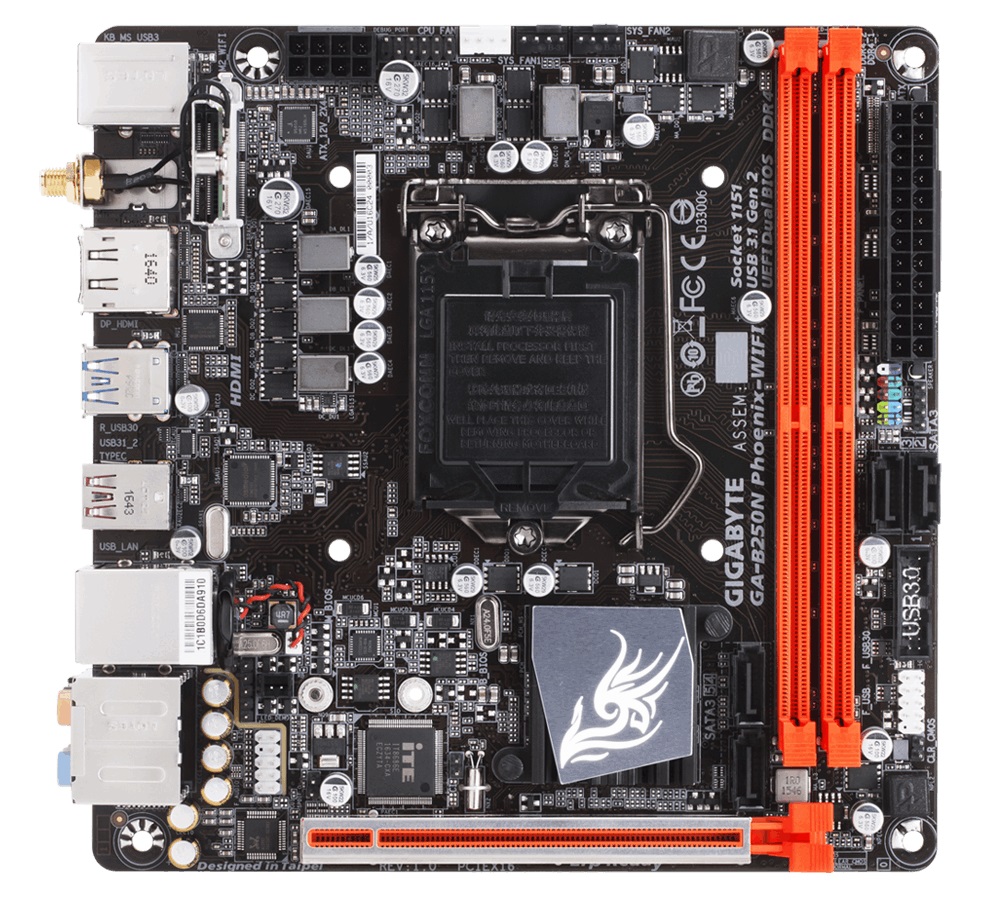

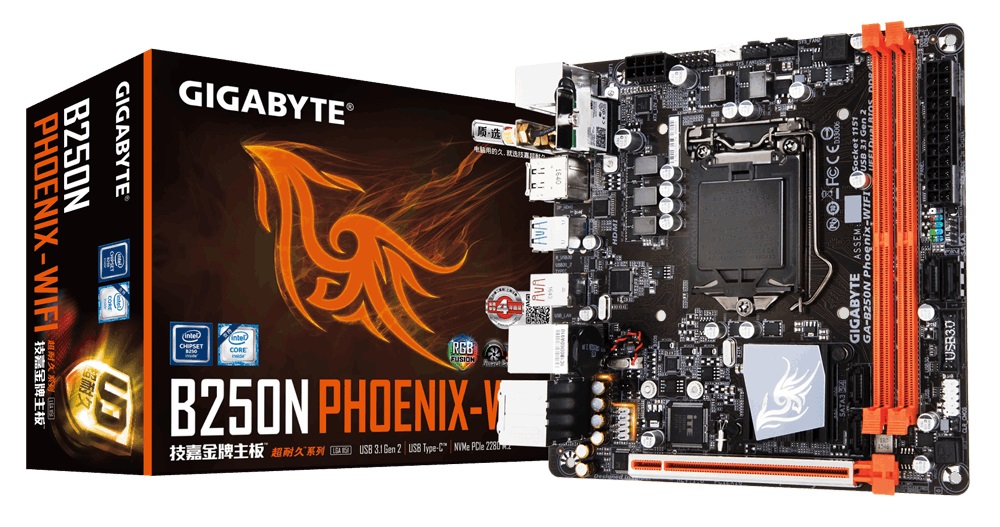

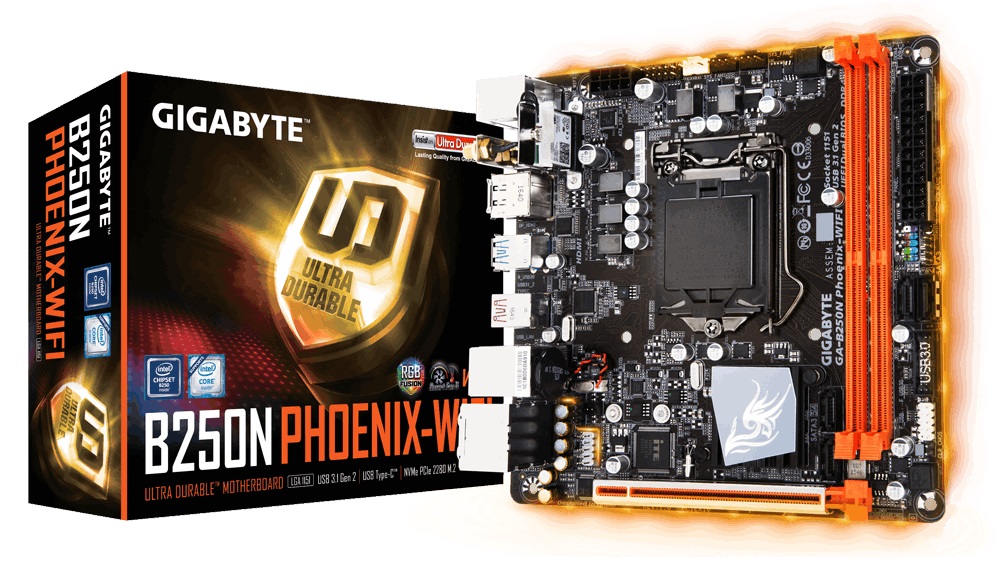

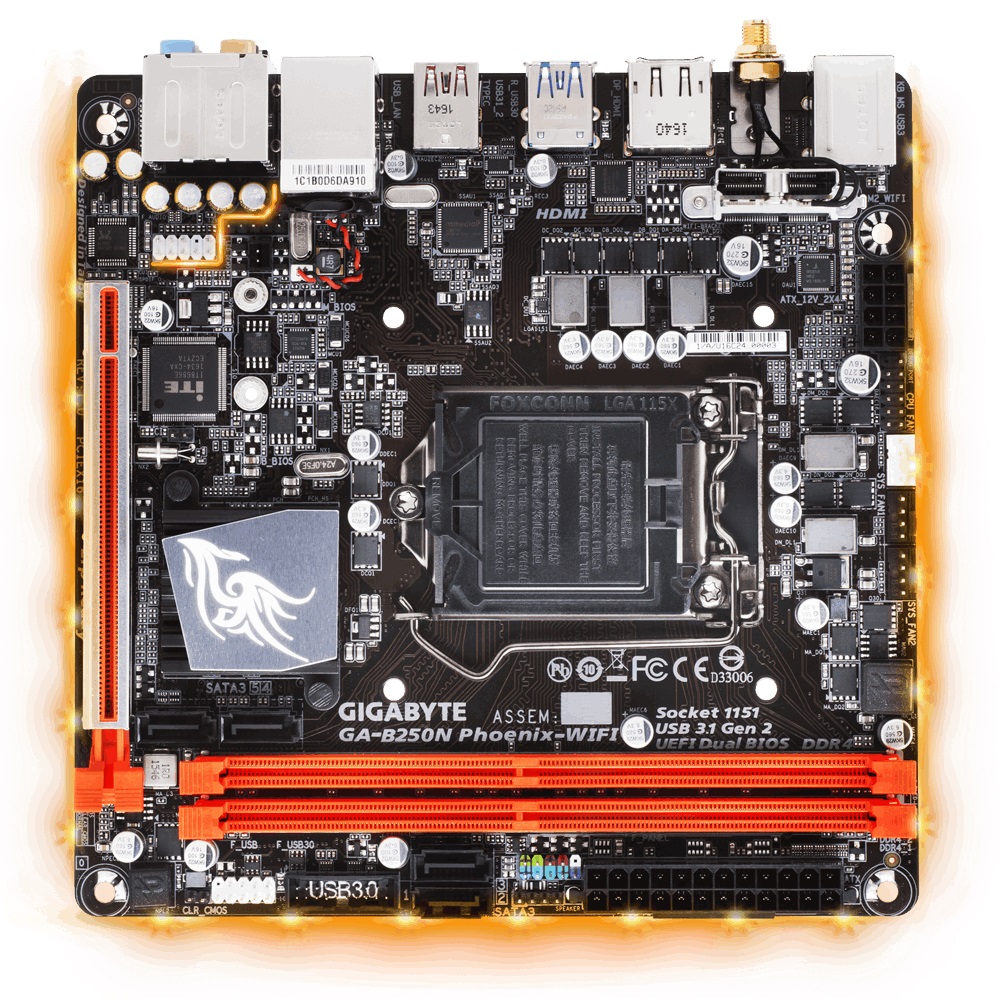

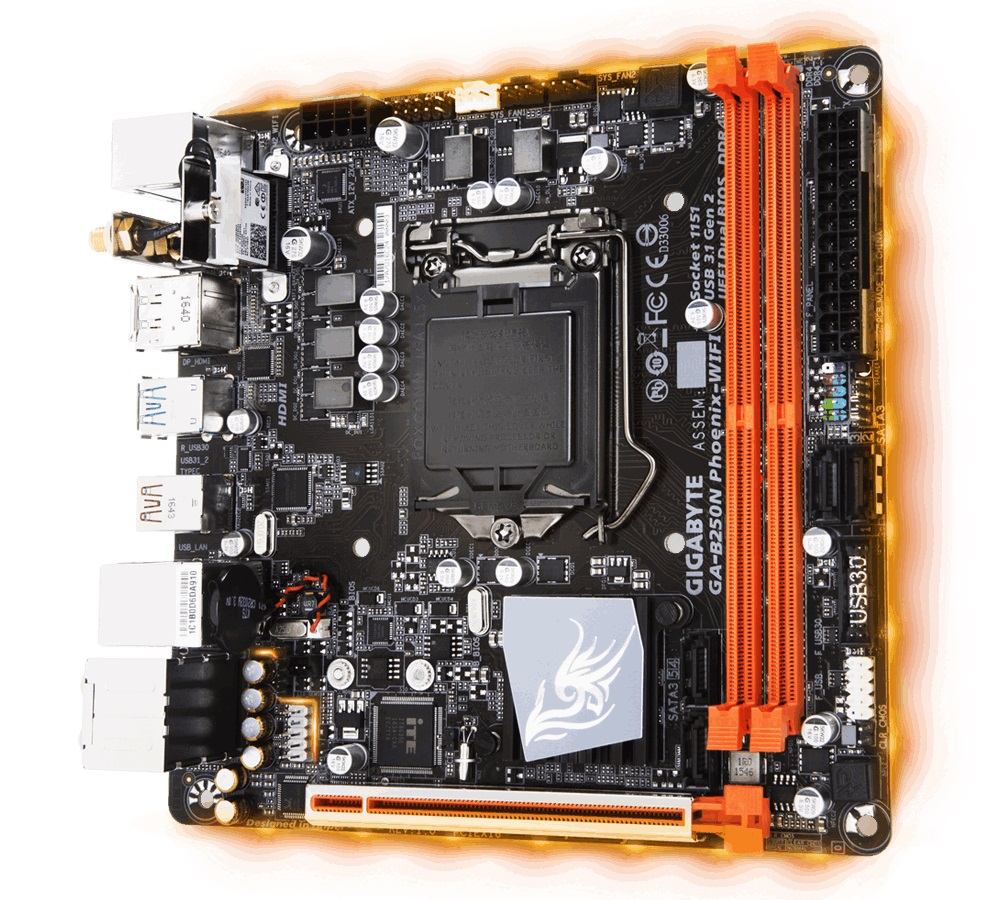

-->> GIGABYTE GA-B250N-Phoenix WIFI (rev. 1.0) LGA 1151 Intel B250 HDMI SATA 6Gb/s USB 3.1 Mini ITX Motherboards - Intel <<--

model: GA-B250N PHOENIX-WIFI
Intel B250
Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
DDR4 2400/ 2133
To support 2400 MHz or XMP memory, you must install a 7th generation processor.





Learn more about the GIGABYTE GA-B250N-Phoenix WIFI (rev. 1.0)

Model
BrandGIGABYTEModelGA-B250N-Phoenix WIFI (rev. 1.0)

Supported CPU
CPU Socket TypeLGA 1151CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)

Chipsets
ChipsetIntel B250

Onboard Video
Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Maximum shared memory of 1GB

Memory
Number of Memory Slots2×288pinMemory StandardDDR4 2400/ 2133
* To support 2400 MHz or XMP memory, you must install a 7th generation processor.Maximum Memory Supported32GBChannel SupportedDual Channel

Expansion Slots
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)Other Slots1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

Storage Devices
SATA 6Gb/s4 x SATA 6Gb/sM.21 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support)

Onboard Audio
Audio ChipsetRealtek ALC892Audio Channels2/4/5.1/7.1-channel

Onboard LAN
LAN ChipsetIntel GbE LAN chipMax LAN Speed10/100/1000MbpsWireless LANWi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-BandBluetoothBLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR

Rear Panel Ports
PS/21 x PS/2 keyboard/mouse portHDMI1 x HDMIRJ451 x RJ45DisplayPort1 x DisplayPortUSB 3.11 x USB Type-C port, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red)
4 x USB 3.1 Gen 1 portsUSB 1.1/2.02 x USB 2.0/1.1 portsS/PDIF Out1 x OpticalAudio Ports5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)Antenna Connectors2 x SMA antenna connectors (2T2R)

Internal I/O Connectors
Onboard USB1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 headerOther Connectors1 x CPU fan header
2 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x speaker header
1 x RGB (RGBW) LED strip extension cable header
1 x Clear CMOS jumper
1 x chassis intrusion header

Physical Spec
Form FactorMini ITXDimensions (W x L)6.7" x 6.7"Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Features
FeaturesI/O Controller
- iTE I/O Controller Chip

H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS
- 2 x 64 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
V-Tuner
- Support for Q-Flash
- Support for Xpress Install

Bundle Software
- Norton Internet Security (OEM version)
- cFosSpeed

Operating System
- Support for Windows 10 64-bit (for 7th Generation Intel processors)
- Support for Windows 10 64-bit/Windows 8.1 64-bit/Windows 7 32-bit/64-bit (for 6th Generation Intel processors)
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
