>>Your Current Position: GiagaByte Motherboard

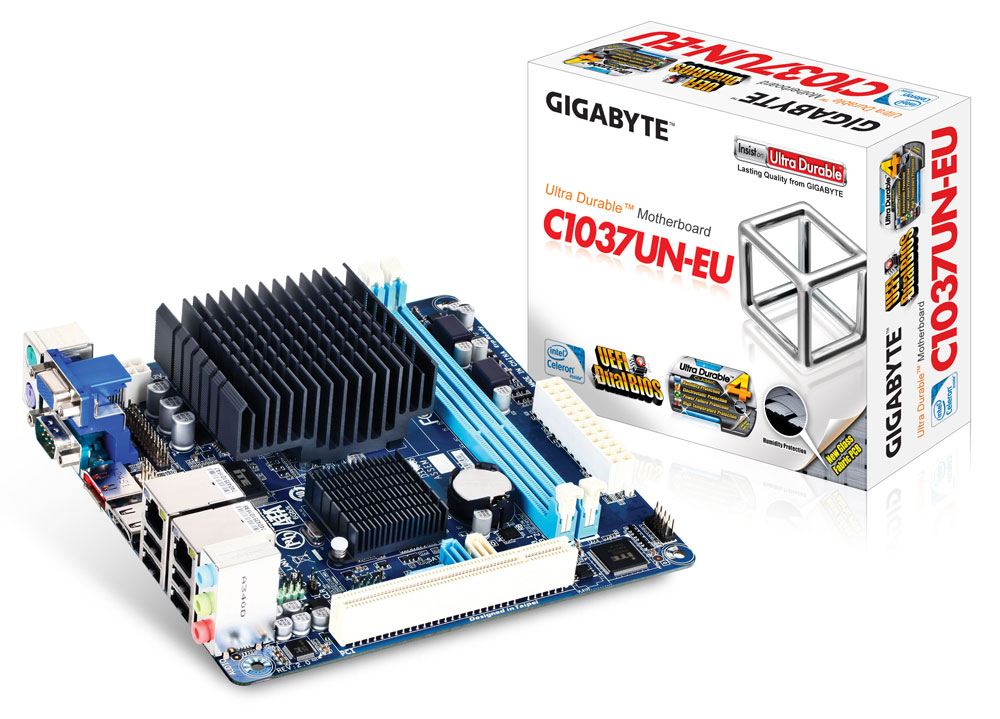

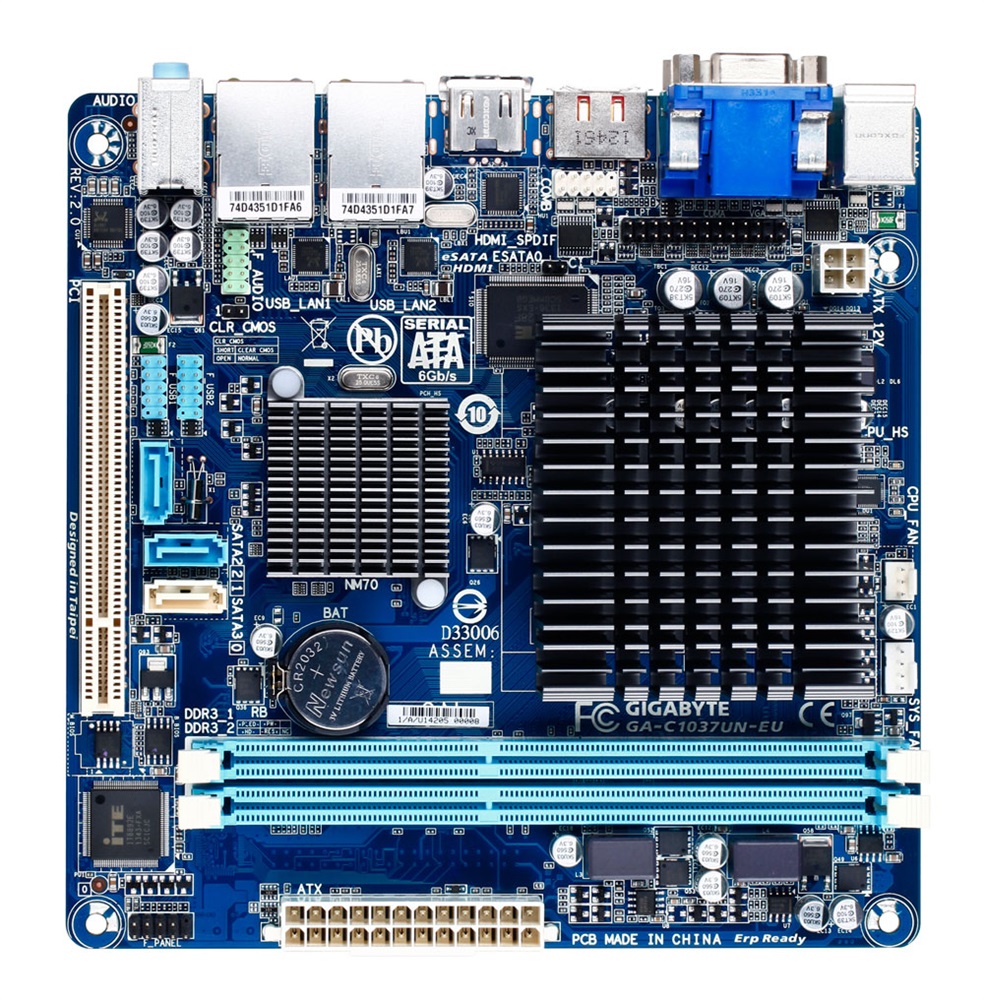

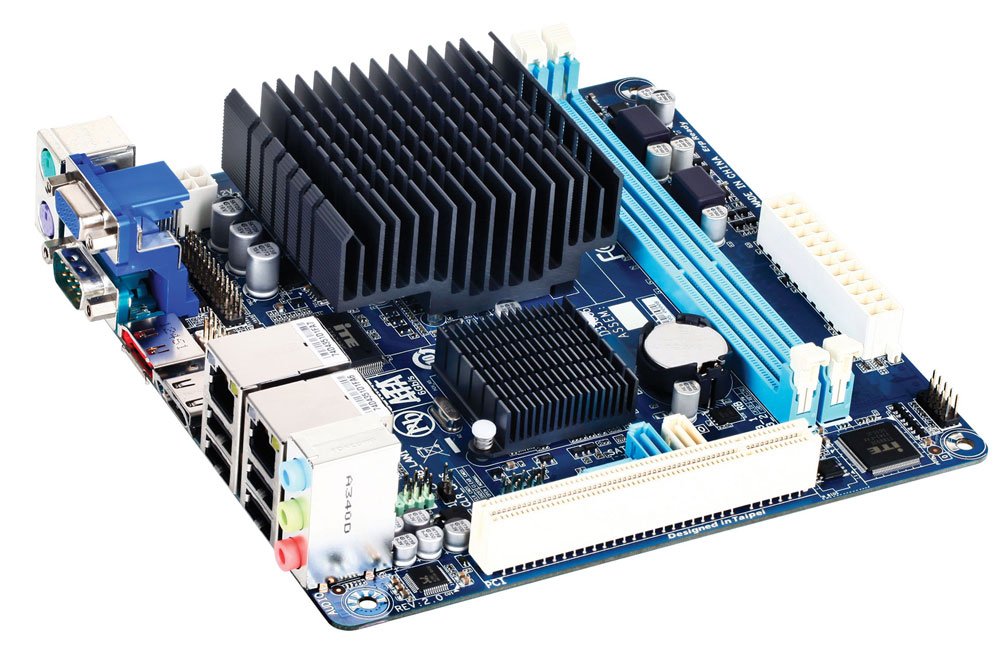

Mini-ITX Motherboard Celeron DUAL-CORE C1037 CPU GIGABYTE GA-C1037UN-EN

GA-C1037UN-EN (rev. 2.0)

•GIGABYTE Dual UEFI BIOS
•All new design of Ultra Durable 4 classic
•Industry's Leading All Solid Capacitor Design
•Dual LAN for networking flexibility
•HDMI interface for smoother HD video playback
•GIGABYTE On/Off Charge™ for USB devices



UEFI DualBIOS™ Technology
With a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, UEFI DualBIOS™ makes BIOS configuration a new and exciting experience for novice and experienced users alike. UEFI BIOS also brings native support for large hard drives on 64-bit operating systems. GIGABYTE Ultra Durable™ 4 Classic

GIGABYTE Ultra Durable™ 4 Classic motherboards embrace a range of exclusive features that guarantee DIY PC builders the absolute best protection for their PC, with built-in features that prevent common malfunction threats users encounter on a day-to-day basis.

Humidity Protection
Humidity can play havoc on a motherboard's circuitry. GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.

Electrostatic Protection
GIGABYTE Ultra Durable™ 4 Classic motherboards feature High Resistance ICs which help protect the motherboard against electrostatic discharge.

Power Failure Protection
Permanent damage from power surge or failure during BIOS update, can be avoided with GIGABYTE DualBIOS™ which automatically enables a secondary, backup BIOS.
GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.

High Temperature Protection
GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures, providing extended component lifespan.

All Solid Capacitors
GIGABYTE Ultra Durable motherboards are equipped with solid capacitors which provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games. Dual Gigabit LAN
Experience the flexibility and convenience of the integrated Dual Lan function. On/Off Charge Technology
GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...more
*Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
*Whether to support 3X USB power design, it may vary by models.
HDMI™-The Next Generation Multimedia Interface
HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content. ErP Lot 6 support
The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.


CPU 1.Built in with an Intel® Dual-core Celeron® 1037U processor (1.8 GHz)
* Do not disassemble the onboard CPU/chipset and the heatsinks by yourself to avoid damage to these components.
2.2 MB L3 cache

Chipset 1.Intel® NM70 Chipset

Memory 1.2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2.Dual channel memory architecture
3.Support for DDR3 1600/1333 MHz memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor:
1.1 x D-Sub port
2.1 x HDMI port, supporting a maximum resolution of 1920x1200
* Support for HDMI 1.4 version.
3.Maximum shared memory of 1 GB

Audio 1.Realtek® ALC887 codec
2.High Definition Audio
3.2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN 1.2 x Realtek® GbE LAN chips (10/100/1000 Mbit)
* Teaming is not supported.

Expansion Slots 1.1 x PCI slot

Storage Interface Chipset:
1.1 x SATA 6Gb/s connector (SATA3 0)
2.2 x SATA 3Gb/s connectors (SATA2 1~2)
3.1 x eSATA 3Gb/s connector on the back panel

USB Chipset:
1.8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors 1.1 x 24-pin ATX main power connector
2.1 x 4-pin ATX 12V power connector
3.1 x SATA 6Gb/s connector
4.2 x SATA 3Gb/s connectors
5.1 x CPU fan header
6.1 x system fan header
7.1 x front panel header
8.1 x front panel audio header
9.2 x USB 2.0/1.1 headers
10.1 x parallel port header
11.1 x serial port header
12.1 x Clear CMOS jumper
13.1 x chassis intrusion header

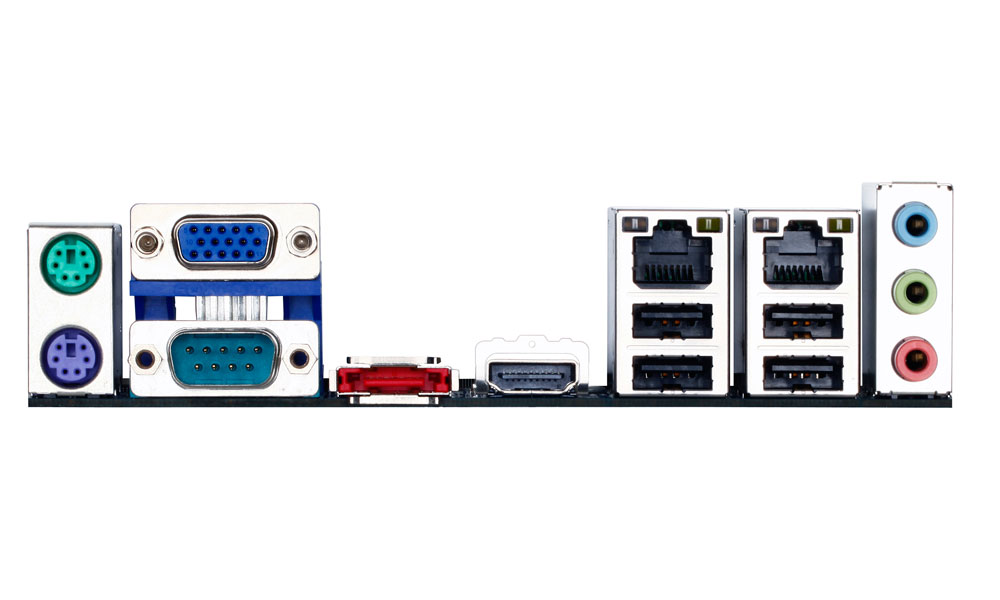

Back Panel Connectors 1.1 x PS/2 keyboard port
2.1 x PS/2 mouse port
3.1 x D-Sub port
4.1 x serial port
5.1 x HDMI port
6.4 x USB 2.0/1.1 ports
7.1 x eSATA 3Gb/s connector
8.2 x RJ-45 ports
9.3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller 1.iTE® I/O Controller Chip

H/W Monitoring 1.System voltage detection
2.CPU/System temperature detection
3.CPU/System fan speed detection
* Whether the fan speed detect function is supported will depend on the cooler you install.
4.System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS 1.2 x 32 Mbit flash
2.Use of licensed AMI UEFI BIOS
3.Support for DualBIOS™
4.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features 1.Support for @BIOS
2.Support for Q-Flash
3.Support for Xpress Install
4.Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
5.Support for Smart Recovery 2
6.Support for Auto Green
7.Support for ON/OFF Charge

Bundle Software 1.Norton® Internet Security (OEM version)
2.Intel® Smart Connect Technology

Operating System 1.Support for Windows 8.1/8/7/XP

Form Factor 1.Mini-ITX Form Factor; 17.0cm x 17.0cm

Remark 1.Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
