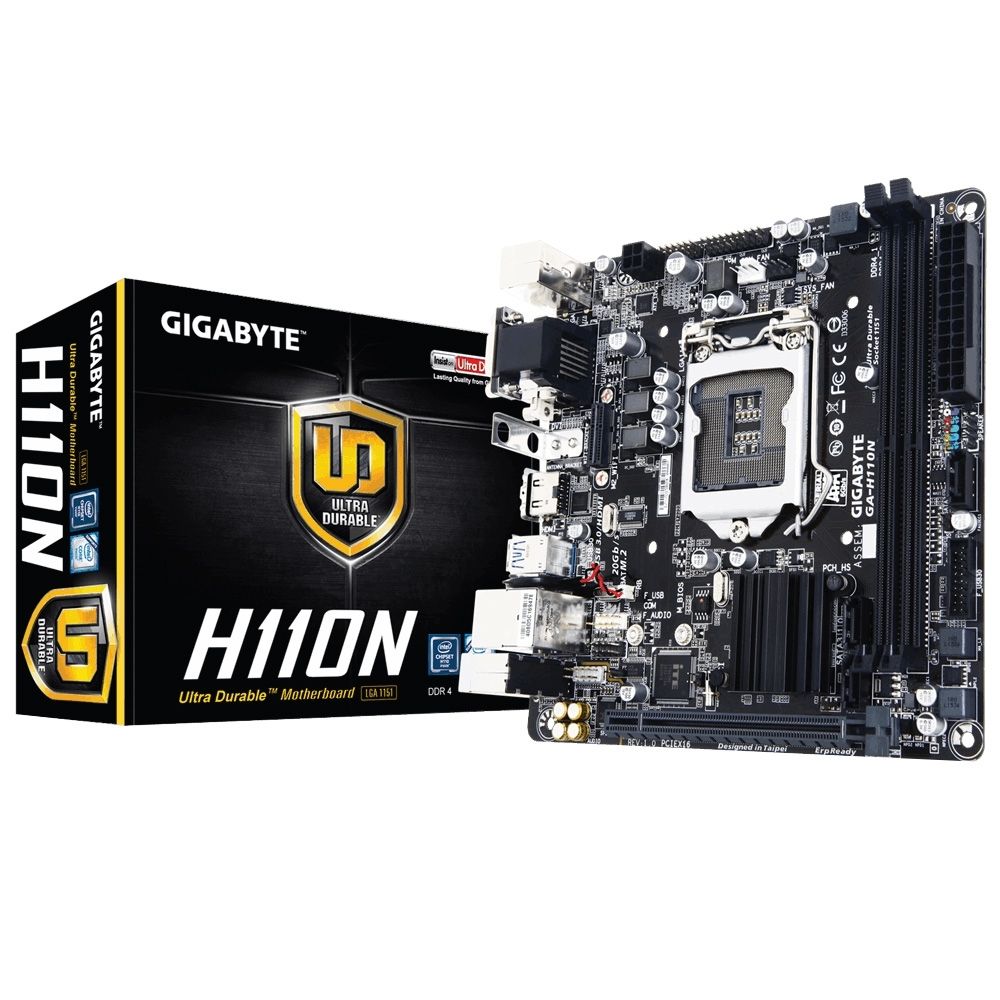

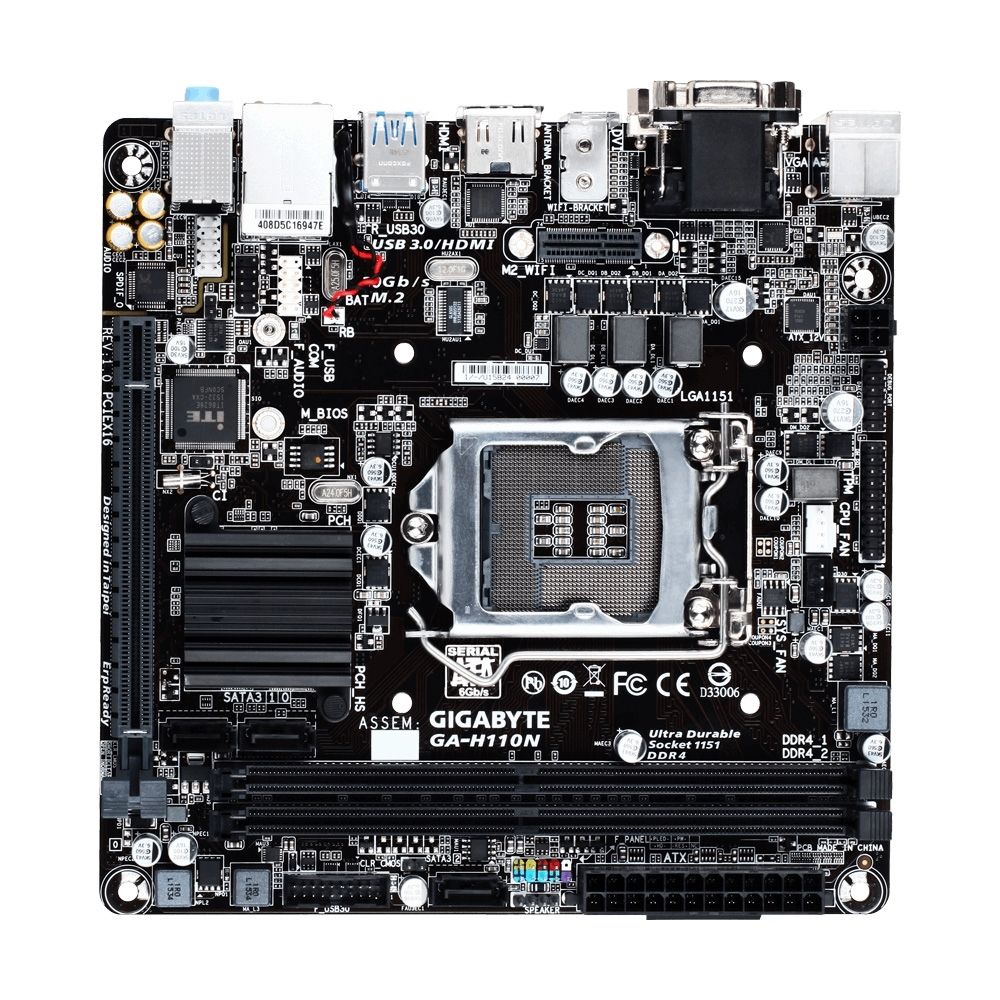

-->> Gigabyte MINI-ITX Motherboard GA-H110N Intel Core DDR4 <<--

Product Info:
GENERAL
Packaging Retail
Features L3 cache varies with CPU, Support for APP Center, Support for Q-Flash, Support for Smart Switch, Support for Xpress Install
Overclocking Features EasyTune



CHIPSET
BIOS 64 Mb UEFI AMI BIOS
North Bridge Intel H110
CPU SUPPORTED
Socket Type
LGA 1151
Intel CPU Support
Core i7
Core i5
Core i3
Celeron
Pentium

MEMORY
Supported Memory Technologies
ECC UDIMM Memory Supported
Non-ECC UDIMM Memory Supported
Maximum Memory Supported Per Slot 16GB
Memory Type DDR4
Memory Speeds Supported DDR4 2133
Memory Slots 2 x 288pin DIMM
Max Memory Supported 32GB
Memory Channel Support
Dual Channel

VIDEO
Onboard Graphic Chipset Intel HD Video

STORAGE
M.2 Port Type
2260
2280
SATA Express
1 x Socket 3
M Key
SATA 6Gb/s 3

AUDIO
Audio Chipset
Realtek ALC887
Audio Channels 7.1

NETWORKING
LAN Chipset Intel GbE Lan
LAN Speed 10/100/1000Mbps
Supported Network Technologies
Wake-On-LAN, Supports PXE
EXPANSION SLOTS
PCI Express 3.0 x16 1

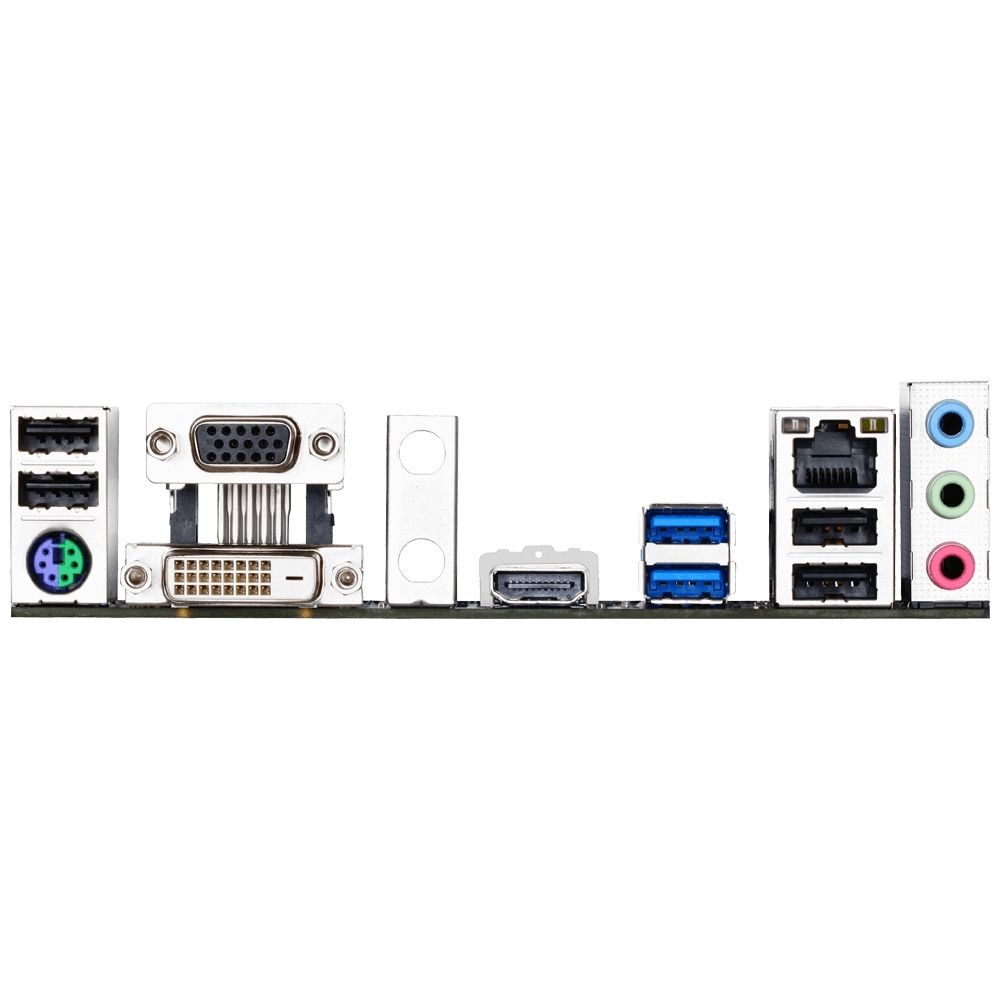

BACK PANEL PORTS
Video Connectors
1 x VGA 15-pin
1 x DVI-D
1 x HDMI 1.4
Specialty Ports
2 x WiFi Antenna Ports
USB 2.0
4 x USB 2.0 (Type-A)
USB 3.1
2 x USB 3.1 (Gen 1 Type-A)
Legacy Ports
1 x PS/2
LAN Ports 1 x 10/100/1000 RJ-45 LAN
Audio Ports
1 x 3.5 mm Microphone
1 x 3.5 mm Line-In
1 x 3.5 mm Front Speaker
PS/2 1
DVI 1
HDMI 1
VGA 15-pin 1
LAN RJ-45 1
Audio Ports 3
Digital Audio 1 x Optical
INTERNAL I/O & CONNECTORS
USB
1 x USB 3.1 Gen1 Connector (supports additional 2 USB 3.1 Gen1 ports)
1 x USB 2.0 Header (supports 2 additional USB 2.0 ports)
Other I/O
1 x Clearing CMOS Jumper
POWER
ATX Power Connector
24-pin
ATX12V / EPS 12V Connector
4-pin
PHYSICAL SPECIFICATIONS
Form Factor
mini ITX
Dimensions (WxD)
6.7" x 6.7" (170mm x 170mm)
PACKAGE CONTENTS
What's in the Box
mini-ITX Motherboard, CD-ROM, Cables, Connectors, Product Manual
