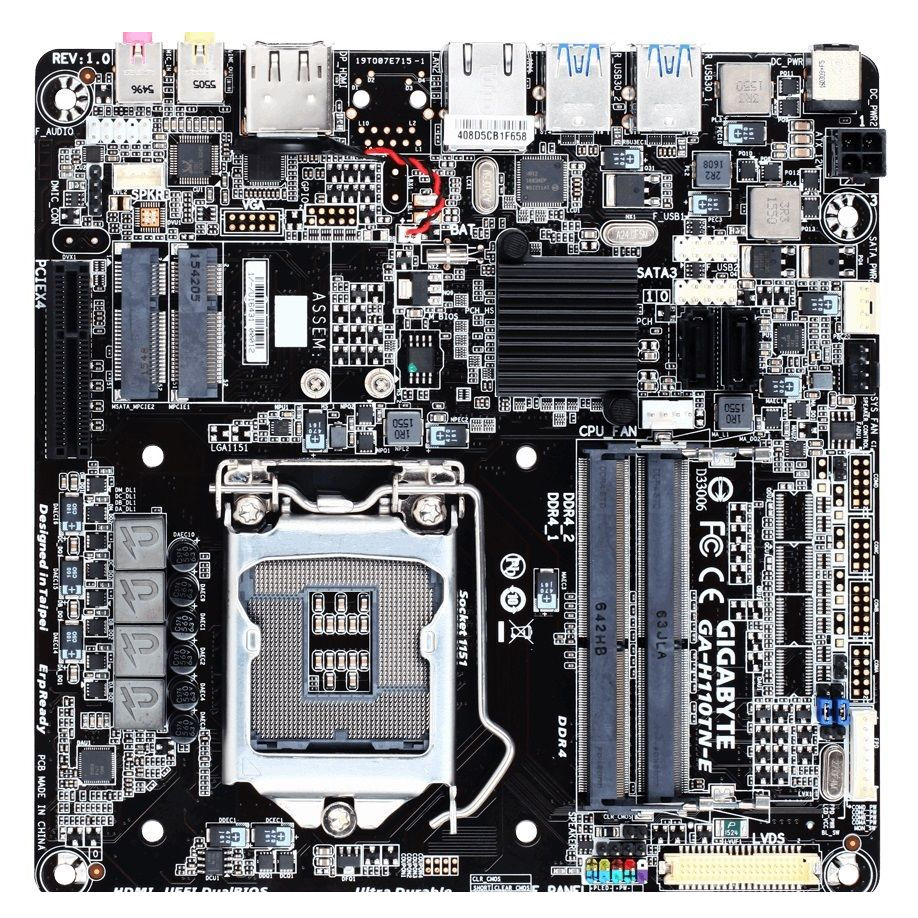

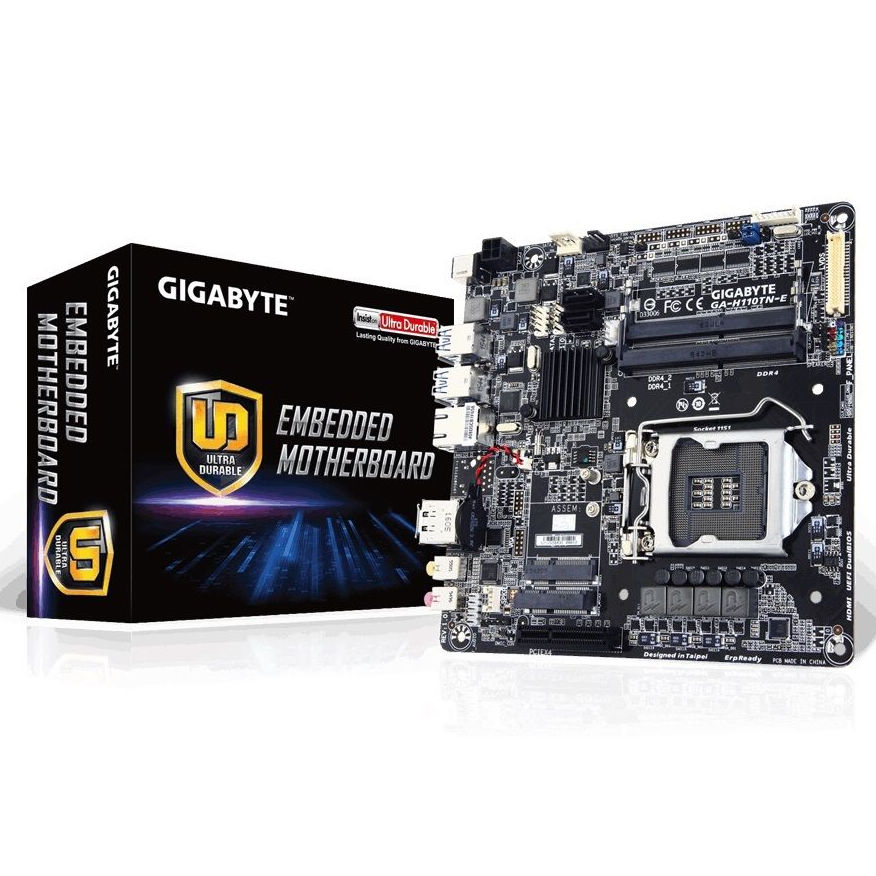

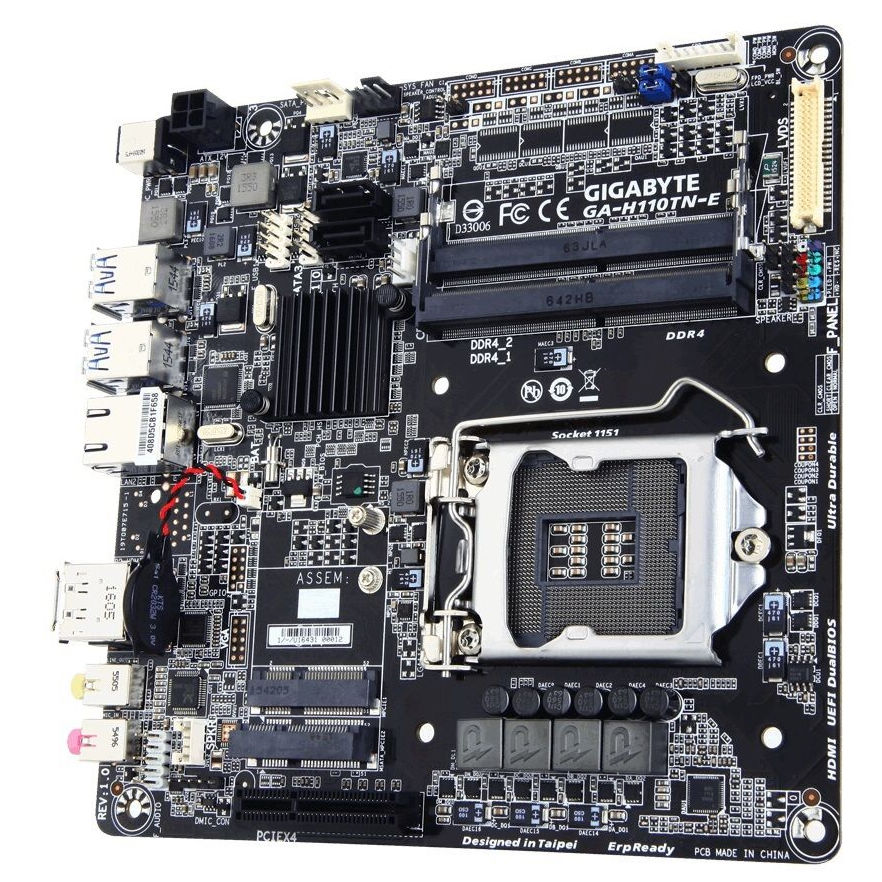

-->> Gigabyte GA-H110TN-E-E DDR4 Motherboard CPU i3 i5 i7 LGA1151 HTPC <<--


H110TN-E
Supports 6th Generation Intel® Core™ Processor
Dual Channel DDR4 SO-DIMM, 2 DIMMs
Mini-PCIe Slot for Full/ Half-Height WIFI Card Support
Mini-PCIe Dual Purpose Slot for mSATA SSD Support
LVDS Header for System Integrated Flat Panel Display Support
Rear Panel DisplayPort, HDMI 1.4 Ports for Multi-Display Connection
Amplified Speaker Header Able to Drive Up to 3W System Integrated Speaker
Intel® GbE LAN for WOL and PXE Support
Features 4 USB 3.0 and 4 USB 2.0 Ports
GIGABYTE UEFI DualBIOS™ Technology
Thin Mini-ITX 170x170mm Form Factor with 12/19~24V DC-In Power Design


CPU 1.Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel®Celeron® processors in the LGA1151 package
2.L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset 1.Intel® H110 Express Chipset

Memory 1.2 x DDR4 SO-DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2.Dual channel memory architecture
3.Support for DDR4 2133 MHz memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support1.1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.
2.1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Maximum shared memory of 512 MB
Audio 1.Realtek® ALC887 codec
2.High Definition Audio
3.2/4/5.1/7.1-channel

LAN 1.1 x Intel® GbE LAN chips (10/100/1000 Mbit)

Expansion Slots 1.1 x PCI Express x4 slot
(The PCI Express x4 slot conforms to PCI Express 3.0 standard.)
2.1 x full size Mini PCIe slot (MSATA_MPCIE2)
* The MSATA_MPCIE2 slot can also be used as an MSATA connector.
3.1 x half size Mini PCIe slot (MPCIE1)
(The Mini PCIe slot conforms to PCI Express 2.0 standard.)

Storage Interface Chipset:1.2 x SATA 6Gb/s connectors
2.1 x MSATA connector (MSATA_MPCIE2)

USB Chipset:1.4 x USB 3.0/2.0 ports on the back panel
2.4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors 1.1 x 4-pin ATX 12V power connector
2.1 x CPU fan header
3.1 x system fan header
4.2 x SATA 6Gb/s connectors
5.1 x MSATA connector (MSATA_MPCIE2)
6.ŠŠ1 x SATA power connector
7.1 x front panel header
8.1 x front panel audio header
9.1 x battery cable header
10.2 x USB 2.0/1.1 headers
11.1 x digital microphone header
12.1 x LVDS header
13.1 x LVDS drive voltage jumper
14.1 x flat panel display header
15.1 x flat panel display power jumper
16.1 x flat panel display switch header
17.1 x backlight switch header
18.1 x speaker header
19.1 x buzzer header
20.1 x Clear CMOS jumper
21.1 x chassis intrusion header

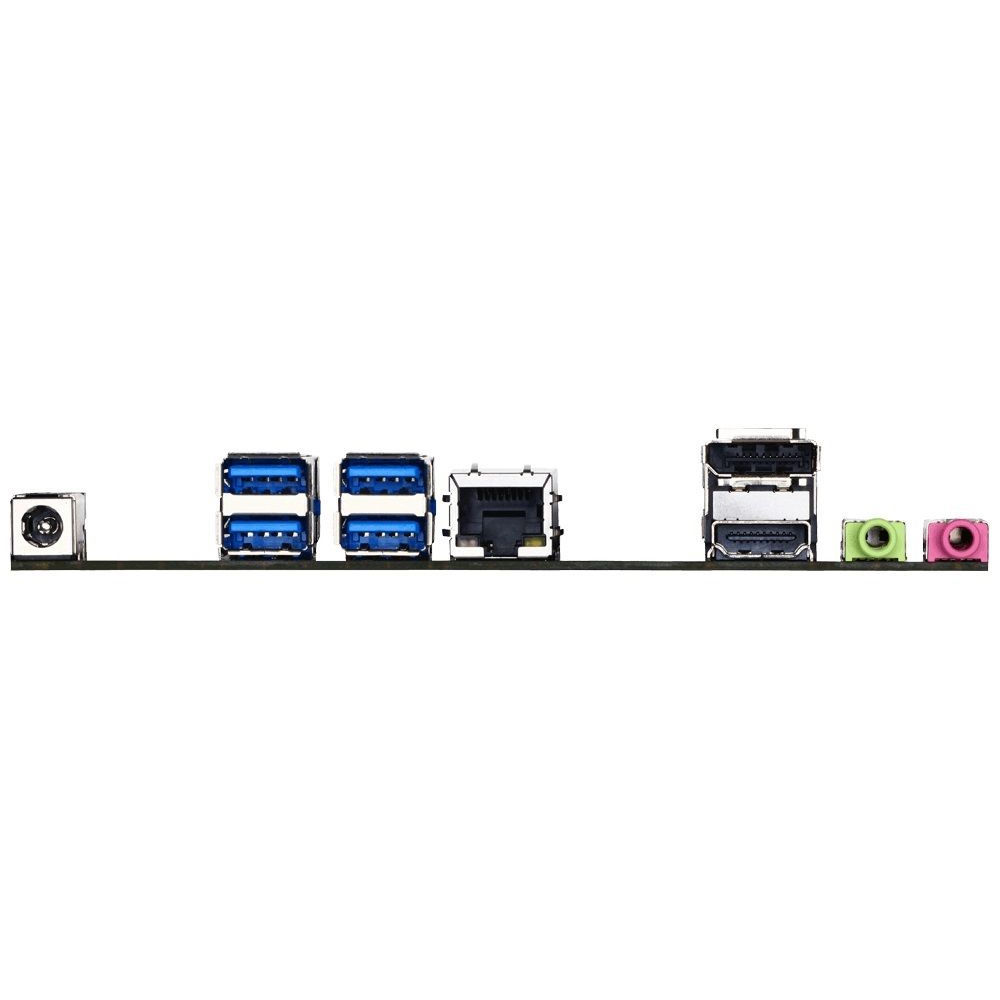

Back Panel Connectors 1.1 x DC In power connector
2.1 x HDMI port
3.1 x DisplayPort
4.4 x USB 3.0/2.0 ports
5.1 x RJ-45 port
6.2 x audio jacks (Line Out, Mic In)

I/O Controller 1.iTE® I/O Controller Chip

H/W Monitoring 1.System voltage detection
2.CPU/System temperature detection
3.CPU/System fan fail warning
4.CPU/System fan speed detection
5.CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS 1.2 x 64 Mbit flash
2.Use of licensed AMI UEFI BIOS
3.Support for DualBIOS™
4.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features 1.Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
2.Support for Q-Flash

Bundle Software 1.Norton® Internet Security (OEM version)

Operating System 1.Support for Windows 10/8.1 64-bit
2.Support for Windows 7 32-bit/64-bit
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

Form Factor 1.Thin Mini-ITX Form Factor; 17.0cm x 17.0cm
