-->> Gigabyte MINI-ITX Motherboard GA-H110TN Intel Core DDR4 <<--

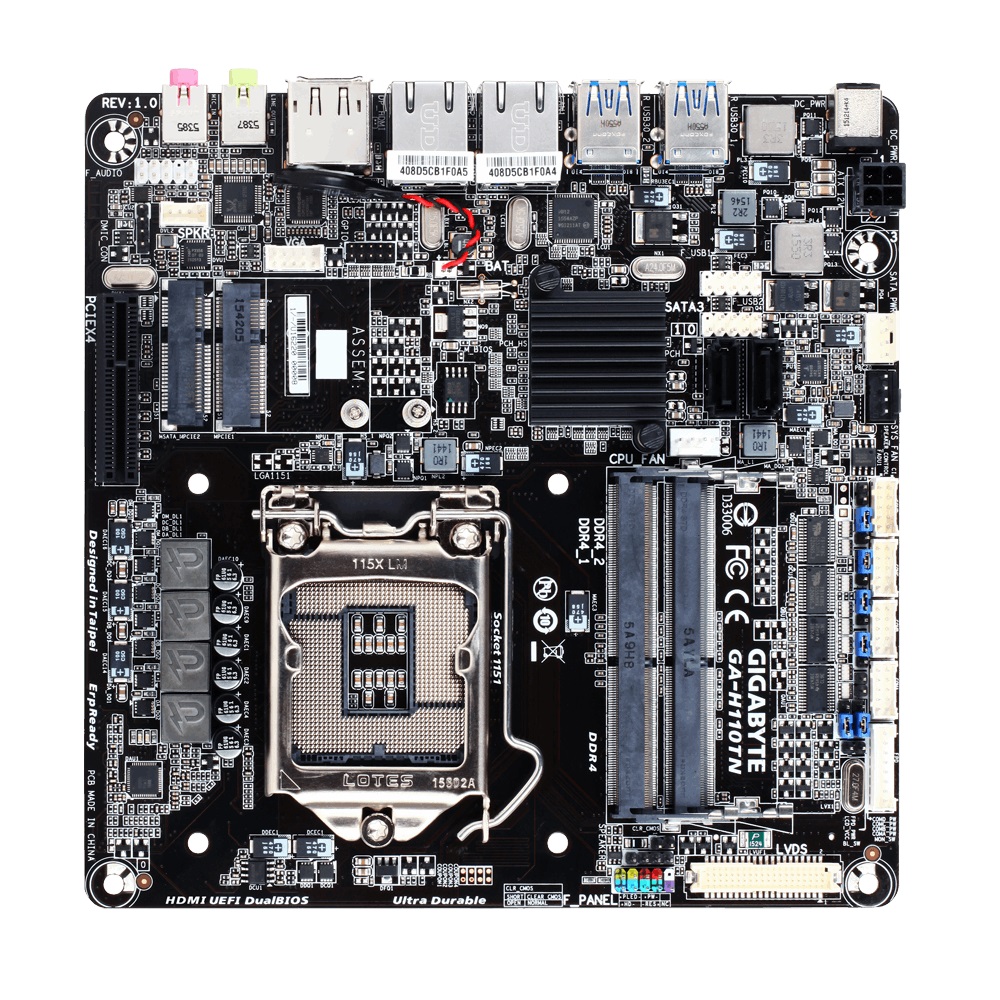

Gigabyte Motherboard GA-H110TN Intel Core H110 DDR4 PCI Express SATA Mini-ITX Bulk Pack
Features
*Supports 6th Generation Intel Core Processor
*Dual Channel DDR4 SO-DIMM, 2 DIMMs
*2 x RS232/422/485, 2 x RS232, Digital I/O 4-in/4-out
*Mini-PCIe Slot for Full/ Half-Height WIFI Card Support
*Mini-PCIe Dual Purpose Slot for mSATA SSD Support
*LVDS Header for System Integrated Flat Panel Display Support
*Rear Panel DisplayPort, HDMI 1.4 Ports & D-sub Header for Multi-Display Connection
*Amplified Speaker Header Able to Drive Up to 3W System Integrated Speaker
*Dual Intel GbE LAN for WOL and PXE Support
*Features 4 USB 3.0 and 4 USB 2.0 Ports
*GIGABYTE UEFI DualBIOS Technology
*Thin Mini-ITX 170x170mm Form Factor with 12/19~24V DC-In Power Design


GIGABYTE Ultra Durable * Motherboards
GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Core* processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.
Dual Intel® GbE LAN with cFosSpeed
The Dual Intel® Gigabit LAN with cFosSpeed features advanced technology to help deliver better network responsiveness in crowded LAN environments and allows optimization and improved network performance for specific applications, making it a popular choice amongst gamers.
•CPU
Support for Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
L3 Cache varies with CPU
•Chipset
Intel H110 Express Chipset
•Memory
2 x DDR4 SO-DIMM sockets supporting up to 32 GB of system memory
Dual Channel memory architecture
Support for DDR4 2133MHz memory Modules
•Onboard Graphics
Integrated Graphics Processor Intel HD Graphics Support
1 x DisplayPort Supporting a maximum resolution of 4096x2304 at 60Hz
1 x HDMI Port, supporting a maximum resolution of 4096x2160 at 24Hz
Maximum shared memory of 512MB
•Audio
Realtek ALC887 CODEC
High Definition Audio
2/4/5.1/7.1 Channel
•LAN
2 x Intel GbE LAN chips (10/100/1000 Mbit)
•Expansion Slots
1 x PCI Express x4 Slots
1 x Full Size Mini PCIe slot (MSATA_MPCIE2)
1 x Half Size Mini PCIe Slot (MPCIE1)
•Storage Interface
2 x SATA 6Gb/s Connectors
1 x mSATA connector (MSATA_PCIE2)
•USB
Chipset:
- 4 x USB 3.0/2.0 ports on the back panel
- 4 x USB 2.0/1.1 ports available through the internal USB headers
•Internal I/O Connectors
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
2 x SATA 6Gb/s connectors
1 x MSATA connector (MSATA_MPCIE2)
1 x SATA power connector
1 x front panel header
1 x front panel audio header
1 x battery cable header
2 x USB 2.0/1.1 headers
4 x serial port headers
4 x serial port power select jumpers
1 x D-Sub header
1 x digital microphone header
1 x GPIO header
1 x LVDS header
1 x LVDS drive voltage jumper
1 x flat panel display header
1 x flat panel display power jumper
1 x flat panel display switch header
1 x backlight switch header
1 x speaker header
1 x buzzer header
1 x Clear CMOS jumper
1 x chassis intrusion header

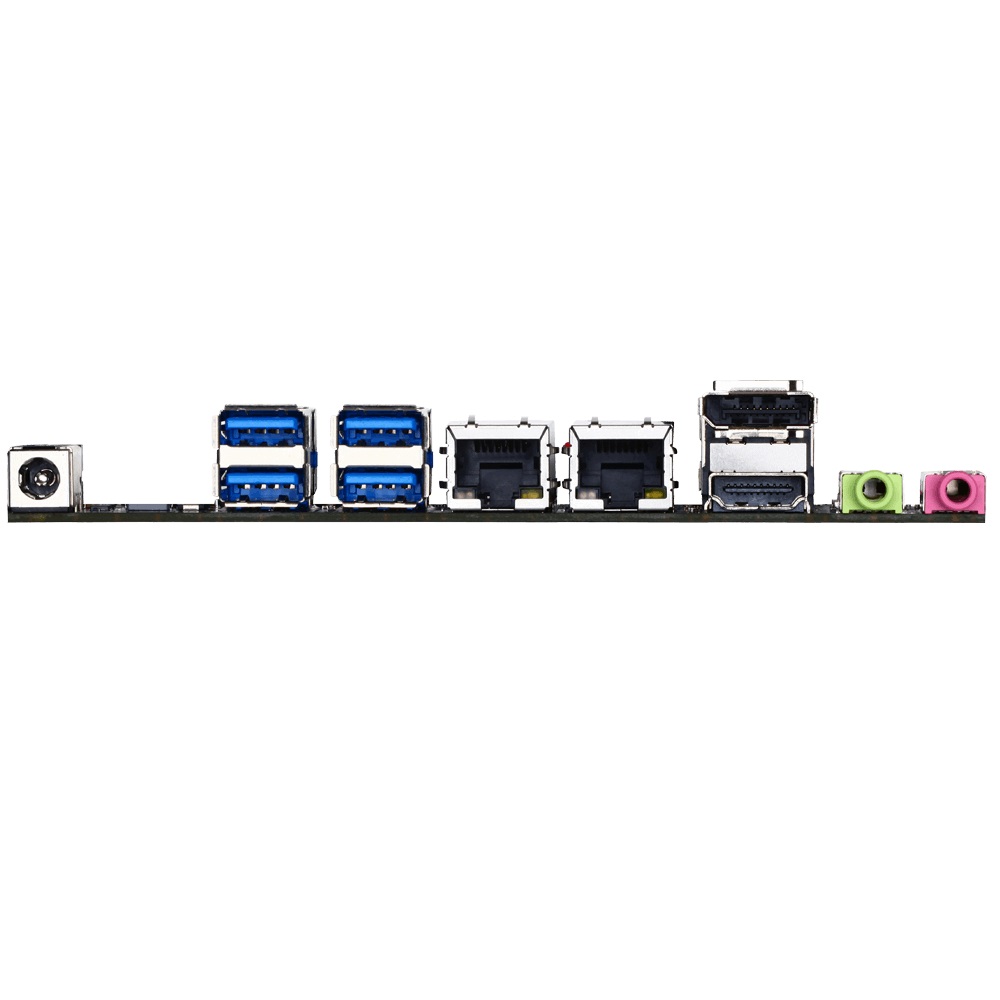

•Back Panel Connectors
1 x DC In power connector
1 x HDMI port
1 x DisplayPort
4 x USB 3.0/2.0 ports
2 x RJ-45 ports
2 x audio jacks (Line Out, Mic In)
•I/O Controller
iTE I/O Controller Chip
•H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan fail warning
CPU/System fan speed detection
CPU/System fan speed control
•BIOs
2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for Dual BIOs
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
•Unique Features
Support for Q-Flash
Support for Smart TPM
Support for at BIOs
•Bundle Software
Norton Internet Security (OEM Version)
•Operating System
Support Windows 10/8.1 64-Bit
Support for Windows 7 32/64-Bit
•Form Factor
Mini-ITX
Weight 17.00 lb
Warranty Information 3 Years
