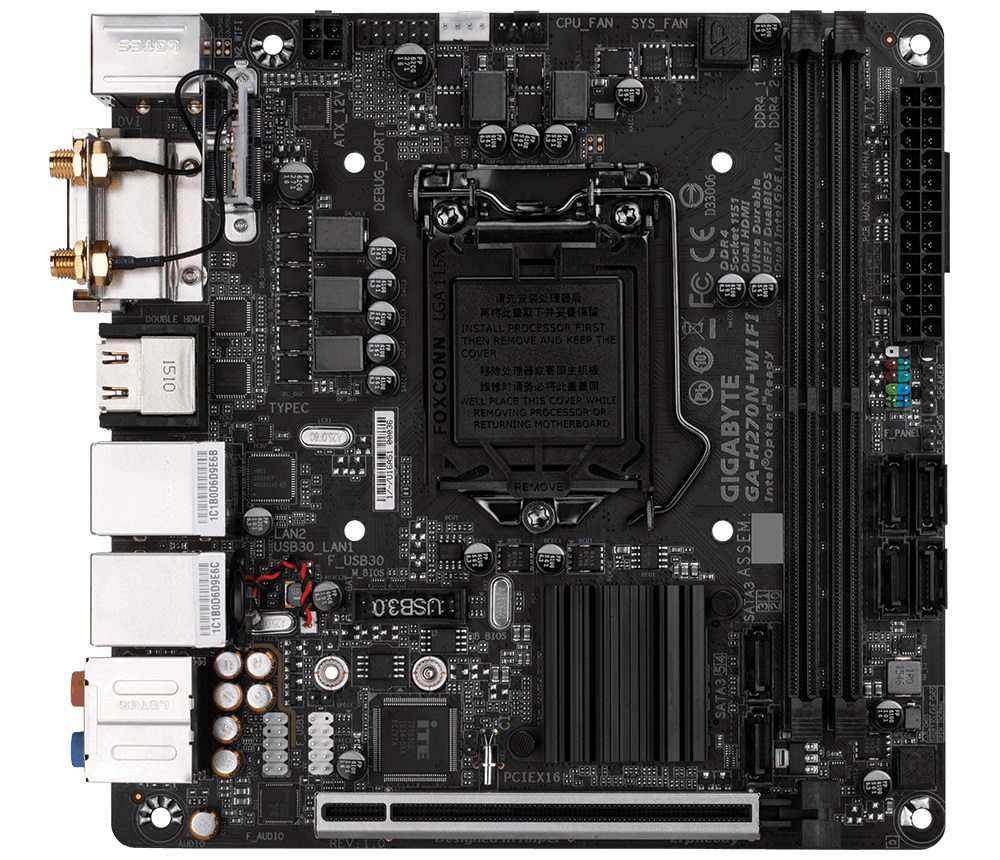

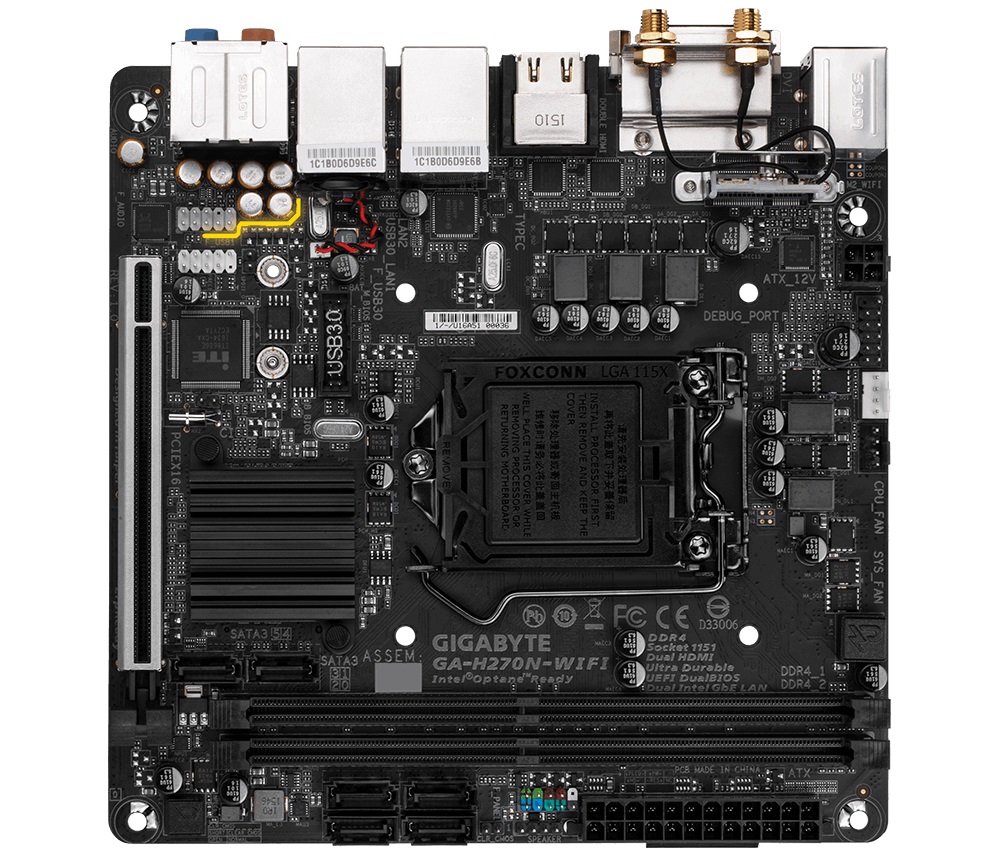

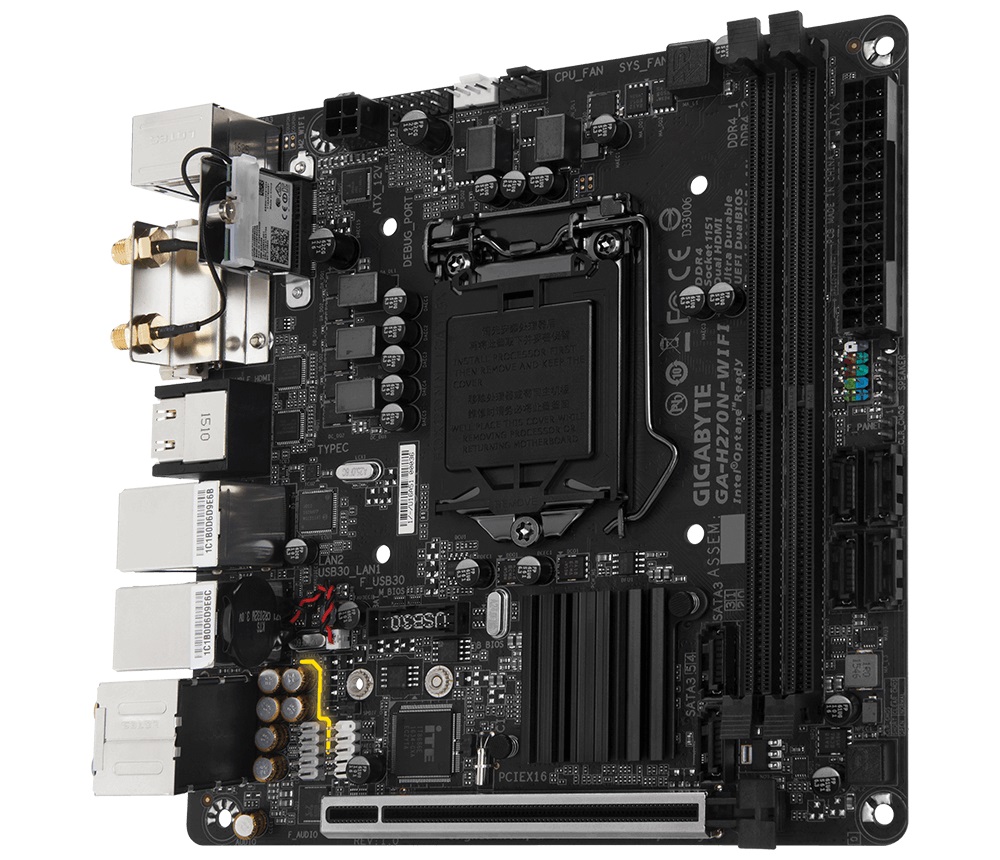

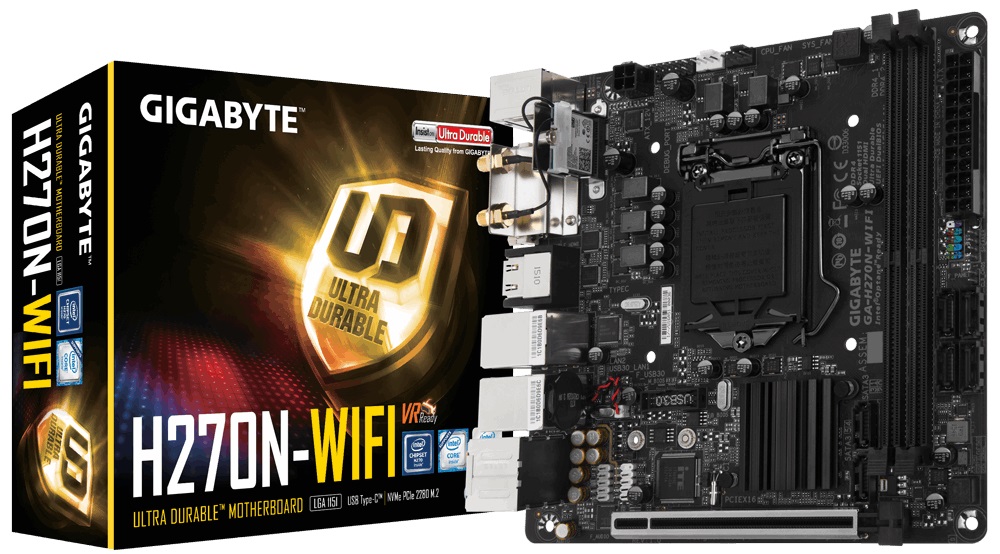

-->> Gigabyte MINI-ITX Motherboard GA-H270N-WIFI <<--

model: GA-H270N-WIFI
Intel H270
Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
DDR4 2400(O.C.)*/ 2133
To support 2400 MHz or XMP memory, you must install a 7th generation processor.


Learn more about the GIGABYTE GA-H270N-WIFI (rev. 1.0)

Model
BrandGIGABYTEModelGA-H270N-WIFI (rev. 1.0)

Supported CPU
CPU Socket TypeLGA 1151CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1151)

Chipsets
ChipsetIntel H270

Onboard Video
Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support:
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
- 2 x HDMI ports, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Support for up to 3 displays at the same time
Maximum shared memory of 1G

Memory
Number of Memory Slots2×288pinMemory StandardDDR4 2400(O.C.)*/ 2133
* To support 2400 MHz or XMP memory, you must install a 7th generation processor.Maximum Memory Supported32GBChannel SupportedDual Channel

Expansion Slots
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16

(The PCIEX16 slot conforms to PCI Express 3.0 standard.)Other Slots1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

Storage Devices
SATA 6Gb/s6 x SATA 6Gb/sM.21 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)SATA RAID0/1/5/10

Onboard Audio
Audio ChipsetRealtek ALC1220Audio Channels2/4/5.1/7.1-channel

Onboard LAN
LAN ChipsetIntel GbE LAN chipSecond LAN ChipsetIntel GbE LAN chipMax LAN SpeedDual 10/100/1000MbpsWireless LANWi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-BandBluetoothBLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR

Rear Panel Ports

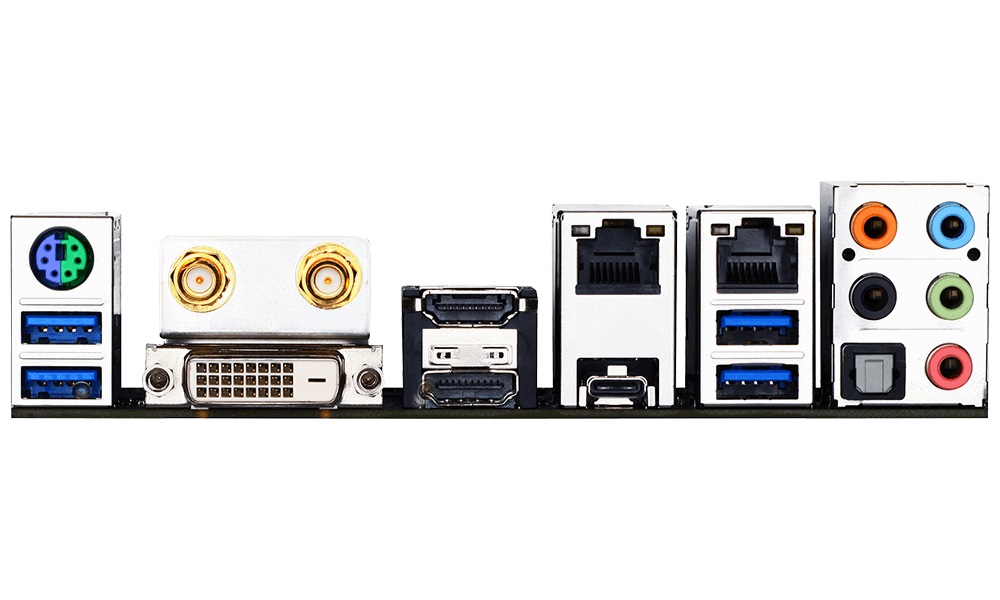

PS/21 x PS/2 keyboard/mouse portVideo Ports1 x DVI-D portHDMI2 x HDMIRJ452 x RJ45USB 3.14 x USB 3.1 Gen 1 ports
1 x USB Type-C port, with USB 3.1 Gen 1 supportS/PDIF Out1 x OpticalAudio Ports5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)Antenna Connectors2 x SMA antenna connectors (2T2R)

Internal I/O Connectors
Onboard USB1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 headerOther Connectors1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header

Physical Spec
Form FactorMini ITXDimensions (W x L)6.7" x 6.7"Power Pin24 Pin

Features
FeaturesI/O Controller
- iTE I/O Controller Chip

Hardware Monitor
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS
- 2 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
GIGABYTE HW OC APP
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
USB DAC-UP 2
V-Tuner
- Support for 3TB+ Unlock
- Support for Q-Flash
- Support for Xpress Install

Bundled Software
- Norton Internet Security (OEM version)
- Intel Wireless Display
- Intel Optane Memory Ready
- cFosSpeed

Operating System
- Support for Windows 10/8.1 64-bit
- Support for Windows 7 32-bit/64-bit
* Operating systems supported may vary depending on your processor model.
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7
