>>Your Current Position: GiagaByte Motherboard

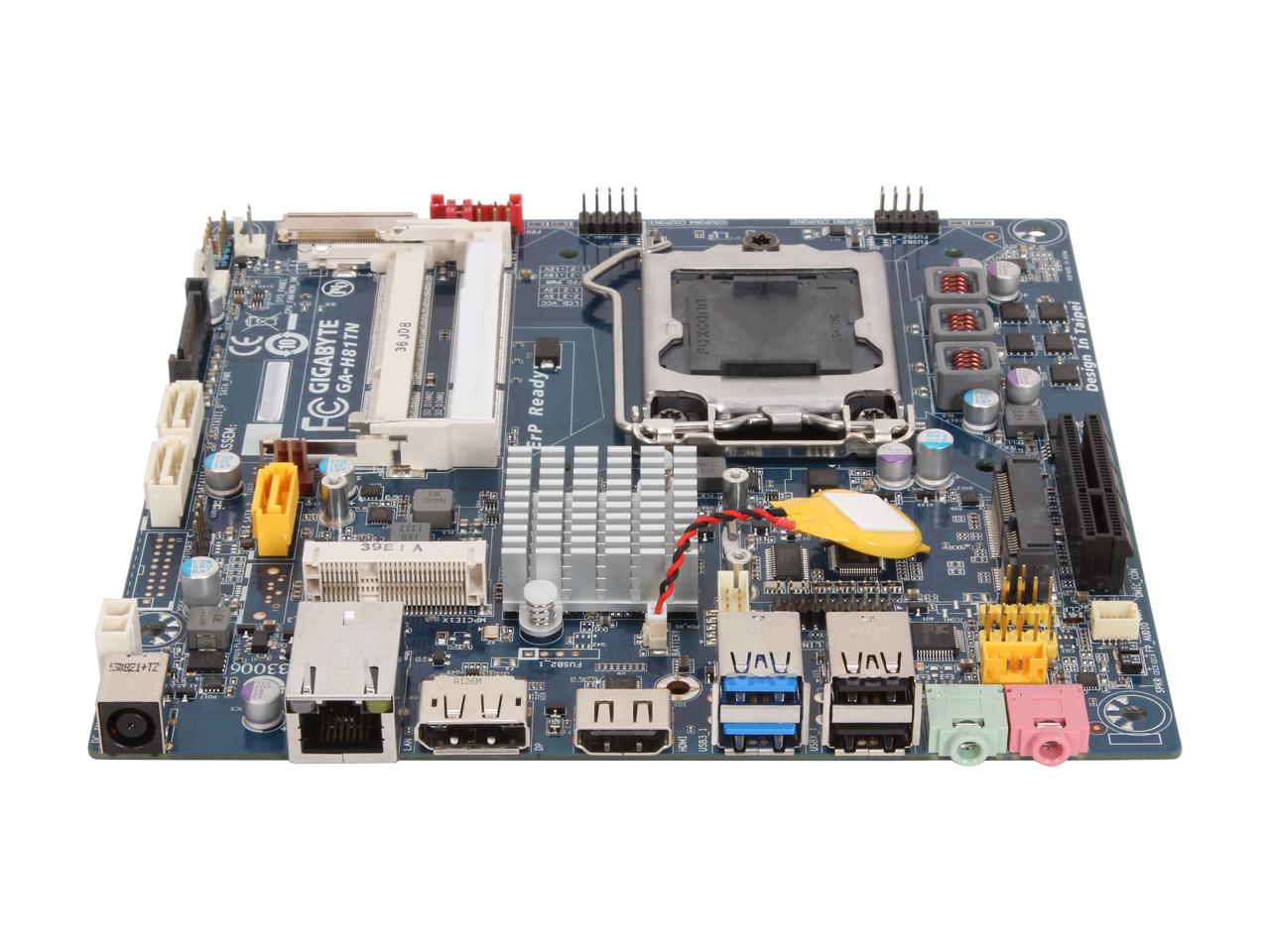

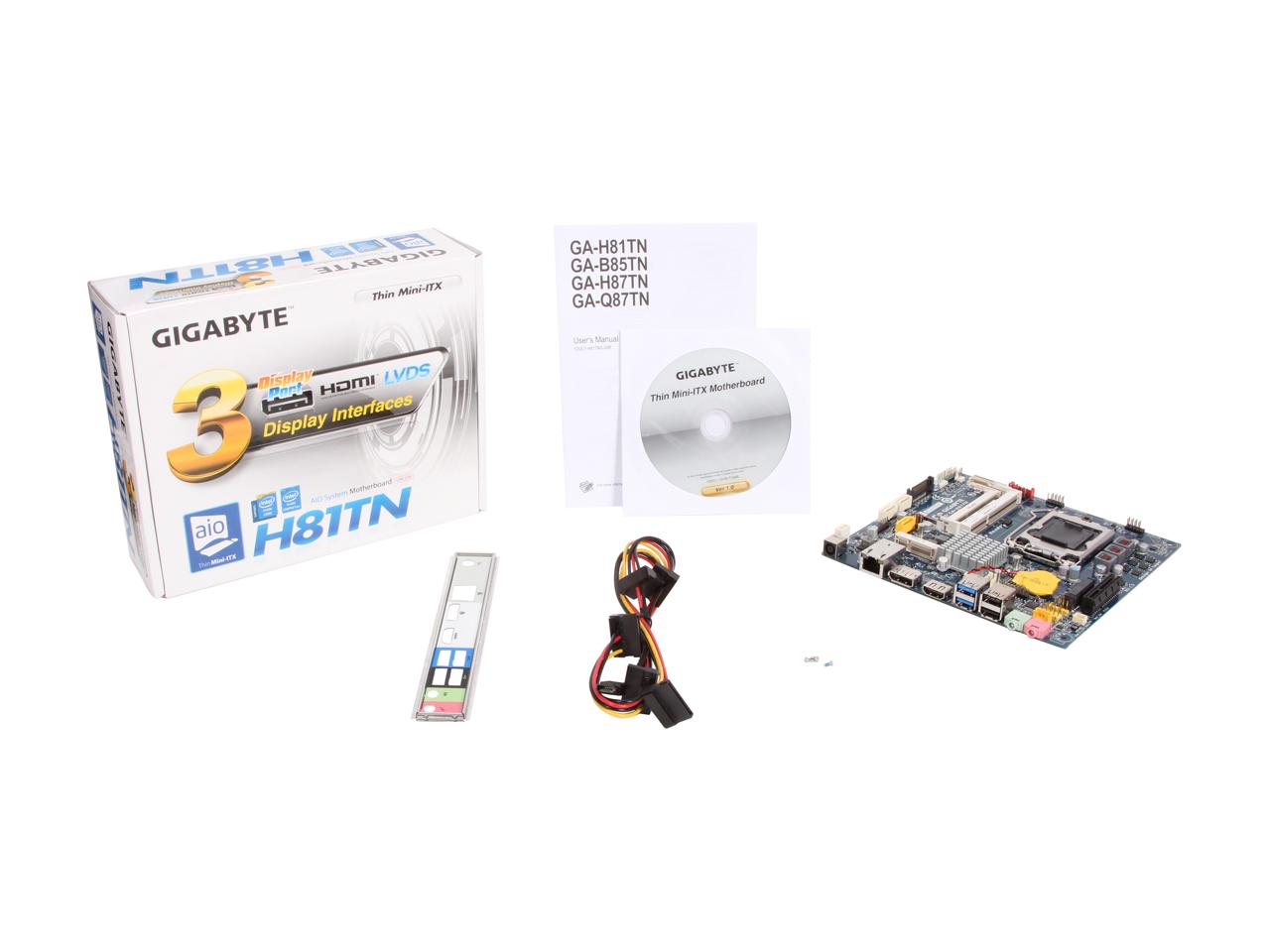

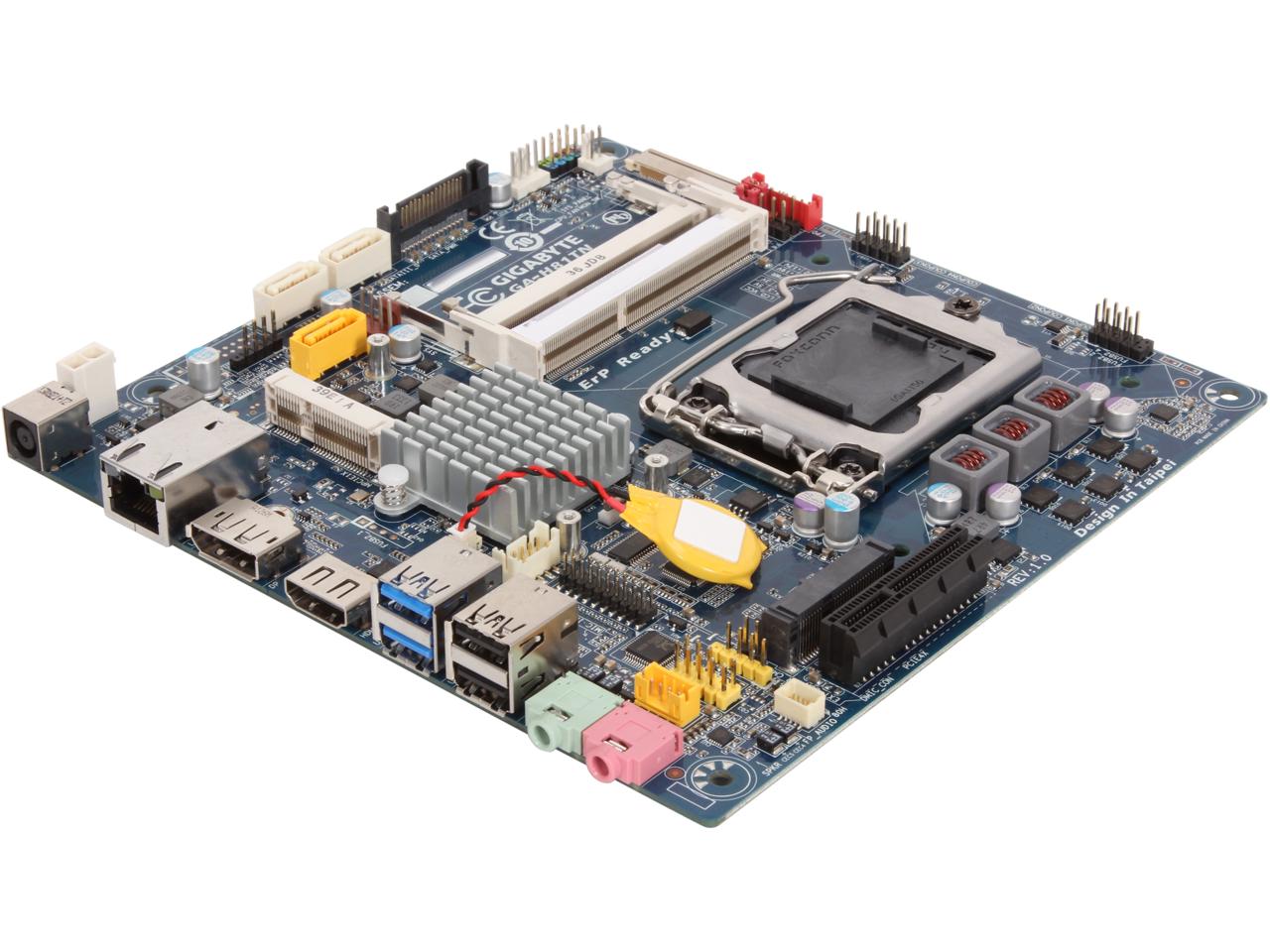

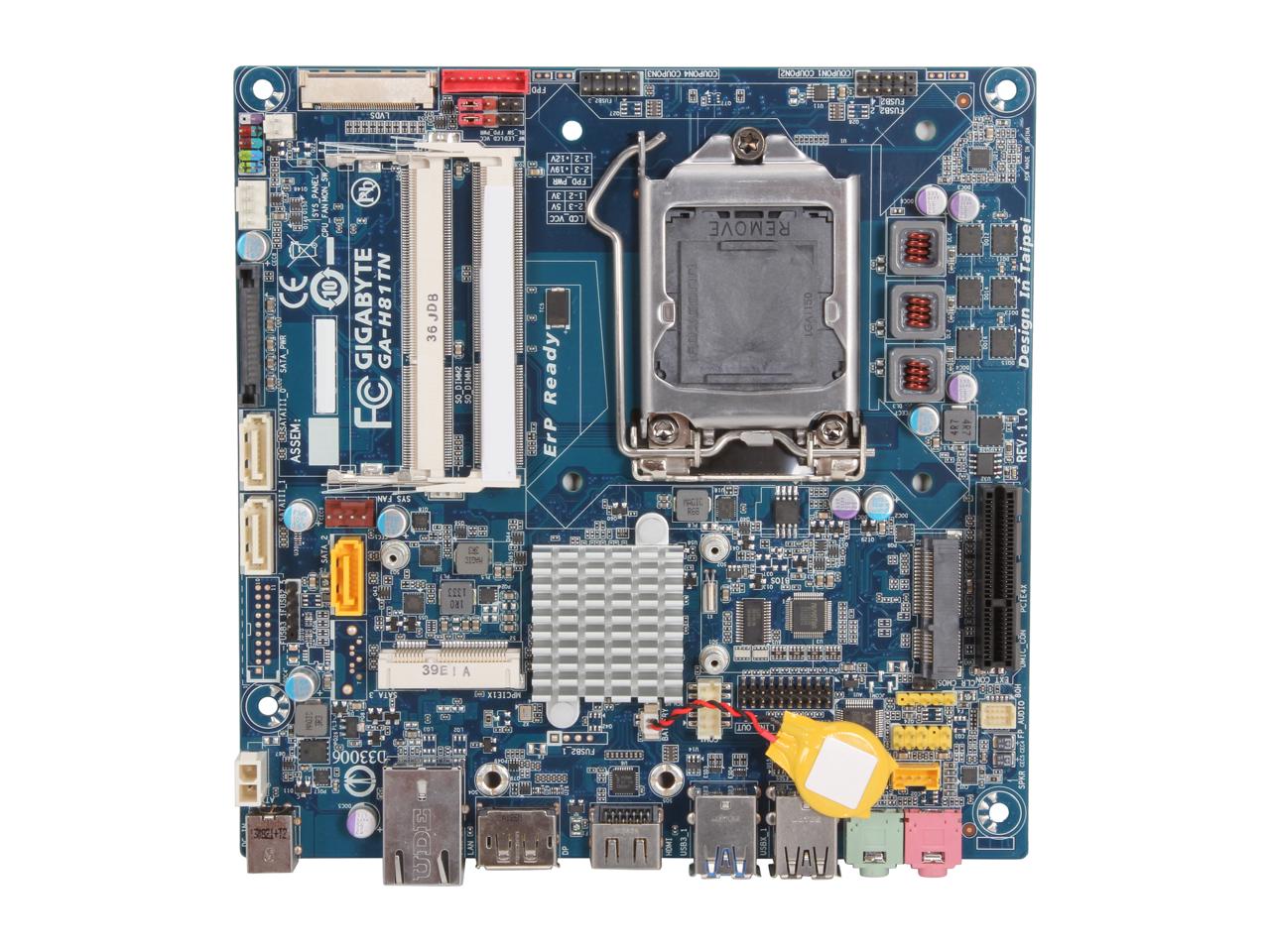

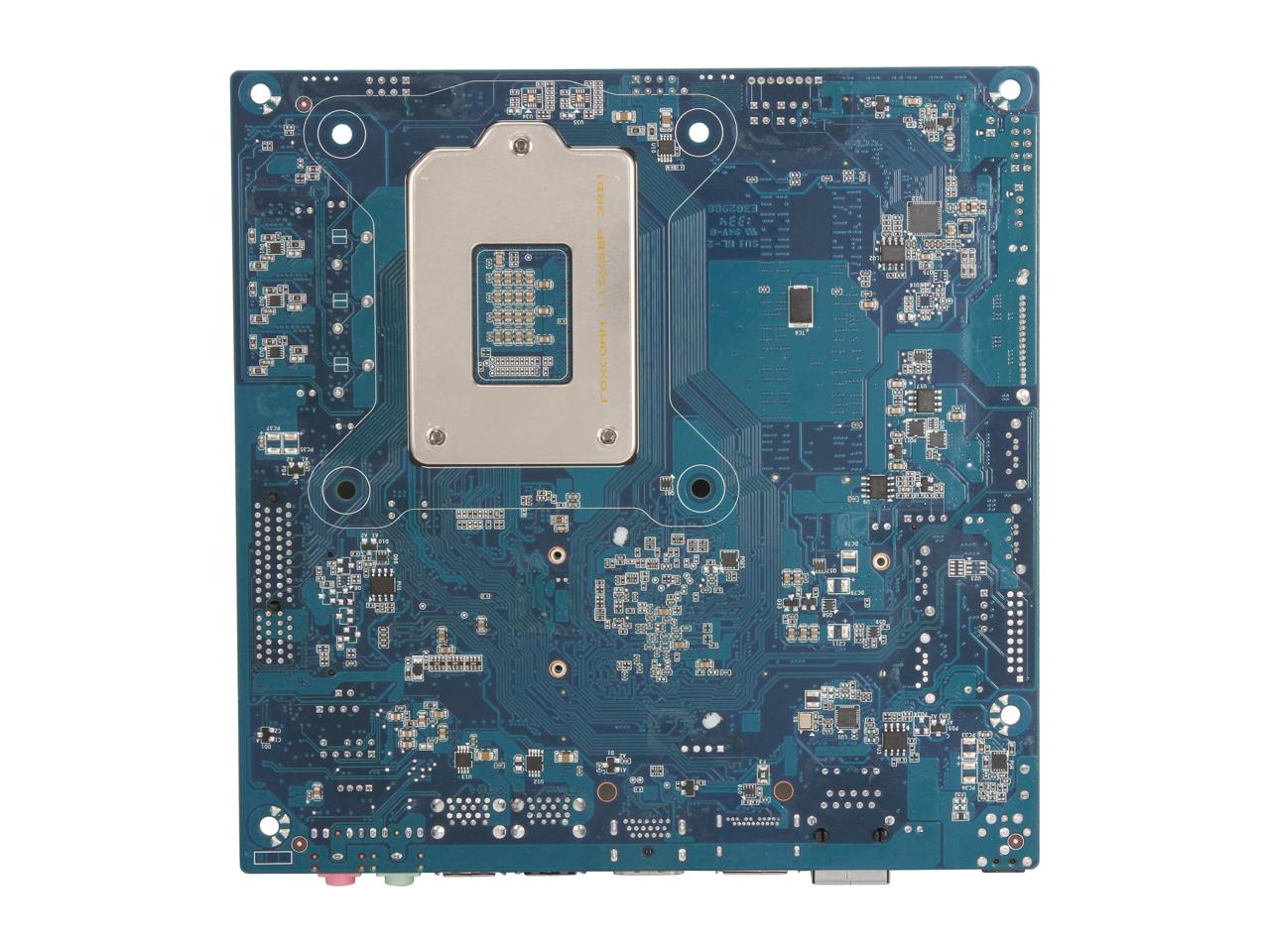

-->> GIGABYTE GA-H81TN LGA 1150 Intel H81 HDMI SATA 6Gb/s USB 3.0 Thin Mini-ITX Intel Motherboard <<--


Model
BrandGIGABYTEModelGA-H81TN


Supported CPU
CPU Socket TypeLGA 1150CPU Type4th-generation Core i7/i5/i3/Pentium/Celeron (LGA1150)

Chipsets
ChipsetIntel H81

Onboard Video
Onboard Video ChipsetSupported only by CPU with integrated graphic

Memory
Number of Memory Slots2×204pin SO-DIMMMemory StandardDDR3 1600/1333Maximum Memory Supported8GBChannel SupportedDual Channel

Expansion Slots
PCI Express x41 (Supports 25W only)Mini Card Slots1 x Mini PCI Express x1

Storage Devices
SATA 3Gb/s1 x SATA 3Gb/sSATA 6Gb/s2 x SATA 6Gb/s

Onboard Audio
Audio ChipsetRealtek ALC887Audio Channels7.1 Channels

Onboard LAN
LAN ChipsetRealtekMax LAN Speed10/100/1000Mbps

Rear Panel Ports
HDMI1 x HDMIDisplayPort1 x DisplayPortUSB 3.02 x USB 3.0USB 1.1/2.02 x USB 2.0Audio Ports2 Ports

Internal I/O Connectors
Onboard USB5 x USB 2.0/1.1 headersOther Connectors1 x 2-pin power connector
1 x CPU fan header
1 x system fan header
1 x mSATA connector
1 x SATA power connector
1 x serial port header
1 x parallel port header
1 x front panel header
1 x front panel audio header
1 x digital microphone header
1 x AIO speaker header
1 x LVDS connector
1 x LVDS drive voltage header
1 x flat panel display power header (both panel and backlight inverter)
1 x flat panel display power connector
1 x backlight switch header
1 x flat panel display switch header
1 x WIFI activity indicator LED header
1 x Clear CMOS jumper

Physical Spec
Form FactorThin Mini-ITXDimensions (W x L)6.7" x 6.7"

Features
FeaturesPanel Driver Power Selectable

Back Light Module Power Selectable

Wide Range Voltage Input

PCI Express x4 Slot
