Mini-ITX Motherboard Celeron DUAL-CORE 2.41GHz J1800 CPU GIGABYTE GA-J1800N-D2P

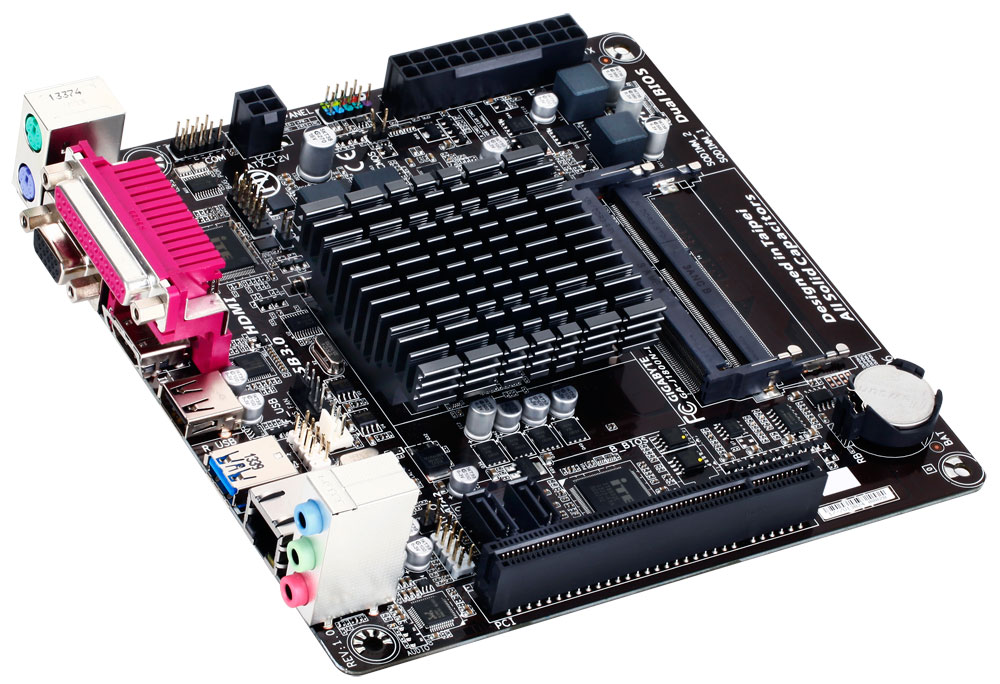

GA-J1800N-D2P (rev. 1.0)

•Built-in Intel® Celeron™ J1800 (2.41 GHz) dual-core processor
•GIGABYTE Ultra Durable™ 4 Plus Technology
•All Solid Capacitors with Humidity Protection New Glass Fabric PCB design
•LAN with high ESD Protection
•GIGABYTE UEFI DualBIOS™
•HDMI, D-SUB ports on rear panel
•USB 3.0 port with GIGABYTE 3x USB power
•GIGABYTE On/Off Charge™ for USB devices
•PCI interface for wide-range expansion card selections

GIGABYTE J1800N-D2H
The GIGABYTE J1800N Mini-ITX motherboard is a fully integrated PC motherboard featuring the Intel® Celeron™ J1800 dual-core processor. Designed for compact, small form factor PC systems and devices, the GIGABYTE J1800N is entirely fanless, making it ideal for always-on, mission critical systems, as well as noise-sensitive digital entertainment systems. Connectivity includes digital and analog display outputs via VGA and HDMI ports, while a Mini-PCIe slot provides flexible Wi-Fi option

GIGABYTE J1800N-D2P
The GIGABYTE J1800N Mini-ITX motherboard is a fully integrated PC motherboard featuring the Intel® Celeron™ J1800 dual-core processor. Designed for compact, small form factor PC systems and devices, the GIGABYTE J1800N is entirely fanless, making it ideal for always-on, mission critical systems, as well as noise-sensitive digital entertainment systems. Connectivity includes digital and analog display outputs via VGA and HDMI ports, while a PCI slot provides wide-range expansion card selections.

GIGABYTE J1800N-D2P
The Intel® Celeron™ J1800 Dual-Core processor is the latest system on chip (SoC) from Intel, combining CPU, graphics and memory controller in one package. Based on the 22nm manufacturing process, the Intel® Celeron™ J1800 uses the smallest package of any desktop processor within a low thermal envelope of on 10 watts. The Intel® Celeron™ J1800 boasts excellent performance including DX11 gaming on Intel® HD Graphics, plus a dedicated H.264 encoder for smooth HD video playback.

GIGABYTE Ultra Durable™ 4 Plus
GIGABYTE Ultra Durable™ 4 Plus debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.

Ultra Performance
GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.

Ultra Safe
GIGABYTE UEFI DualBIOS™
GIGABYTE motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.

Humidity Protection
Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.

Power Failure Protection
GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.

Electrostatic Protection
GIGABYTE motherboards feature High Resistance ICs which help protect the motherboard against electrostatic discharge.

High ESD Protection for USB and LAN (USB 3.0 only)
GIGABYTE 8 Series motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.

One Fuse per USB Port (USB 3.0 only)
On GIGABYTE 8 Series motherboards each USB port has its own dedicated power fuse that prevents unwanted USB port failure, helping to safe guard your important data during transfer

HDMI™-The Next Generation Multimedia Interface
HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

On/Off Charge Technology
GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...more
*Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
*Whether to support 3X USB power design, it may vary by models.

LAN Optimizer - Intelligent optimization network management tool
GIGABYTE LAN Optimizer is designed to allow the user to manage different types of network traffic so that data streams such as HD media, web browsing or online gaming can be prioritized, taking precedence over large data downloads that tend to strangle overall network bandwidth.

GIGABYTE @BIOS
The new and updated GIGABYTE @BIOS app allows you to update your system's BIOS from within Windows using a simple and slick graphical user interface by automatically downloading the latest version from the GIGABYTE servers.

CPU 1.Built in with an Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz)
* Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.
2.1 MB Cache

Memory 1.2 x DDR3/-L SO-DIMM sockets supporting up to 8 GB of system memory
* If only one DDR3/-L memory module is to be installed, be sure to install it in the SODIMM_1 socket.
2.Dual channel memory architecture
3.Support for DDR3/-L 1333 MHz memory modules
4.Support for non-ECC memory modules

Onboard Graphics Integrated in the SoC:
1.1 x D-Sub port, supporting a maximum resolution of 2560x1600
2.1 x HDMI port, supporting a maximum resolution of 1920x1080

Audio 1.Realtek® ALC887 codec
2.High Definition Audio
3.2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4.Support for S/PDIF Out

LAN 1.Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots 1.1 x PCI slot

Storage Interface Integrated in the SoC:
1.2 x SATA 3Gb/s connectors

USB Integrated in the SoC:
1.1 x USB 3.0/2.0 port on the back panel
2.3 x USB 2.0/1.1 ports (1 port on the back panel, 2 ports available through the internal USB header)

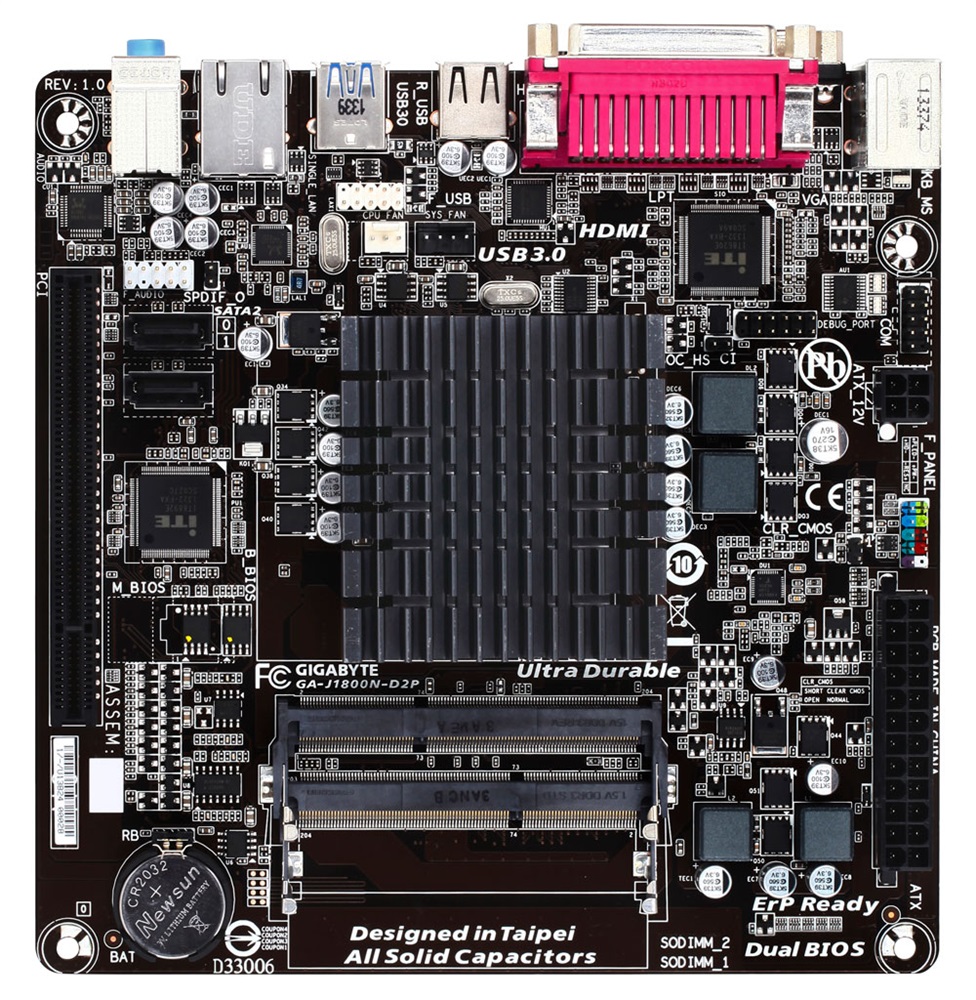

Internal I/O Connectors 1.1 x 24-pin ATX main power connector
2.1 x 4-pin ATX 12V power connector
3.2 x SATA 3Gb/s connectors
4.1 x CPU fan header
5.1 x system fan header
6.1 x front panel header
7.1 x front panel audio header
8.1 x S/PDIF Out header
9.1 x USB 2.0/1.1 header
10.1 x serial port header
11.1 x debug card header
12.1 x chassis intrusion header
13.1 x Clear CMOS jumper

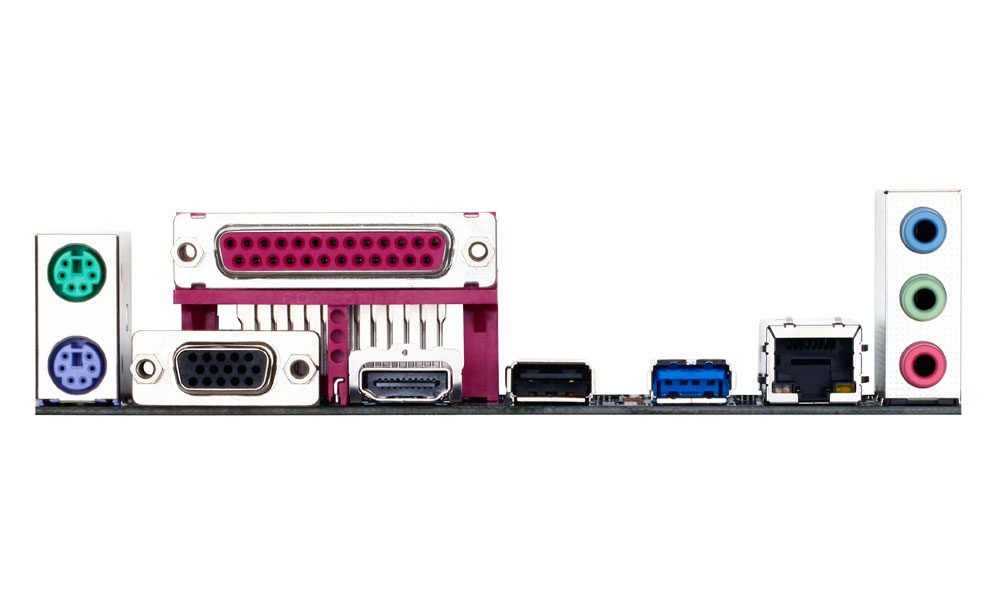

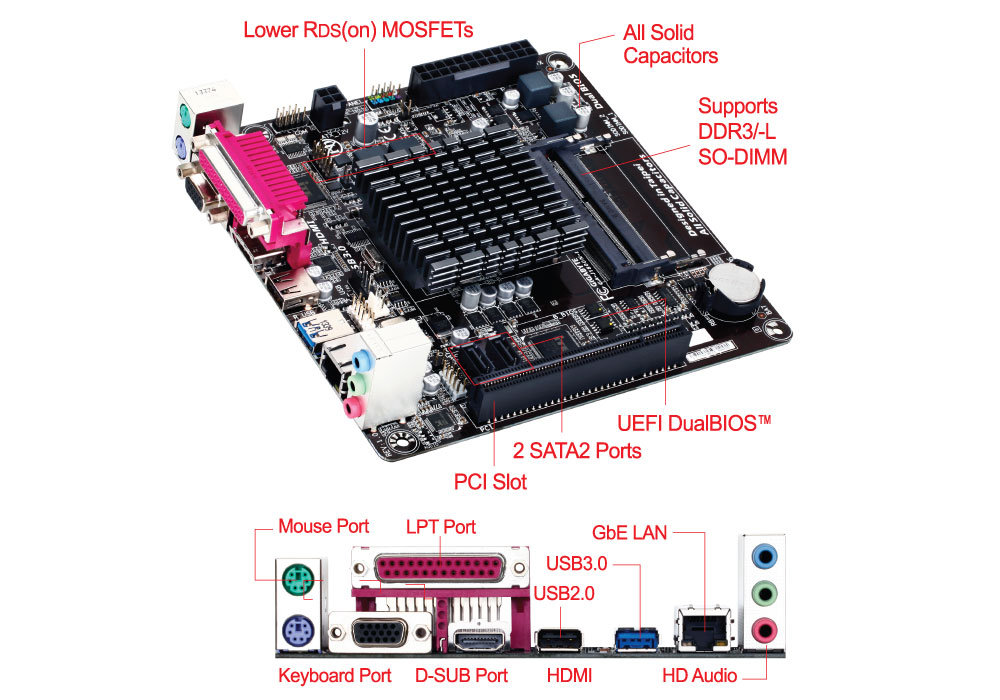

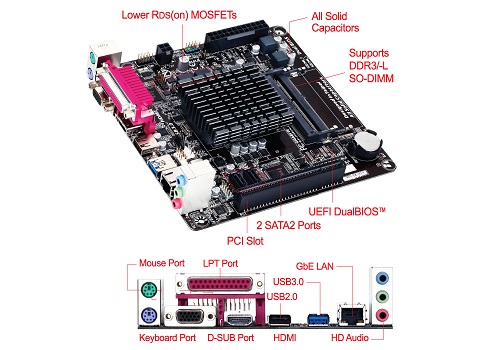

Back Panel Connectors 1.1 x PS/2 keyboard port
2.1 x PS/2 mouse port
3.1 x D-Sub port
4.1 x HDMI port
5.1 x parallel port
6.1 x USB 3.0/2.0 port
7.1 x USB 2.0/1.1 port
8.1 x RJ-45 port
9.3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller 1.iTE® I/O Controller Chip

H/W Monitoring 1.System voltage detection
2.CPU/System temperature detection
3.CPU/System fan speed detection
4.CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS 1.2 x 64 Mbit flash
2.Use of licensed AMI UEFI BIOS
3.Support for DualBIOS™
4.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features 1.Support for Xpress Install
2.Support for @BIOS
3.Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
4.Support for ON/OFF Charge

Bundle Software 1.Norton® Internet Security (OEM version)
2.Intel® Smart Connect Technology

Operating System 1.Support for Windows 8.1/8 32-bit/64-bit
2.Support for Windows 7 64-bit
* To support Windows 7 64-bit, please update the latest BIOS and drivers.

Form Factor 1.Mini-ITX Form Factor; 17.0cm x 17.0cm

Remark 1.Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
