-->> GIGABYTE Mini-ITX Motherboard Celeron CPU GA-N3150N-D2H <<--

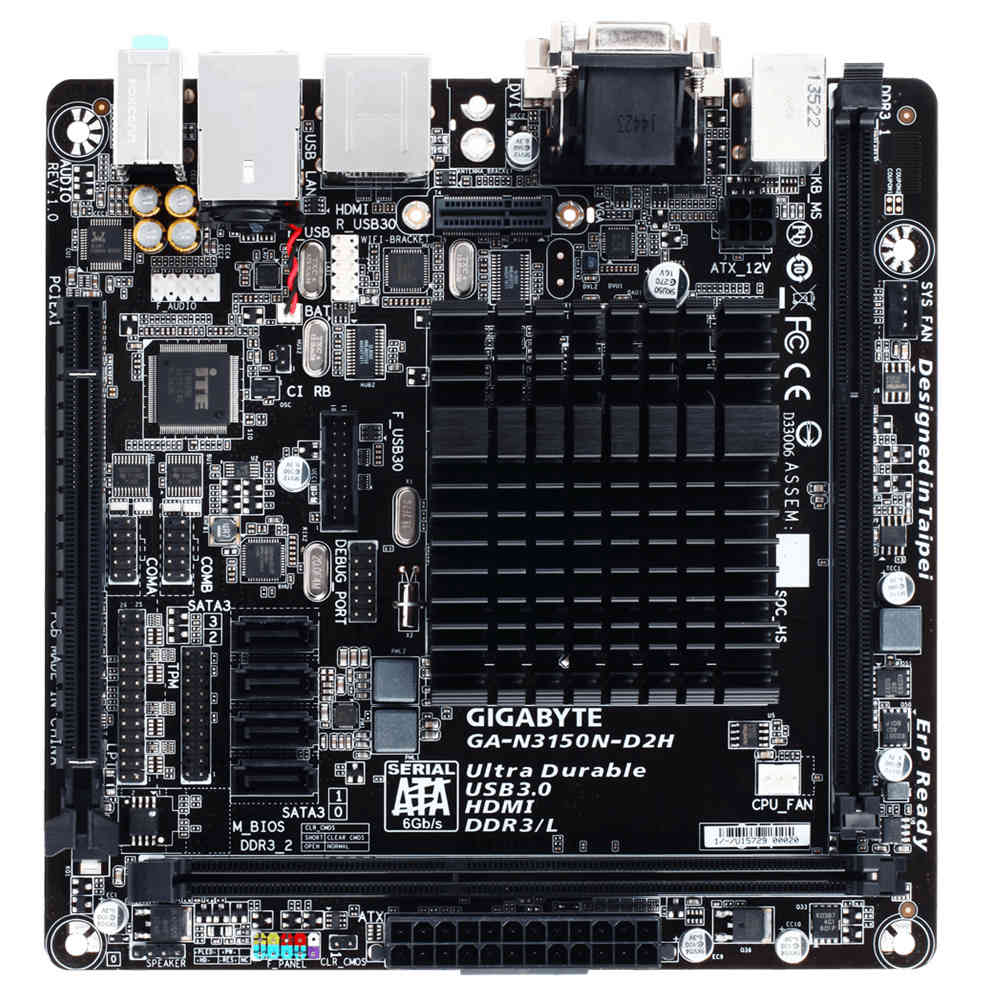

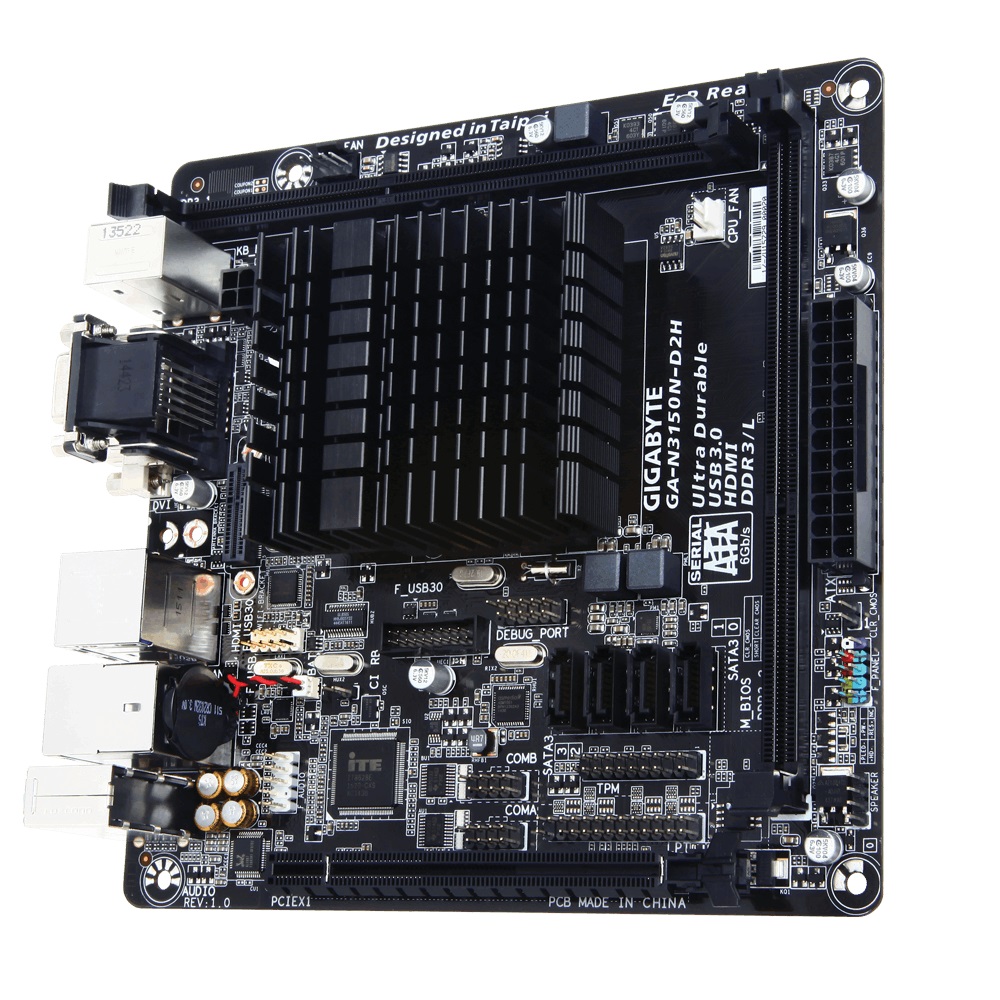

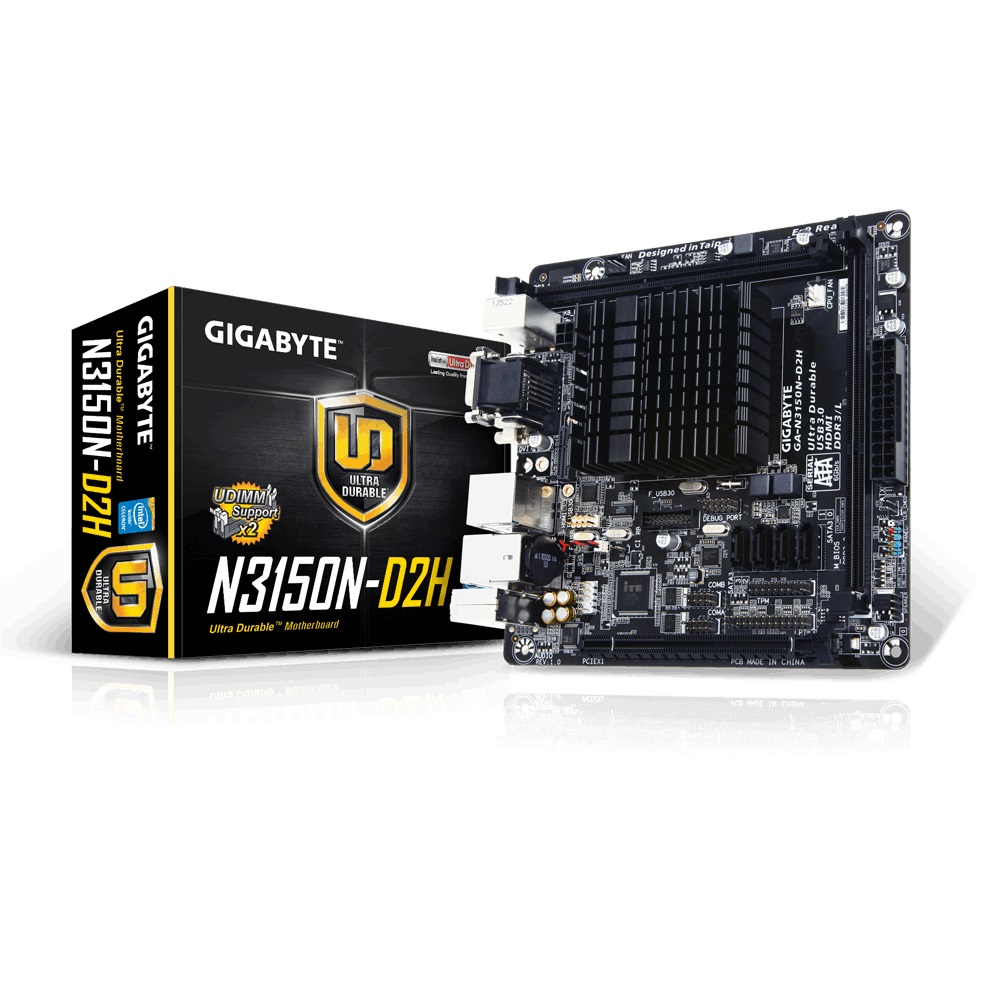

GIGABYTE GA-N3150N-D2H (rev. 1.0)
Gigabyte GA-N3150N-D2H - 1.0 - motherboard - mini ITX - Intel Celeron N3150
Part Number: GA-N3150N-D2H (rev. 1.0)

General/
Processor Intel Celeron N3150 / 1.6 GHz (Quad-Core)
Cache Memory 2 MB
Manufacturer Gigabyte Technology Co. Ltd.
Processor/
Number of Cores
Quad-Core
Processor Number N3150
Clock Speed 1.6 GHz
Type Celeron
Installed Qty 1
Manufacturer Intel
Expansion / Connectivity/
Expansion Slots
2 x DIMM 240-pin
1 x PCIe 2.0 x16
1 x M.2 socket
Storage Interfaces
SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices
ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices
Internal Interfaces
2 x USB 2.0 - header
1 x audio - header
2 x USB 3.0 - header
2 x serial - header
1 x parallel - header
1 x speaker - header
Power Connectors
4-pin ATX12V connector, 24-pin main power connector
Memory/
Max Allocated RAM Size 512 MB
Miscellaneous/
Product Type
motherboard
Interface Provided/
Qty 1, 2
Type
DVI-D, HDMI, LAN (Gigabit Ethernet), PS/2 keyboard, PS/2 mouse, USB 2.0, USB 3.0, VGA, audio line-in, audio line-out, microphone
Connector Type
mini-jack
Networking/
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Network
Gigabit Ethernet
Audio/
Audio Codec
Realtek ALC887
Compliant Standards
High Definition Audio
Cache Memory/
Installed Size 2 MB
Audio Output/
Compliant Standards
High Definition Audio
Type
sound card
Audio Codec
Realtek ALC887
Audio
High Definition Audio (8-channel)
Graphics/
Max Allocated RAM Size
512 MB
Graphics Controller
Intel HD Graphics
RAM/
Max Supported Size
8 GB
Features
dual channel memory architecture
Video/
Video Output
graphics adapter
Graphics Processor
Intel HD Graphics
LAN/
Network Interfaces
Gigabit Ethernet
Supported RAM/
Bus Clock
1600 MHz, 1333 MHz
Features
Dual channel memory architecture
Registered or Buffered
Unbuffered
Technology DDR3, DDR3L
Max Size 8 GB
Supported RAM Integrity Check
Non-ECC
Header/
Brand
GIGABYTE
Product Line
Gigabyte
Model
GA-N3150N-D2H
Packaged Quantity 1
Compatibility PC
Revision 1.0
Mainboard/
Form Factor
mini ITX
Supported RAM Technology
DDR3 SDRAM, DDR3L SDRAM
Supported RAM Speed
1333 MHz, 1600 MHz
Supported RAM Integrity Check
non-ECC
Supported RAM (Registered or Buffered)
unbuffered
RAM Slots
2 DIMM slots
Power Connectors
24-pin main power connector, 4-pin ATX12V connector
Mainboard Features/
BIOS Type AMI
BIOS Features
ACPI 5.0 support, DMI 2.7 support, SMBIOS 2.7 support, UEFI BIOS, WfM 2.0 support
Hardware Monitoring
CPU core temperature, CPU core voltage, CPU fan tachometer, CPU overheating protection, chassis fan tachometer, chassis temperature, system voltage
Hardware Features
All-Solid Capacitor motherboard Design, Clear CMOS Button, ESD Protection, Ultra Durable
Interfaces/
Storage Serial ATA-600
Storage Ports 4 x SATA-600
USB 3.0 / FireWire
USB 3.0
USB / FireWire Ports Configuration (Active)
2 x USB 3.0 + 2 x USB 2.0
Expansion Slots/
Total Qty 1, 2
Type DIMM 240-pin, M.2 socket, PCIe 2.0 x16
Software/
Software Included
@BIOS, GIGABYTE App Center, Norton Internet Security, Xpress Install
Video Memory/
Max Allocated RAM Size 512 MB
Dimensions & Weight/
Width 6.7 in
Depth 6.7 in
Storage Interfaces/
Chip
ASMedia ASM1061
Interface Serial ATA-600
Connector(s) 2 x 7pin Serial ATA
Supported Devices Qty 2
Internal Interfaces/
Type
USB 2.0, USB 3.0, audio, parallel, serial, speaker
Connector Type
header Qty 1, 2
Features/
BIOS Type AMI
Hardware Features
All-Solid Capacitor motherboard Design, Ultra Durable, ESD Protection, Clear CMOS Button
BIOS Features
WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support
Hardware Monitoring
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage




Chipset: CPU with integrated chipset
CPU Support:
Ethernet: 2x1000 Mbit/s
Interfaces: 8 USB, including 4 USB 3.0 (2 on the rear side), 2xCOM, D-Sub, DVI, HDMI, 2xEthernet, PS,2 (keyboard), PS,2 (mouse), LPT

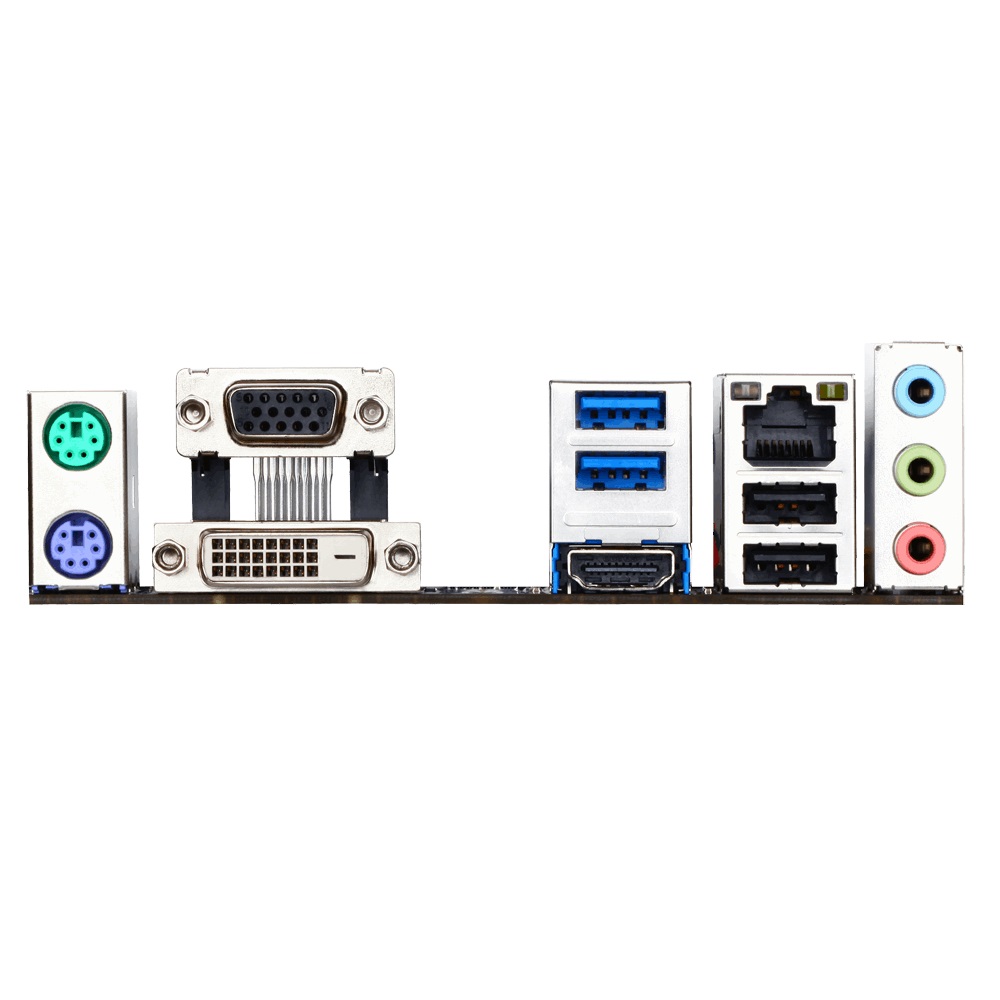

Back Panel Connectors: 4 USB, including 2 USB 3.0, D-Sub, DVI, HDMI, 2xEthernet, PS,2 (keyboard), PS,2 (mouse)

Device GIGABYTE GA-N3150N-D2H (rev. 1.0)
Brand GIGABYTE
Chipset CPU with integrated chipset
Multi-core CPU Support Yes
Bios AMI
SLI / CrossFire No
RAM Support DDR3 / DDR3L DIMM / 1333-1600 MHz
Number of RAM Slots 2

Maximum RAM Capacity 8 Gb
Dual-channel mode Yes
SATA Number of ports SATA 6Gb / s: 4
IDE No
Audio 7.1CH / HDA / based on Realtek ALC887
Graphics Yes
Ethernet 2x1000 Mbit/s
Interfaces 8 USB / including 4 USB 3.0 (2 on the rear side) / 2xCOM / D-Sub / DVI / HDMI / 2xEthernet / PS / 2 (keyboard) / PS / 2 (mouse) / LPT
Back Panel Connectors 4 USB / including 2 USB 3.0 / D-Sub / DVI / HDMI / 2xEthernet / PS / 2 (keyboard) / PS / 2 (mouse)
Cooling System passive
Form Factor mini-ITX
Expansion slot 1xPCI-E x16
Preset CPU Intel Celeron N3150
CPU Power Connector 4-pin
Power 24-pin
EFI Yes
Number of M.2 ports 1
