-->> Gigabyte GA-N3150N-D3V Embedded Intel Cpu Quad Core Celeron N3150 1.6Ghz Mini-ITX board <<--

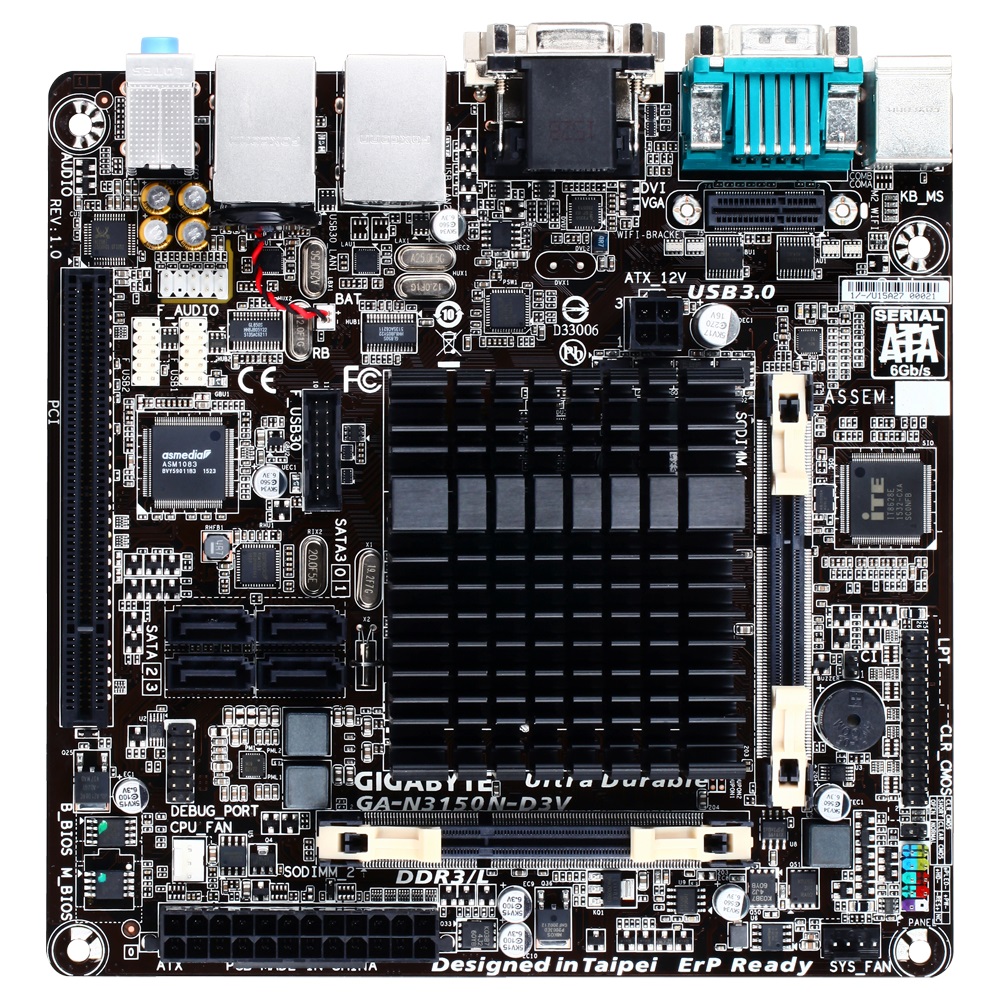

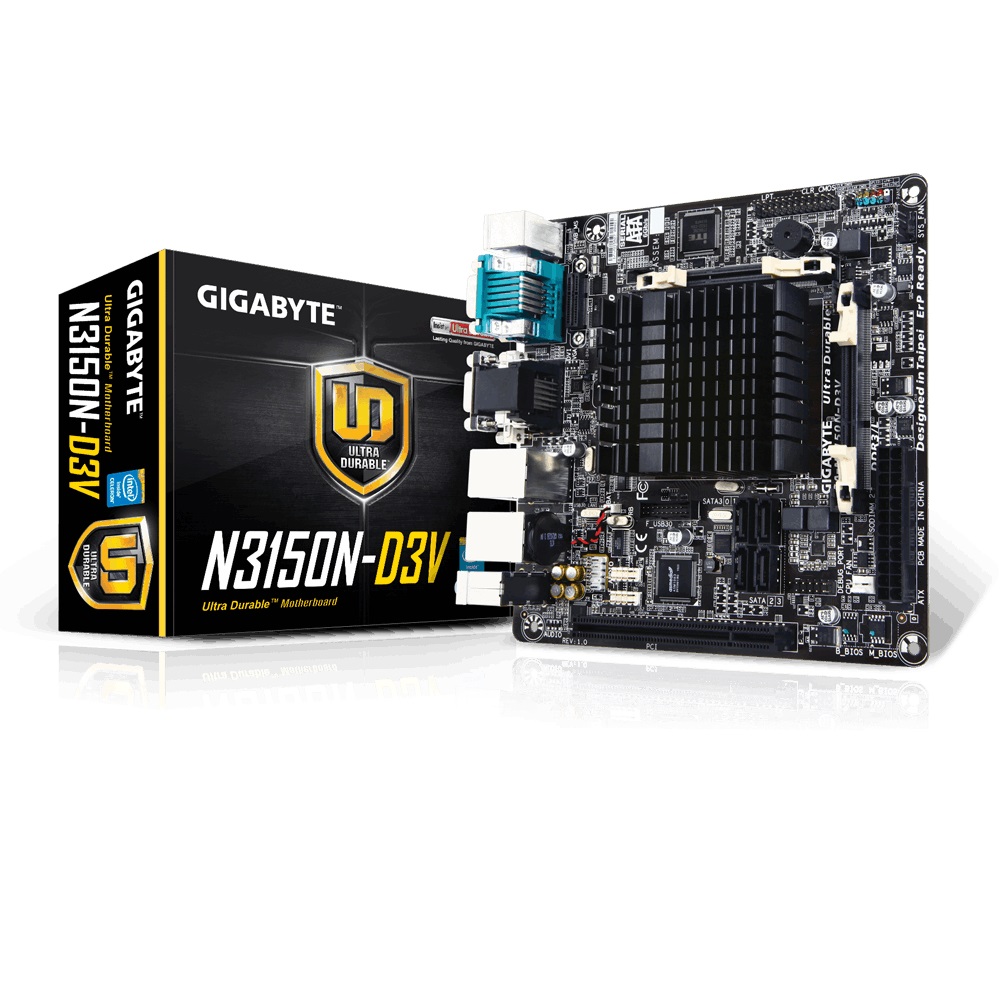

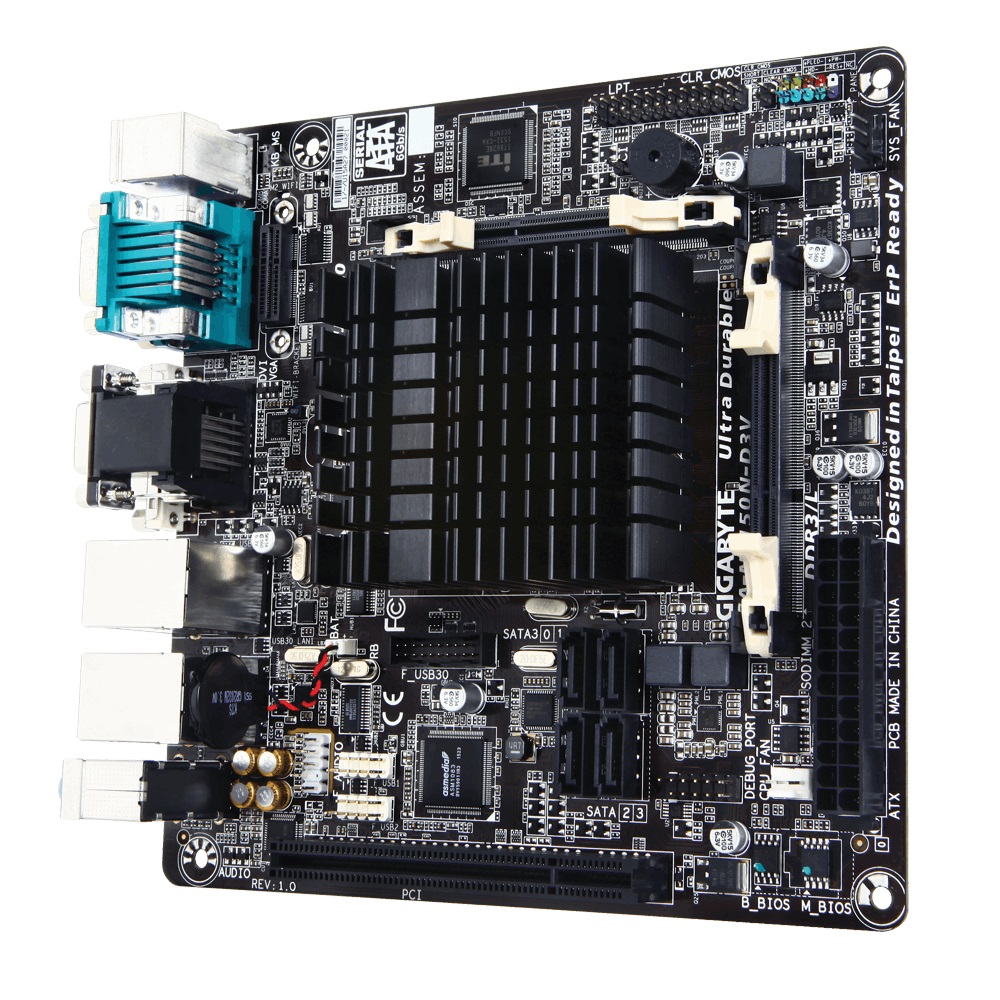

Gigabyte GA-N3150N-D3V Embedded Intel Cpu Quad Core Celeron N3150 1.6Ghz Mini-ITX board
Description
- Built-in Intel Celeron N3150 (1.6 GHz) quad-core processor
- GIGABYTE Ultra Durable Technology
- Dual channel DDR3/-L SO-DIMM slot support
- All Solid Capacitors with Humidity Protection New Glass Fabric PCB design
- Dual GbE LAN with high ESD Protection
- Extra two SATA 6Gb/s interfaces for more system storage connectivity
- High Quality Audio Capacitors
- PCI interface for wide-range expansion card selections
- M.2 PCIe expansion slot supports wireless networking cards


CPU
Built in with an Intel Quad-Core Celeron N3150 SoC (1.6 GHz)
*Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.
2 MB Cache

Chipset
Intel Celeron N3150

Memory
2 x DDR3 SO-DIMM sockets supporting up to 8GB of system memory
*Due to a Windows 32-bit operating system limitation, when more than 4GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3/DDR3L 1600/1333 MHz memory modules
*Due to an SoC limitation, if a 1333 MHz memory is installed, it will be downgraded to 1066 MHz.
Support for non-ECC memory modules
(Please refer "Memory Support List" for more information.)

Form Factor
Mini-ITX (17.0 x 17.0 cm)

BIOS
2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Networking
2 x Realtek GbE LAN chips (10/100/1000 Mbit)

Audio
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
*To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Expansion
1 x PCI slot
1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

Graphics
Integrated in the SoC:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
*The DVI-D port does not support D-Sub connection by adapter.
Maximum shared memory of 512 MB

Storage Interface
SoC:
2 x SATA 6Gb/s connectors (SATA 3 0/1)

ASMedia ASM1061 chip:
2 x SATA 6Gb/s connectors (SATA 3 2/3)

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x Parallel port header
1 x Clear CMOS jumper
1 x Chassis intrusion header

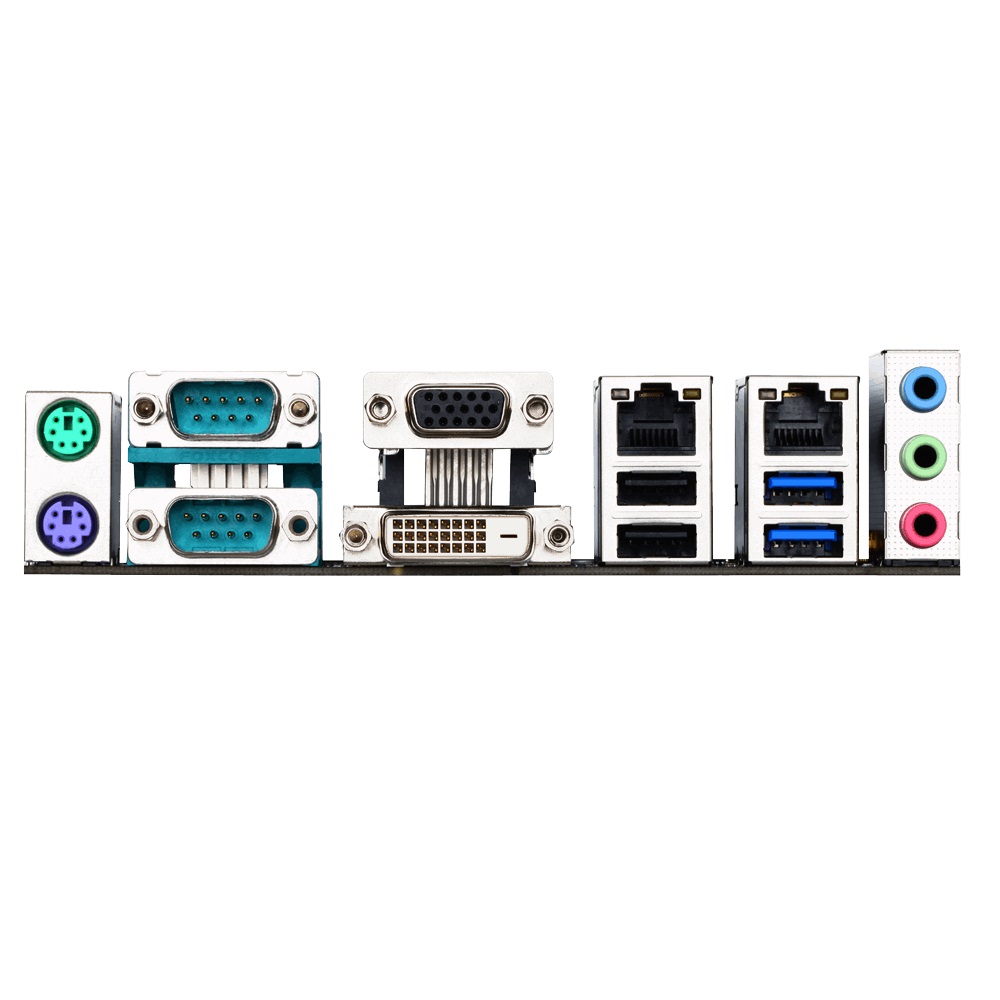

Back Panel I/O Connectors
1 x PS/2 mouse port
1 x PS/2 Keyboard port
2 x Serial ports
1 x D-Sub port
1 x DVI-D port
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
2 x RJ-45 ports
3 x Audio jacks (Line In, Line Out, Mic In)

USB
SoC:
4 x USB 3.0/2.0 port (2 ports on the back panel, 2 ports available through the internal USB header)

SoC+2 x GENESYS LOGIC USB 2.0 Hubs:
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Hardware Monitor
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System fan speed control
*Whether the fan speed control function is supported will depend on the cooler you install.

OS
Support for Windows 10 32-bit/64-bit
Support for Windows 8.1 64-bit
Support for Windows 7 32-bit/64-bit
*Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

Additional Features
iTE I/O Controller Chip
Support for Xpress Install
Support for @BIOS
Support for APP Center
*Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Accessories
Norton Internet Security (OEM version)

Certifications
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
