>>Your Current Position: GiagaByte Motherboard


-->> Gigabyte GA-N3160TN BGA1170 Mini-ITX-motherboards <<--

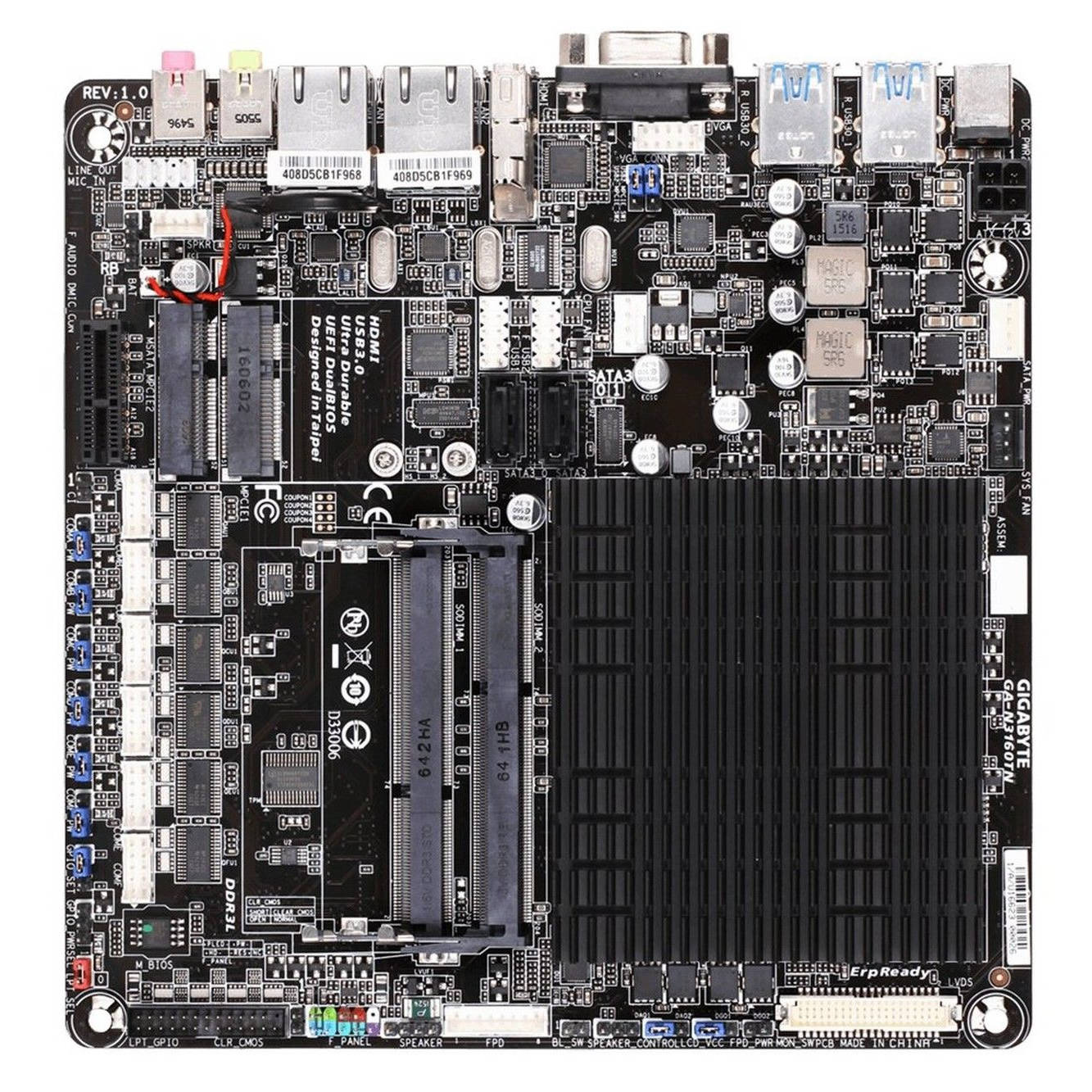

Gigabyte GA-N3160TN BGA1170 Mini-ITX-motherboards
Gigabyte GA-N3160TN (rev. 1.0) BGA1170 Mini ITX - motherboards (SO-DIMM, DDR3L-SDRAM, Dual, Intel, Celeron, BGA1170)


GIGABYTE N3160TNThe GIGABYTE N3160TN Thin Mini-ITX motherboard is a fully integrated PC/AIO/IPC motherboard featuring the Intel® Celeron™ N3160 quad-core processor. Designed for compact, small form factor PC/AIO/IPC systems and devices, the GIGABYTE N3160TN is entirely fanless, making it ideal for always-on, mission critical systems, as well as noise- sensitive digital entertainment systems.Intel® Celeron™ N3160 ProcessorThe Intel® Celeron™ N3160 Quad-Core processor is the latest system on chip (SoC) from Intel, combining CPU, graphics and memory controller in one package. Based on the 14nm manufacturing process, the Intel® Celeron™ N3160 uses the smallest package of any desktop processor within a low thermal envelope of on 6 watts. The Intel® Celeron™ N3160 boasts excellent performance including DX11.2 gaming on Intel® HD Graphics, plus a dedicated HEVC decoder for smooth HD video playback.HDMI™-The Next Generation Multimedia InterfaceHDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable.

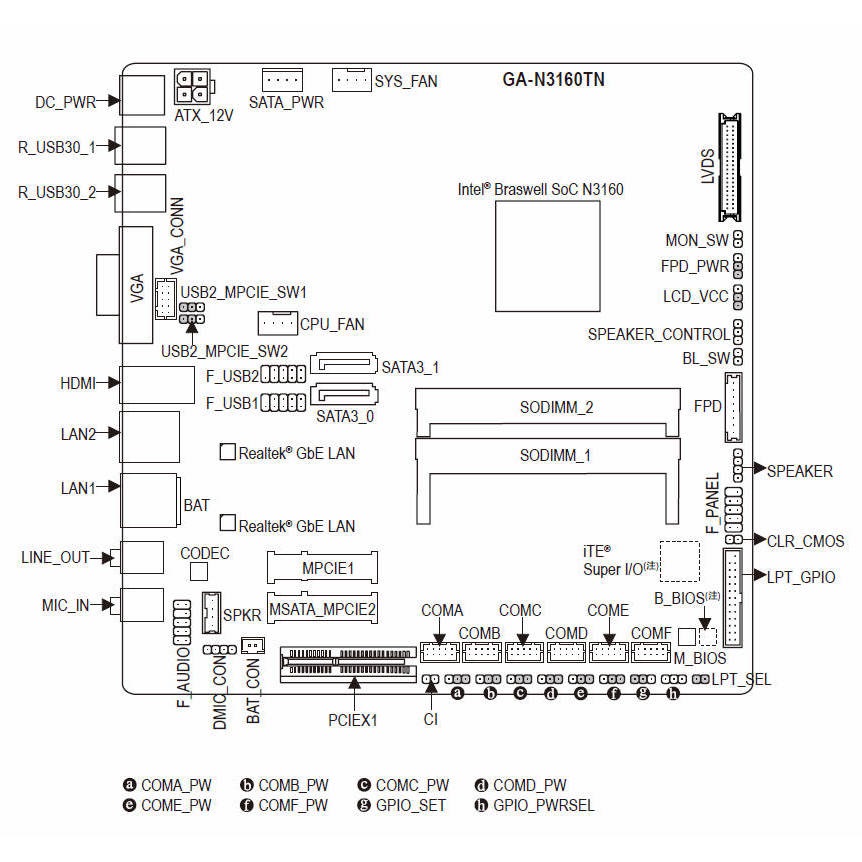

CPU fan connector
Chassis intrusion connector
Clear CMOS jumper
Front panel audio connector

Product Details:
Item Weight:762 g
Product Dimensions:19 x 22 x 9 cm
Item model number:GA-N3160TN
Series:GA-N3160TN (rev. 1.0)
Form Factor:mini ITX
Processor Brand:Processor family
Processor Speed:1.6 GHz
Processor Socket:BGA1170
Processor Count:4
Memory Technology:DDR3L-SDRAM
Maximum Memory Supported:8 GB
Hard Drive Interface:Serial ATA-600
Audio Details:1
Number of USB 2.0 Ports:2
Number of HDMI Ports:1
Number of Ethernet Ports:2
Number of VGA Ports:1
