Intel Celeron Processor J4125 4M Cache, up to 2.70 GHz
Product Collection Intel Celeron Processor J Series
Code Name Products formerly Gemini Lake Refresh
Vertical Segment Mobile
Processor Number J4125
Status Launched
Launch Date Q4'19
Lithography 14 nm
Use Conditions PC/Client/Tablet
CPU Specifications
Total Cores 4
Total Threads 4
Burst Frequency 2.70 GHz
Processor Base Frequency 2.00 GHz
Cache 4 MB
TDP 10 W
Embedded Options Available No
Max Memory Size (dependent on memory type) 8 GB
Memory Types DDR4/LPDDR4 upto 2400 MT/s
Processor Graphics Intel UHD Graphics 600

8th Generation Intel® Core™ i5 Processors i5-8265U
Launched Q3'18
Lithography 14 nm
Total Cores 4
Total Threads 8
Frequency 1.6Ghz up to 3.9Ghz
Cache 6MB
TDP 15W
DDR4-2400, LPDDR3-2133

Intel® Celeron® Processor 5000 Series
Launched Q4'19
Lithography 14 nm
Total Cores 2
Total Threads 2
Frequency 1.9Ghz
Cache 2MB
TDP 15 W
DDR4-2400, LPDDR3-2133

Intel® Celeron® Processor J Series
Launched Q1'21
Lithography 10 nm
Total Cores 4
Total Threads 4
Frequency 1.8Ghz up to 3.0Ghz
Cache 1.5MB
TDP 10 W
4x32 LPDDR4/x 3733MT/s Max (8GB, 16GB @3200MT/s) / 2x64 DDR4 3200MT/s Max 32GB

Features

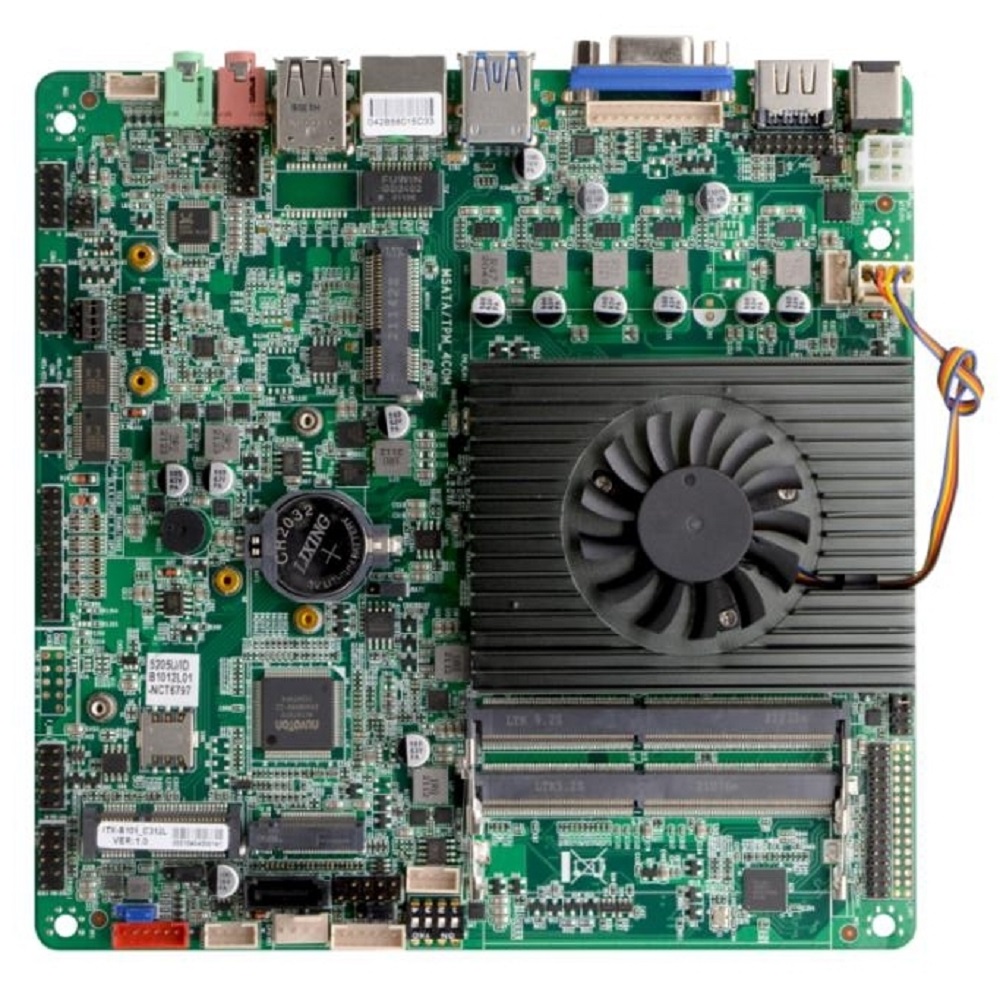

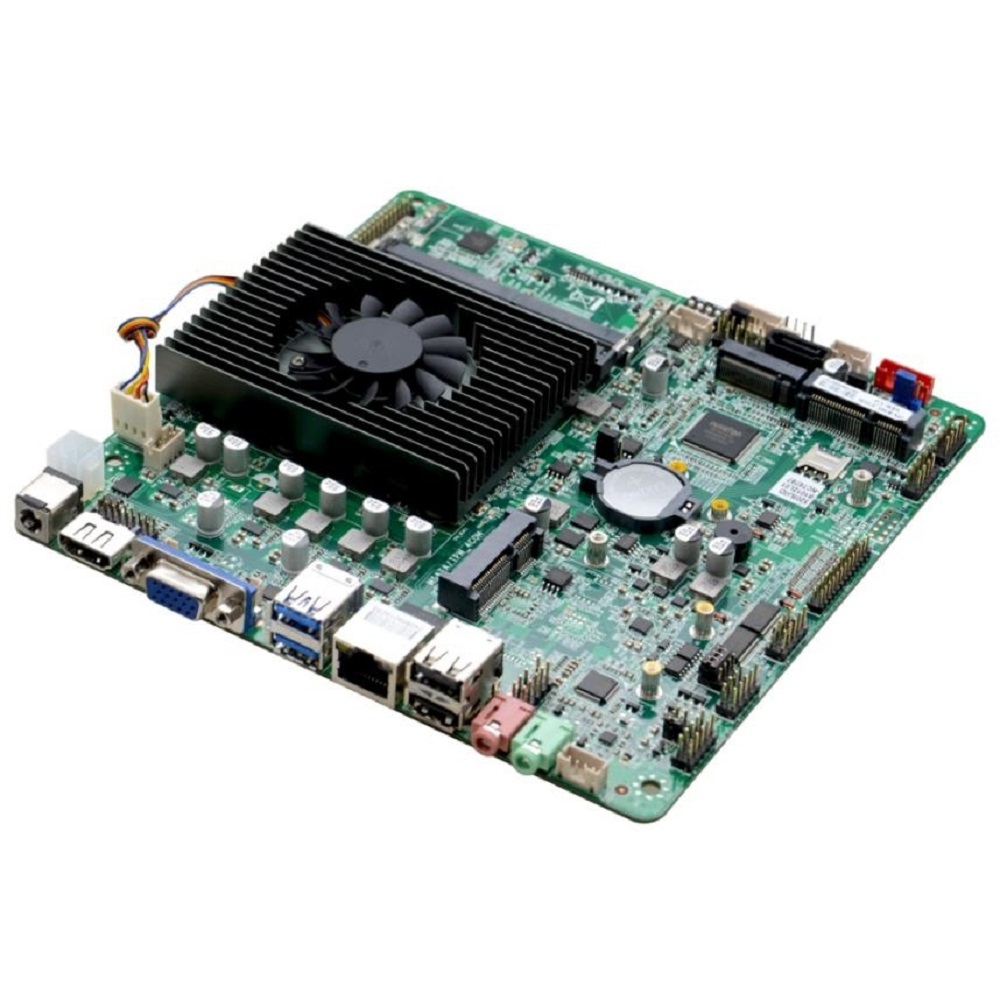

Product Model B101 5205U J6413 i5-8265U i5-10210U
Compatible with Intel Comet Lake-U Celeron/Pentium/I3/I5/I7 low power processors
Chipset SOC
DDR4 SODIMM memory slot, support 2666MHz memory, maximum support 64GB
Display Integrated Intel® UHD Graphics, support DirectX 12 OpenGL 4.5, support 4K
VGA interface, the highest resolution supported is: 1920X1200@60Hz
HDMI1.4 interface, the highest resolution supported is: 4096x2304@24Hz
Dual-channel 24bit LVDS interface, choose one from EDP, default LVDS
Intel I225 Gigabit LAN, support Wake-on-LAN, PXE function



Product Model B101-5205U B101-J6413 B101-8265U
Processor Integrated 10th generation Intel® Celeron 5205U 1.9GHz dual-core two-thread processor, TDP 15W
Compatible with Intel® Comet Lake-U Celeron/Pentium/I3/I5/I7 low power processors
Chipset SOC
Memory 2*DDR4 SODIMM memory slot, support 2666MHz memory, maximum support 64GB
Display Integrated Intel® UHD Graphics, support DirectX 12 OpenGL 4.5, support 4K
1*VGA interface, the highest resolution supported is: 1920X1200@60Hz
1*HDMI1.4 interface, the highest resolution supported is: 4096x2304@24Hz
1*Support dual-channel 24bit LVDS interface, choose one from EDP, default LVDS
Network 1/2* Intel I225 Gigabit LAN, support Wake-on-LAN, PXE function
Storage 1* SATA3.0 hard disk interface, transmission speed up to 6Gbps
1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission speed up to 6Gbps
1* M.2 slot, support M.2 2260/2280 NVME PCIE x4 standard SSD
Note: Choose either MSATA or TPM-4COM, you can use TPM-4COM to expand 4 serial ports, when using TPM-4COM small board, you can use M.2 SSD

Audio Integrated ALC892 7.1+2 channel high-fidelity audio controller, support MIC, Line_out, power amplifier
Support power amplifier 2Ω5W speaker
Expansion slot 1* Mini-PCIE slot, support WIFI/4G module

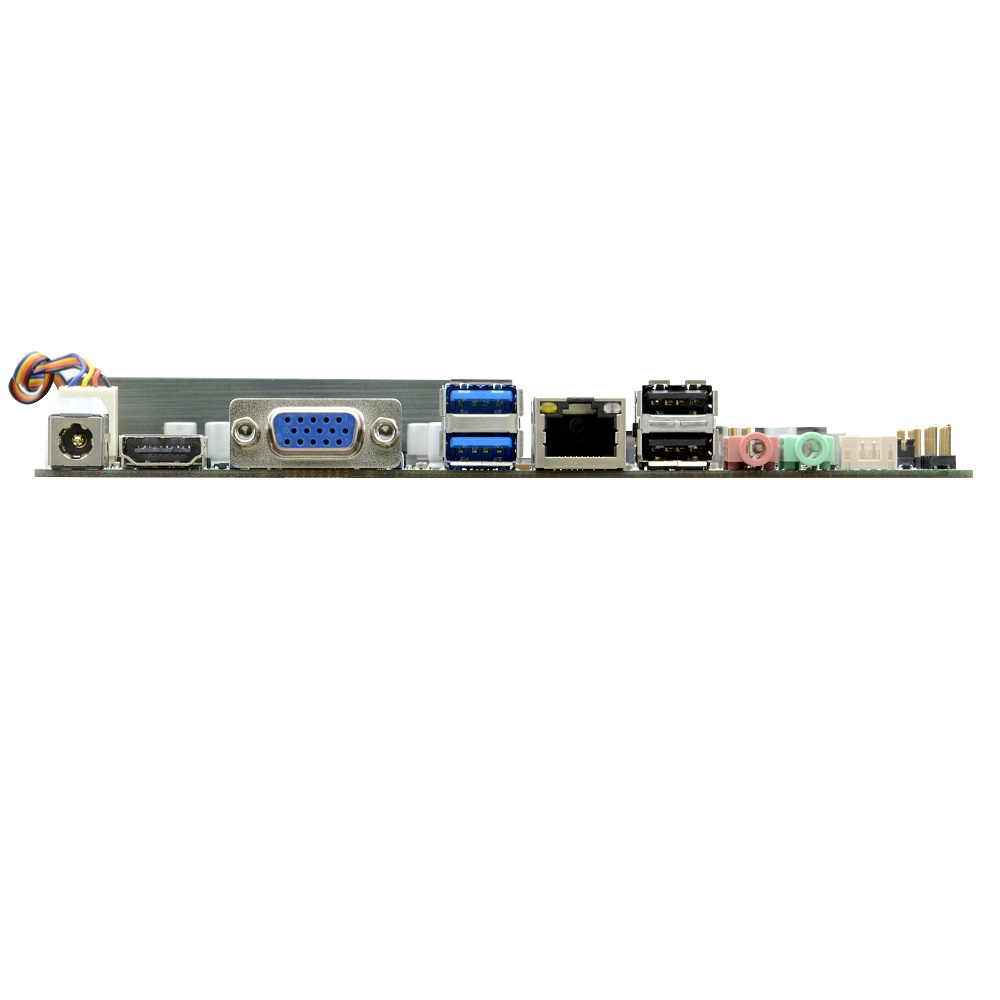

Backplane I/O interface 2*USB3.0 interface, 2*USB2.0 interface or the second LAN port
1* HDMI port
1* DB15 VGA port
1* RJ45 Gigabit network interface
1*Line-out(green), 1*MIC(red)
1* DC12V power interface, support 12V power input
Built-in I/O interface 1* JVGA1 interface 1*12pin (same signal as DB15)
1* JHDMI interface 2*10pin, same signal as HDMI interface
1* LVDS interface 2*15pin, support dual channel 24bit
1* LVDS backlight power supply interface 1*6pin
1* Screen brightness adjustment interface 1*4pin
2* RS232 serial interface, COM1 supports the 9th pin live function, COM2 supports RS485/422 function
1* PS/2 keyboard and mouse interface (red) 1*6Pin
4* USB2.0 interface 2*5pin
1* Front audio interface 2*5pin
1* LPT printing interface 2*13pin
1* Front panel switch button and indicator port 2*5Pin
1* HDD power supply interface 1*4pin
1* Amplifier interface 1*4pin
1* 4pin ATX power interface (can be used as 12V input power interface)
1* SIM card holder
Fan Connector 1*4pin CPU Smart Fan Connector, 1* 4pin System Fan Connector
GPIO supports 4 input and output GPIO functions
BIOS 128Mb Flash ROM
Watchdog Support hardware reset function (256 levels, 0~255 seconds)
Power type Powered by DC 12V power supply
Operating System Windows 10,Linux
Working temperature -10℃～60℃
Storage temperature -20℃～70℃
Working humidity 5%-95% relative humidity, non-condensing
Dimensions 170mm x 170mm

Order Information
B101-5205U MINI-ITX CPU 5205U 1.6/2.7Ghz 2C2T 2*SODDR4 1*VGA 1*HDMI 2Ch24bit LVDS 1/2*LAN(Intel I225) 8/6*USB 2*COM(RS485) DC12V
B101-J6413 MINI-ITX CPU J6413 1.8/3.0Ghz 4C4T 2*SODDR4 1*VGA 1*HDMI 2Ch24bit LVDS 1/2*LAN(Intel I225) 8/6*USB 2*COM(RS485) DC12V
B101-8265U MINI-ITX CPU i5-8265U 1.6/3.9Ghz 4C8T 2*SODDR4 1*VGA 1*HDMI 2Ch24bit LVDS 1/2*LAN(Intel I225) 8/6*USB 2*COM(RS485) DC12V
B101-10210U MINI-ITX CPU i5-10210U 1.6/4.2Ghz 4C8T 2*SODDR4 1*VGA 1*HDMI 2Ch24bit LVDS 1/2*LAN(Intel I225) 8/6*USB 2*COM(RS485) DC12V
