Intel Celeron 4205U i3-8145U i5-8265U i7-8565U 5205U i3-10110U i5-10210U i7-10510U MINI-ITX motherboard dual LAN intel 225v 211i RS485 GPIO 12VDC
B310 Intel 8th gen Celeron 4205U i3-8145U i5-8265U i7-8565U MINI-ITX motherboard dual LAN intel 225v 211i RS485 GPIO 12VDC
B410 Intel 10th gen Celeron 5205U i3-10110U i5-10210U i7-10510U MINI-ITX motherboard dual LAN intel 225v 211i RS485 GPIO 12VDC

Intel Celeron Processor J4125 4M Cache, up to 2.70 GHz
Product Collection Intel Celeron Processor J Series
Code Name Products formerly Gemini Lake Refresh
Vertical Segment Mobile
Processor Number J4125
Status Launched
Launch Date Q4'19
Lithography 14 nm
Use Conditions PC/Client/Tablet
CPU Specifications
Total Cores 4
Total Threads 4
Burst Frequency 2.70 GHz
Processor Base Frequency 2.00 GHz
Cache 4 MB
TDP 10 W
Embedded Options Available No
Max Memory Size (dependent on memory type) 8 GB
Memory Types DDR4/LPDDR4 upto 2400 MT/s
Processor Graphics Intel UHD Graphics 600

8th Generation Intel® Core™ i5 Processors i5-8265U
Launched Q3'18
Lithography 14 nm
Total Cores 4
Total Threads 8
Frequency 1.6Ghz up to 3.9Ghz
Cache 6MB
TDP 15W
DDR4-2400, LPDDR3-2133

Intel® Celeron® Processor 5000 Series
Launched Q4'19
Lithography 14 nm
Total Cores 2
Total Threads 2
Frequency 1.9Ghz
Cache 2MB
TDP 15 W
DDR4-2400, LPDDR3-2133

Intel® Celeron® Processor J Series
Launched Q1'21
Lithography 10 nm
Total Cores 4
Total Threads 4
Frequency 1.8Ghz up to 3.0Ghz
Cache 1.5MB
TDP 10 W
4x32 LPDDR4/x 3733MT/s Max (8GB, 16GB @3200MT/s) / 2x64 DDR4 3200MT/s Max 32GB

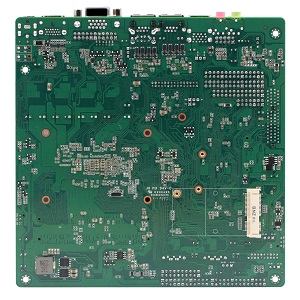

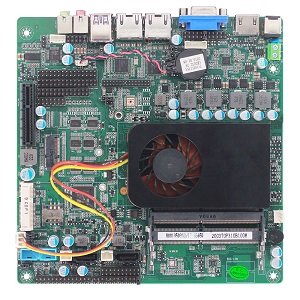

Product features:
Onboard Intel Core 8th generation Whiskey Lake-U / 10th generation Comet Lake-U series processors
two DDR4 SODIMMs, up to 64GB
TPM2.0
1*HDMI2.0,1*VGA,1*LVDS/eDP(one of two)
1*PCIe_x4 interface, supporting NVME
Intel i225 2.5G network card (single and dual network optional)
or
Intel i211 network card (single and dual network optional)
6*COM
1*Key-E



Product specifications
Processor system Onboard Intel Core 8th generation Whiskey Lake-U / 10th generation Comet Lake-U series processors
EFI BIOS
Memory Two DDR4 2666Mhz SO-DIMM dual channels, with a maximum support of 64GBD
Display 24 bit dual channel LVDS, 1920x1200; eDP, 4096x2304@60Hz (one of LVDS and EDP)
1*VGA, 2048x1536;
1*HDMI2.0, 4096x2304@60Hz
Storage Two SATA3, (one of SATA1 and MSATA, one of SATA2 and onboard SSD)
1*MSATA interface, supporting SanDisk protocol (choose one from SATA1)
Onboard SSD 32gb/64gb/128gb (choose between onboard SSD and SATA2)

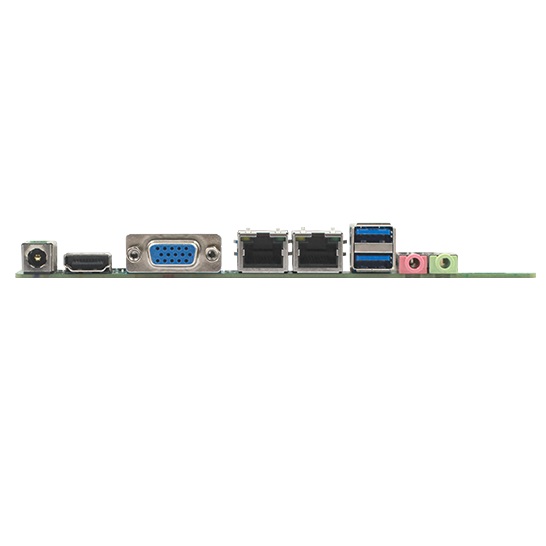

I/o interface DC jack, VGA, HDMI, 2*LANs, 2*USB3.1, Line out, MIC in
other TPM2.0
Two Intel i225 2.5G network cards (when the I/O interface is four USB, there is only one network card)
1*PCIe_ X4 interface, supporting NVME
1*Key-E, WiFi Module
1*MINIPCIE, supporting PCIe and USB2.0 protocol (only one set of USB8/9 pins is available when there is USB signal)
4*RS232, 2*RS422/485 (optional 6 RS232, or 5 RS232 and 1 RS422/RS485)
Four USB3.1. When using Celeron Pentium processor, there are only two USB3.1 and six USB2.0
Aluminum fan radiator (support automatic and manual fan speed adjustment)
1*PS/2 pin interface
8-bit GPIO, providing routines; Support touch screen
0-255 seconds watchdog, providing watchdog routines
Power Supply DC12V power supply (the current of the selected power supply needs to reach 7a or above)
work environment Working temperature: -20 ℃ ~ +60 ℃; Working humidity: 0% - 90% relative humidity, no condensation
Storage temperature: -40 ℃ ~ +85 ℃; Storage humidity: 0% - 90% relative humidity, no condensation
Operating system Windows10，Windows11，Linux
Size 170x170mm
Weight 228g without heat sink, 310g with heat sink

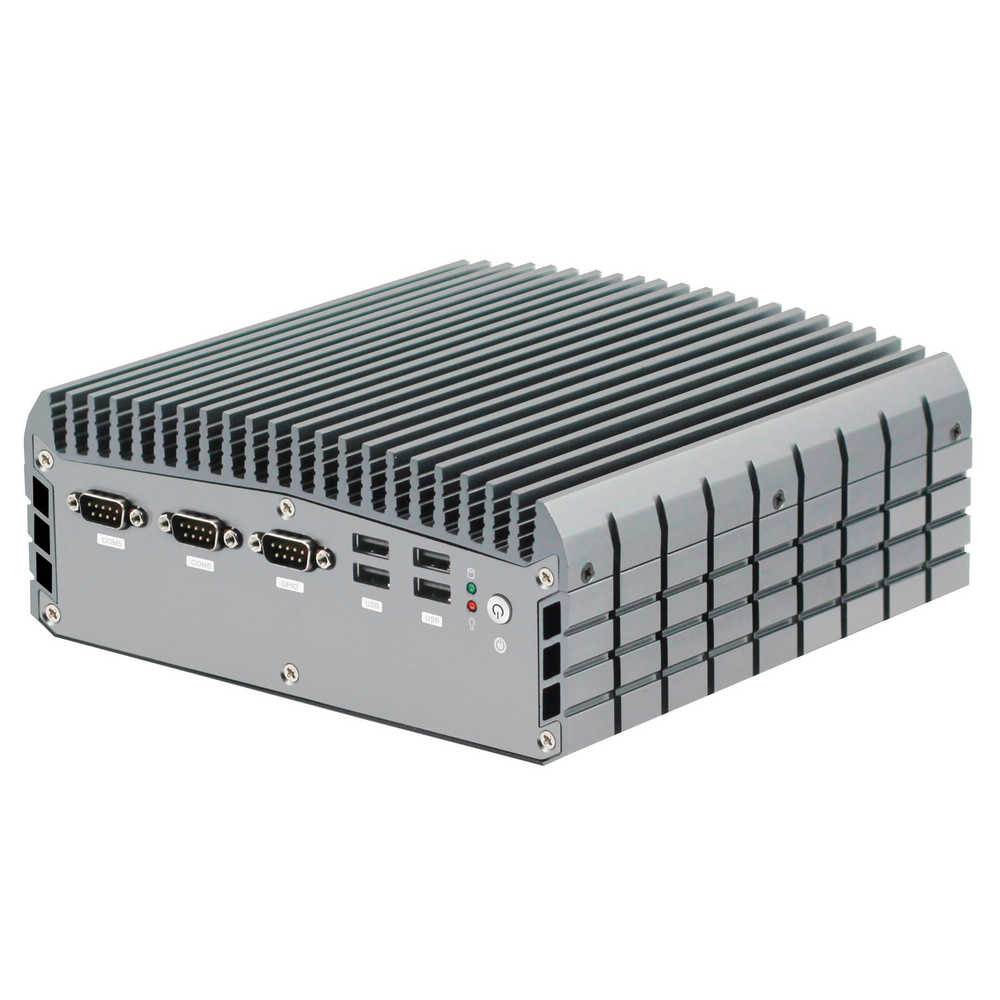

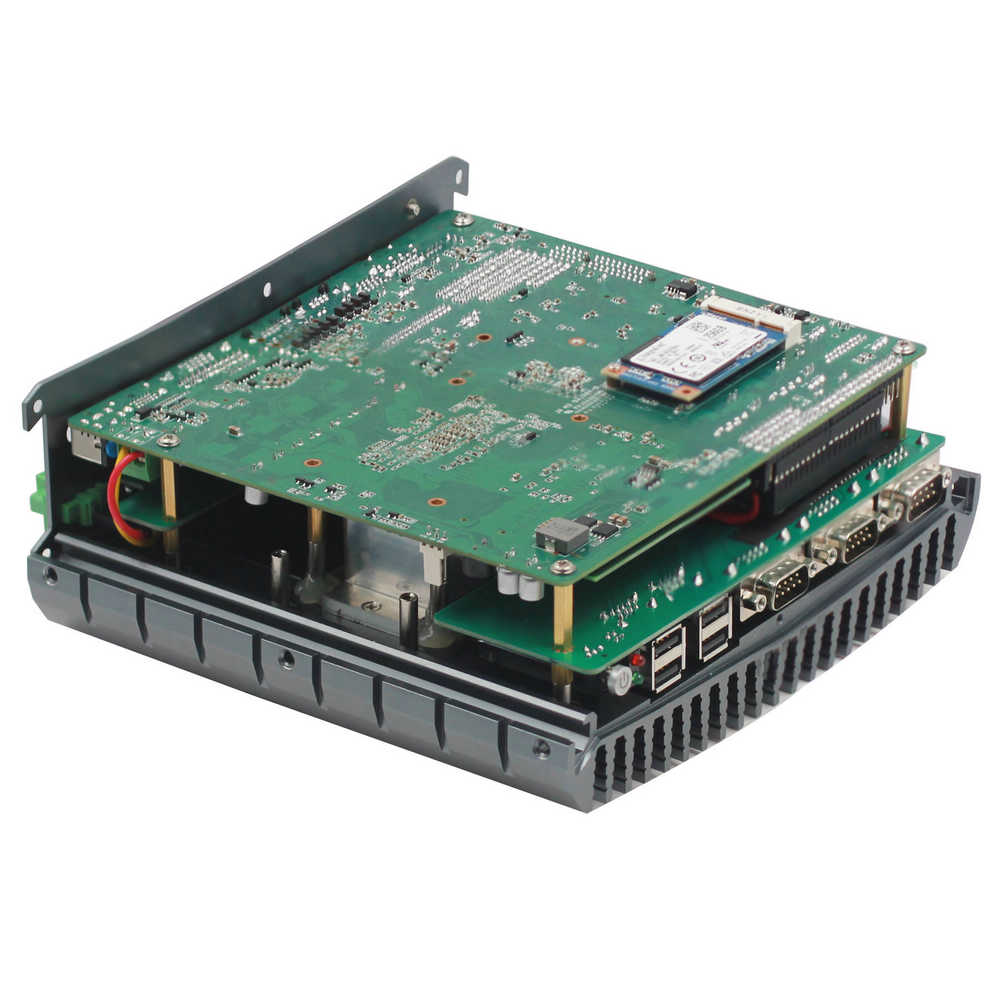

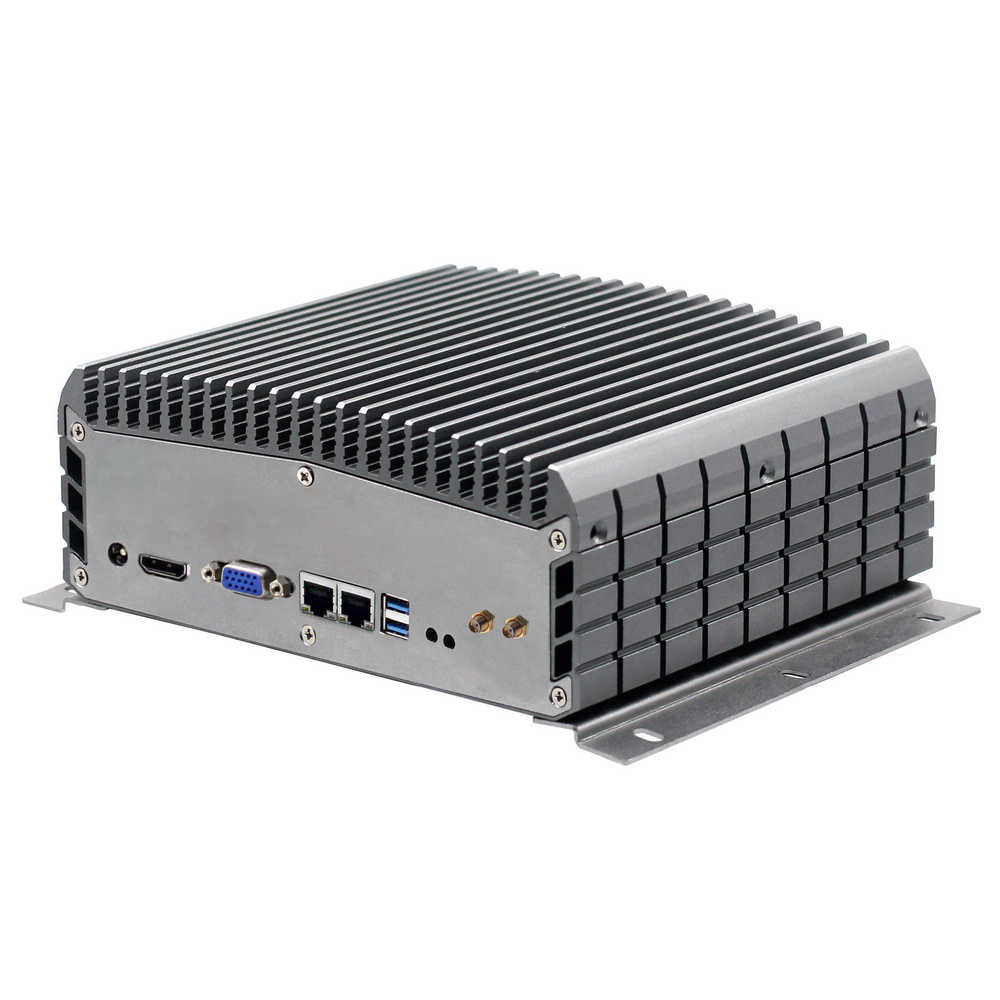

Full System model: S-B310TP or S-B410TP


Features:
Intel Core 8th generation Whiskey Lake-U / 10th generation Comet Lake-U Series i3/i5/i7 processors
2*DDR4 SODIMM 260 Socket
1*VGA 1*HDMI 1.4 (support 4K display output)
4 RS-232, 2 RS422/485 optional, RS485 supports automatic flow control (6 RS232 or 1 RS485/RS422, 5 RS232 can be selected)
Support power on automatic startup function, jumper selection
Single input DC power supply, DC12V
Structure 236*185*85mm

Specifications：
Size: 236*185*85mm
CPU: Intel Core 8th generation Whiskey Lake-U / 10th generation Comet Lake-U Series i3/i5/i7 processors
Chipset: Intel Whiskey lake-u or Comet Lake-U series SOC
Memory: 2*DDR4 SODIMM 260 Socket
Network: 2*Intel i211/i210/225v Gigabit Ethernet
Audio: Onboard HDA ALC662
Storage: 1*SATA 3.0 1*MSATA
Color: Silver

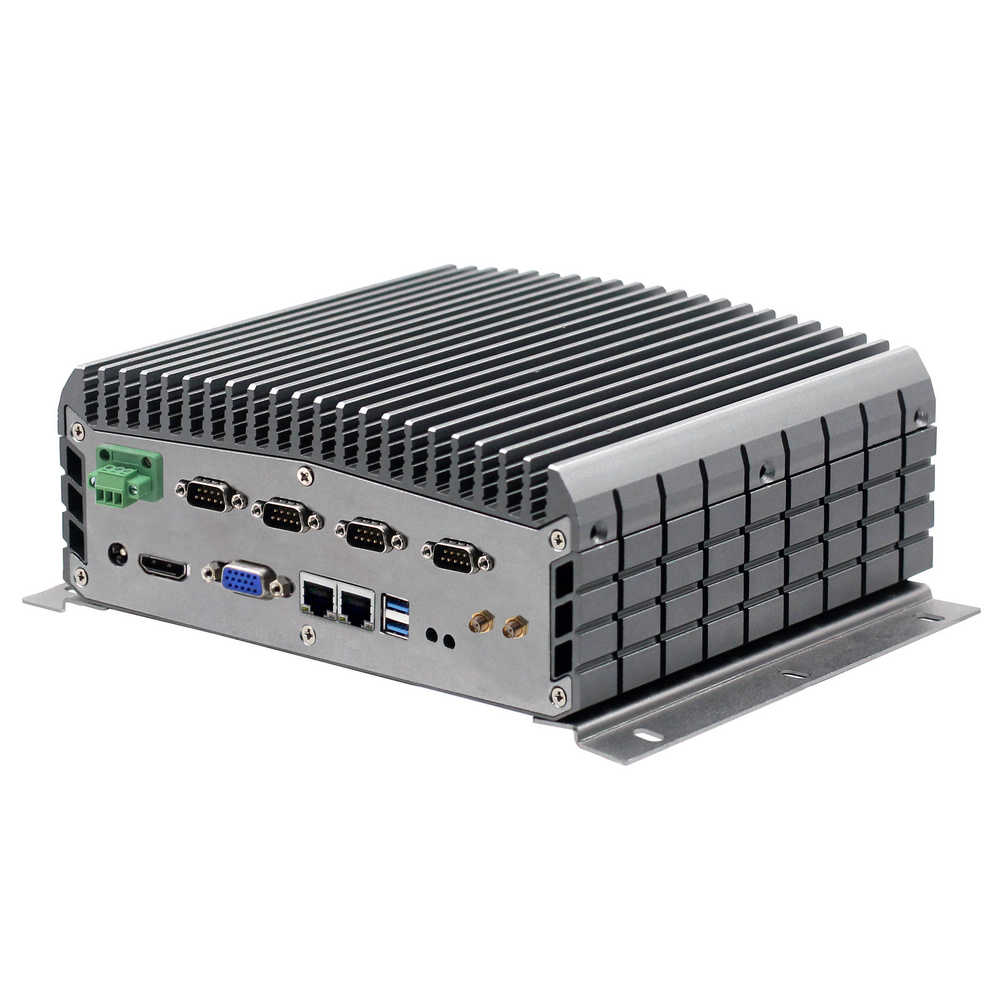

Front Panel Interface: 2*LAN 1*HDMI 1*VGA 4*COM 1*DC 1*MIC-IN 1*Line-OUT 2*USB3.0 2*WIFI 1*GND

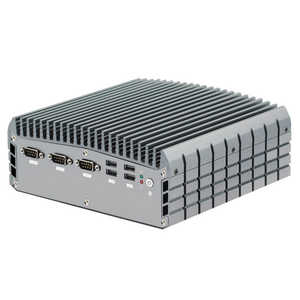

Rear Panel Interface: 2*COM 1*GPIO 4*USB2.0 1*POWER SWITCH KEYT 1*HDD Indicator 1*PWR INDICATOR

Order Information
B310 Intel Core 8th generation Whiskey Lake-U Celeron 4205U/i3-8145U/i5-8265U/i7-8565U
B410 Intel Core 10th generation Comet Lake-U Celeron 5205U/i3-10110U/i5-10210U/i7-10510U

B310-4205U MINI-ITX CPU 4205U 1.8Ghz 2C2T 2*SODDR4 1*VGA 1*HDMI 1*LVDS/eDP 1/2*LAN(Intel I225/I211) 8/6*USB 2/6*COM(RS485) GPIO DC12V
B310-8265U MINI-ITX CPU i5-8265U 1.6/3.9Ghz 4C8T 2*SODDR4 1*VGA 1*HDMI 1*LVDS/eDP 1/2*LAN(Intel I225/I211) 8/6*USB 2/6*COM(RS485) GPIO DC12V

B410-5205U MINI-ITX CPU 5205U 1.6/2.7Ghz 2C2T 2*SODDR4 1*VGA 1*HDMI 1*LVDS/eDP 1/2*LAN(Intel I225/I211) 8/6*USB 2/6*COM(RS485) GPIO DC12V
B410-10210U MINI-ITX CPU i5-10210U 1.6/4.2Ghz 4C8T 2*SODDR4 1*VGA 1*HDMI 1*LVDS/eDP 1/2*LAN(Intel I225/I211) 8/6*USB 2/6*COM(RS485) GPIO DC12V
