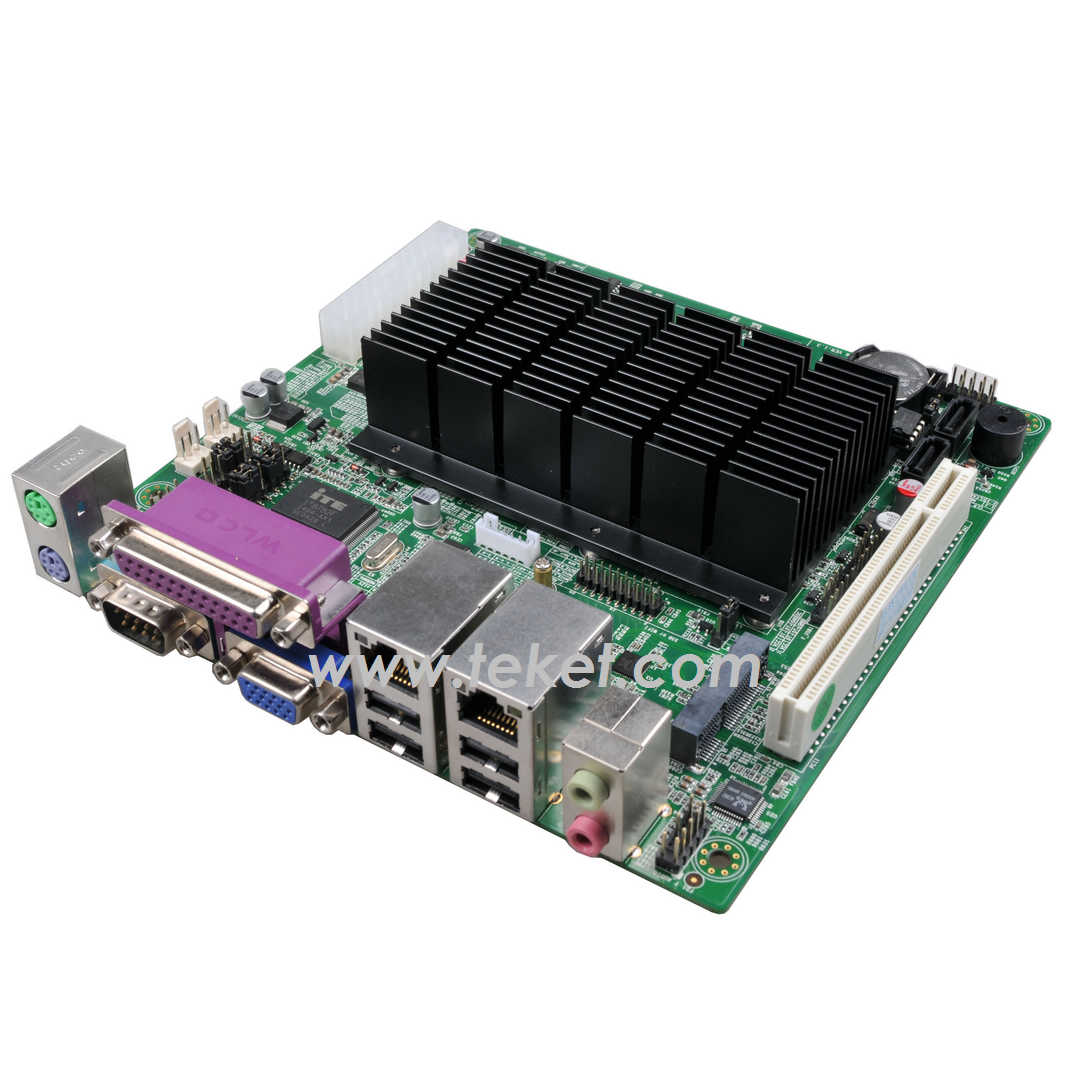

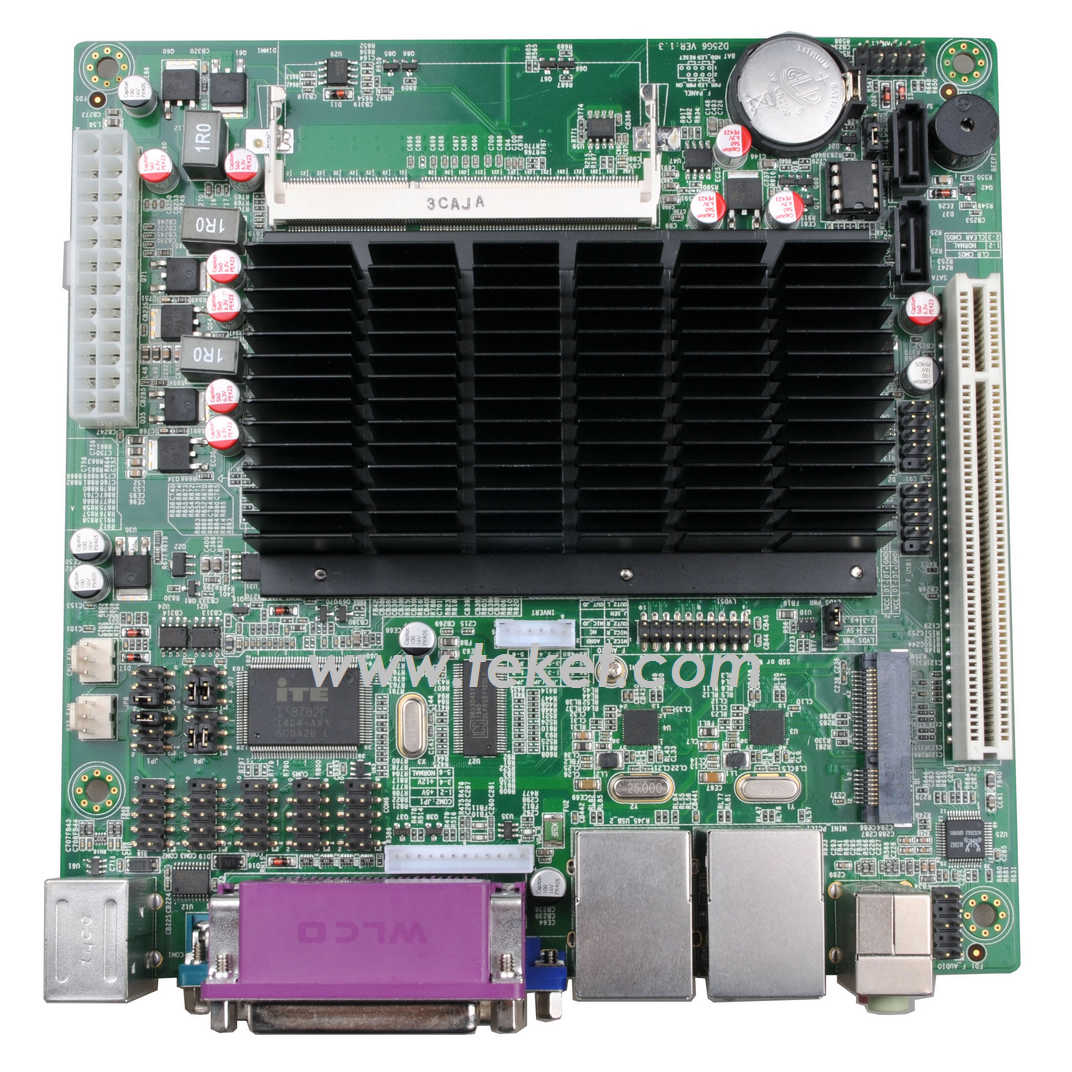

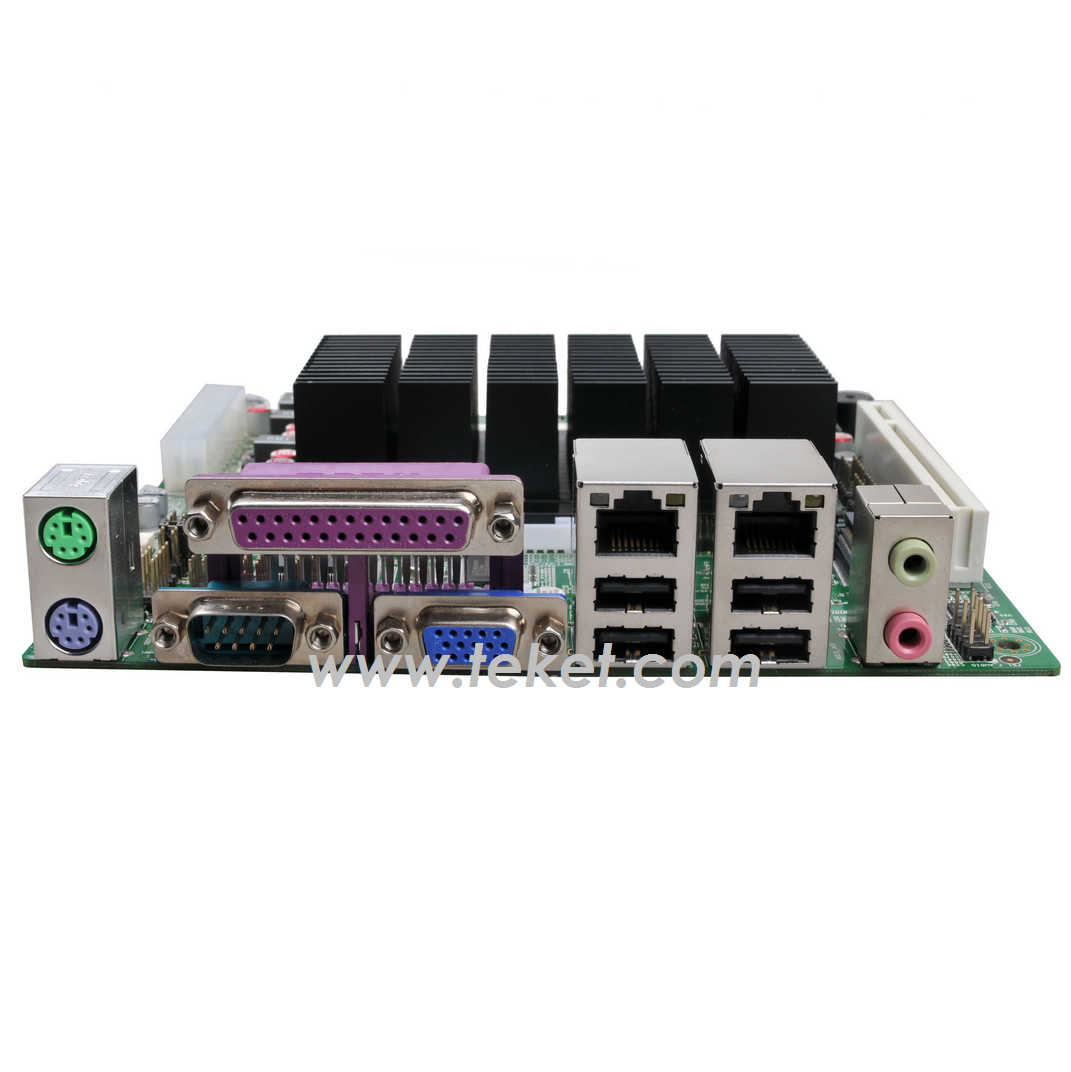

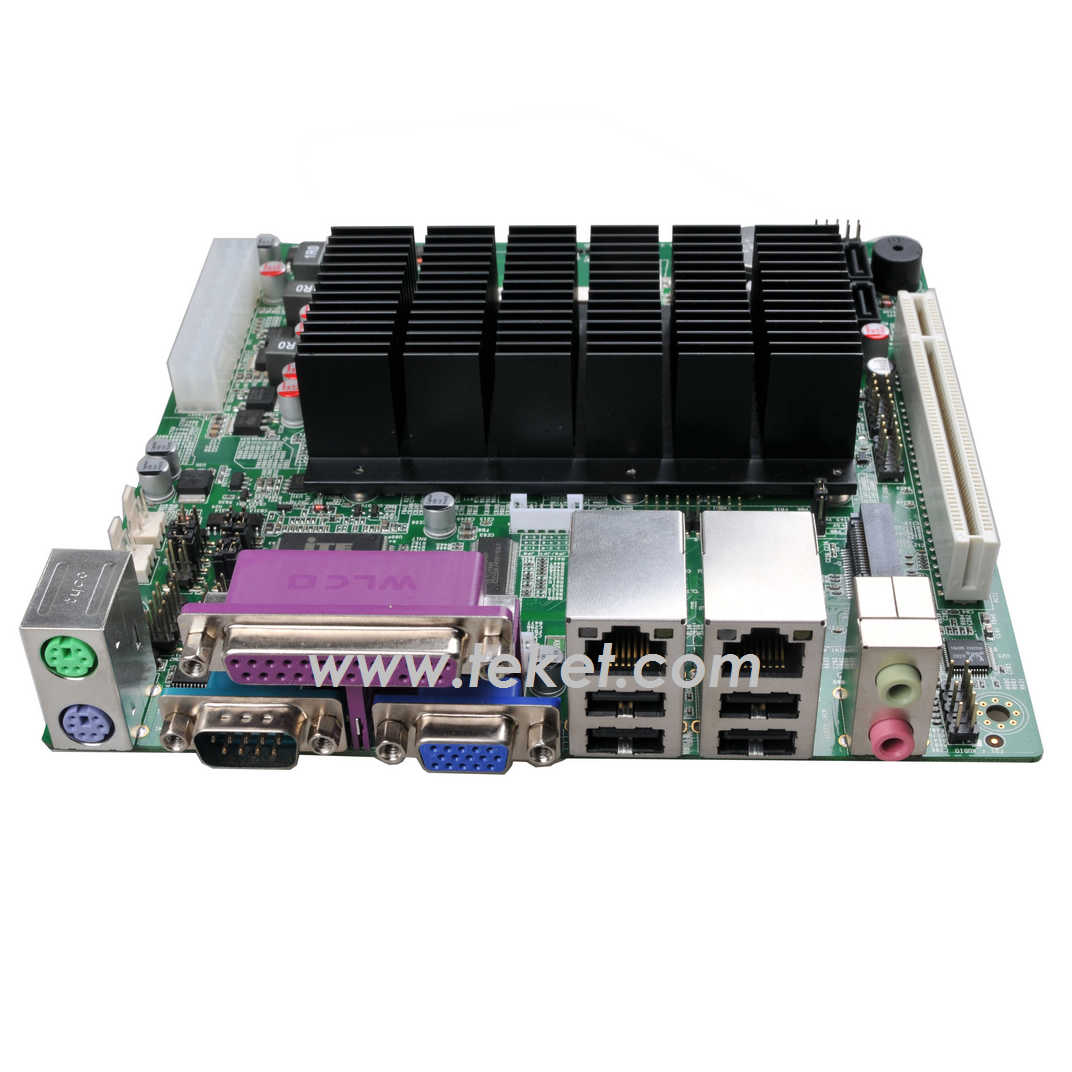

Intel ATOM Dual Lan Fanless Mini-ITX Motherboard with ATX power D2550GL

Intel ATOM D2550 Dual Lan Mini-ITX Motherboard D2550GL with ATX power

Intel® Atom™ Dual-Core N2550GL Processor (1M Cache, 1.86GHz)
Intel® NM10 Chipset
1 x DDR3 1066/1333MHz SO-DIMM Support 4GB MAX
VGA, Single(or Dual)-channel 18/ 24-bit LVDS
2 x Realtek RTL8111E PCIe Gigabit Ethernet
1 x Mini PCI-E(WIFI/SSD)
2 SATA 2.0, 6 COM RS-232(5V or 12V), 8 USB 2.0, 8-bit GPIO

intel ATOM Dual-Core D2550, 1.86Ghz, 1MB (N2600,N2800 option)
Intel? Atom? Processor D2550 (1M Cache, 1.86 GHz) Q1'12
Launch Date Q1'12
Processor Number D2550
# of Cores 2
# of Threads 4
Clock Speed 1.86 GHz
L2 Cache 1 MB
Instruction Set 64-bit
Instruction Set Extensions SSE2, SSE3, SSSE3
Embedded Options Available Yes
Lithography 32 nm
Max TDP 10 W
Processor GraphicsIntegrated

Intel NM10

1xDDR3 800/1066Mhz SO-DIMM
Support 4GB MAX

built-in GMA3600 graphics,support DVMT, 256M cache, support 1080p
display: VGA, 24bit LVDS dual display output

2xRealtek RTL8111E 1000M

Realtek ALC662 HD Audio Decoding controller

5xCOM(RS232/Pin header), com6 support rs485/rs422 option
COM1-COM6, either 5v or 12v voltage configured, through jumper
1A power supply, the 9th pin is galvanical.

8xUSB 2.0/1.1
6xPin interface.2x On-board interface

2xSATAII Connector(3GB/s)

Expansion socket
1xMINI PCIe socket

The system of monitoring / Watchdog
Support CPU temperature detection, the speed of the fan, the system temperature.

Power Supply
ATX Power

AMI BIOS, support the write protection. automatic power on/off, timer power on/off, remote power on/off machine, intelligent recognition device.

Detail Specification
Mechanical Standard
Industral Motherboard
Size: 170mm(6.7")x170mm(6.7")

Working condition
Operation Temperature -10c~60c
Operation Humidity 10%-90% relative humidty, Non-condensing.

Order Information
D2550GL-A12: ATX,PS/2,PCI,LPT+VGA+COM,1*mini pcie,4+4*USB,1*LAN,2*COM,fanless,ATX Power
D2550GL-A26: ATX,PS/2,PCI,LPT+VGA+COM,1*mini pcie,4+4*USB,2*LAN,6*COM,fanless,ATX Power
D2550GL-D12: ATX,PS/2,PCI,LPT+VGA+COM,1*mini pcie,4+4*USB,1*LAN,2*COM,fanless,12VDC
D2550GL-D26: ATX,PS/2,PCI,LPT+VGA+COM,1*mini pcie,4+4*USB,2*LAN,6*COM,fanless,12VDC
(mini pcie suppor 3G/WIFI or MSATA SSD, pick one of two)

Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client;Net top.

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
