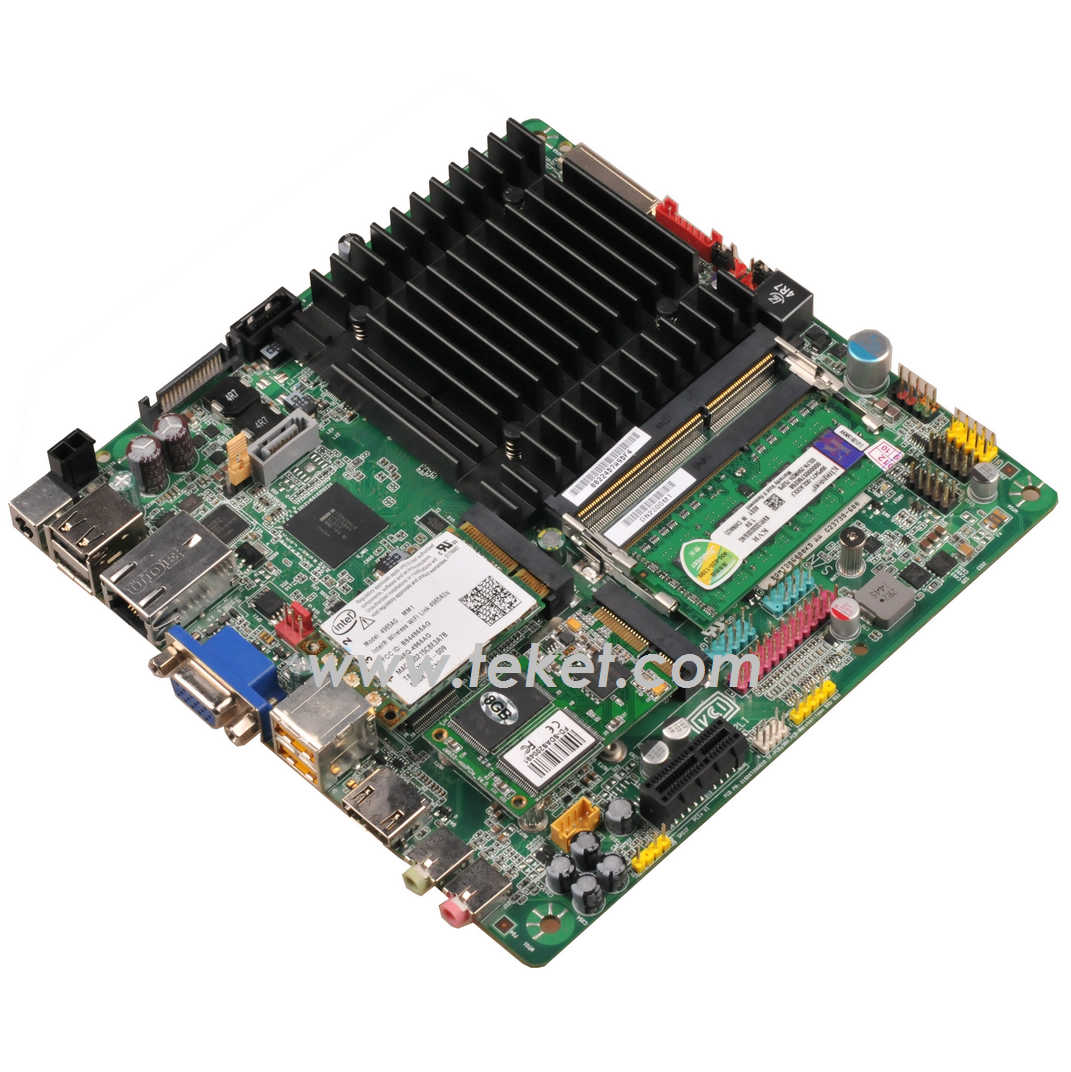

Thin compact Intel Atom Slim All-in-one (AIO) Mini-ITX Motherboard DJ1900MT

All-In-One
ThinMini-ITX Form Factor
Intel Braswell Series

Intel Celeron Processor N3160 (2M Cache, up to 2.24 GHz)
Processor Number N3160
Status Launched
Launch Date Q1'16
Lithography 14 nm
# of Cores 4
# of Threads 4
Processor Base Frequency 1.60 GHz
Burst Frequency 2.24 GHz
Cache 2 MB L2
TDP 6 W
Embedded Options Available Yes
Max Memory Size (dependent on memory type) 8 GB
Memory Types DDR3L-1600
Processor Graphics Intel HD Graphics 400

Intel Celeron Processor J3160 (2M Cache, up to 2.24 GHz)
Processor Number J3160
Status Launched
Launch Date Q1'16
Lithography 14 nm
# of Cores 4
# of Threads 4
Processor Base Frequency 1.60 GHz
Burst Frequency 2.24 GHz
Cache 2 MB L2
TDP 6 W
Embedded Options Available No
Max Memory Size (dependent on memory type) 8 GB
Memory Types DDR3L-1600
Processor Graphics Intel HD Graphics 400

Intel Braswell N3160/J3160 quad cores processor
Intel HD graphics and DriectX 11 support
Dual channel DDR3L with two connectors for MAX. 8GB memory
Triple independent display from HD-Out, VGA, and Embedded Display-Port* / LVDS connectivity
Features high speed Gigabit Ethernet connection
Features 2 SATA 3Gb/s
Four Hi-Speed USB3.0 ports support
Two Power RS232 + Two RS232/422/485 ports
One PCIe connector for the future Add-in card
Two PCI Express Mini Card connector for expansion card
8 V to 24 V wide-range voltage input via back-panel DC jack or internal power connector


Form Factor Low-profile Mini-ITX (20 millimeters [0.79 inches] x 170.18 millimeters [6.7 inches] x 170.18 millimeters [6.7 inches])
Processor Chipset Intel Braswell N3160/J3160 Processor with integrated graphics
Memory Support for dual channel DDR3L 1066/1333 SO-DIMMs
Support for up to 8 GB of system memory on a single SO-DIMM
(or 4 GB each by 2 SO-DIMM)
204-pin DDR3L SO-DIMM 2 2 2
Audio Controller 2 + 2 Channel High Definition Audio ( HD Audio) using a Realtek* ALC888S audio codec
Expansion Capability PCI Express x1 add-in card connector
PCI Express Full-/Half-Mini Card slot
PCI Express Half-Mini Card slot

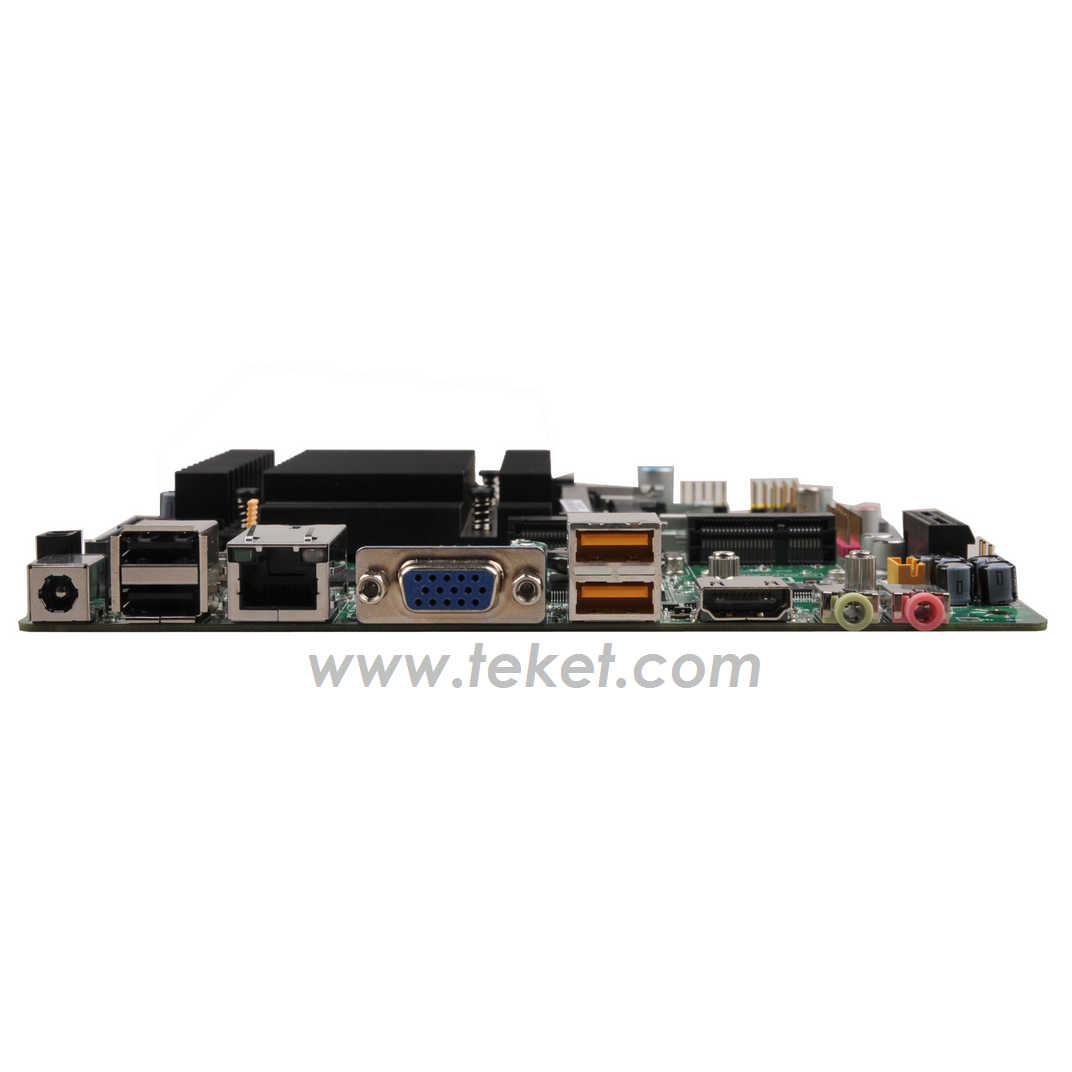

External I/O HD out
VGA out
Analog stereo line-out
Mic-in
RJ-45 (with integrated status LEDs)
USB 3.0 4 4 4
DC Jack(19V DC, 2.5mm/ ID, 5.5mm/ OD)

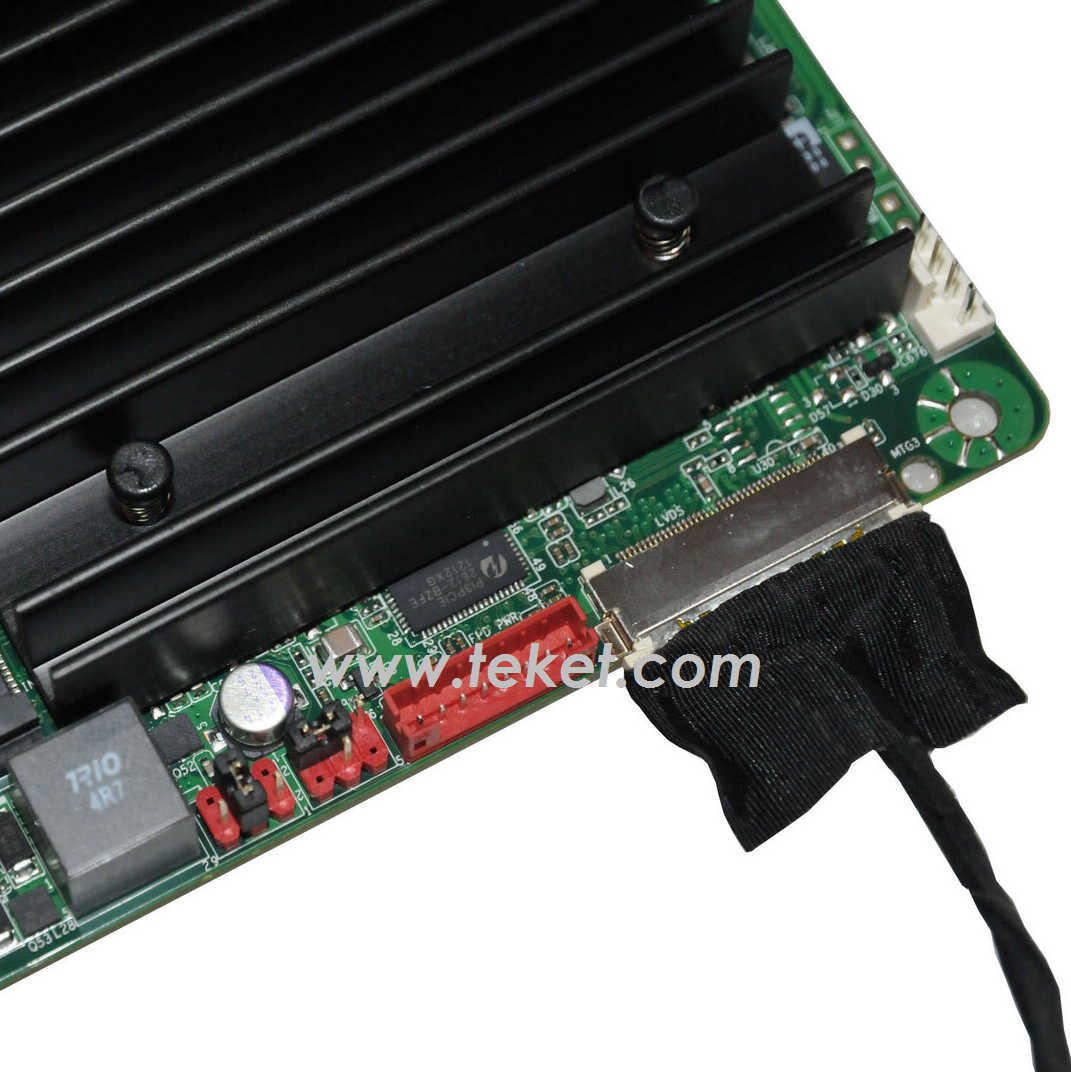

Internal I/O LVDS header (optional)
eDP header (optional)
audio header to support system stereo speaker
2-pin PWR header (optional)
4-pin PWR header (optional)
USB 2.0 header x3
SATA3 6.0 Gb/s header x2
SATA3 6.0 Gb/s port (multiplexed with an mSATA port, routed to the PCI Express Full-/Half-Mini Card slot)
1 x COM1 + 1x COM2 (Configurable for power RS-232) (optional)
1 x COM3 + 1x COM4 (Configurable for RS-232/422/485) (optional)
1 x Parallel port header (2x13) (optional)
standard 4 pins header to support PWM system fan
standard 3 pins header to support voltage control system fan
MiAPI (2x10) header (optional)
SIO Controller NCT6683D
LAN Controller Realtek RTL8111G-CG Gigabit (10/100/1000 Mb/s)
BIOS BIOS resident in a Serial Peripheral Interface (SPI) Flash device
Support for Advanced Configuration and Power Interface (ACPI), and System Management BIOS (SMBIOS)
Hardware Management Nuvoton NCT6104D based subsystem, including:
Voltage sense to detect out of range power supply voltages
Thermal sense to detect out of range thermal values
Environment Operating Temperature: 0°C to +60°C
Storage Temperature: -20°C to +70°C
Safety CE
FCC
Packing List
Mainboard
50CM SATA Cable
45CM SATA Power Cable
2*IO Shield (Half and Full height)
Driver CD (option)
Quick Guide

Net Weight: 448g
Inner Packing:
Outer Packing: 5.7kg,10pcs/ctn,450x215x230(mm)

Board connector: ACES 88341-40
Mating plug: ACES 88441-40 or Starconn 107F40

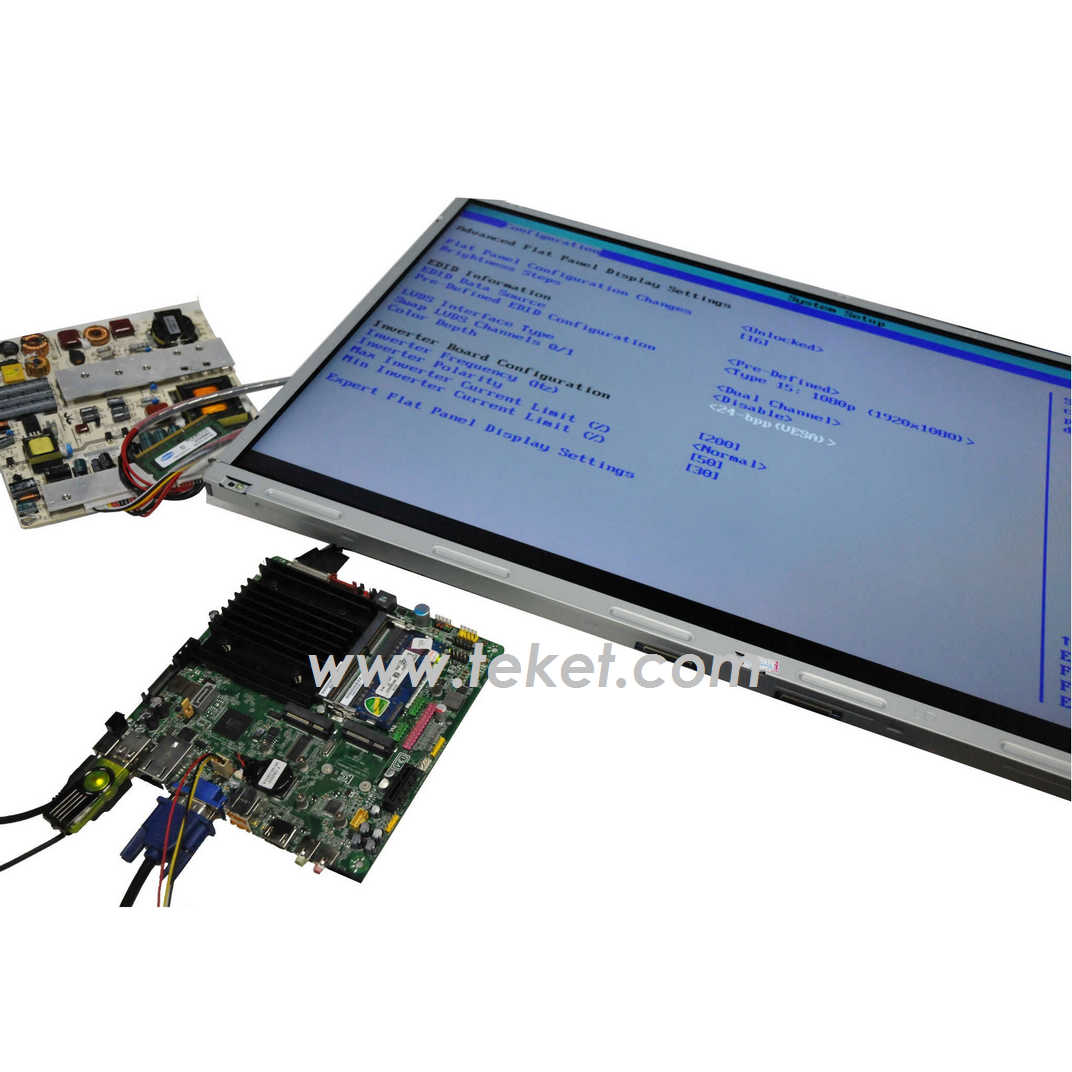

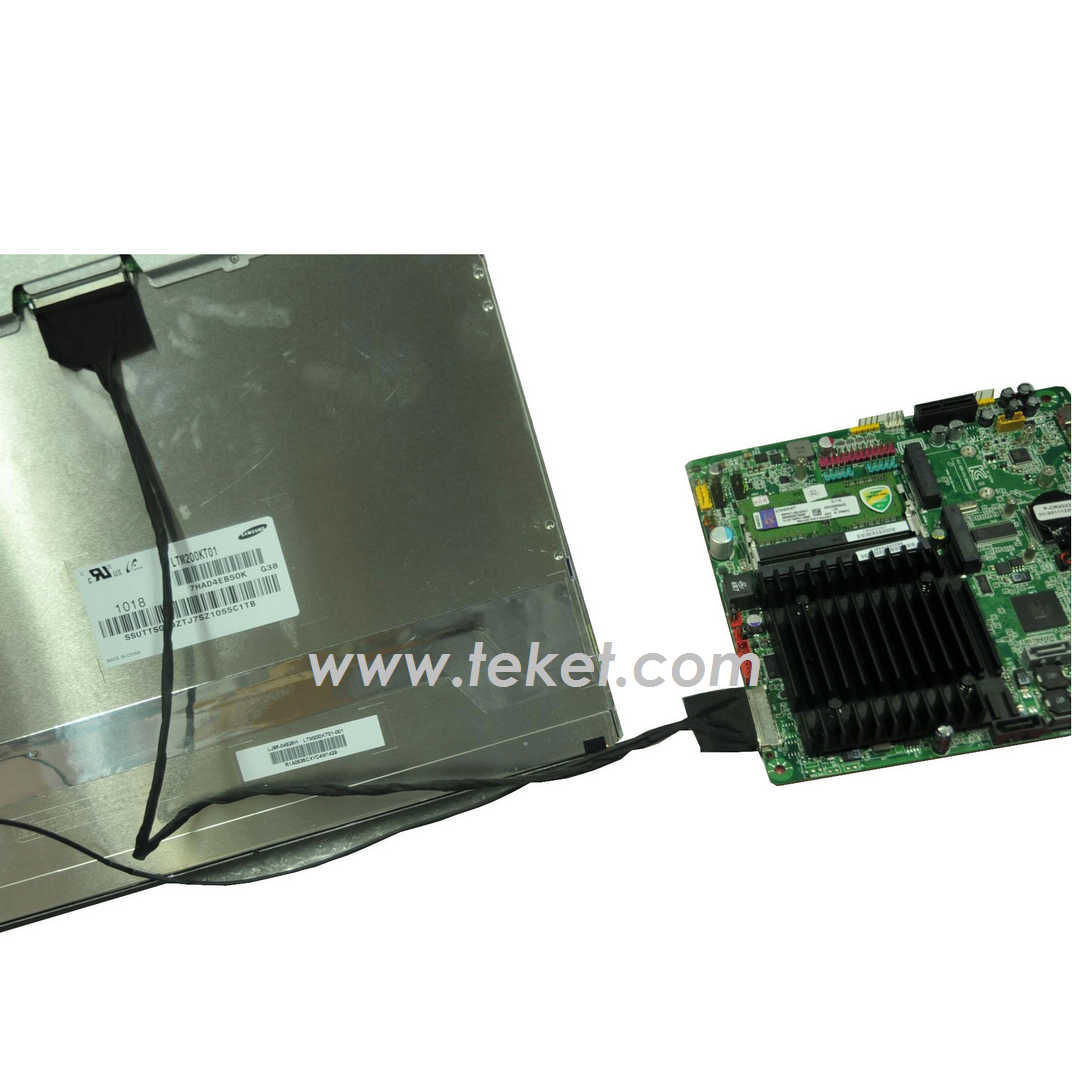

We can provide Board + mSATA + WIFI + RAM + LVDS sets as following

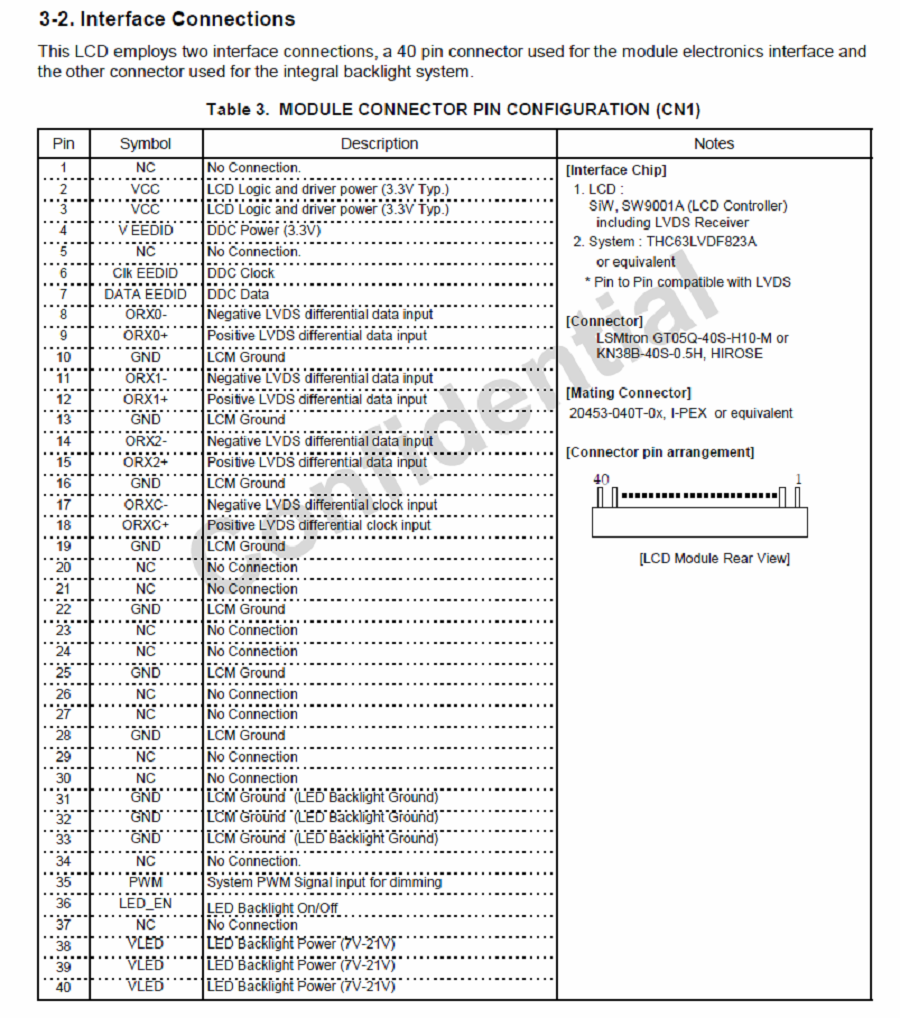

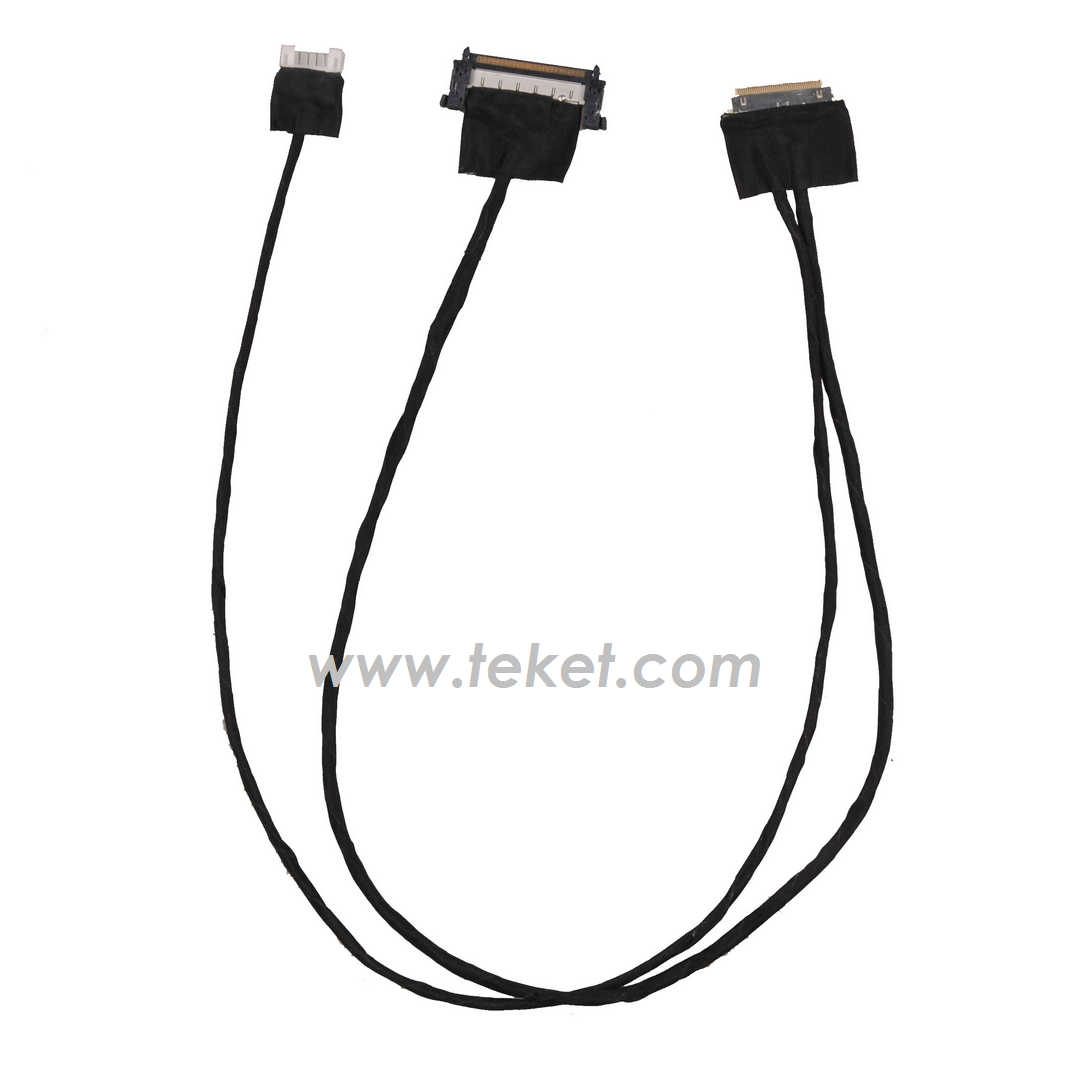

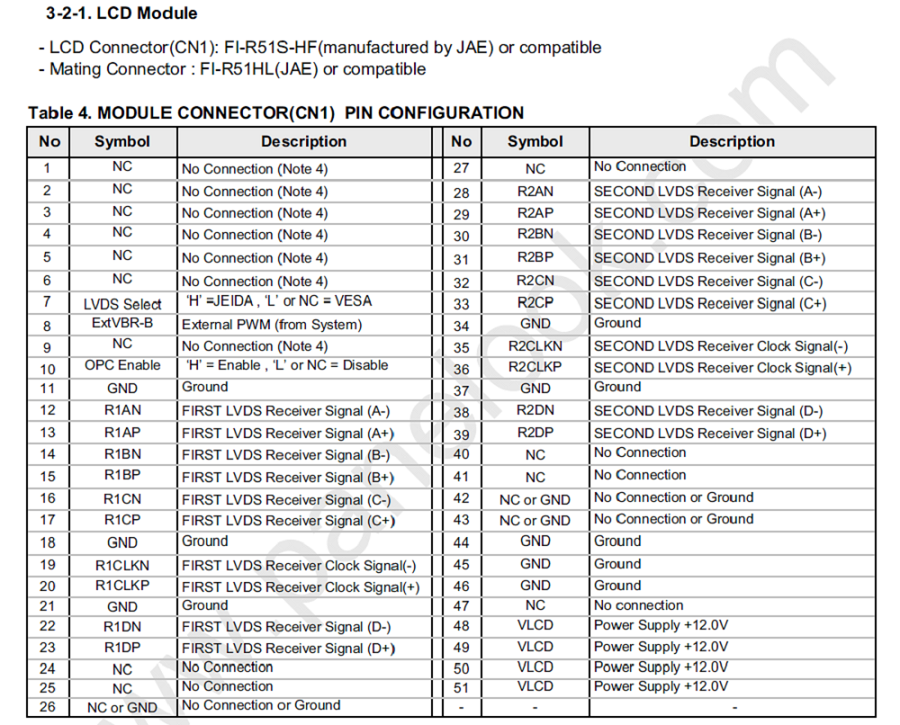

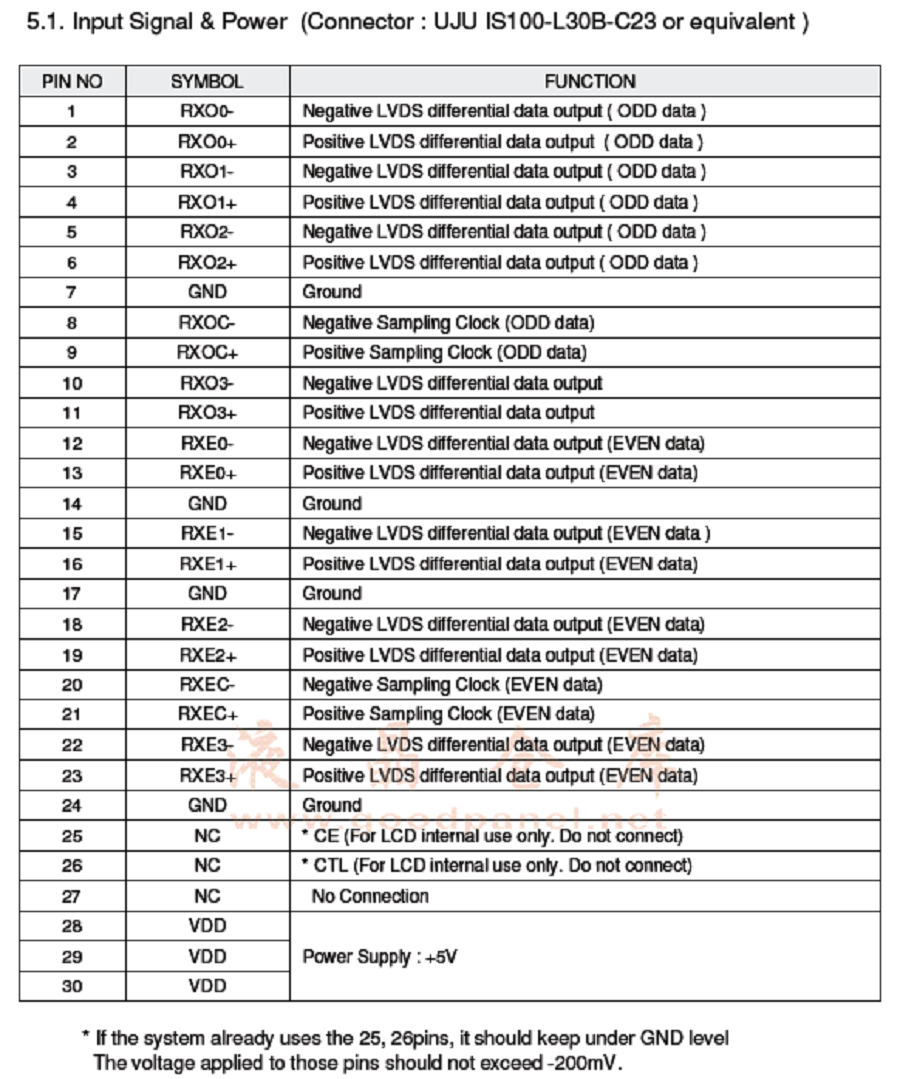

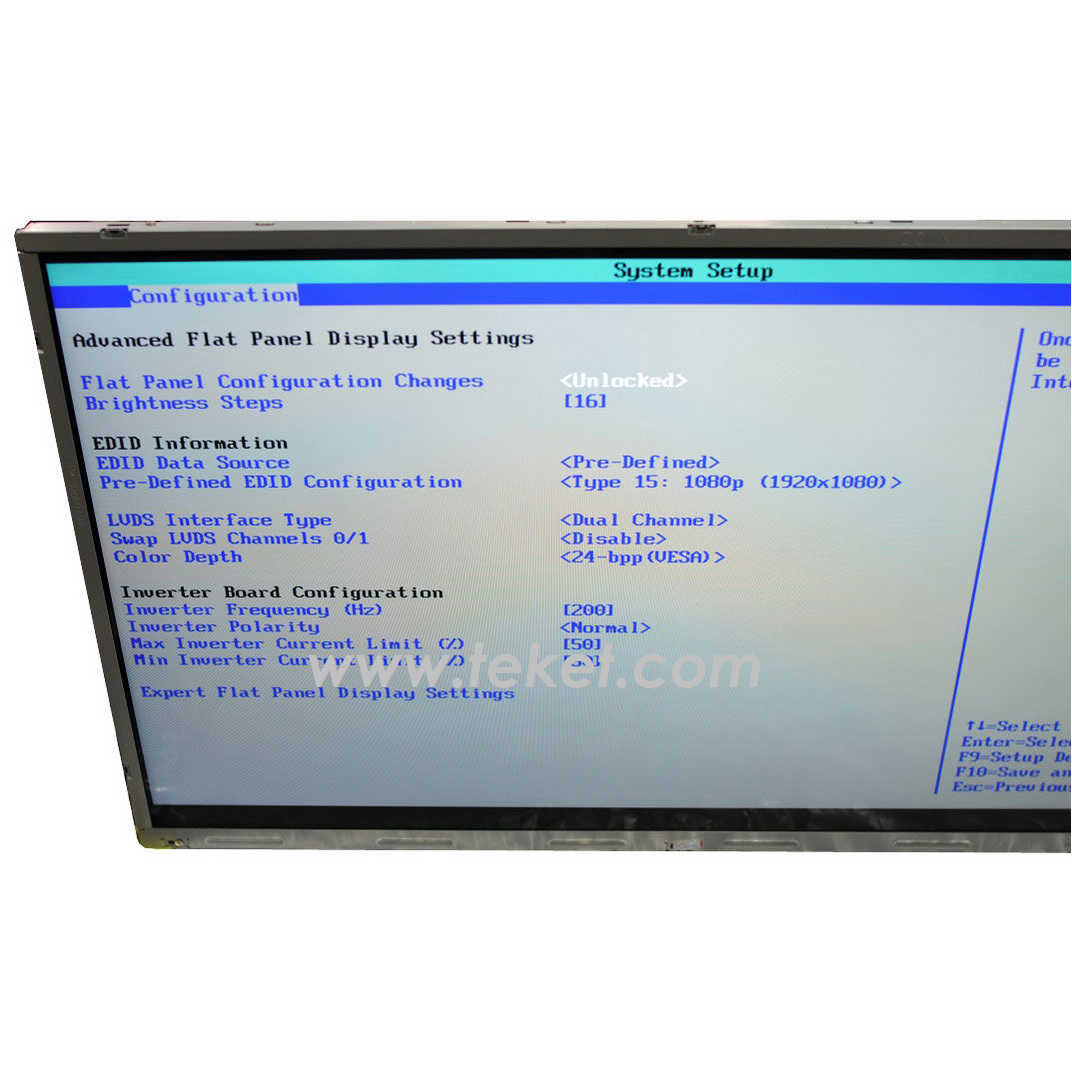

We have the lvds cable in stock for the following panels for yr reference:
(Motherboard use Intel orginal DN2800MT)
1),CHIMEI Innolux V315 serial panel (31.5") (CMO V315B6-L01)
2),CHIMEI Innolux or LG or SAMSUNG 15.6" panel (LG LP156WH4-TLN2,SAMSUNG LTN156AT05,CMO N156B6-L06 )
3),LG serial 32",37",42" 55" panel (LG LC260EUN-SDP1,LC320EUN-SEM2,LC420EUN-SEF1)
4),SAMSUNG 20",22",23",32" panel (SAMSUNG LTM200KT07,M270HW01-V2)
