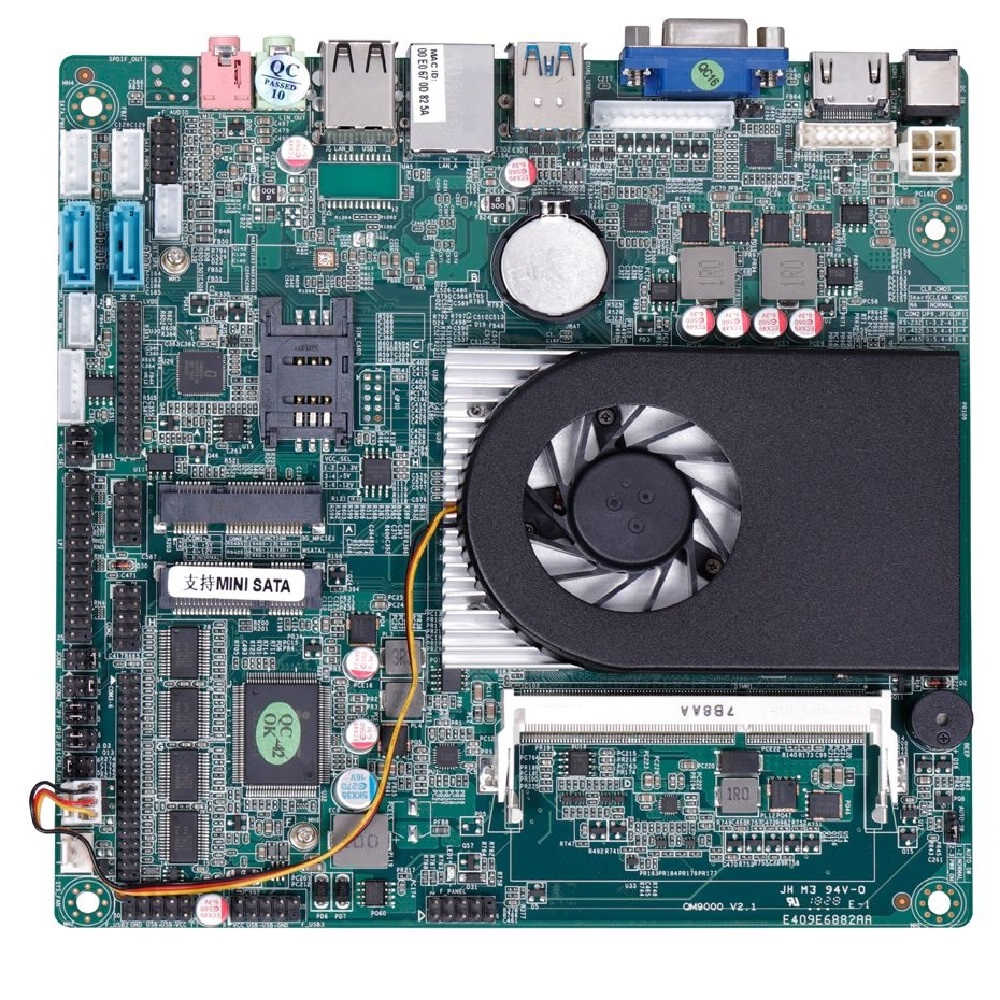

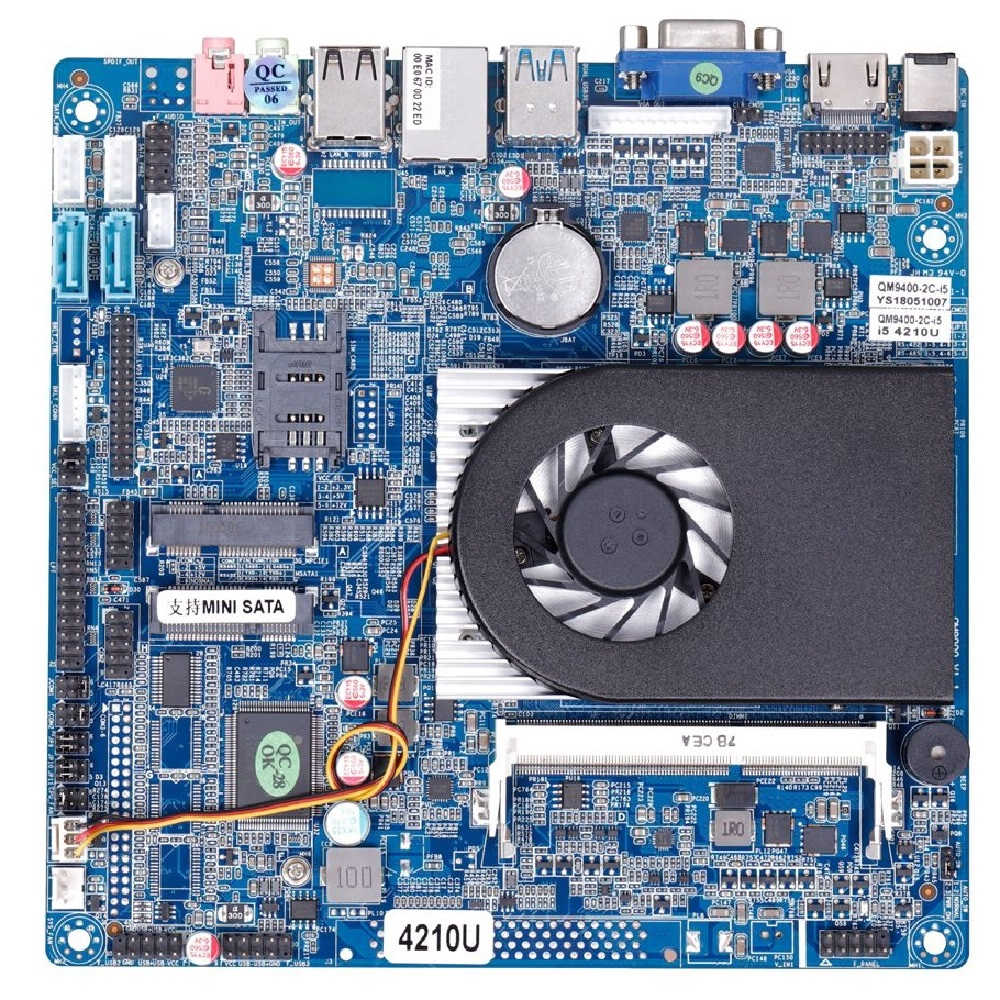

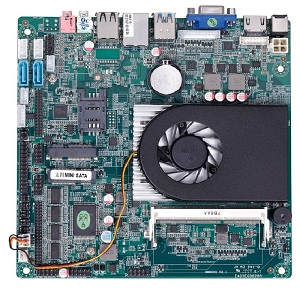

Nodel: H94QM

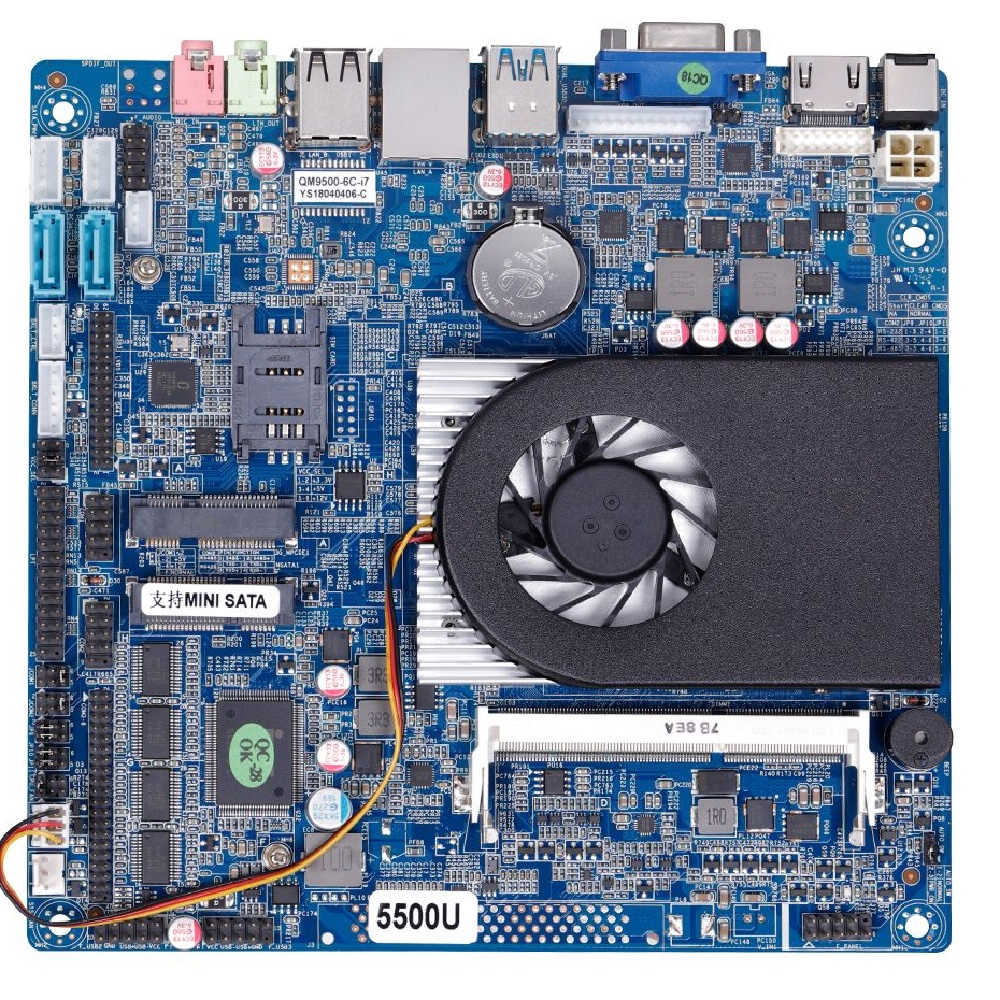

Model: H95QM

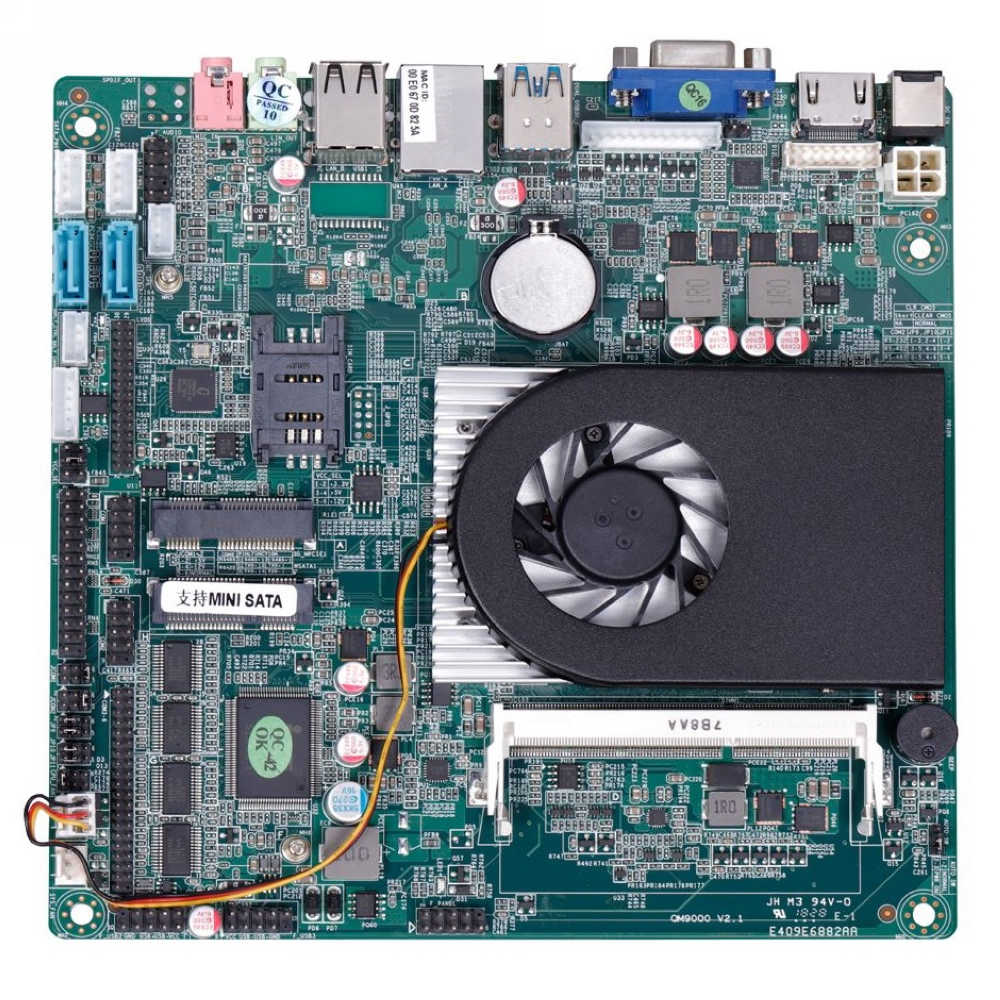

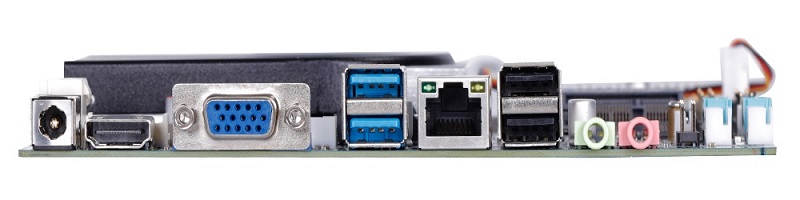

I/O Shield and Connector&PIN define


Spec
mini-itx, 170x170mm,slim, all-in-one
CPU
H94QM support 4th Gen Haswell-U CPU such as i3/i5/i7(Core i3-4005U,i5-4210U,i7-4510U)
H95QM support 5th Gen Haswell-U CPU such as i3/i5/i7(Core i3-5005U,i5-5287U,i7-5500U)
Chipset
Intel SOC
RAM
2*SO-DDR3L 1600Mhz up to 8GB
Display
Intel HD4000/HD5000 core, support DVMT
support HDI,VGA,LVDS, three panels display
HDI support 4K
support dual 8bit 24bit LVDS
Storage
2*SATA3.0
1*MSATA 3.0
Networks
1 or 2 LAN(RTL8111F)
AUDIO
Realtek ALC662 HD
Supoort line-in,line-out, 3w/5w speaker
I/O
2*USB3.0 6*USB2.0,2/6*RS232(COM),1*RS485,support COM 5V/12V power
watch dog
extended BUS
2*MINI PCE support WIFI/3G/MSATA/GPS
POWER
DC12V/19V
Operating Environment
Working temperature :-20℃~60℃;
Relative humidity:5%~95%,non-condensation.
BIOS
AMI BIOS
OS
Windows 8/Windows 10, linux

Order Information
H94QM-I3-4010U i3-4010U,Haswell-U,VGA,HDI,LVDS,1*SODDR3(8GB),2*SATA3.0,1*mSATA3.0,1/2*LAN(RTL8111E),4*USB2.0,2/6*COM,DC
H94QM-I3-4030U i3-4030U,Haswell-U,VGA,HDI,LVDS,1*SODDR3(8GB),2*SATA3.0,1*mSATA3.0,1/2*LAN(RTL8111E),4*USB2.0,2/6*COM,DC
H94QM-I5-4210U i5-4210U,Haswell-U,VGA,HDI,LVDS,1*SODDR3(8GB),2*SATA3.0,1*mSATA3.0,1/2*LAN(RTL8111E),4*USB2.0,2/6*COM,DC
H94QM-I7-4510U i7-4510U,Haswell-U,VGA,HDI,LVDS,1*SODDR3(8GB),2*SATA3.0,1*mSATA3.0,1/2*LAN(RTL8111E),4*USB2.0,2/6*COM,DC

H95QM-I3-5005U i3-5005U,Haswell-U,VGA,HDI,LVDS,1*SODDR3(8GB),2*SATA3.0,1*mSATA3.0,1/2*LAN(RTL8111E),4*USB2.0,2/6*COM,DC
H95QM-I3-5010U i3-5010U,Haswell-U,VGA,HDI,LVDS,1*SODDR3(8GB),2*SATA3.0,1*mSATA3.0,1/2*LAN(RTL8111E),4*USB2.0,2/6*COM,DC
H95QM-I5-5287U i3-5287U,Haswell-U,VGA,HDI,LVDS,1*SODDR3(8GB),2*SATA3.0,1*mSATA3.0,1/2*LAN(RTL8111E),4*USB2.0,2/6*COM,DC
