Intel® Celeron® Processor J3160
2M Cache, up to 2.24 GHz
Product Collection
Intel® Celeron® Processor J Series
Code Name
Products formerly Braswell
Vertical Segment Desktop
Processor Number J3160
Status Launched
Launch Date Q1'16
Lithography 14 nm
CPU Specifications
Total Cores 4
Total Threads 4
Burst Frequency 2.24 GHz
Processor Base Frequency 1.60 GHz
Cache 2 MB L2 Cache
TDP 6 W

Integrated Intel® Celeron J3160 1.6GHz quad core processor,TDP 6W
Based on Intel® Braswell SOC
1*SODIMM slot, support 1600/1333MHz DDR3L/1.35V memory, up to 8GB
Integrated Intel®HD Graphics 400
1*VGA,1*HDMI,1*LVDS
1*RTL8111F Gigabit Ethernet
7*USB,6*RS232

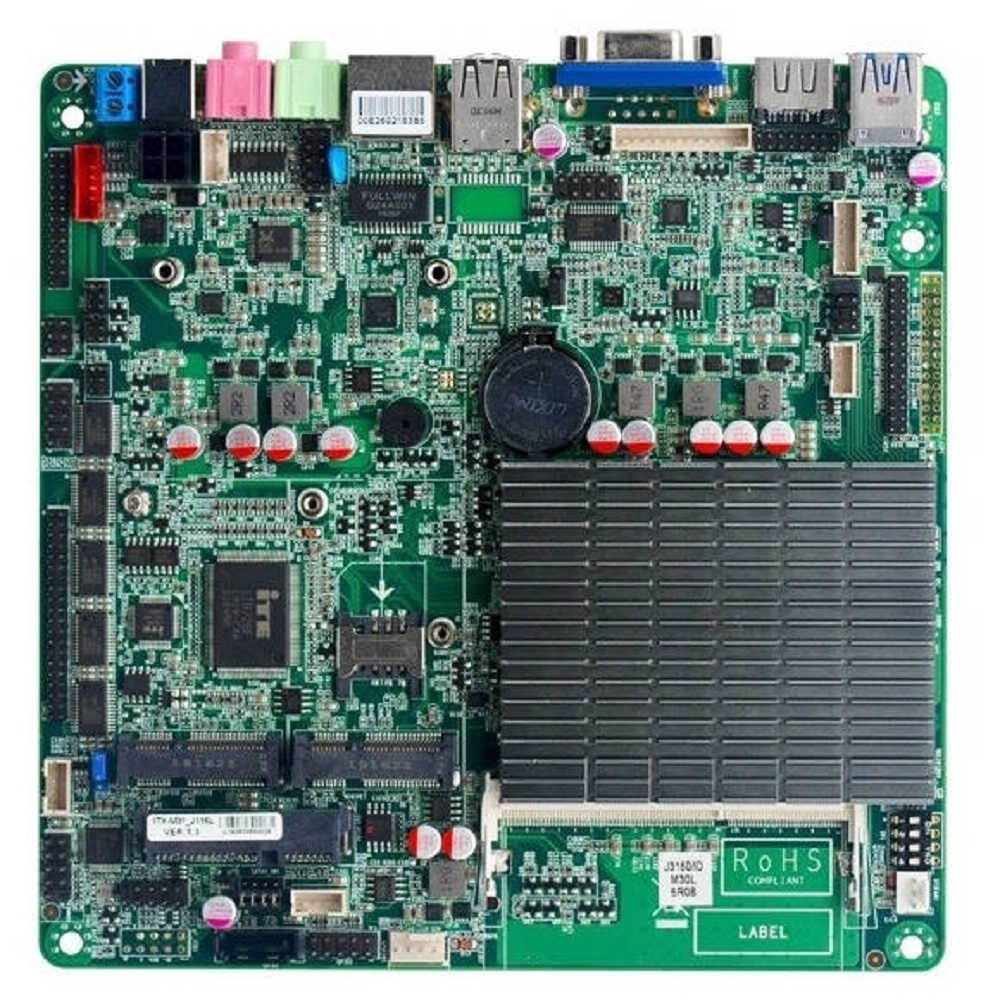

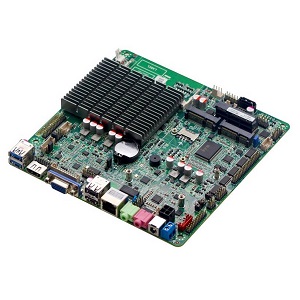

Model: J3160ML VER:1.3

Processor Integrated Intel®Celeron J3160/1.6GHz quad core processor ,TDP 6W
Compatible Intel Braswell series CPU
Chipset Based on Intel® Braswell SOC platform
Memory 1*SODIMM slot, support 1600/1333MHz DDR3L/1.35V memory, up to 8GB
Graphics Integrated Intel®HD Graphics 400
1*VGA,1*HDMI,1* support double channel 24bit LVDS
Support synchronous/asynchronous display
Networ
1*RTL8111F Gigabit ethernet , support wake on LAN/PXE
Storage
1* SATA3.0 2.5 inch laptop HDD slot , can install HDD directly
1* 7pin SATA3.0 HDD port (with 2.5 inch laptop HDD slot optional）
Audio
Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out/amplifier.
Support amplifer 2Ω5W trumpet
Expansion slot
1* Mini-PCIE slot, support WIFI/3G module
1* MSATA3.0 slot, support Intel protocol SSD,the transfer rate up to 6Gbps

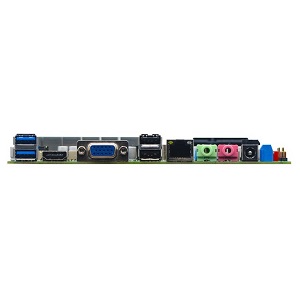

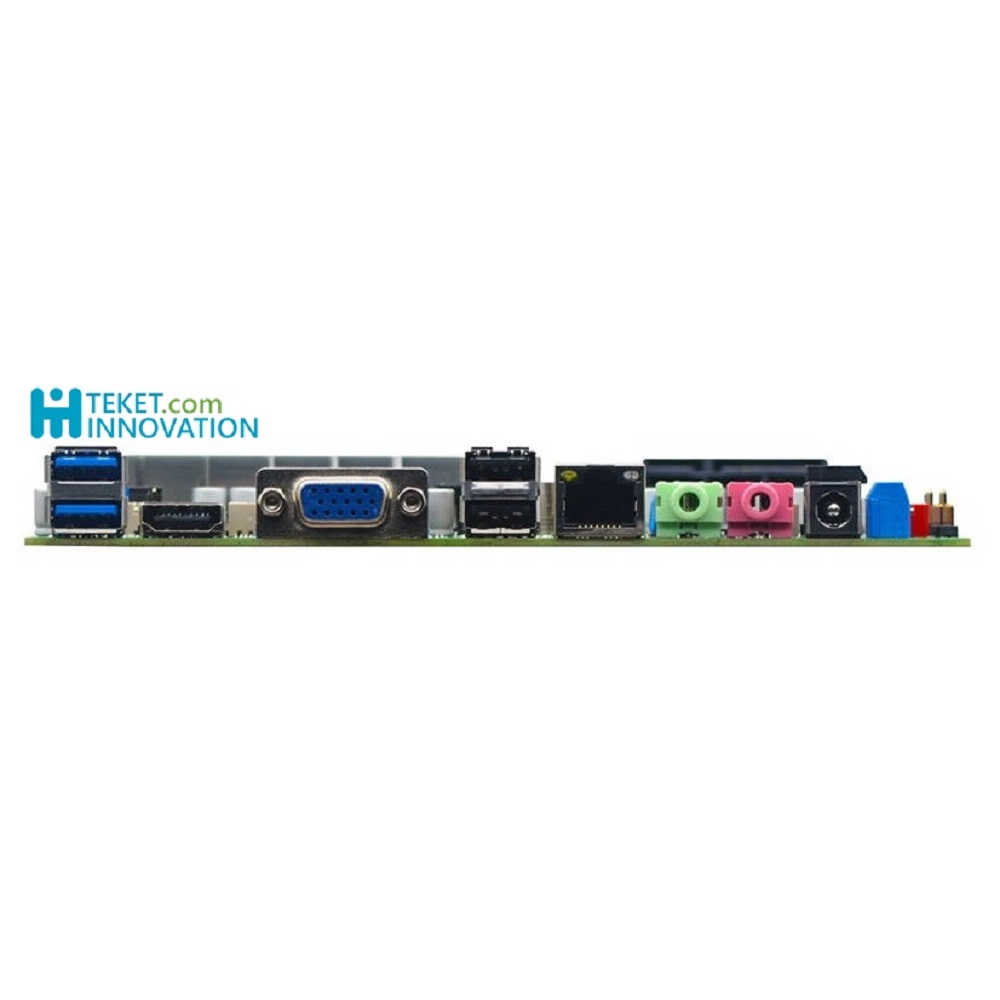

Rear I/O
2* USB2.0
2* USB3.0
1* HDMI
1* VGA (can do DB9 serial port )
1* RJ-45 gigabit ethernet
1* Line out(Green）
1* MIC(Red)
1* 12V DC power input port 口
Internal I/O
1*LVDS 2*15pin, support dual channel 24BIT
1*LVDS backlight power supply port 1*6pin
1* screen brightness adjustment port 1*4pin
1* JHDMI 2*8Pin,the same signal with HDMI
1* JVGA1 1*12pin the same signal with DB15
6* RS232 serial ports(COM1/2 support charged function,),COM2 support RS485/422
1* LPT print port 2*13pin
2* USB2.0 2*5pin
1* USB2.0 1*4pin
1* PS/2 KB/MS port 1*6Pin
1* front audio port 2*5pin
1* power amplifier 1*4pin
1* SIM card socket
1* HDD power supply port 1*4pin
1* front panel buttons and indicator port 2*5pin
1* 4pin ATX power port , support 12V input/output
1*2pin blue power element ,support 12V power input/output
FAN connector
Support fanless cooling ,reserved 1* 4pin CPU smart fan connector,1* 3pin system fan connector
GPIO
Support 4 way inpu/output GPIO
BIOS
AMI 64Mb Flash ROM
Watch dog
Support hardware reset function (L256, 0~255 seconds)
OS
Windows 10/Linux
Power input
DC 12V power input
Working Temp. -10℃～60℃
Storage Tepm. -20℃～70℃
Working Humidiry
5%-95%(relative humidity; non-condensing)
Dimension 170mm x 170mm

Order Information
J3160ML VER:1.3 J3160 1.6Ghz 1*SODDR3L,1*VGA,1*HDMI,2ch*24bit LVDS,1*LAN(RTL8111F),7*USB,6*COM(RS485/422),12VDC
