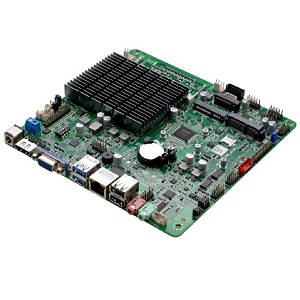

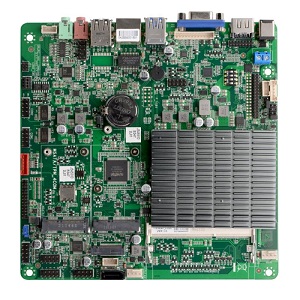

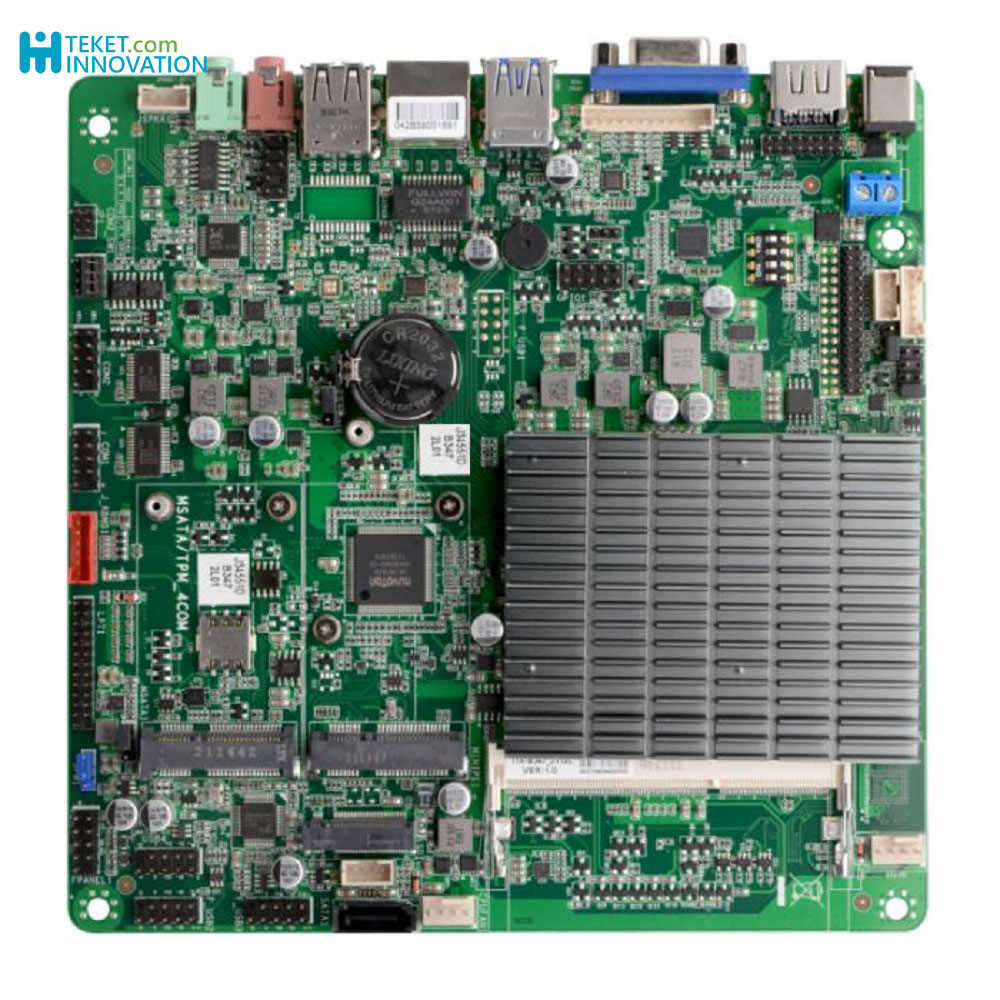

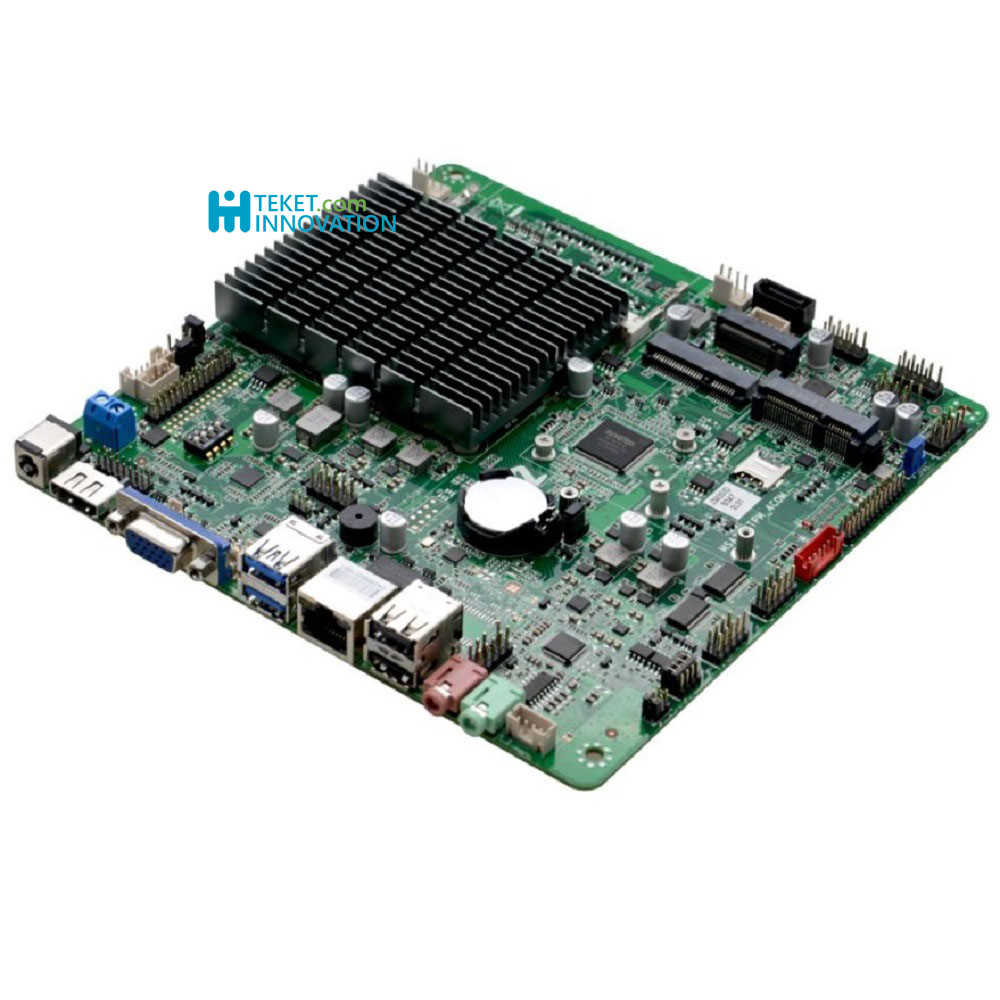

Intel Celeron J3455 1.5Ghz Apollo Lake SOC MINI-ITX Motherboard J3455ML M.2 NVME 2280 SSD

Intel® Celeron® Processor J3455
2M Cache, up to 2.30 GHz
Product Collection
Intel® Celeron® Processor J Series
Code Name
Products formerly Apollo Lake
Vertical Segment Desktop
Processor Number J3455
Status Launched
Launch Date Q3'16
Lithography 14 nm
Total Cores 4
Total Threads 4
Burst Frequency 2.30 GHz
Processor Base Frequency 1.50 GHz
Cache 2 MB
TDP 10 W
Memory Types DDR3L/LPDDR3 up to 1866 MT/s; LPDDR4 up to 2400 MT/s
Processor Graphics Intel® HD Graphics 500

Integrated Intel® Celeron J3455 1.5GHz quad core processor,TDP 10W
Based on Intel® Apollo Lake Celeron/Pentium SOC
1*SODIMM slot, support DDR3L/LPDDR3 1600/1866MHz 1.35V, up to 8GB
Integrated Intel®HD Graphics 500
1*VGA,1*HDMI,1*LVDS(24bit) or 1*EDP
1*RTL8111H Gigabit Ethernet
8*USB,2*RS232



Model: J3455ML VER:1.0

Processor Integrated Intel®Celeron J3450/1.5GHz quad core processor ,TDP 10W
Compatible Intel Applo Lake Celeron/Pentium series CPU
Chipset Based on Intel® Applo LakeSOC platform
Memory 1*SODIMM slot, support DDR3L/LPDDR3 1600/1866MHz 1.35V, up to 8GB
Graphics Integrated Intel®HD Graphics 500
1*VGA,1*HDMI,1* support double channel 24bit LVDS
Support synchronous/asynchronous display
Networlk
1*RTL8111H Gigabit ethernet , support wake on LAN/PXE
Storage
1* SATA3.0 2.5 inch laptop HDD slot , can install HDD directly
1* 7pin SATA3.0 HDD port (with 2.5 inch laptop HDD slot optional)
1* MSATA slot, support SSD up to 6Gbps
1* M.2 slot, support Intel M.2 2280 NVME PCIEx1 standard SSD
Audio
Onboard ALC892 7.1+2 channel high fidelity audio controller,support MIC/Line-out
Support amplifer 2Ω5W trumpet
Expansion slot
1* Mini-PCIE slot, support WIFI/3G module

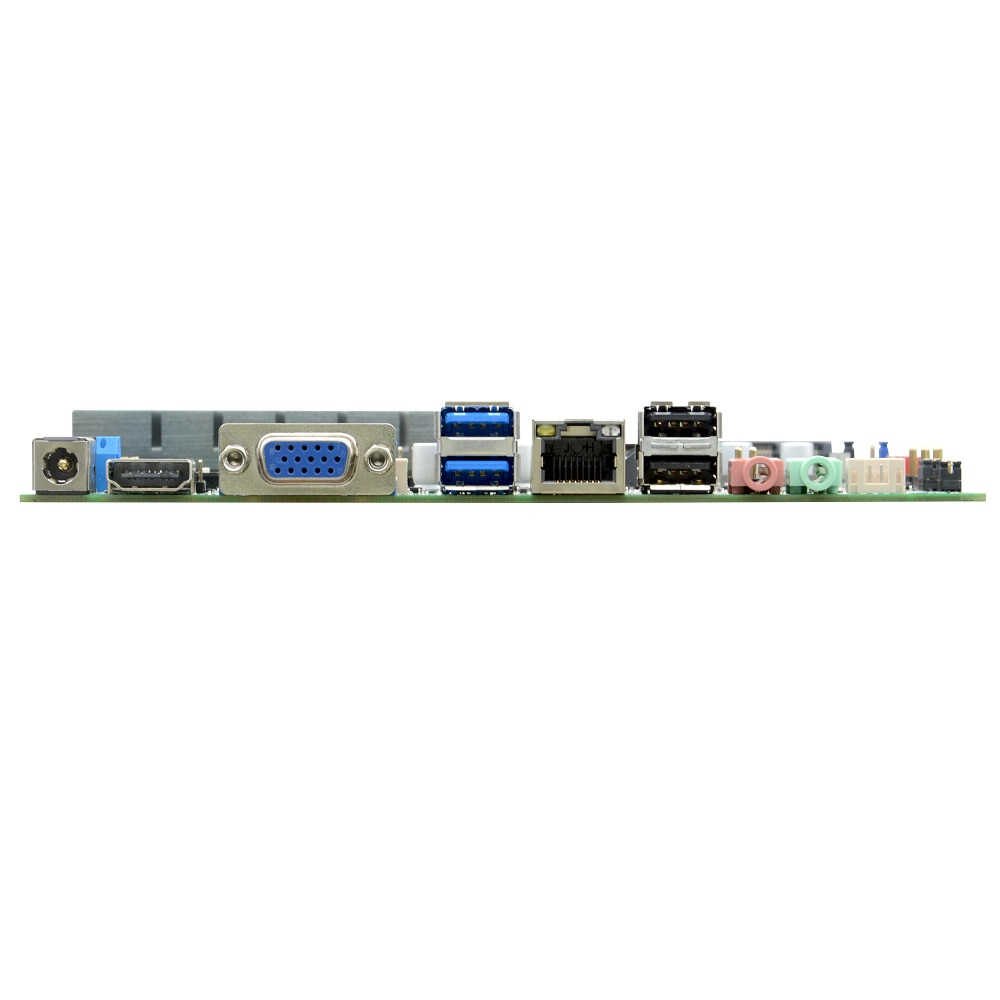

Rear I/O
2* USB2.0
2* USB3.0
1* HDMI 1.4
1* VGA (DB15 )
1* RJ-45 gigabit ethernet
1* Line out(Green)
1* MIC(Red)
1* 12V DC power input port
Extend
1* Mini-PCIE slot, support WIFI/3G module
Internal I/O
1*LVDS 2*15pin, support dual channel 24BIT
1*LVDS backlight power supply port 1*6pin
1* screen brightness adjustment port 1*4pin
1* JHDMI 2*8Pin,the same signal with HDMI
1* JVGA1 1*12pin the same signal with DB15
2* RS232 serial ports(COM1 support pin9 power function,COM2 support RS485/422)
1* LPT print port 2*13pin
6* USB2.0 2*5pin
1* PS/2 KB/MS port 1*6Pin
1* front audio port 2*5pin
1* SIM card socket
1* HDD power supply port 1*4pin
1* front panel buttons and indicator port 2*5pin
2* 2pin ATX power port , support 12V input/output
1* power amplifier 1*4pin
FAN connector
Support fanless cooling ,reserved 1* 4pin CPU smart fan connector,1* 4pin system fan connector
GPIO
Support 4 way inpu/output GPIO
BIOS
AMI 64Mb Flash ROM
Watch dog
Support hardware reset function (L256, 0~255 seconds)
OS
Windows 10/Linux
Power input
DC 12V power input
Working Temp. -10℃~60℃
Storage Tepm. -20℃~70℃
Working Humidiry
5%-95%(relative humidity; non-condensing)
Dimension 170mm x 170mm

Order Informatin
J3455ML VER:1.0 J3455 1.5Ghz 1*SODDR3L,1*VGA,1*HDMI,1*LVDS,1*SATA,1*MSATA,1*M.2 NVME,1*LAN(RTL8111H),8*USB,2*COM(RS485/422),12VDC
