Intel® Celeron® Processor J4125
4M Cache, up to 2.70 GHz
Product Collection Intel® Celeron® Processor J Series
Code Name Products formerly Gemini Lake Refresh
Vertical Segment Mobile
Processor Number J4125
Status Launched
Launch Date Q4'19
Lithography 14 nm
Total Cores 4
Total Threads 4
Burst Frequency 2.70 GHz
Processor Base Frequency 2.00 GHz
Cache 4 MB
TDP 10 W
Embedded Options Available No
Memory Types DDR4/LPDDR4 upto 2400 MT/s
Processor Graphics Intel® UHD Graphics 600

Integrated Intel® Celeron J4125 2.0GHz quad core processor,TDP 10W
Based on Intel® Apollo Lake Celeron/Pentium SOC
1*SODIMM slot, support DDR4 2400MHz 1.35V, up to 8GB
Integrated Intel®HD Graphics 600
1*VGA,1*HDMI,1*LVDS(24bit)or 1*EDP
1*INTEL I225 Gigabit Ethernet
8*USB,6*RS232(or 2*RS232)

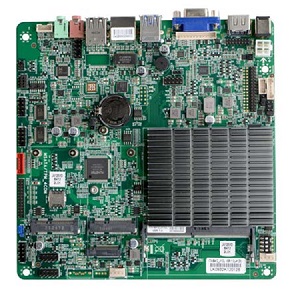

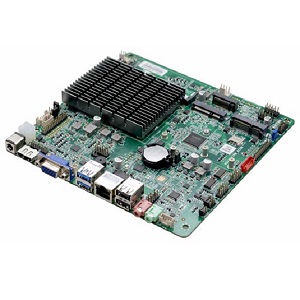

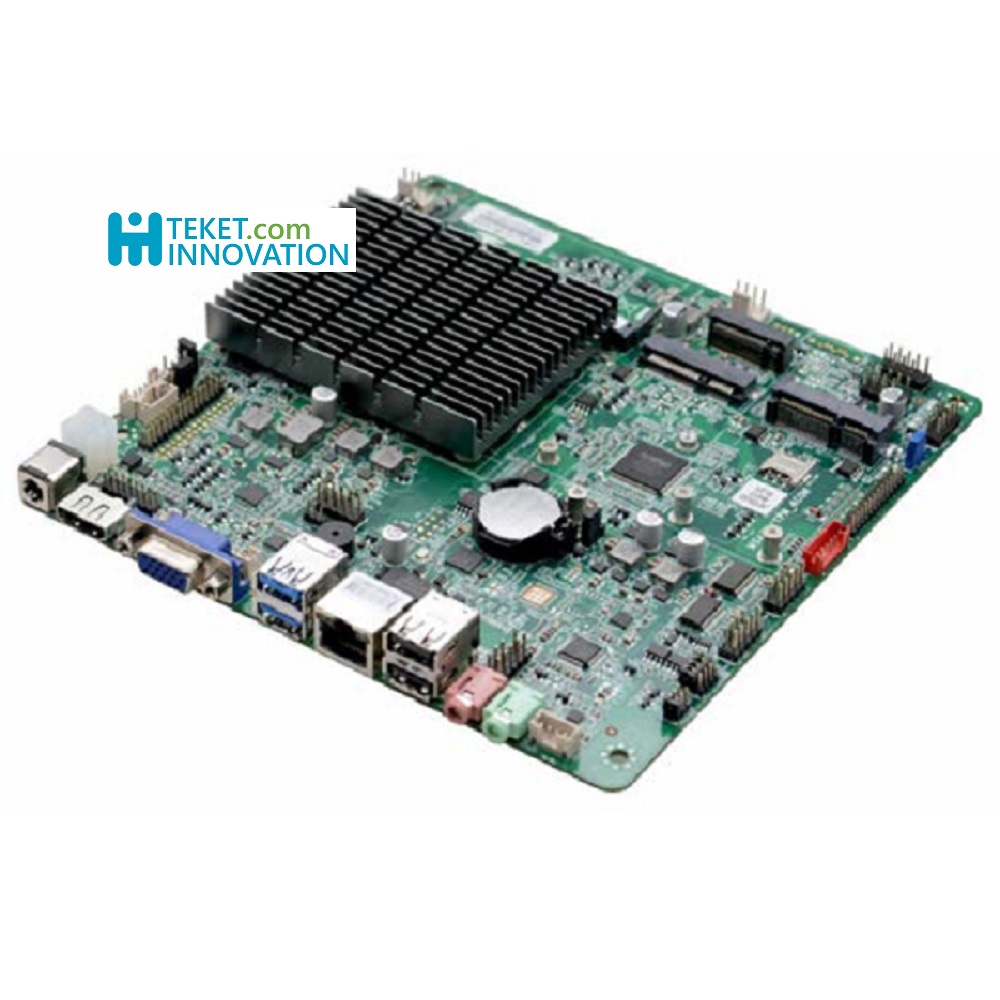

Model: J4125ML VER:1.0

Processor Integrated Intel® Celeron J4125/2.0GHz quad core processor ,TDP 10W
Compatible Intel Gemini Lake Lake Celeron/Pentium series CPU
Chipset Based on Intel® Gemini LakeSOC platform
Memory 1*SODIMM slot, support singel channel DDR4 2400MHz 1.35V, up to 8GB
Graphics Integrated Intel®HD Graphics 600
1*VGA,1*HDMI,1* support double channel 24bit LVDS
Support synchronous/asynchronous display
Networlk
1*INTEL I225 Gigabit ethernet , support wake on LAN/PXE
Storage
1* SATA3.0 2.5 inch laptop HDD slot , can install HDD directly
1* MSATA slot, support SSD up to 6Gbps
1* 7pin SATA3.0 HDD port (with 2.5 inch laptop HDD slot optional）
or
1* M.2 slot, support Intel M.2 2280/2260 SATA standard SSD
note： MSATA or TPM-4*COM choice
Audio
Onboard ALC892 7.1+2 channel high fidelity audio controller,support MIC/Line-out
Support amplifer 2Ω5W trumpet
Expansion slot
1* Mini-PCIE slot, support WIFI/4G module
note: F_USB2 support 1*USB only if MINIPE1 support 4G module

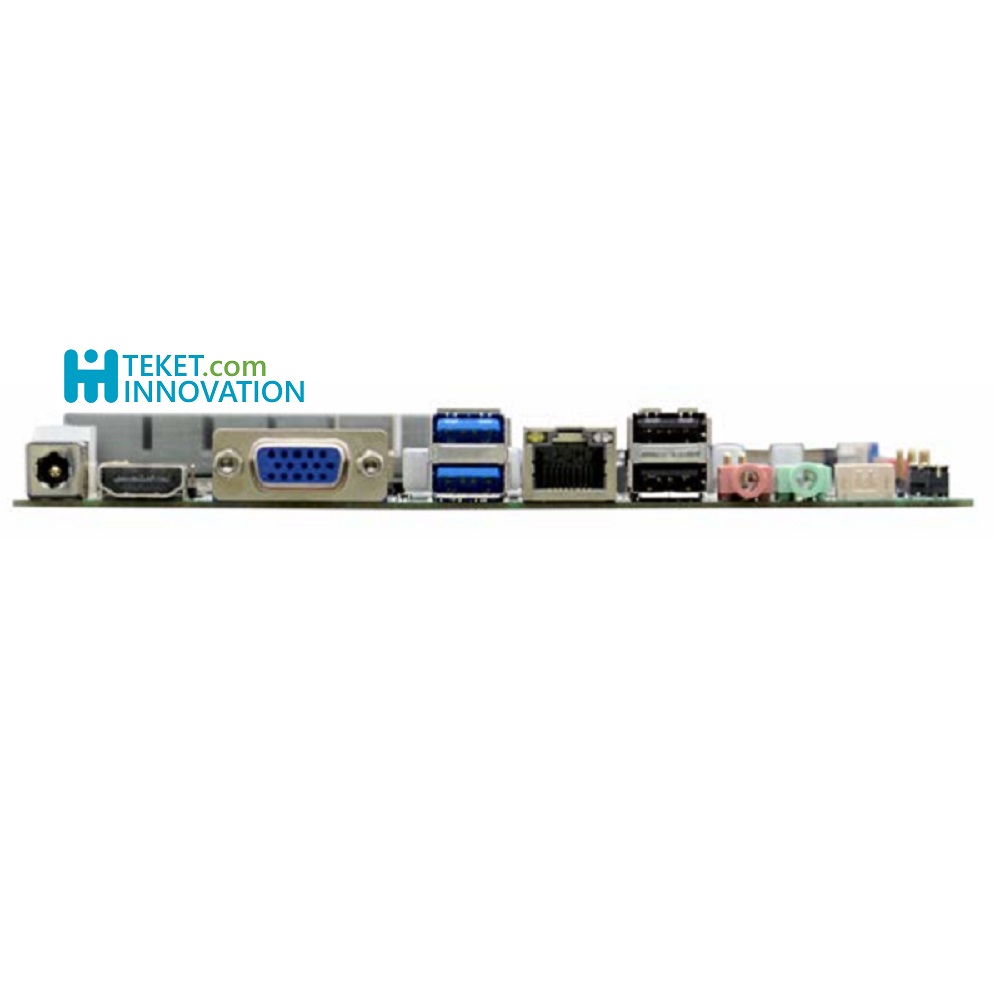

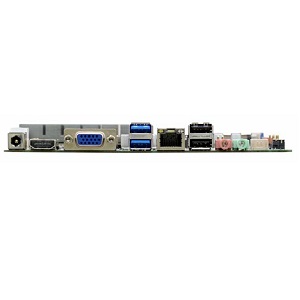

Rear I/O
1* HDMI 1.4
1* VGA (DB15 )
2* USB2.0
2* USB3.0
1* RJ-45 gigabit ethernet
1* Line out(Green）
1* MIC(Red)
1* 12V DC power input port
Extend
1* Mini-PCIE slot, support WIFI/4G module
Internal I/O
1*LVDS 2*15pin, support dual channel 24BIT
1*LVDS backlight power supply port 1*6pin
1* screen brightness adjustment port 1*4pin
1* JHDMI 2*8Pin,the same signal with HDMI
1* JVGA1 1*12pin the same signal with DB15
6* RS232 serial ports(COM1/2 support charged function,),COM2 support RS485/422
or
2* RS232 serial ports(COM1 support charged function,),COM2 support RS485/422
1* LPT print port 2*13pin
6* USB2.0 2*5pin
1* PS/2 KB/MS port 1*6Pin
1* front audio port 2*5pin
1* SIM card socket
1* HDD power supply port 1*4pin
1* front panel buttons and indicator port 2*5pin
2* 2pin ATX power port , support 12V input/output
1* power amplifier 1*4pin
FAN connector
Support fanless cooling ,reserved 1* 4pin CPU smart fan connector,1* 4pin system fan connector
GPIO
Support 4 way inpu/output GPIO
BIOS
AMI 64Mb Flash ROM
Watch dog
Support hardware reset function (L256, 0~255 seconds)
OS
Windows 10/Linux
Power input
DC 12V power input
Working Temp. -10℃～60℃
Storage Tepm. -20℃～70℃
Working Humidiry
5%-95%(relative humidity; non-condensing)
Dimension 170mm x 170mm

Order Information
J4125ML-D12 VER:1.0 J4125 2.0Ghz,1*SODDR4,VGA+HDMI+LVDS,1*M.2,1*MSATA,1*LAN(Intel I225),2*COM(RS485),8*USB,12VDC
J4125ML-D22 VER:1.0 J4125 2.0Ghz,1*SODDR4,VGA+HDMI+LVDS,1*M.2,1*MSATA,2*LAN(Intel I225),2*COM(RS485),6*USB,12VDC
