>>Your Current Position: Intel Motherboard

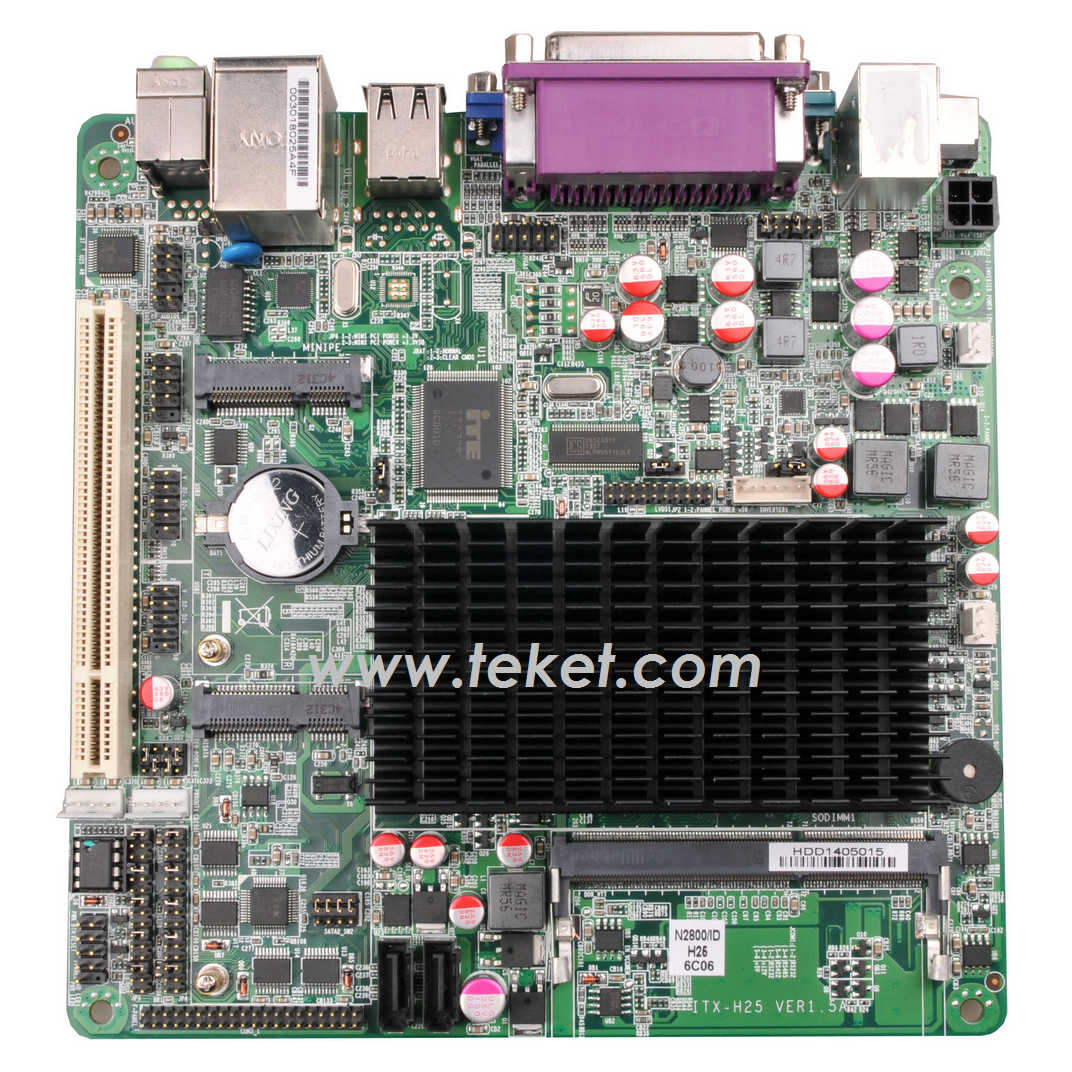

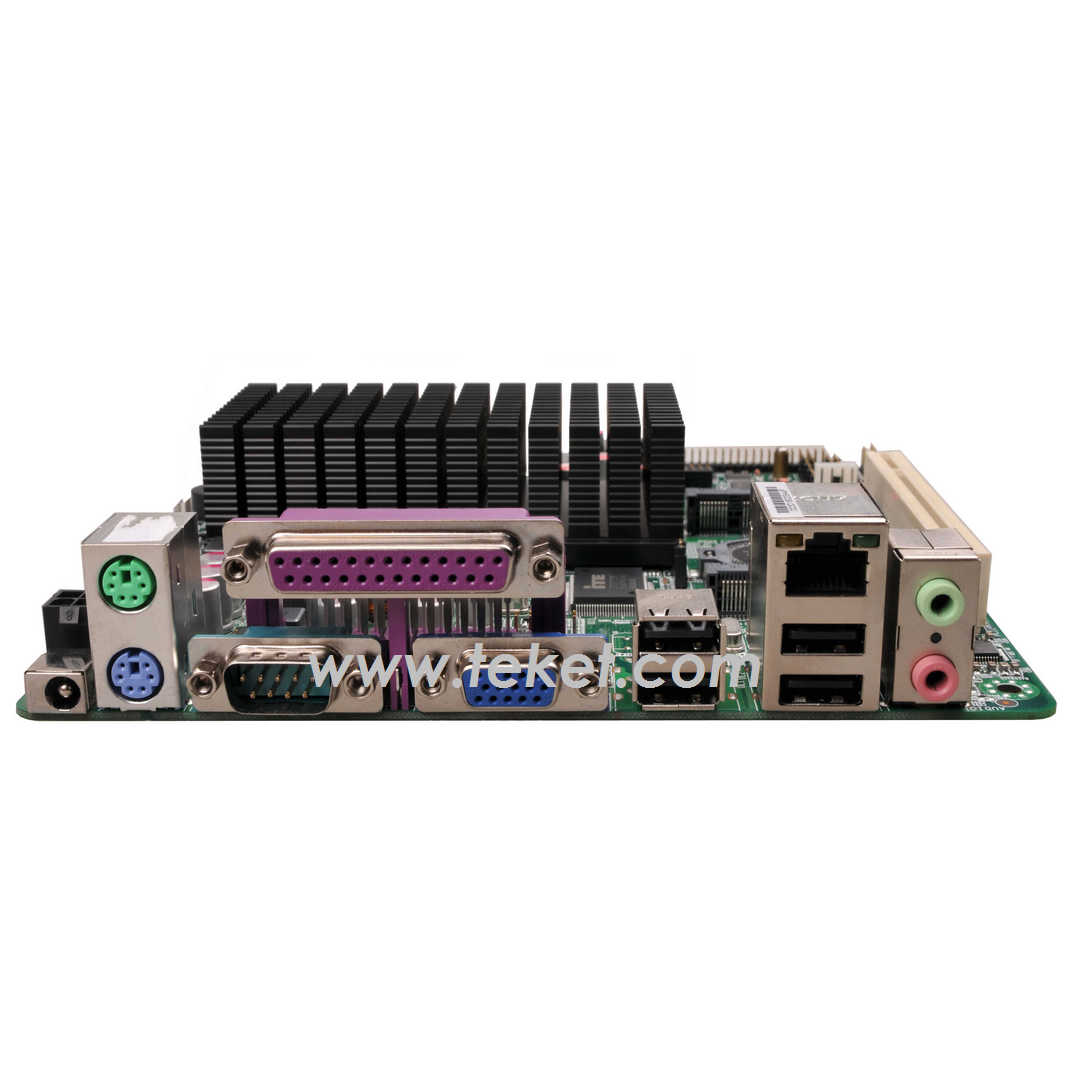

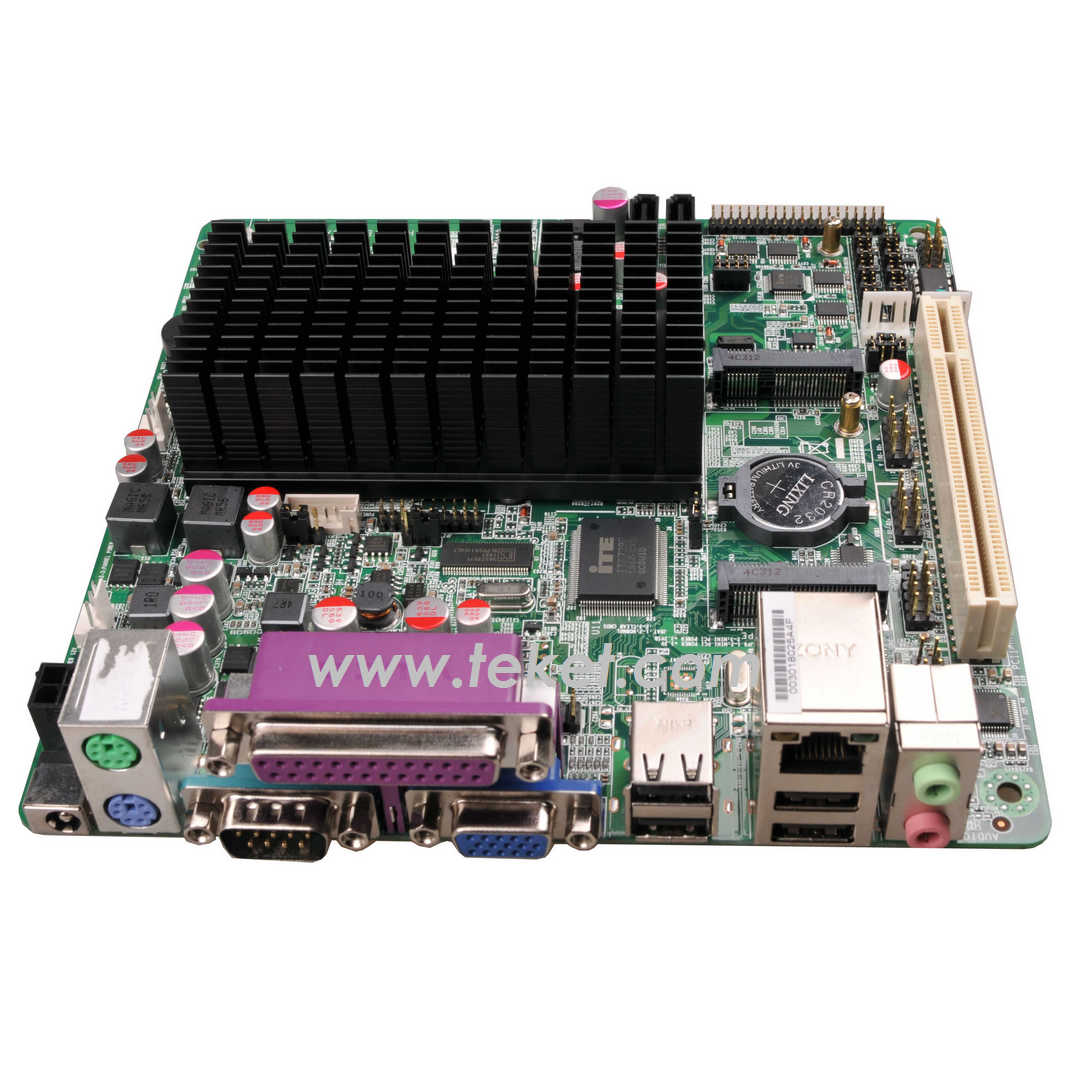

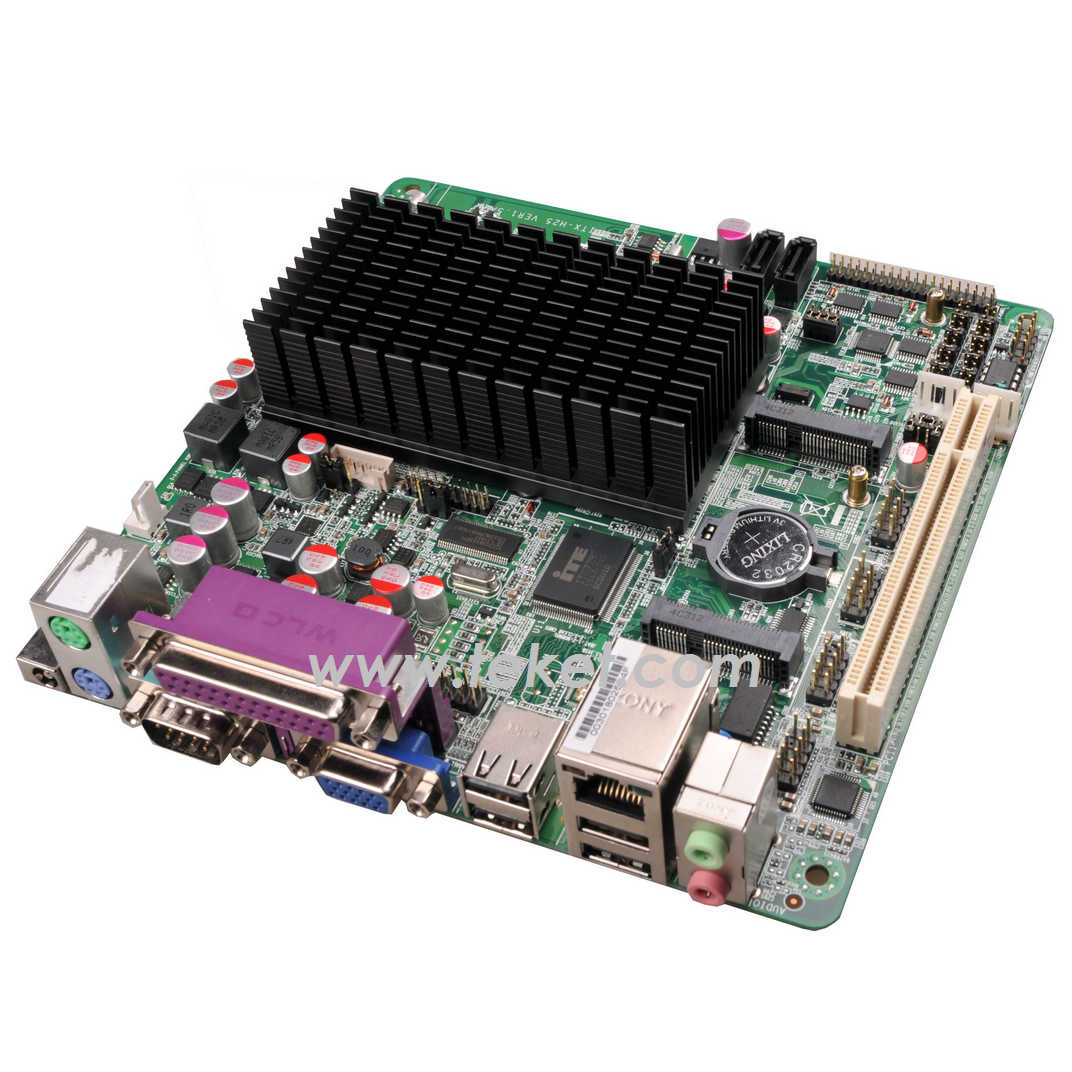

Intel ATOM N2800 1.86Ghz Mini-ITX Motherboard N2800ME ATX Power PCI slot

Intel ATOM N2800 1.86GHZ,NM70,2*MINI PCIe,1*LAN,6*COM,LVDS,HDMI+VGA,ATX power or DC,PS/2,PCI,LPT+VGA+COM,2*MINI PCIE,1*LAN,6*COM,fanless


N2800ME spec:
CPU Intel® CPU on Board Dual-core Intel® Atom™ N2800 processor
Storage Intel® NM10 Express Chipset built-in
1*SO DIMM DDR3, support 1066/1333 up to 4GB
2*MINI-PCIe, support SSD/WIFI/3G, one for msata, other for wifi as default config
6*RS232 serial ports,all onboard header
1*RTL8111E, network wake up

Realtek ALC662 6 channels audio

Display Intel HD Graphics
1*VGA, 1*HDMI, 1*LVDS
Support HDMI1/VGA Synchronous/Asynchronous
Support LVDS/VGA Synchronous/Asynchronous
Support LVDS/HDMI1 Synchronous/Asynchronous
Support HDMI1/HDMI2 Synchronous/Asynchronous
1*MINI PCIe support WIFI/3G
1*MINI PCIe support SSD/WIFI SSD
Realtek ALC662 6CH support MIC Line-out
2*SATAII
1*12VDC or ATX power supply
1*fan or fanless config






Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client;Net top.

Order Information
N2800ME-A16: Intel ATOM N2800 1.86GHZ,NM70,2*MINI PCIe,1*LAN,6*COM,LVDS,HDMI+VGA,ATX power
N2800ME-D16: Intel ATOM N2800 1.86GHZ,NM70,2*MINI PCIe,1*LAN,6*COM,LVDS,HDMI+VGA,12VDC IN

Model Name Definition: A is for atx power supply, D is for DC12V, Digital string 16 is 1*LAN port and 6*COM ports.

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
