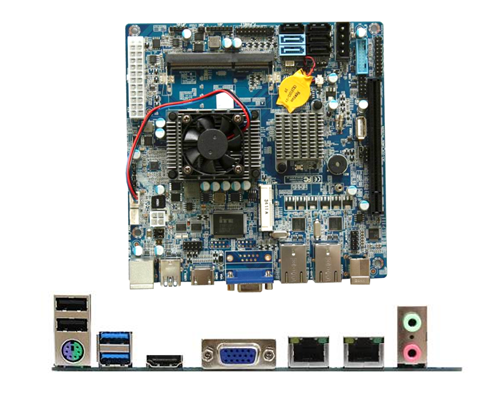

Intel Celeron 1037 1.8Ghz Mini-ITX NAS Motherboard N70E-DR V3

Intel Celeron 1037 1.8GHZ, HM77,HD 2000,6*SATA,2*GLAN,2*USB3.0,2*USB2.0,HDI

Giada N70E-DR V3 Products Motherboard

NAS N70E-DR V3
1),MINI-ITX factor
2),IVB Celeron 1037U dual core 1.8Ghz
3),CPU built-in HD Graphic
4),HM77 chipset, up to 8GB DDR SO-DIMM
5),Onboard Intel 82475 Giga LAN
6),6*SATA(4*SATA2.0,2*SATA3.0) support RAID 0/1/5/10,1x MSATA Socket
7),1*PCIe 16x Slot
8),2*USB3.0
9),HDI+VGA dispay output
10),NAS or HTPC
11),Audio: ALC662 5.1 Channel Codec

Back I/O
1x PS/2 ports
2xUSB2.0 ports
2xUSB3.0 ports
1xHDI ports
1x VGA port
2x LAN ports(RJ45)
1x Audio Jack(2 ports)

Header I/O
1x COM header
1x USB header for 2 USB 3.0 ports
1x USB header for 2 USB 2.0 ports
1x USB2.0 port
1x PCIe_16X slot ( X4 Function )
1xTPM hearder
1x 9 pin Front Audio header
1x Front Panel header
1x SYS FAN+1x CPU FAN connector
1x24pin ATX power
1x4pin ATX power
1x2pin Chassis Intrusion header
1x2pin header for chassis overheat




IDEAL FOR
NAS server for Home and small and medium-sized enterprise
Data storage in demand with high capacity, reliability and efficiency
File sharing, data backup,and media server

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269M
