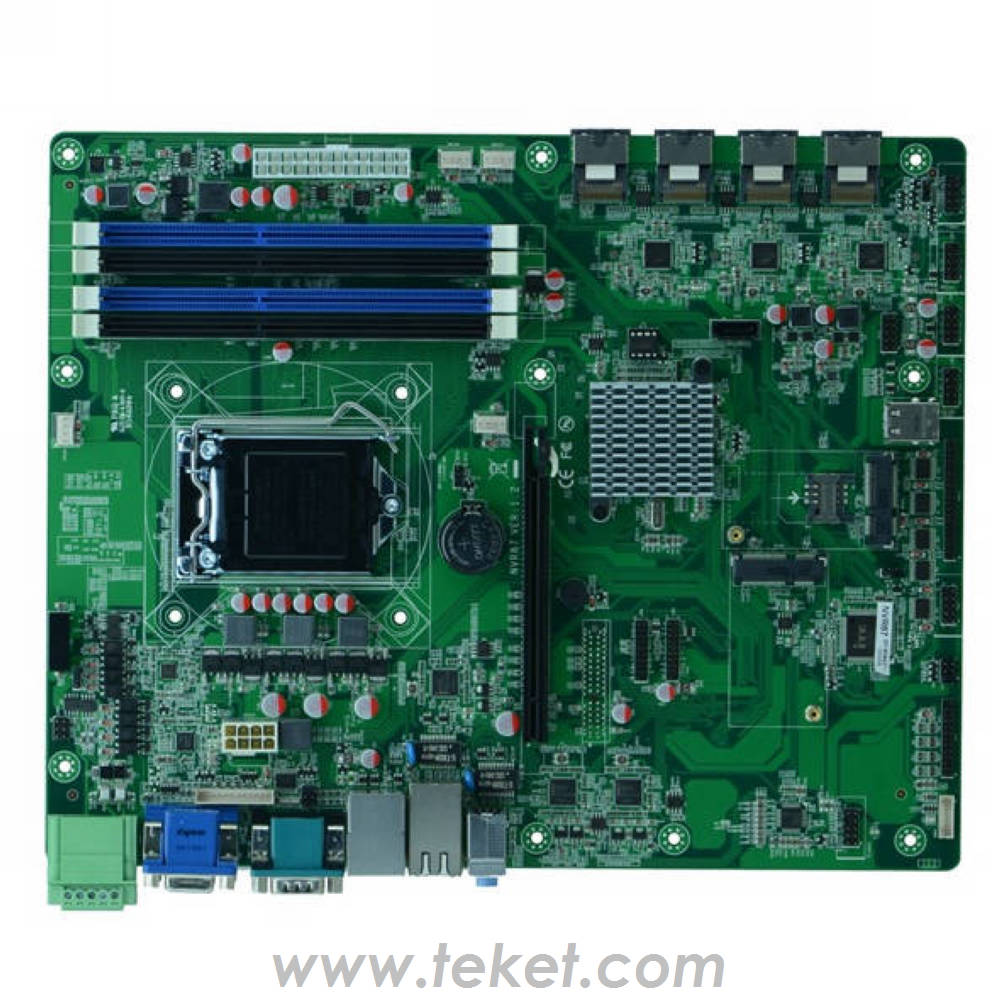

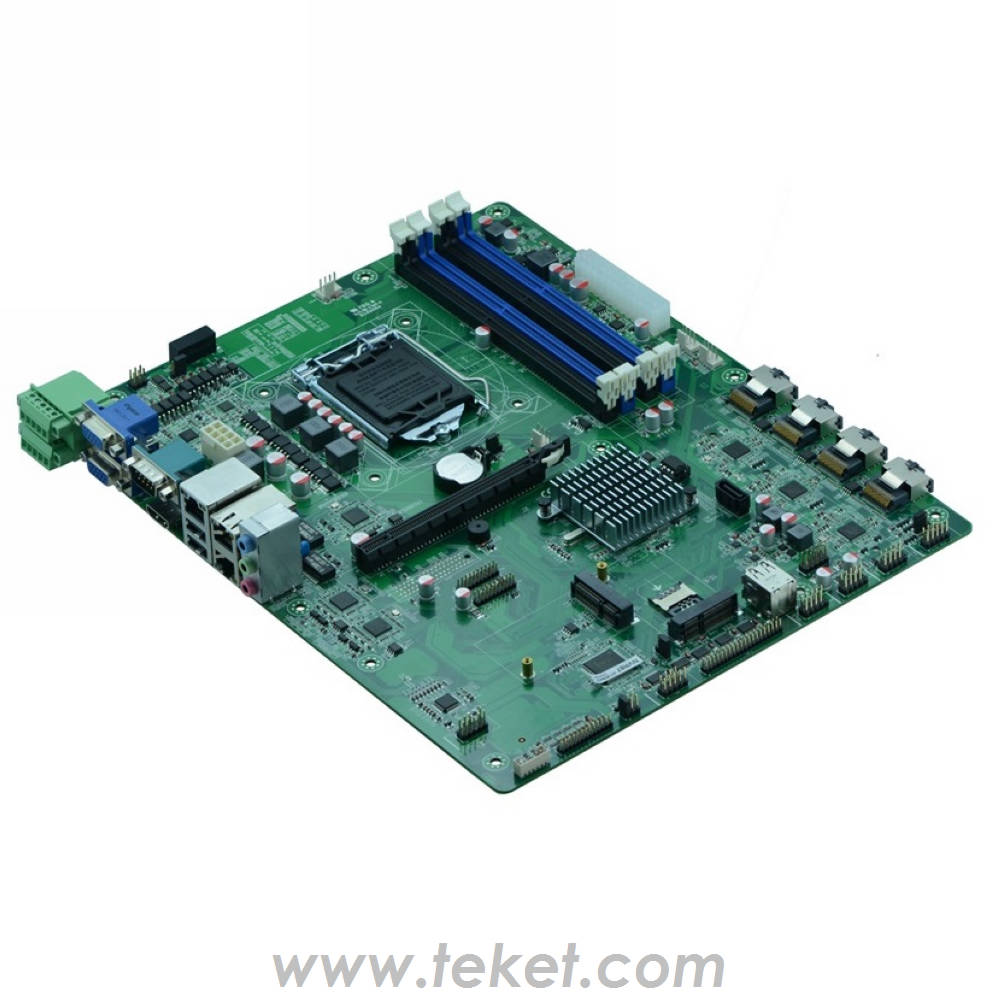

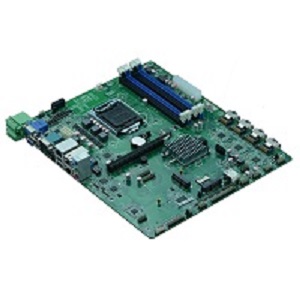

Intel LGA1150 Slot NAS Motherboard NAS-H87S 17*SATA


LGA1150 H87
NAS-H87S VER:1.2
Support LGA1150 Intel® Core™ i3/i5/i7 Processor
Adopt Intel® H87 Express chipset
4*DDR3 Memory slot,suppprt double channel 1333/1600MHz Memroy,Up to 32GB
Integrated Intel® HD,Support 2*VGA/1*HDMI


Model NO.
NAS-H87S VER:1.2
CPU Support LGA1150 Intel® Core™ i3/i5/i7 Processor
Chipset Adopt Intel® H87 Express chipset
Memory 4*DDR3 Memory slot,suppprt double channel 1333/1600MHz Memroy,Up to 32GB
Graphics Integrated Intel® HD,Support 2*VGA/1*HDMI
Support for synchronous / asynchronous display
Expansion slots
1* PCI-Express 3.0 16x slot
1* MINIPCIE ,support WIFI/3G Module
1* PCIE3.0 x4 slot(Optional)
Audio
Integrated ALC662 6 Channel HD audio controller,Support MIC/Line_out/Line_in
storage
Provide 4* MSAS ,altogether support 16* SATA3.0, the transfer rate up to 6Gbps
Note:MSAS1 support RAID 0/1/5/10
1* MSATA slot support SSD,the transfer rate up to6Gbps
1* 7pin SATA3.0, the transfer rate up to6Gbps ,
LAN
3* Intel®82583V Gigabit Ethernet support wake on LAN/PXE

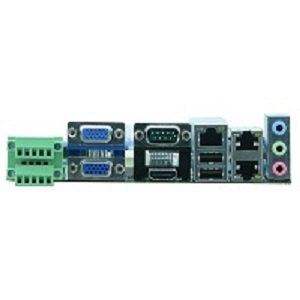

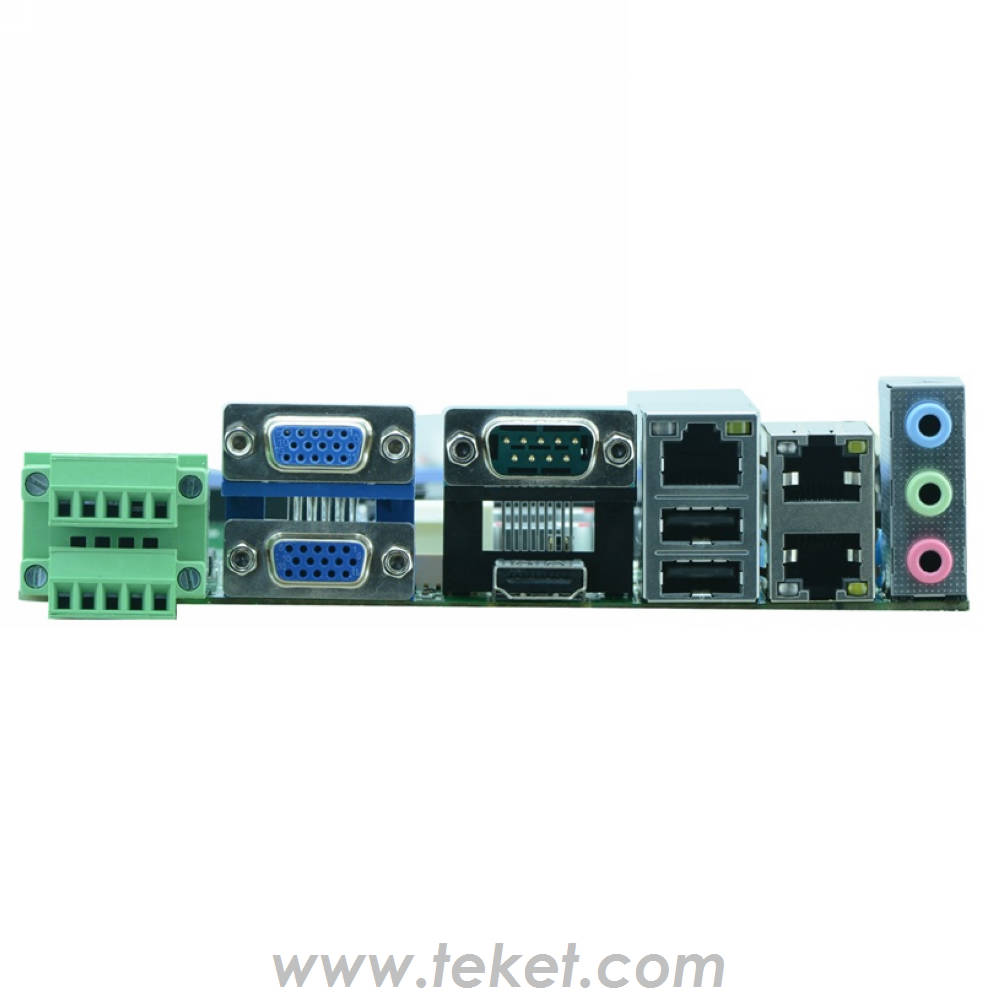

Rear I/O
1* 6 GPIO Interface supports the optocoupler (Located in JGPIO1,please refer to JGPIO1 )
1* Optocoupler common mode and differential mode of anti lightning protection RS485 interface (Located in JGPIO1,please refer to JGPIO1 )
1* DB9 COM
1* HDMI
2* VGA
2* USB2.0
3* RJ-45 Gigabit Ethernet connector
1* Line-out,1*MIC,1*Line-in
Internal I/O
1* JVGA1 1*12pin (the same signal with VGA1)
5* RS232 serial ports ,COM3 supportRS422/RS485
4* USB3.0 2*10pin
6* USB2.0 2*5pin
2* USB2.0
1* PS/2 KB/MS connector 1*6pin
1* front panel audio connector 2*5pin 2*5pin
1* front panel function buttons and indicator connector 2*5pin
1* LPT 2*13pin
1* 24pin ATX Power input
1* 8pin ATX Power input
1* GPIO 2*5pin
FAN interface
2* 4pin CPU intelligent fan interface2*4pin system intelligent fan interface
GPIO
Support 4-way input/output GPIO
BIOS
64Mb Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
ATX power input
Operating Temp.
-10℃~60℃
Storage Temp.
-20℃~70℃
Humidity
5%-95% (relative humidity; non-condensing)
Dimension
305mmX245mm

Ording information
NAS-H87S,H87Chipset,4*DDR3(32G),2*VGA,1*HDMI,3*LAN,12*USB,6*COM,1*PCIEx16,GPIO,LPT,PS/2.AUDIO,24pinATX

IDEAL FOR
NAS server for Home and small and medium-sized enterprise
Data storage in demand with high capacity, reliability and efficiency
File sharing, data backup,and media server
