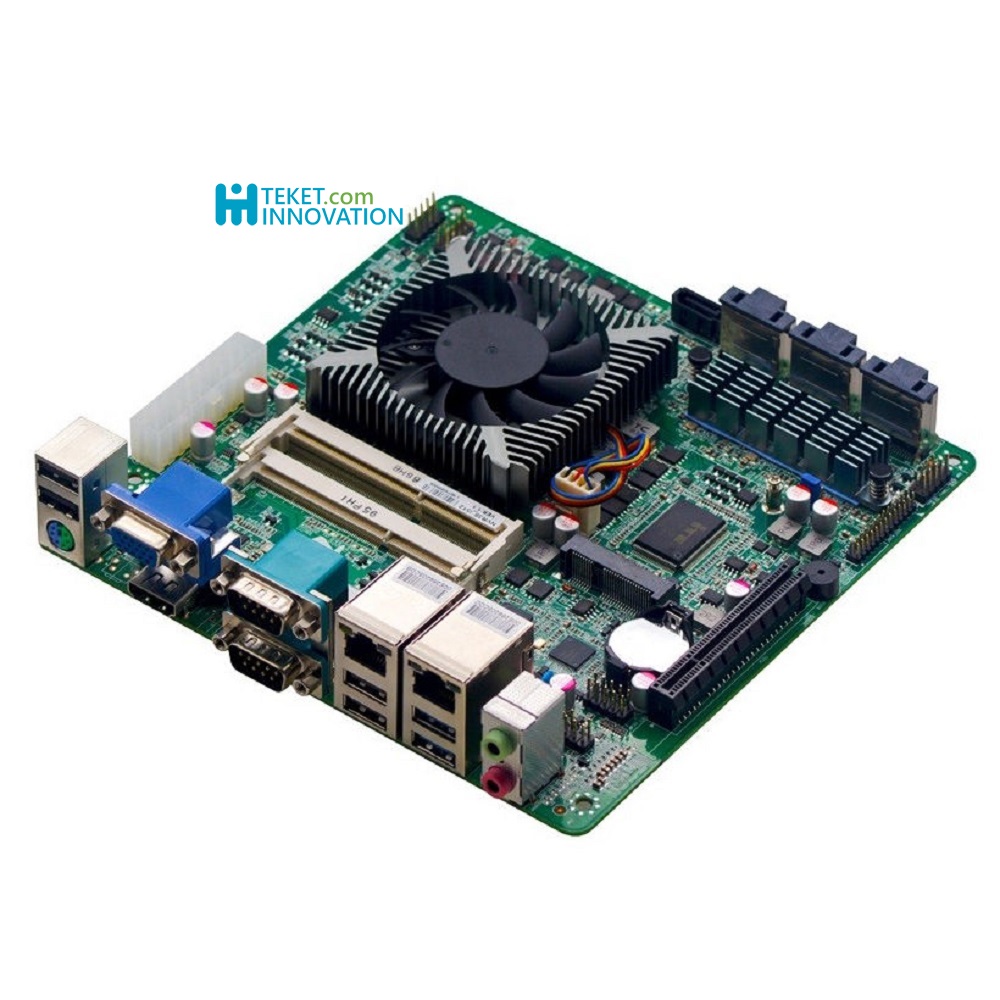

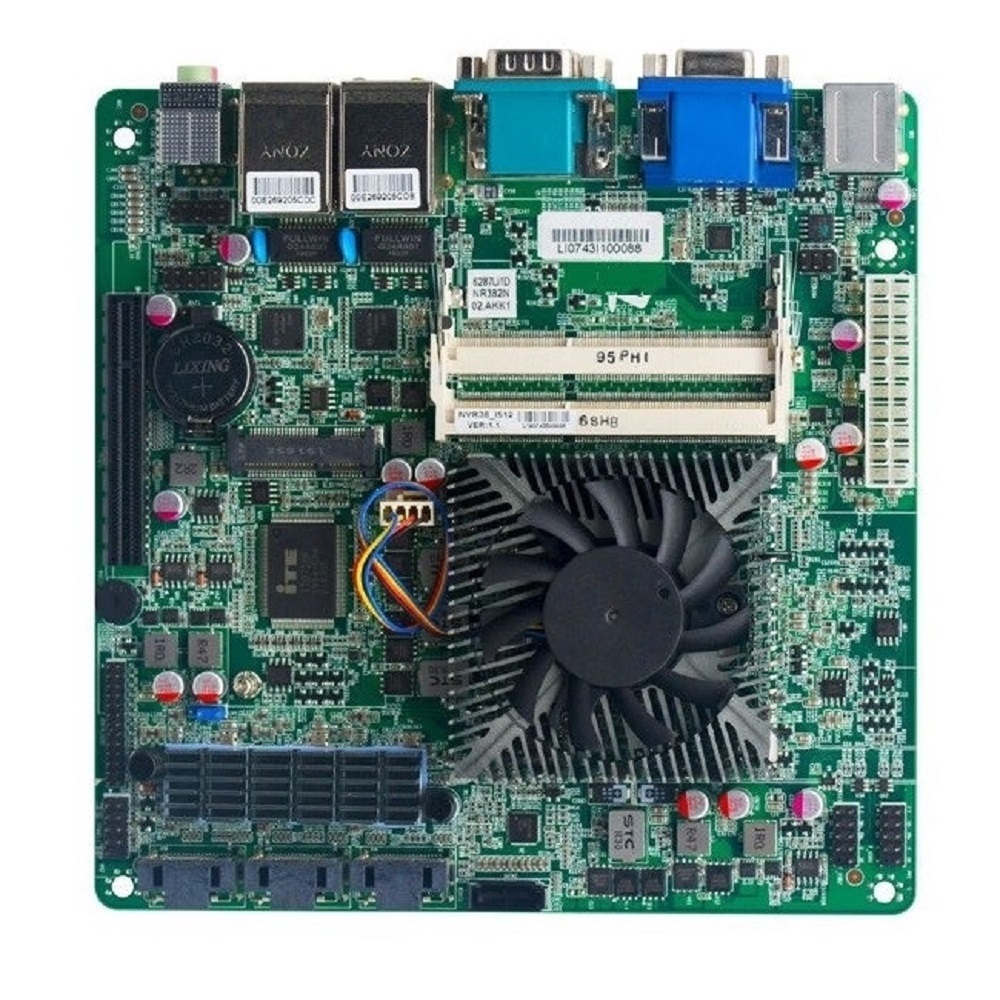

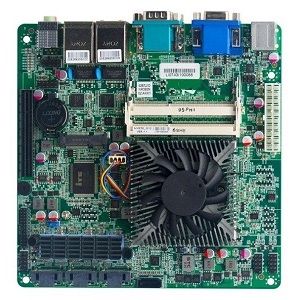

3*MAS(12*SATA) MAS 3855U i5-6287U Mini-ITX Motherboard NAS-I538NVR with 12VDC

NAS-I538NVR VER:1.1
*Integrated Intel®Core I5-6287Udual core processor,TDP 28W
*2*DDR3L SODIMM memory slot, support 1600MHz memory,up to 32GB
*Integrated Intel® Iris TM Graphics 550,support DirectX 12 OpenGL 4.5,support 4K
*1* VGA,1*HDMI1.4
*2* Intel I211AT Gigabit LAN, support Wake-on-LAN, PXE function.
*1* PCIE x8 slot,13* SATA HDD
*8* USB2.0,2* USB3.0



model
NNAS-I538NVR VER:1.1
processor
Integrated Intel®Core I5-6287Udual core processor,TDP 28W
Compatible Intel® Skylake-U/Kabylake-U Celeron/Pentium/I3/I5/I7 low power process
chipset SOC
memory 2*DDR3L SODIMM memory slot, support 1600MHz memory,up to 32GB
display Integrated Intel® Iris TM Graphics 550,support DirectX 12 OpenGL 4.5,support 4K
1* VGA slot,the max resolution:1920X1200@60Hz
1 *HDMI1.4 slot,the max resolution:4096X2304@24Hz
network
2* Intel WGI211AT Gigabit Ethernet,,support wakeup/PXE
Storage
1* 7pin SATA3.0 slot,transmission speed is up to 6Gbps
3* MSASHard disk interface, a total of 12 SATA3.0 hard disks, transmission rate up to 6Gbps
1* MSATA slot,support Intel protocol SSD, transmission speed is up to 6Gbps
Audio
Integrated ALC662 6 -channel high-fidelity audio controller, support MIC,Line_out
Expansion slot
1* PCIEx8 slot,support PCIE X4 speed

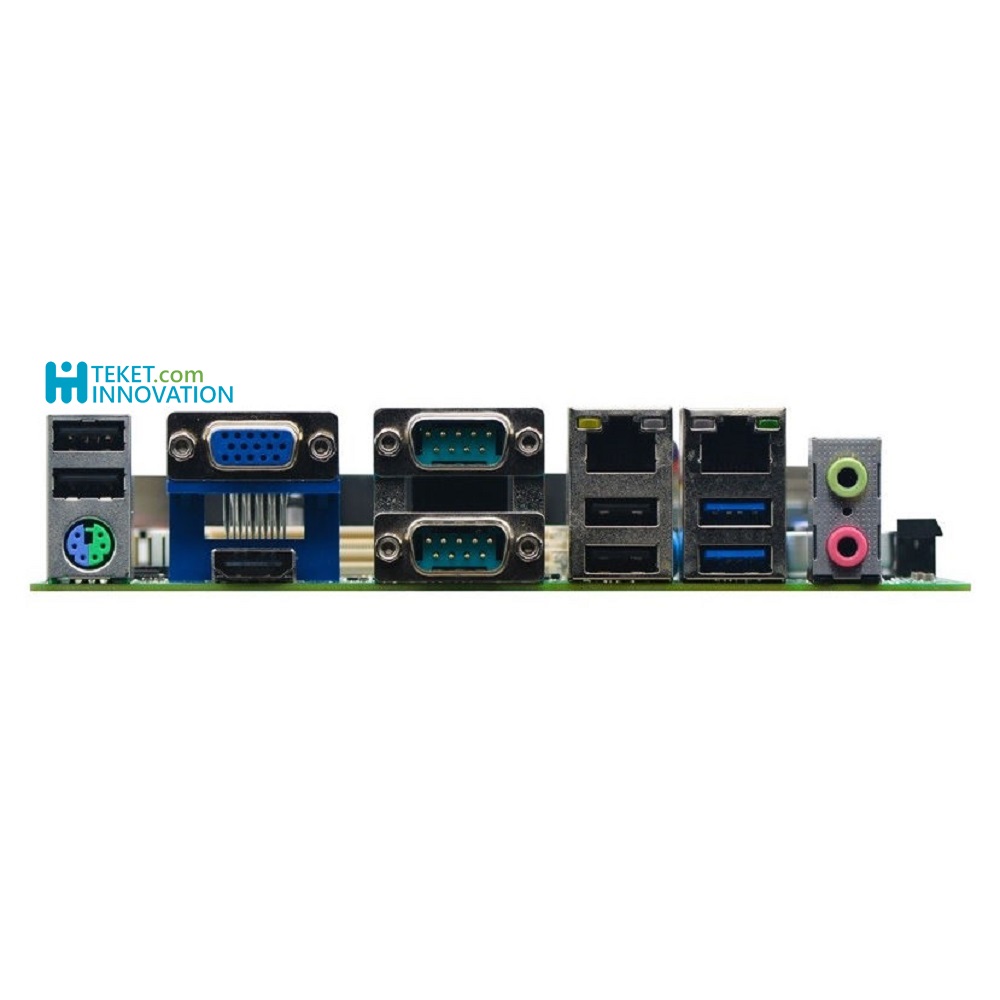

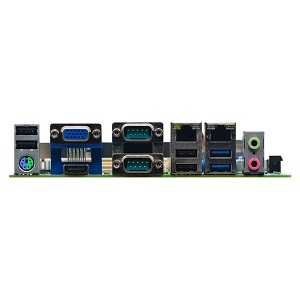

Rear I/O
1* HDMI
1*VGA
2* USB3.0
4* USB2.0
2* RJ45 Lan
1* Line-out(green),1*MIC(red),
1* PS/2 Keyboard and mouse interface
2* DB9 RS232 serial ports
Internal I/O
4* USB2.0, 2*5pin,
1* Hard Disk Indicator Interface 2*13pin
1* front audio interface 2*5pin
1* front panel switch button and indicator interface 2*5pin
1* 20pin ATX power supply interface
Fan
1*4pin CPU Fan interface
GPIO
Support 4-way input/output GPIO function
BIOS
64MB Flash ROM
Watchdog
Support hardware reset function (256,0~255 seconds)
OS
Windows 7 , Windows 8 , Windows 10 , Linux
Power
Adopt 20pin ATX power supply
Operating Temp
-10℃~60℃
Storage temp
-20℃~70℃
humidity
5%-95%(relative humidity; non-condensing)
Dimension
170mm X170mm


Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client;Net top.

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
