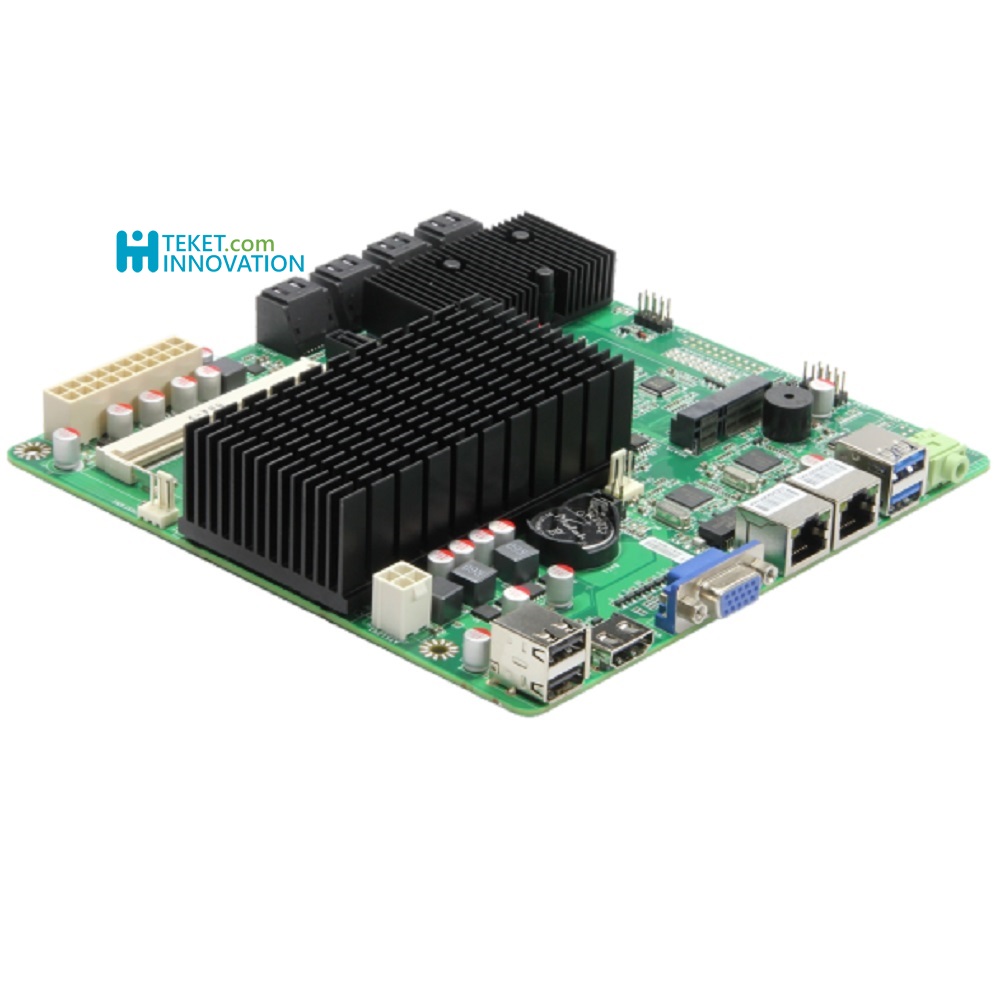

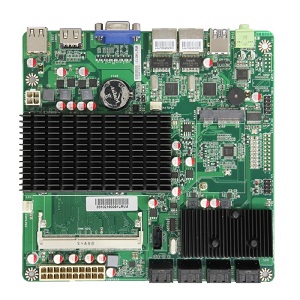

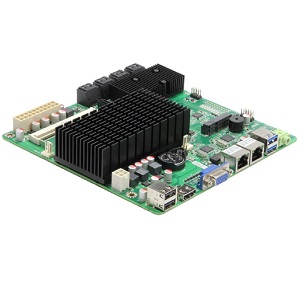

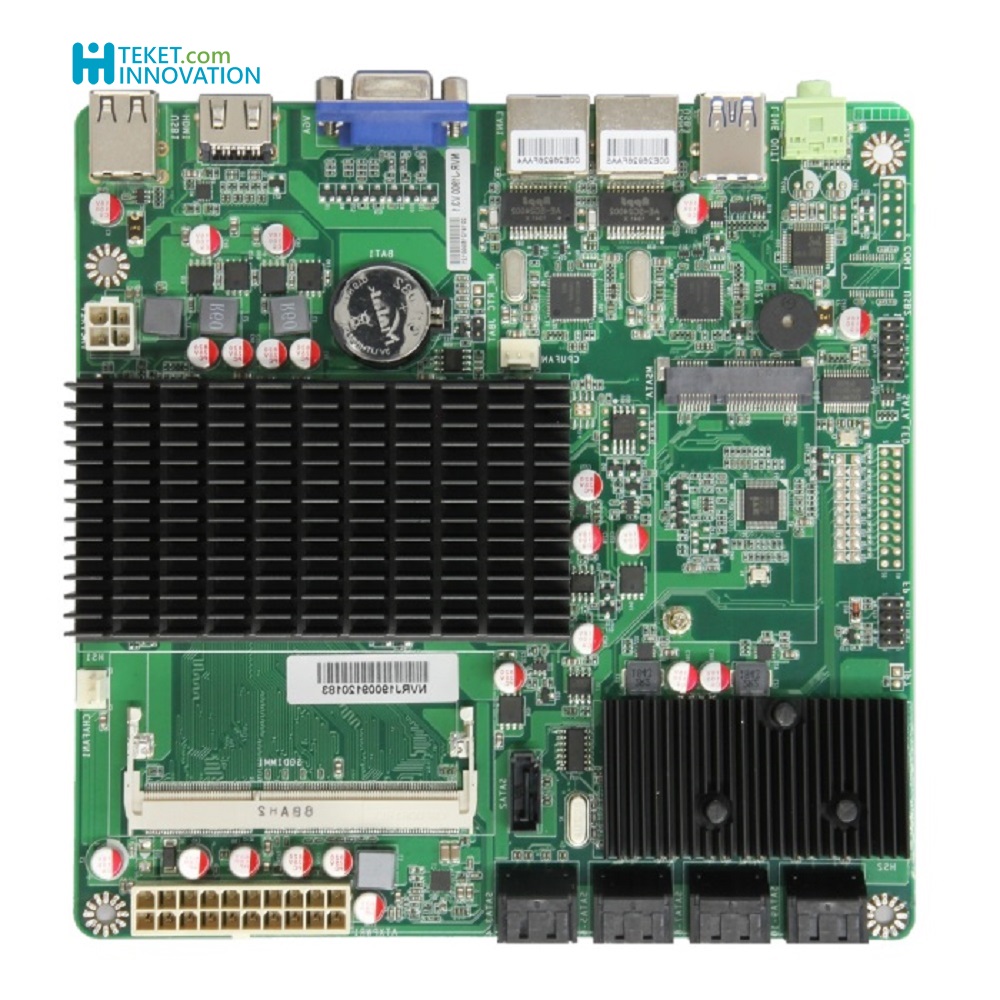

Mode: NAS-J1900H

Features
Intel Celeron Processor J1900 2M Cache, up to 2.42 GHz
Product Collection Intel Celeron Processor J Series
Code Name Products formerly Bay Trail
Vertical Segment Desktop
Processor Number J1900
Status Launched
Launch Date Q4'13
Lithography 22 nm
Use Conditions
Embedded Broad Market Commercial Temp, PC/Client/Tablet
Total Cores 4
Total Threads 4
Burst Frequency 2.42 GHz
Processor Base Frequency 2.00 GHz
Cache 2 MB L2 Cache
TDP 10 W
Max Memory Size (dependent on memory type) 8 GB
Memory Types DDR3L 1333
Processor Graphics
Intel HD Graphics for Intel Atom Processor Z3700 Series

Mode: NAS-J1900H
Processor/Chipset: Intel by trail J1900 J1800 N2940 N2840
Memory: 1*DDR3 1600Mhz SODIMM, up to 8GB
Network: 2*Intel i211AT 10M/100M1000M adaptive network card, supporting network wake-up and diskless startup
Gracphics: 1*HDMI,1*VGA,synchronous or asynchronous dual display output
Storage:
1*MSATA
9*SATA3.0
Extension interface
1*MINI PCIe full/half length

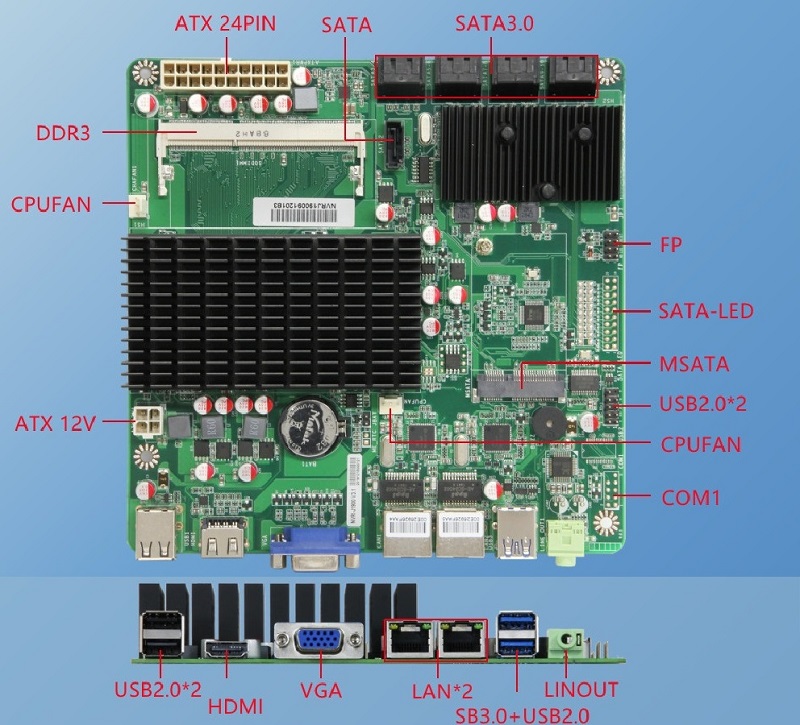

I/O Interface:

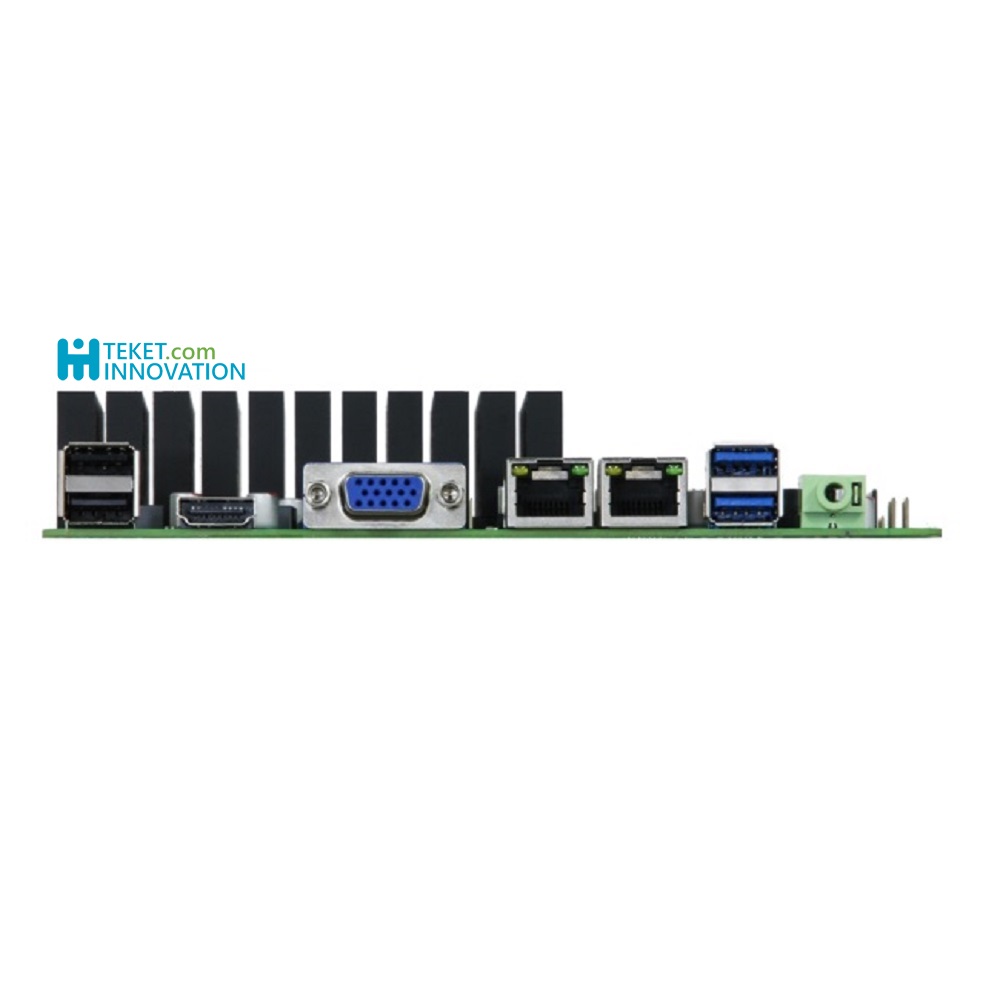

1*HDMI,1*VGA,2*USB,2*LAN
Bulit-in Interface
1*AUDIO
1*COM(RS232)
1*MSATA
2*USB
Watchdog: 0-255, system reset
Power: ATX 20+4pin powered
Working environment
Working temperature, -20-60 ℃ - 20-60 ℃
Storage temperature, -20-60 ℃ - 20-60 ℃
Storage humidity, RH, 0-90%RH,relative humidity, no condensation
Working humidity, RH, 0-90%RH,relative humidity, no condensation

PCB specification
Size, MINI-ITX(170*170mm)

Order Information
NAS-J1900H J1900 SODDR3 VGA HDI 2*LAN(Intel i211AT) HDMI VGA MSATA 9*7pin SATA 24+8pin ATX Power
NAS-N2940H N2940 SODDR3 VGA HDI 2*LAN(Intel i211AT) HDMI VGA MSATA 9*7pin SATA 24+8pin ATX Power
