Model: NAS-J1900W,NAS-N2940W




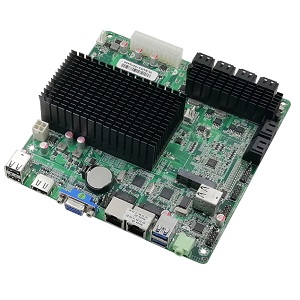

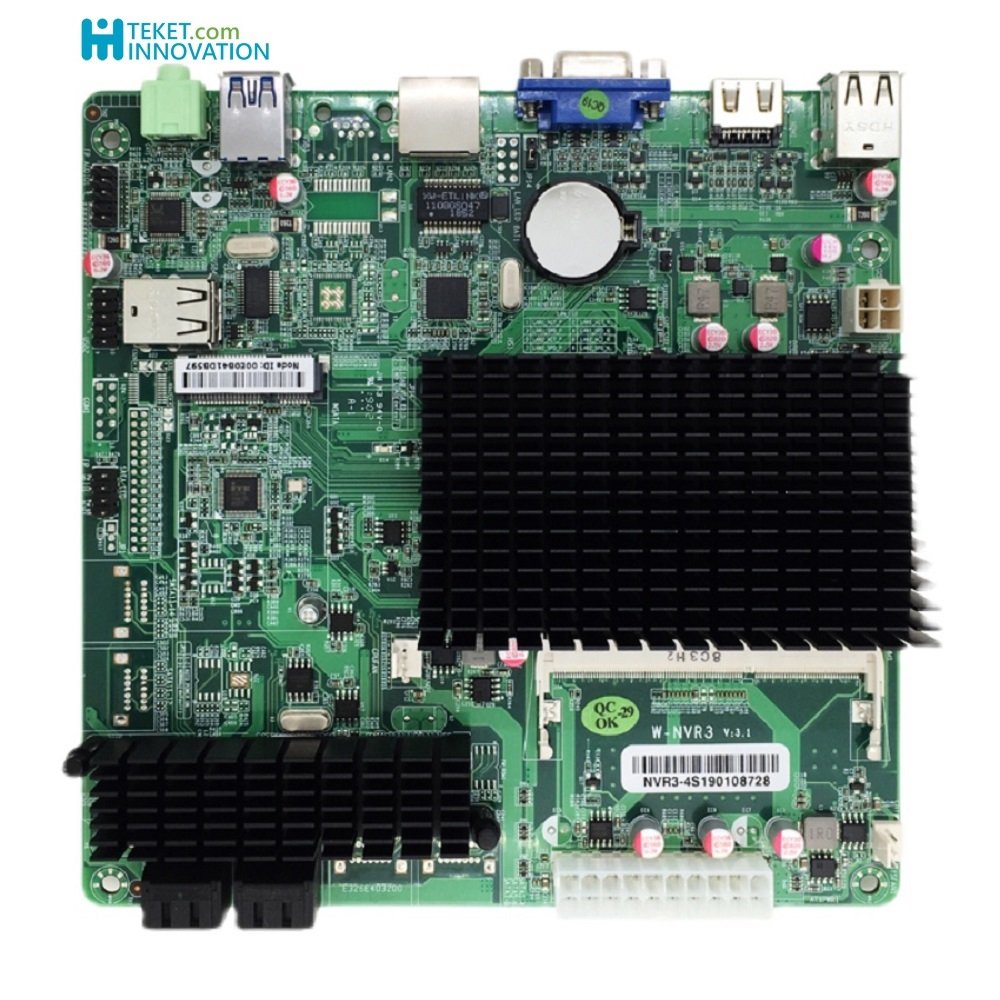

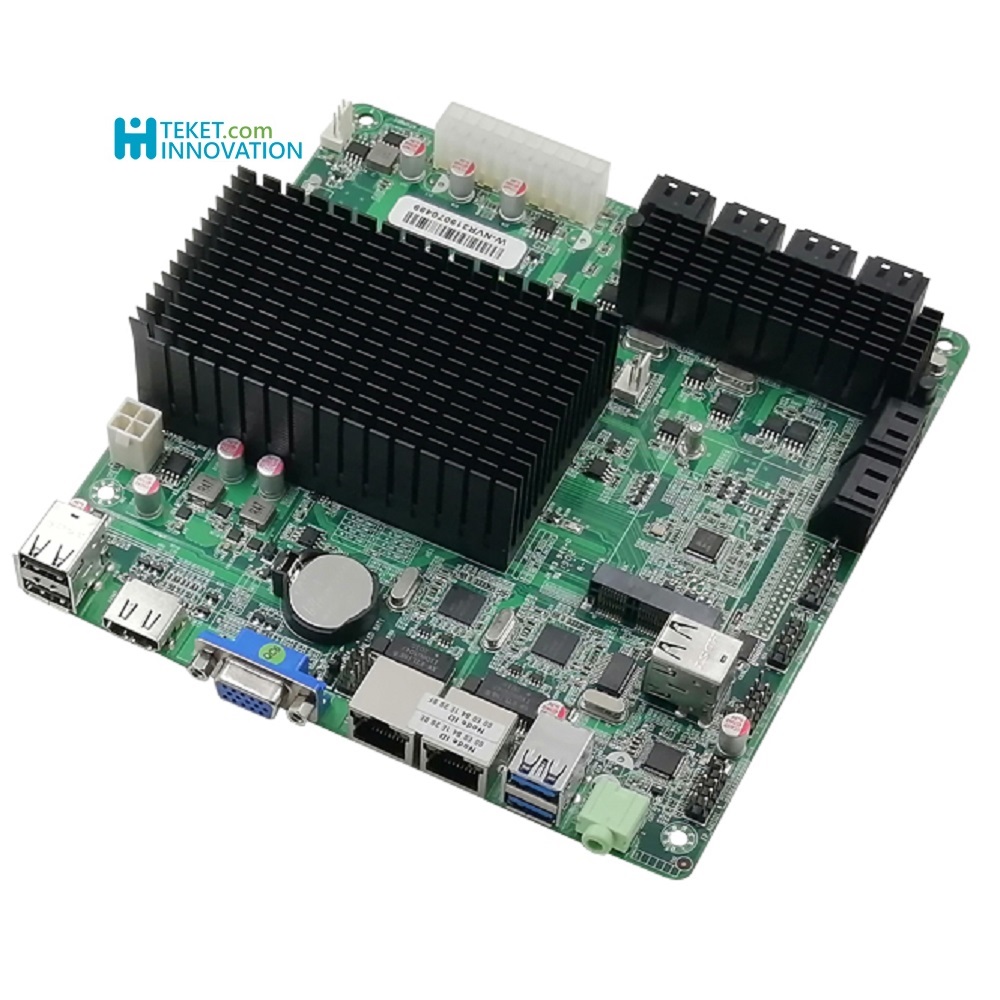

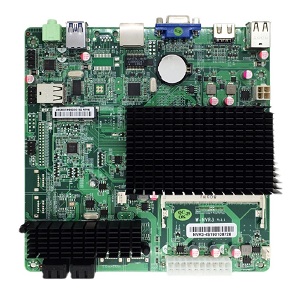

Intel Core Celeron Bay Trail J1900 NAS Mini-ITX motherboard multi SATA 12*SATA Raid network storage

Intel Celeron Processor J1900 (2M Cache, up to 2.42 GHz) Q4'13
Launch Date Q4'13
Processor Number J1900
# of Cores 4
# of Threads 4
Clock Speed 2 GHz
Burst Frequency 2.41 GHz
L2 Cache 2 MB
Instruction Set 64-bit
Embedded Options Available Yes
Lithography 22 nm
Max TDP 10 W

Features
12*7Pin SATA3. 0, widely used in security monitoring data storage, hard disk K machine, NAS network storage
Intel Celeron processor Bay Trail J1900 2.0-2.4GHz, 2MB cache TDP10W
1*DDR3L-1333Mhz SODIMM, up to 8GB

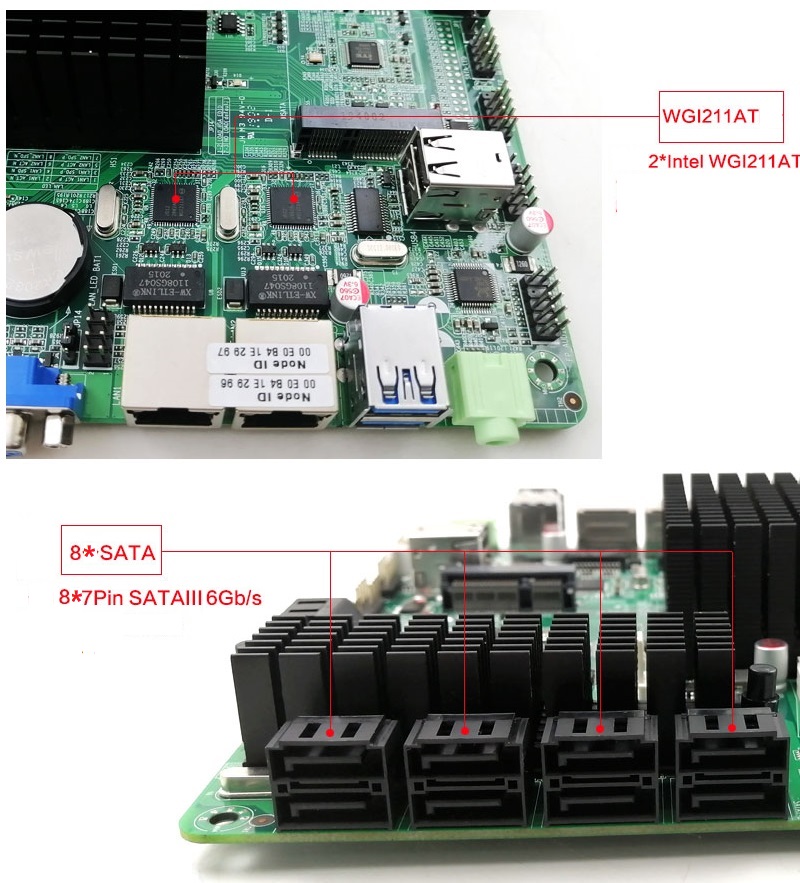

2*Intel WGLI211AT 1000M adaptive network card, which supports network wake-up and diskless startup
1*MSATA(one of MSATA and SATA1) maximum transmission rate 6Gb/s
TPM GPIO provide 8-way GPIO control, 1*RS232

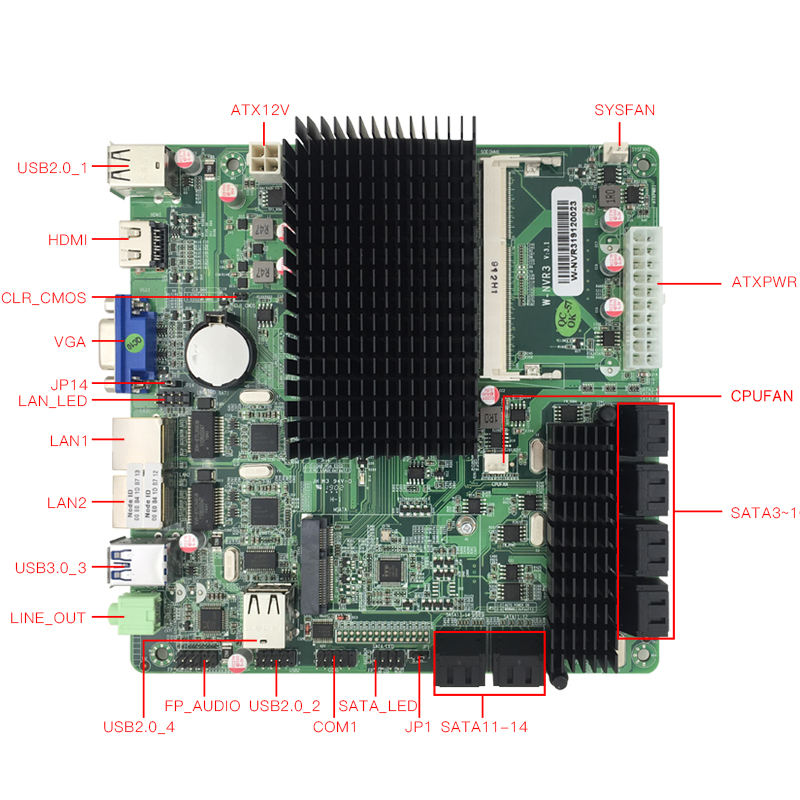

Specifications

CPU
Default onboard Intel Celeron Processor Bay TrailJ1900 2.0-2.4GHz, 2MB cache TDP10W
Customized support
Bay Trail J1800 N2940 N2840
Chipset: Intel Celeron J1900
BIOS, AMI 128Mb BIOS,ACPI supported, Supports Power on startup

Memory
Technical architecture, Supports single channel SO-DDR3L supports up to 1333Mhz SO-DIMM
Capacity, Support up to 8GB
Memory socket, 1*DDR3L SODIMM

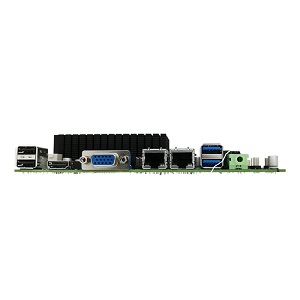

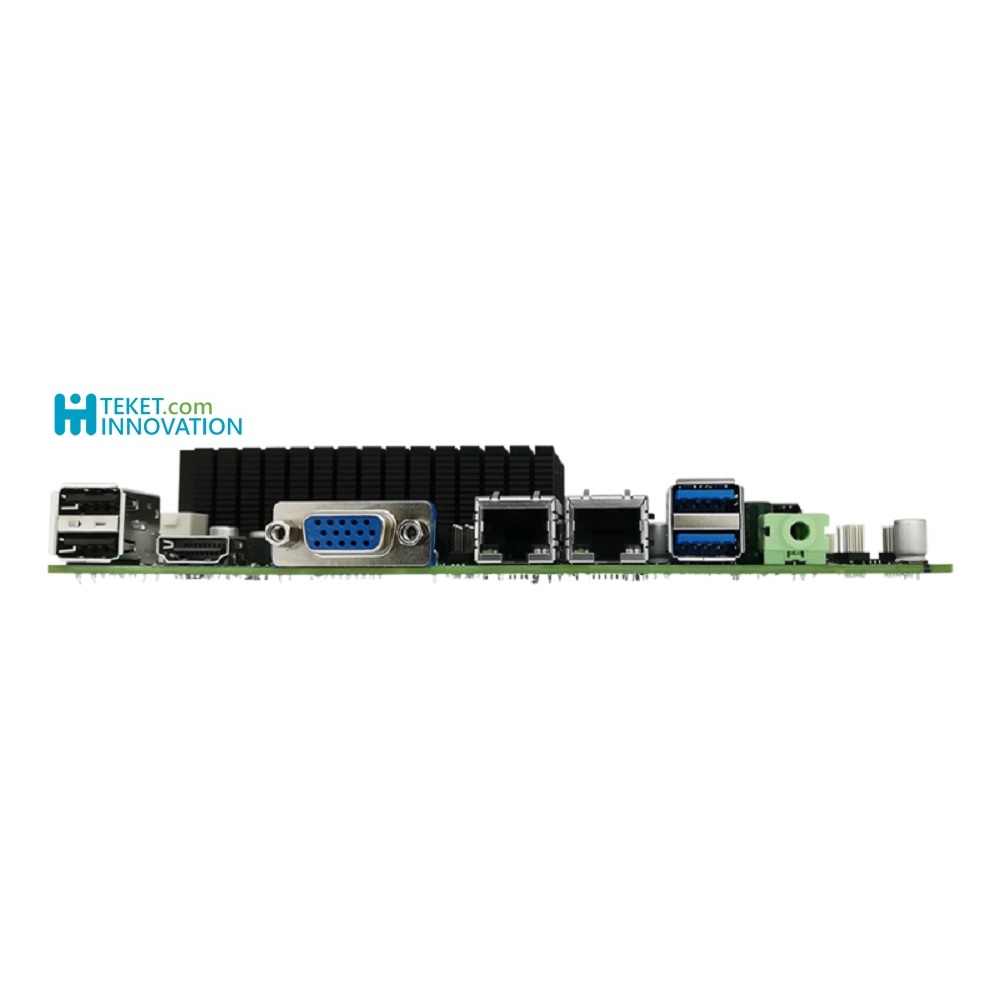

Video
Graphic controller Supports Intel HD Gracphics
VGA
1*VGA resolution up to 1920*1080@60Hz ,
1*12pin J_VGA extended row pin
HDMI 1.4a
1*HDMI interface, maximum resolution 1920x1080@60Hz
Multi display support
Support synchronous or asynchronous dual display output

Storage
SATA
12*7Pin SATA3. 0 interface, maximum transmission rate 6Gb/s
Msata
1*MSATA interface, maximum transmission rate 3Gb/s

Network RJ45
2*Intel WGL211AT at 10M/100M1000M adaptive network card, supporting network wake-up and diskless startup

Audio
Line Out
ALC662 chip supports front f audio line out interface

USB
USB3.0 External 1 * USB3.0
USB2.0 External 3 * USB2.0, built-in 2*USB2.0 + 1*Dongle

RS232 serial port
Built in 1 * RS232 (COM,no 9pin power)

Extension interface
GPIO, Support 8-way GPIO

Hardware encryption
TPM, TPM2. 0 hardware encryption (optional)

Hardware monitoring
Watchdog, Support 4 ~ 255 seconds watchdog timer
Voltage, Support + 12V, 3.3V, 5V, CPU Vcore, DDR power voltage detection
Temperature, Support CPU temperature detection
Fan, Support CPU fan speed detection and intelligent fan control

Power
PWRSW, PWR_BTN key (power on key)
ATX, 24pin + 8pin ATX power supply

Working environment
Working temperature, -20-60 ℃ - 20-60 ℃
Storage temperature, -20-60 ℃ - 20-60 ℃
Storage humidity, RH, 0-90%RH,relative humidity, no condensation
Working humidity, RH, 0-90%RH,relative humidity, no condensation

PCB specification
Size, MINI-ITX(170*170mm)

Order Information
NAS-J1900W J1900 SODDR3 VGA HDI 2*LAN(Intel i211AT) HDMI VGA MSATA 12*7pin SATA 20+4pin ATX Power
NAS-N2940H N2940 SODDR3 VGA HDI 2*LAN(Intel i211AT) HDMI VGA MSATA 12*7pin SATA 20+4pin ATX Power
