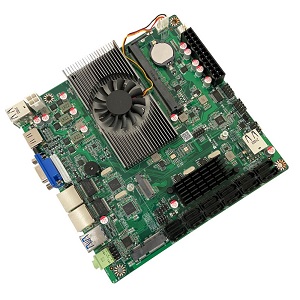

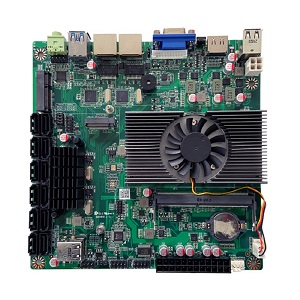

Mode: NAS-N5095
NAS-N5095W N5095 SODDR4 VGA HDI 2*LAN(WGI211RTL8111F) MSATA 12*7pin SATA M.2 SSD 8*USB COM GPIO 24+8pin ATX Power

Features
12*7Pin SATA3. 0, widely used in security monitoring data storage, hard disk K machine, NAS network storage
Intel Celeron processor Jasper Lake N5095 2.0-2.9GHz, 4MB cache TDP15W
1*DDR4-2933Mhz SODIMM, up to 16GB
2*Intel WGLI211AT 1000M adaptive network card, which supports network wake-up and diskless startup
1*MSATA(one of MSATA and SATA1) maximum transmission rate 6Gb/s
1*M2 SSD NVME/PCIE3.0 2X
TPM GPIO provide 8-way GPIO control, 1*RS232
Specifications

CPU
Default onboard Intel Celeron Processor Jasper Lake N5095 4M Cache
up to 2.0-2.0Ghz TDP 15W
Customized support
Jasper Lake N6005,N6000,N4505,N4500,N5105,N5100
Chipset: Intel Celeron N5095
BIOS, AMI 128Mb BIOS,ACPI supported, Supports Power on startup

Memory
Technical architecture, Supports single channel SO-DDR4 supports up to 2933Mhz SO-DIMM
Capacity, Support up to 16GB
Memory socket, 1*DDR4 SODIMM

Video
Graphic controller Supports Intel HD Gracphics
VGA
1*VGA resolution up to 1920*1080@60Hz , 1*12pin J_VGA extended row pin
HDMI
1*HDMI interface, maximum resolution 4096x2160@60Hz
Multi display support
Support synchronous or asynchronous dual display output

Storage
Msata
1*MSATA interface, maximum transmission rate 6Gb/s (one of MSATA and SATA1)
SATA
12*7Pin SATA3. 0 interface, maximum transmission rate 6Gb/s (one of MSATA and SATA1)
M2 SSD
1*PCIE3. 0 2X M.2 interface, NVME protocol high-speed storage, optional equipment specifications: 2280, 2260

Network RJ45
2*Intel WGL211AT at 10M/100M1000M adaptive network card, supporting network wake-up and diskless startup

Audio
Line Out
ALC662 chip supports front f audio line out interface

USB
USB3.0 External 2 * USB3.0
USB2.0 External 2 * USB2.0, built-in 4*USB2.0

RS232 serial port
Built in 1 * RS232

Extension interface
GPIO, Support 8-way GPIO

Hardware encryption
TPM, TPM2. 0 hardware encryption (optional)

Hardware monitoring
Watchdog, Support 4 ~ 255 seconds watchdog timer
Voltage, Support + 12V, 3.3V, 5V, CPU Vcore, DDR power voltage detection
Temperature, Support CPU temperature detection
Fan, Support CPU fan speed detection and intelligent fan control

Power
PWRSW, PWR_BTN key (power on key)
ATX, 24pin + 8pin ATX power supply

Working environment
Working temperature, -20-60 ℃ - 20-60 ℃
Storage temperature, -20-60 ℃ - 20-60 ℃
Storage humidity, RH, 0-90%RH,relative humidity, no condensation
Working humidity, RH, 0-90%RH,relative humidity, no condensation

PCB specification
Plate size, MINI-ITX(170*170mm)

Order Information
NAS-N5095W N5095 SODDR4 VGA HDI 2*LAN(WGI211RTL8111F) MSATA 12*7pin SATA M.2 SSD 8*USB COM GPIO 24+8pin ATX Power
