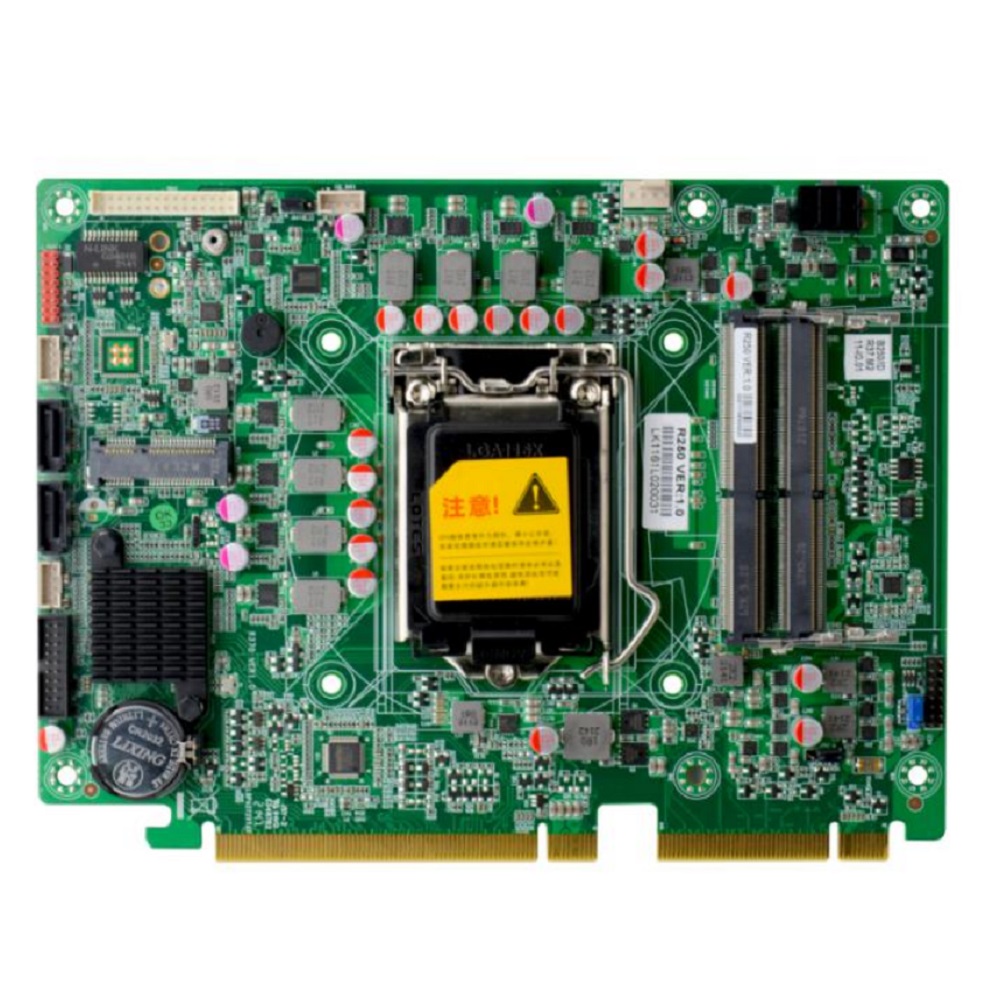

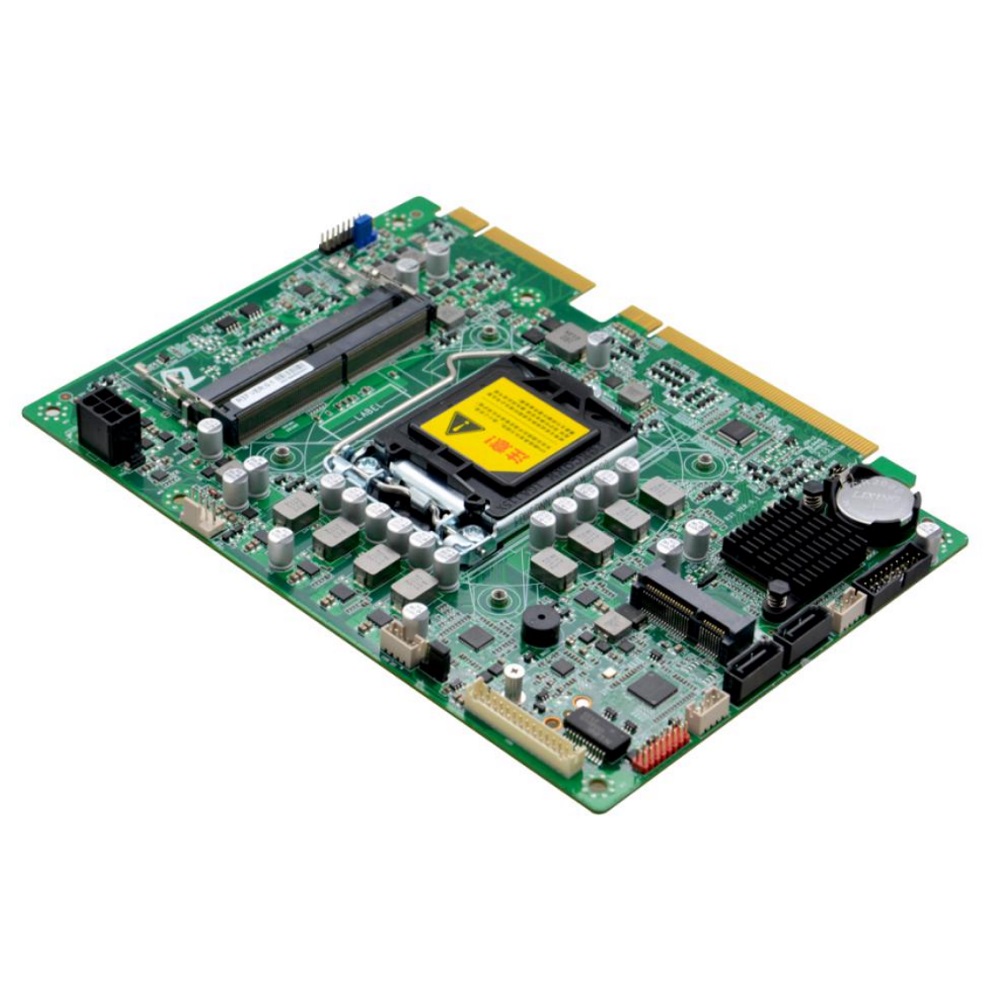

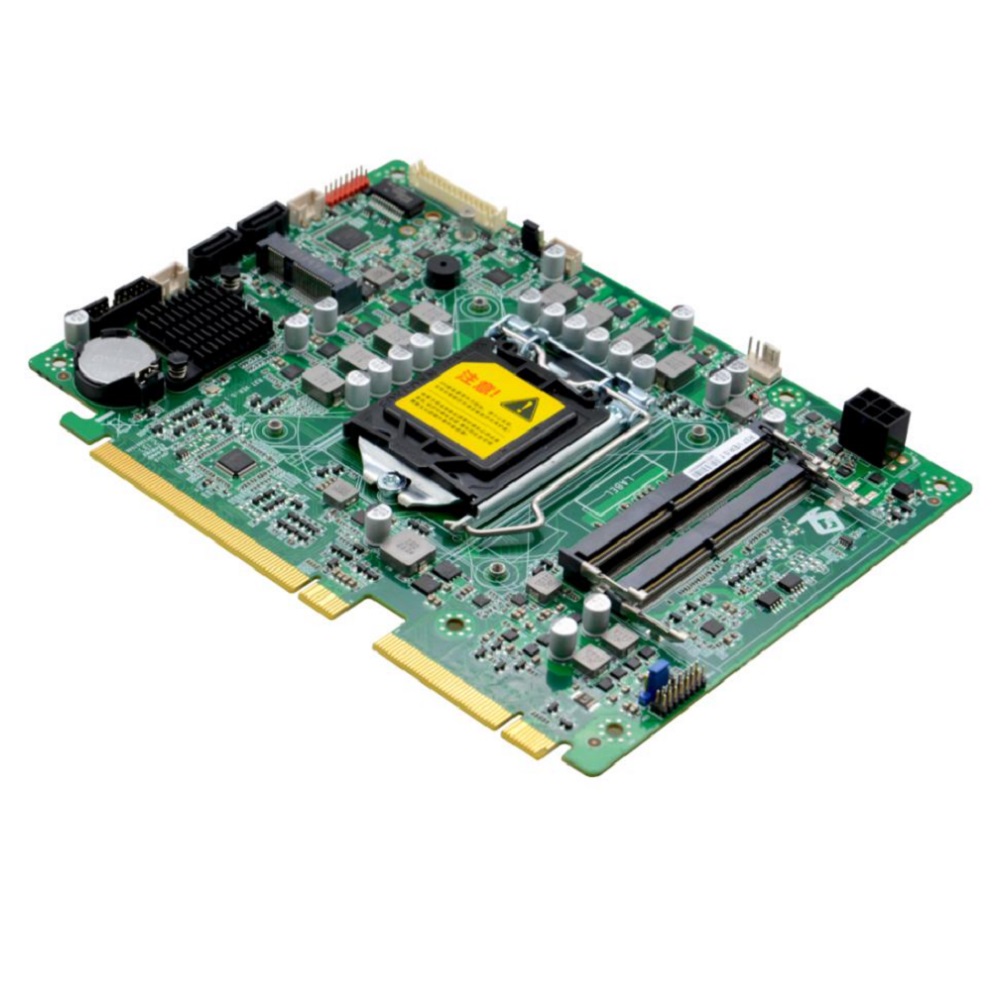

B250LX ver:1.0
Processor Support Intel LGA1151 6th/7th/8th/9th Celeron/Pentium/Corei3/i5/i7/i9 series processors
Chipset Adopt Intel B250 high speed chipset
Memory 2*SODIMM memory socket, supporting 2133Mhz DDR4 memory, with a maximum support of 64GB
Display Integrated Intel HD graphics core graphics card
1*HDMI interface, 1*VGA interface
Network N/A
Storage
1*mSATA slot, support Intel protocol SSD solid state drive, and the transmission speed can reach 6gbps
2*7pin SATA3.0 hard disk interface, with a transmission rate of 6gbps
Audio N/A
Expansion Slots
1*PCIe x16,1*PCIe X8 gold finger, used to expand the IO board, including 9-way PCIe x1,4*system fan, 8-way GPIO, 1*SATA, 2* DP, 2*com, 1*lpc signal
Note: use M211-IO/N225-IO to realize the function of multiple network ports
1*M.2 slot, supporting m.2 2242 4g/5g module
Backplane i/o interface N/A
Built in i/o interface
1*HDMI interface, 2*10PIN,
1*VGA1 interface, 2*15pin, including VGA, LAN, 2*USB2.0 signal
1*front panel function button and indicator interface 2*8pin, including USB, led, switch signal
2*USB3.0 interface 2*10pin
1*6pin ATX power interface, supporting DC12V power input and output
2*hard disk power supply interface 1*4pin
Fan interface 1*4pin CPU intelligent fan interface
BIOS 64Mb Flash ROM
GPIO N/A
support system Windows10/Linux
watchdog Support hardware reset function (256 levels, 0~255 seconds)
Power type Support DC12V power supply
working temperature -10℃～60℃
Storage temperature -20℃～70℃
Working humidity 5% -95% relative humidity, non condensing
Size 200mmx150mm

Product characteristics
*Support Intel LGA1151 6th/7th/8th/9th Celeron/Pentium/Corei3/i5/i7/i9 series processors
*2*SODIMM memory socket, supporting 2133Mhz DDR4 memory, with a maximum support of 64GB
*Support 6*Intel WGI211AT gigabit network card, support network wake-up and PXE functions, and 4* gigabit optical port expansion
*Support 1* C-I-S-C-O standard RS232 serial interface
*Support 2*USB3.0 interface and 1*VGA interface display output
*Support 1U power supply 12V 250W

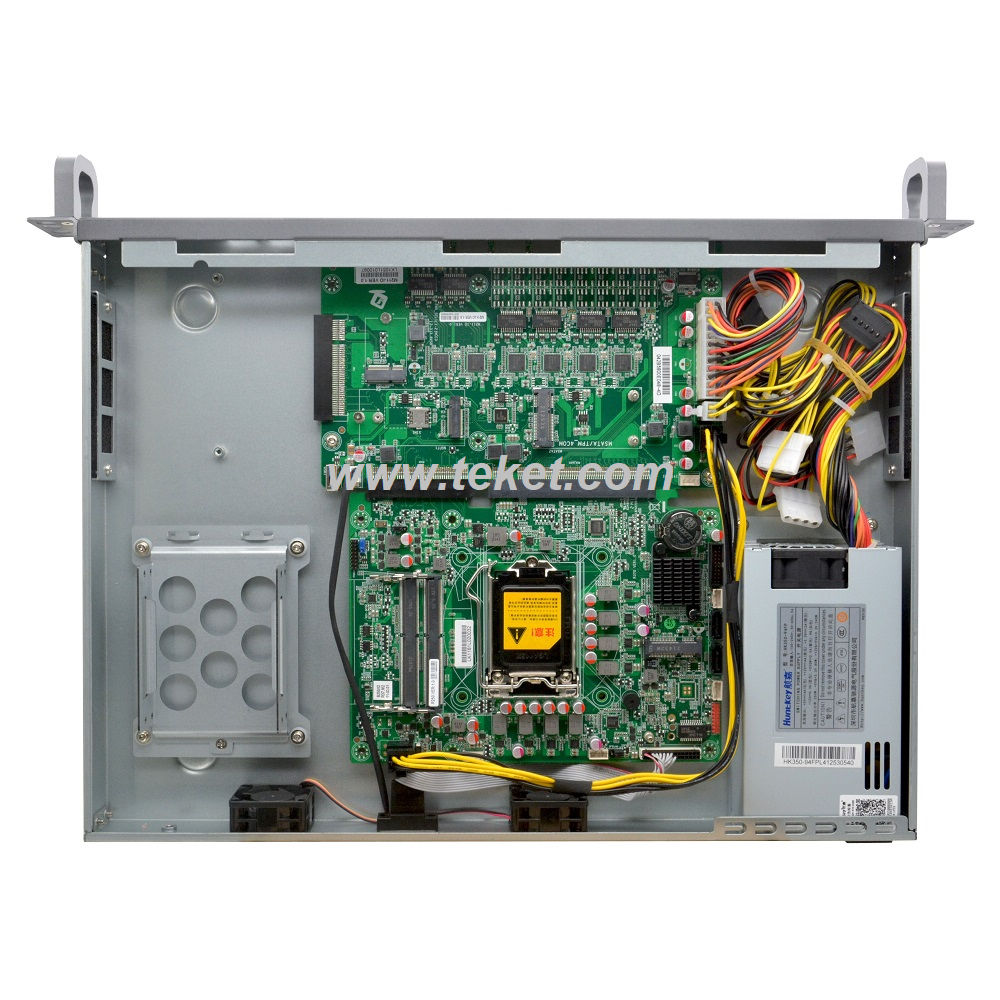

*1U standard chassis, high-quality galvanized steel plate

model 1U-B250LX
Chassis Material / structure 1U standard chassis, high-quality galvanized steel plate
colour Iron grey

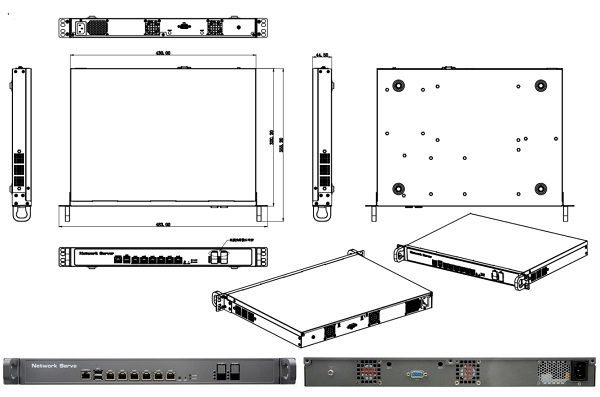

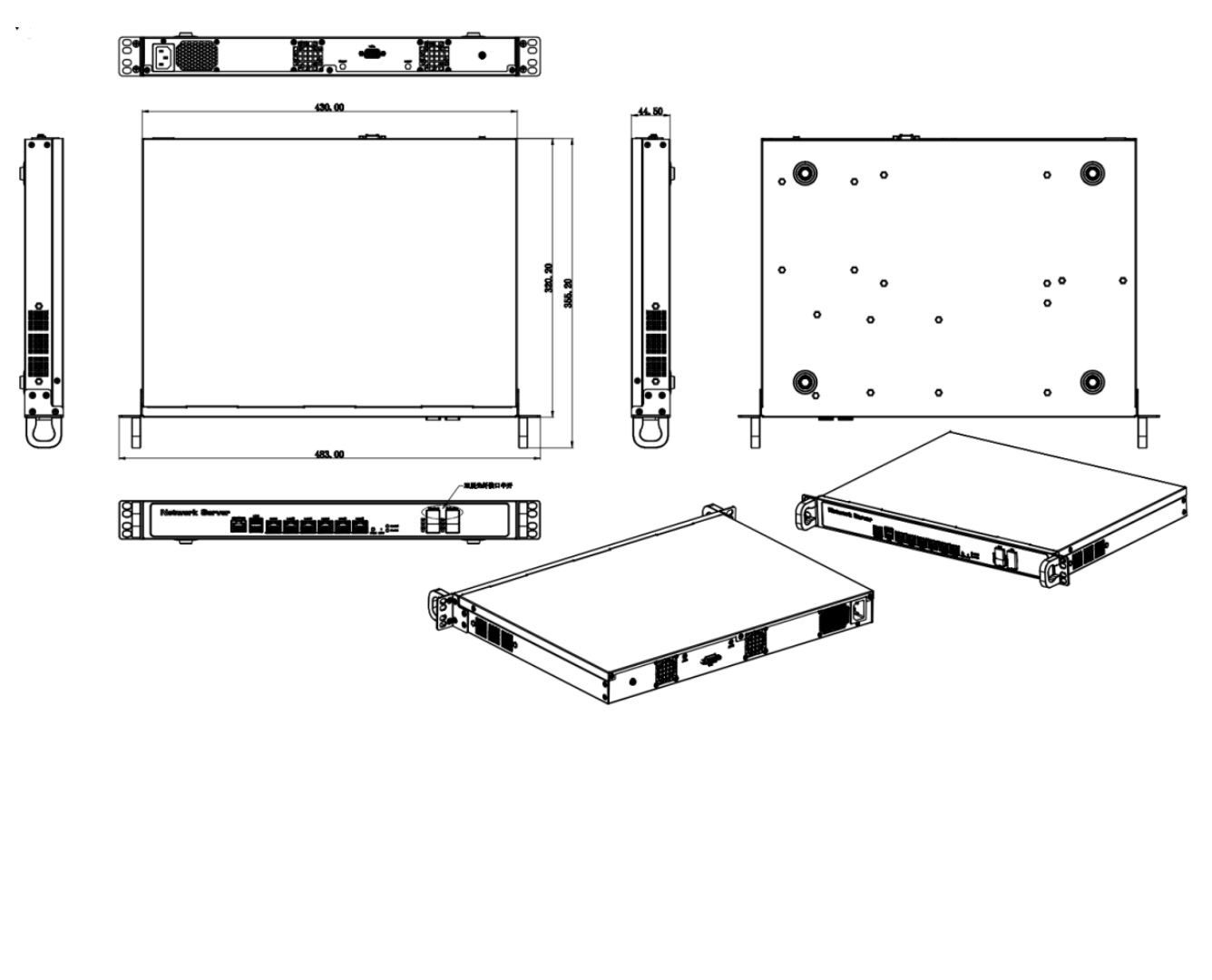

Size (length, width and height) 430MM*320.2MM*44.5MM
Install 1U standard rack
A motherboard CPU Support Intel LGA1151 6th/7th/8th/9th Celeron/Pentium/Corei3/i5/i7/i9 series processors
System chip Adopt Intel B250 high speed chipset
Display Integrated Intel HD graphics core graphics card
Memory 2*SODIMM memory socket, supporting 2133mhz DDR4 memory, with a maximum support of 64GB
Front panel interface POWER 1* power switch, 1* restart switch
USB 2*USB2.0 Interface
LAN 6*Intel WGI211AT gigabit network card, supporting network wake-up and PXE functions
Optical fiber 4*gigabit optical port (expansion)
COM 1*C-I-S-C-O standard RS232 serial interface
LED 1*hard disk indicator, 1* power indicator, 4* optical fiber indicator, 2* data transmission indicator
Rear panel interface Display interface 1*VGA interface
Power interface 1*AC power interface
storage SATA 2*2.5-inch hard disk interface, with a transmission rate of 6Gbps
Solid state disk 1*msata slot, support Intel protocol SSD solid state drive, and the transmission speed can reach 6Gbps
extend Mini PCIE 1*PCIe X8 slot, expandable Gigabit, 10 Gigabit fiber card
M.2 1*m.2 key-e slot, supporting WiFi module
1*m.2 key-b slot Support m.2 2230/2242/2252 4g/5g modules
Software support Microsoft Windows Windows 10, 64bit (without key)
Linux Ubuntu
Watch Dog Support hardware reset function (256 levels, 0~255 seconds)
Power demand Power type Built in atx/1u power supply
Voltage input AC 110-264V

Order Information

1U-B250LX LGA1151 B250LX board 2*DDR4 no Bypass 6*LAN(WGI211AT) 1*COM 1*VGA 2*USB2.0 4*SFP(option) AC Input Size 430*320*44.5mm
1U-B250LX LGA1151 B250LX board 2*DDR4 no Bypass 6*LAN(INTEL I225) 1*COM 1*VGA 2*USB2.0 4*SFP(option) AC Input Size 430*320*44.5mm
1U-H67LX LGA1150 H67LX board 2*DDR3 no Bypass 6*LAN(WGI211AT) 1*COM 1*VGA 2*USB2.0 4*SFP(option) AC Input Size 430*320*44.5mm
1U-H67LX LGA1150 H67LX board 2*DDR3 no Bypass 6*LAN(INTEL I225) 1*COM 1*VGA 2*USB2.0 4*SFP(option) AC Input Size 430*320*44.5mm
