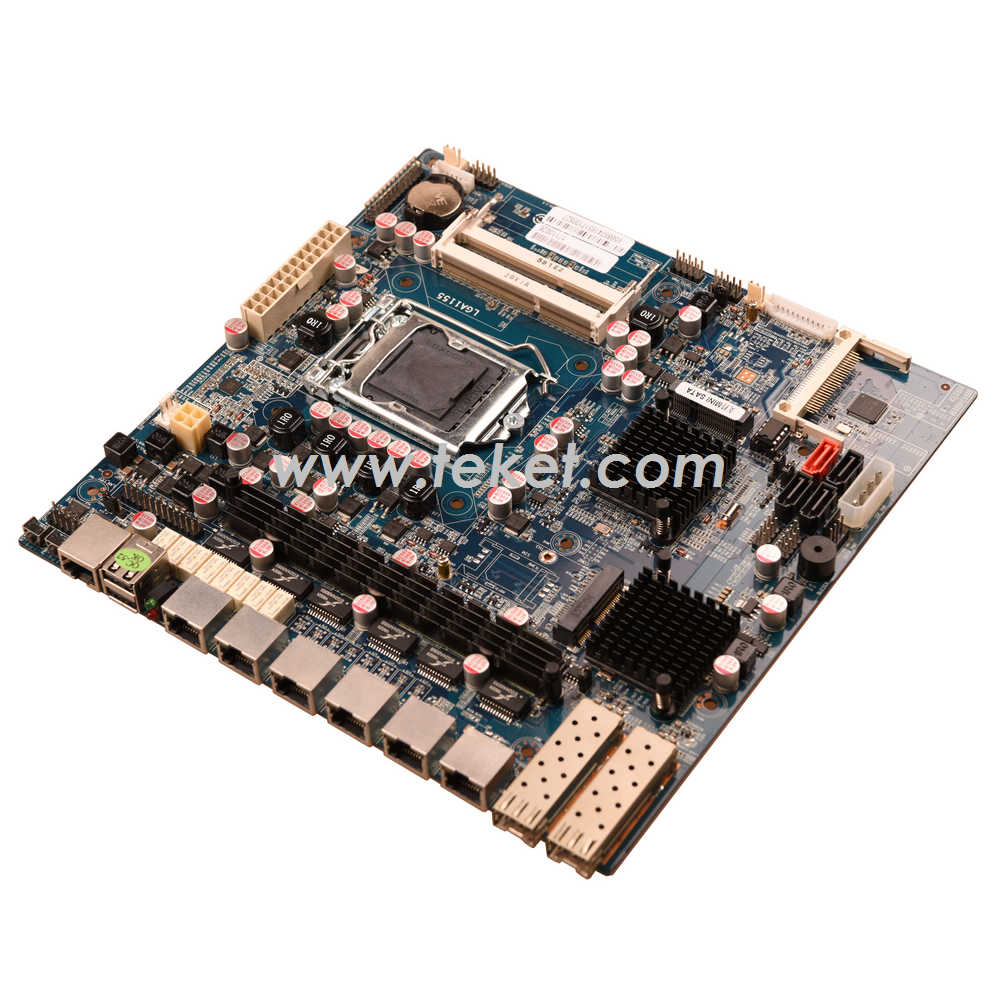

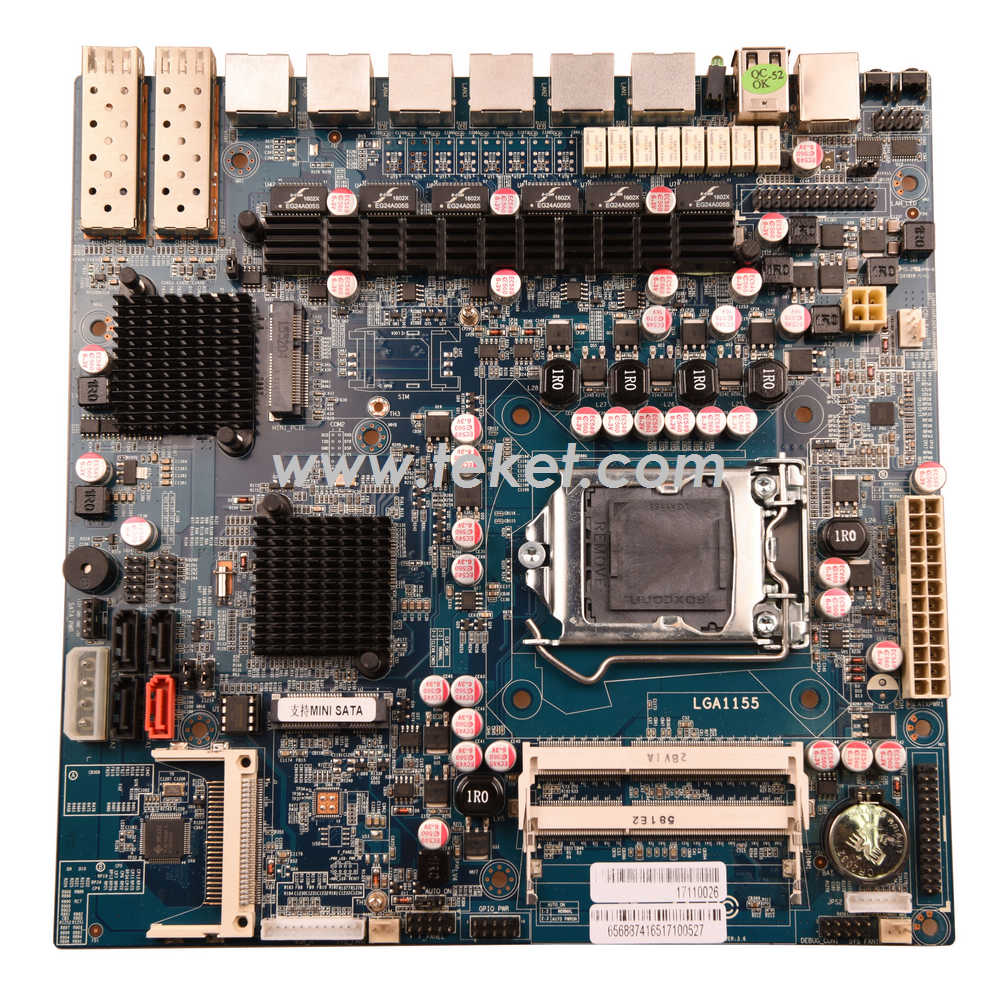

Intel B75 LGA1155 Motherboard B75GLS with Intel 6 LAN PORTS 2 SFP ATX POWER

H67,LGA1155,Intel HD,6*intel 82583V,cf,44pin ide,mini-pcie,msata,52p cf,1*com,1*vga,2*usb,220x220mm

Firewall, Gateway, Network Security ROS,Hi-Spider Router
Intel LGA1155 i7/i5/i3 H67 chipset 6 LAN Gigabit Ethernet BYPASS, Network Security ROS
Intel Sandybridge/IvyBridge 32nm/22nm LGA1155

6 LAN ATX Power
B75GLS VER3.1
Support Intel®LGA1155 package 2th/3thCorei3/i5/i7/Pentium/ Celeron series processor
Intel® B75 High-Speed chipset
2* SODDR3,Support 1333/1060MHz,Up to16GB
Integrated Intel®HD Graphics
Integrated 6*Intel 82574L or82583 Gigabit Ethernet,Support wake on LAN/PXE

CPU
Support Intel®LGA1155 package 2th/3thCorei3/i5/i7/Pentium/ Celeron series processor
Chipset
Integrated Intel® B75 Express chipset
Memory
Provide 2*DDR3 SODIMM ,support dual channel 1333/1066MHz memory, up to16GB
Graphics
Integrated Intel® HD Graphics ,Provide 1*VGA display output。
LAN
Integrated 6*Intel 82574L or82583 Gigabit Ethernet,Support wake on LAN/PXE
Integrated 2 group BYPASS(Manage 1 2 and 3 4 LAN)

Storage
Provide
1* SATA3.0 HDD interface, the transfer rate up to 6Gbps。
3* SATA2.0 HDD interface, the transfer rate up to3Gbps
1* MSATA slot ,,support SSD which support intel protocol ,the transfer rate up to 6Gbps
1* CF card socket ( when in use,CF and MSATA two choose one)
Expansion Slots
1*Mini-PCIE slot,support WIFI、3G module

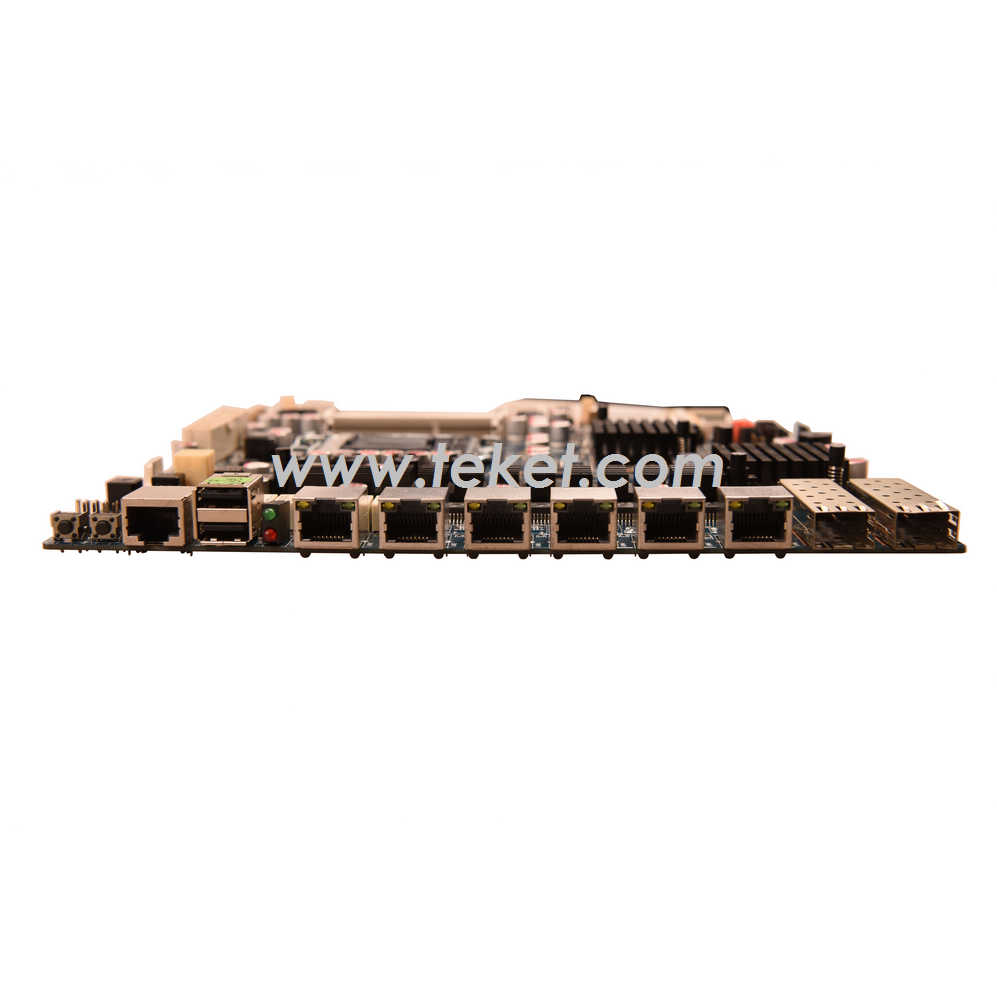

Rear I/O
2* USB 2.0
6* RJ-45 Gigabit Ethernet connector
1*RJ45 to COM
1* power switch
1* power/HDD LED
1* reset

Internal I/O
1*4pin ATX
1*24pin ATX
1*IDE-PWR
2*USB2.0header(4*USB)
1*12PIN VGA
1*LPT
1*GPIO
1*PS/2
1*COM
1*F-PANEL
1*6LAN-LED
1*CLR_CMOS
1*SATA-PWR
2*SYS-FAN
1*CPU-FAN
1*DEBUG_CON

BIOS
32Mb Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
ATX 24pin power input
Operating Temp. -15℃~60℃
Storage Temp -20℃~70℃
Humidity 0%-95% (relative humidity; non-condensing)
Dimension
230mm x 230mm

Order Information
B75GLS ver1.2 LGA1155,2*SODDR3,1*VGA,no LVDS,6*LAN(Intel82583V),0*SFP(Inte 82599ES),6*USB,2*COM,no BYPASS,ATX,230mmx230mm
B75GLSO ver1.2 LGA1155,2*SODDR3,1*VGA,no LVDS,6*LAN(Intel82583V),2*SFP(Inte 82599ES),6*USB,2*COM,no BYPASS,ATX,230mmx230mm

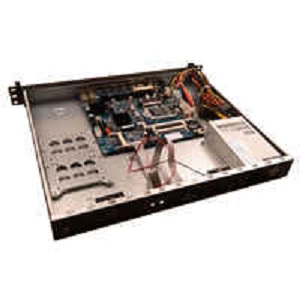

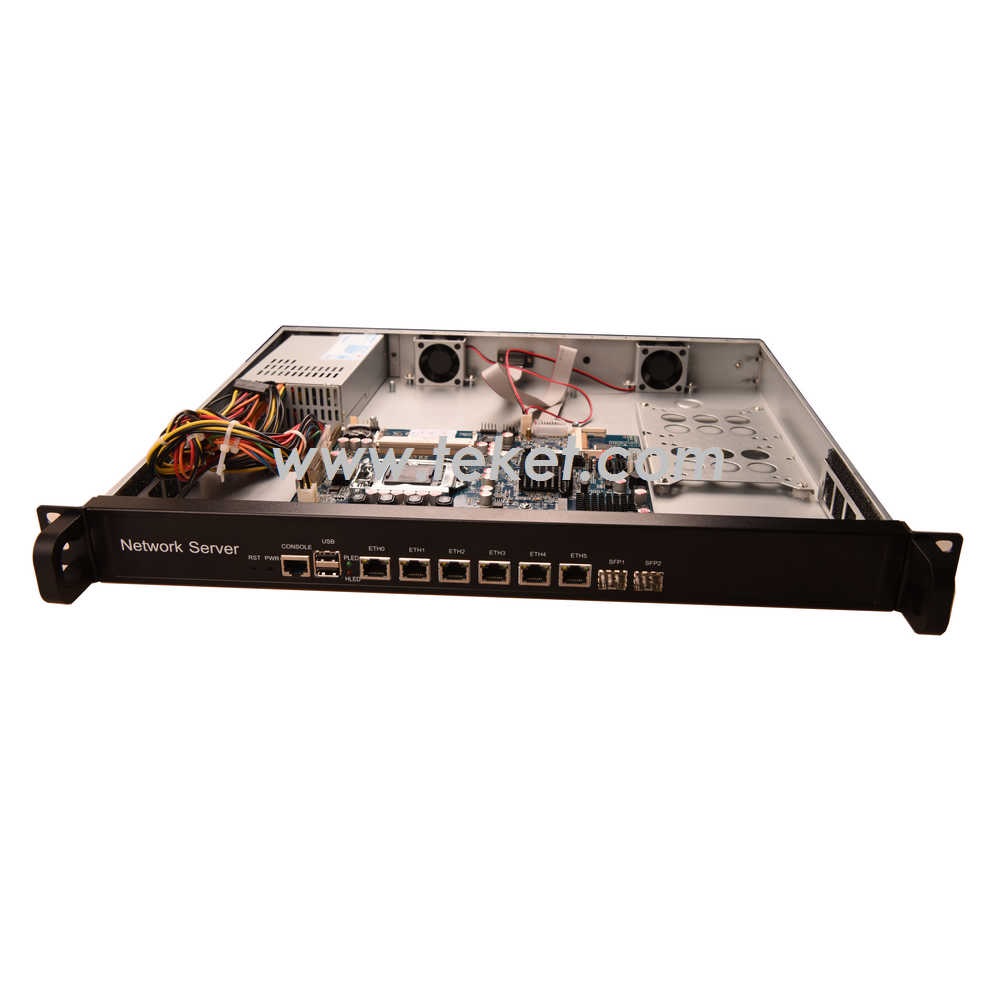

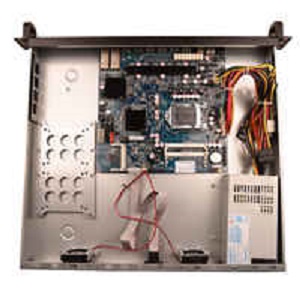

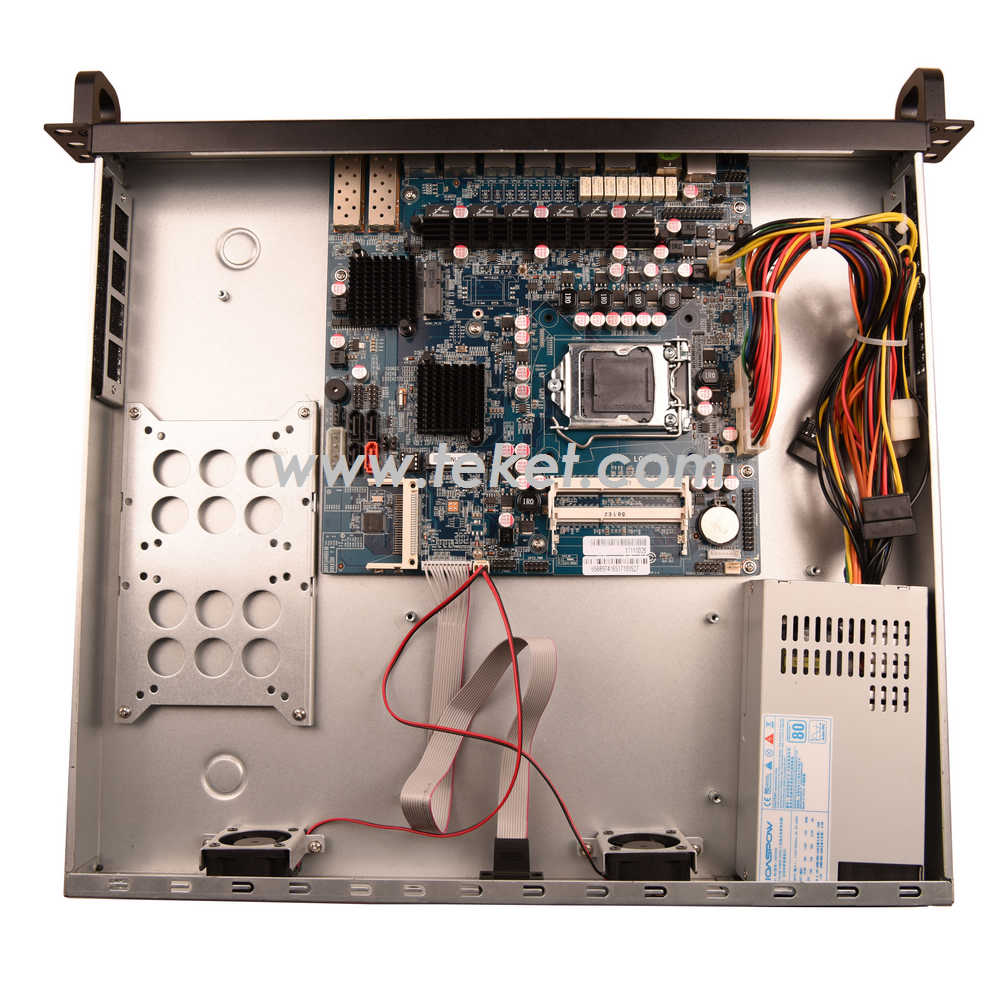

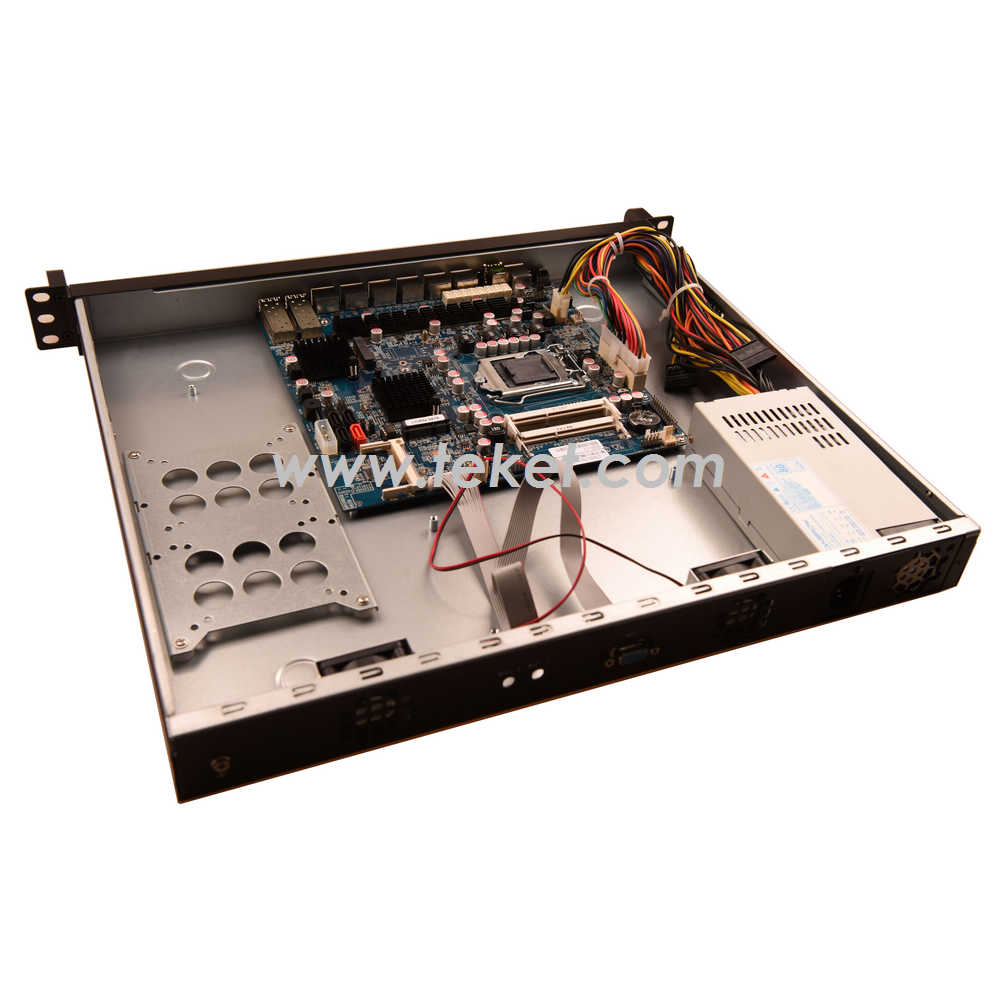

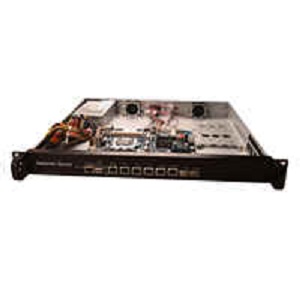

1U series firewall appliance

1U 6 LAN ATX Power(Optical fiber Extened) B75

Turbine copper fan heat sink structure
AI alloy chassis, compact structure, flexible installation
Support Intel LGA1155 series processor
1xVGA,2xUSB2.0,1xCOM
Intel 82583Vchipset, support 6xGbit Ethernet ports
Dimensions : 430mm*380mm*46mm

Product Specifications
Chassis
Color
Light silver black
Dimensions
430mm*380mm*46mm (L*W*H)
Structure
Al alloy Fan cooling structure
Material
Galvanized steel sheet
Motherboard
Model No.
H67SL
Processor
Support LGA1155 Intel® Core™ i3/i5/i7 CPU
Graphics
Intel®HD Graphics
Memory
1*DDR3/1.5V/2GB memory
Storage
2.5’HDD
N/A
CF
N/A
SSD
16G
System Feature
Ethernet
Intel 82583V, 1000/100/10Mbps,6x LAN
Intel 825599ES 1000Mbps, 2xSFP
USB
2* USB2.0
Serial Port
1* COM
Display
1* VGA
Audio
N/A
Expansion Interface
2* MINIPCIE(1 is MSATA,1 is for WIFI )
Indicator
Power Indicator Light,HDD Indicator Light
System Control
System Switch and AC power connector
Wireless
N/A
Power
Power
220W
Reliability
Installation
1U Rackmount
Operating T
-10°C~60°C
Storage T
-20°C~70°C
Relative humidity
5%-95%, no condensing
Vibration
0.5g rms/5-500HZ/random/operating



Order Information
1U-B75GLS, LGA1155,6*Intel 82574,0*Inte 82599ES,1*COM,2*USB,220W,ROS
1U-B75GLSO, LGA1155,6*Intel 82574,2*Inte 82599ES,1*COM,2*USB,220W,ROS
