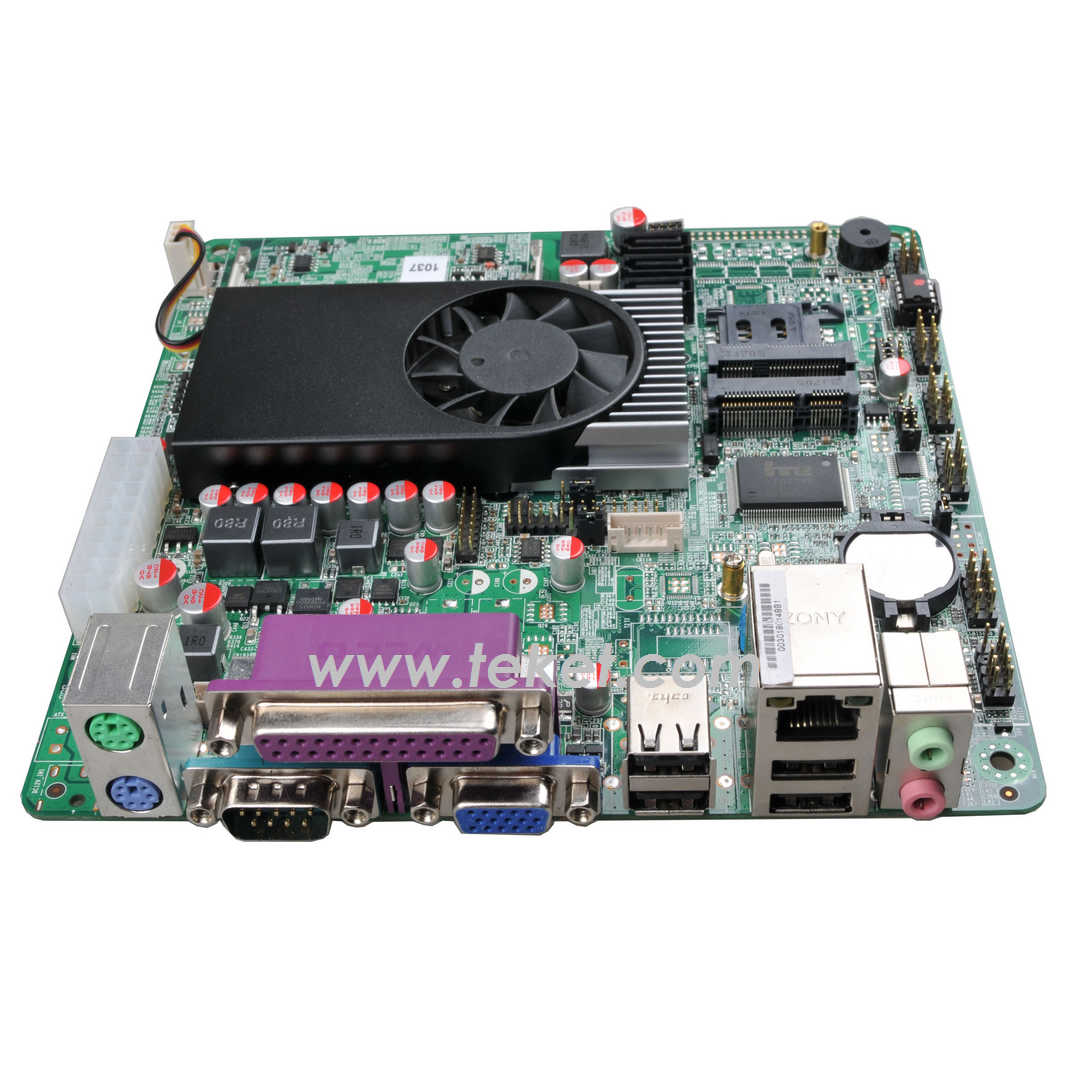

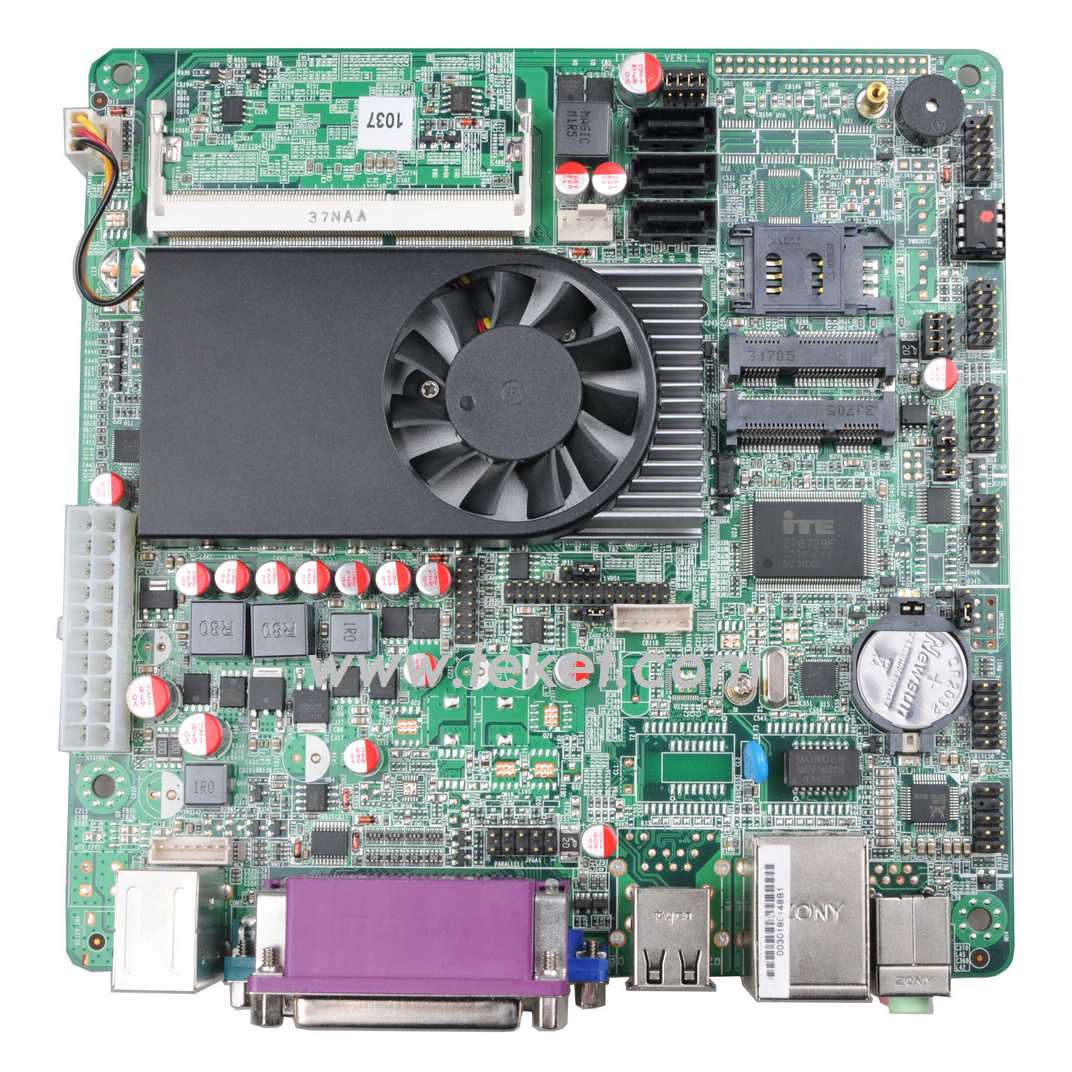

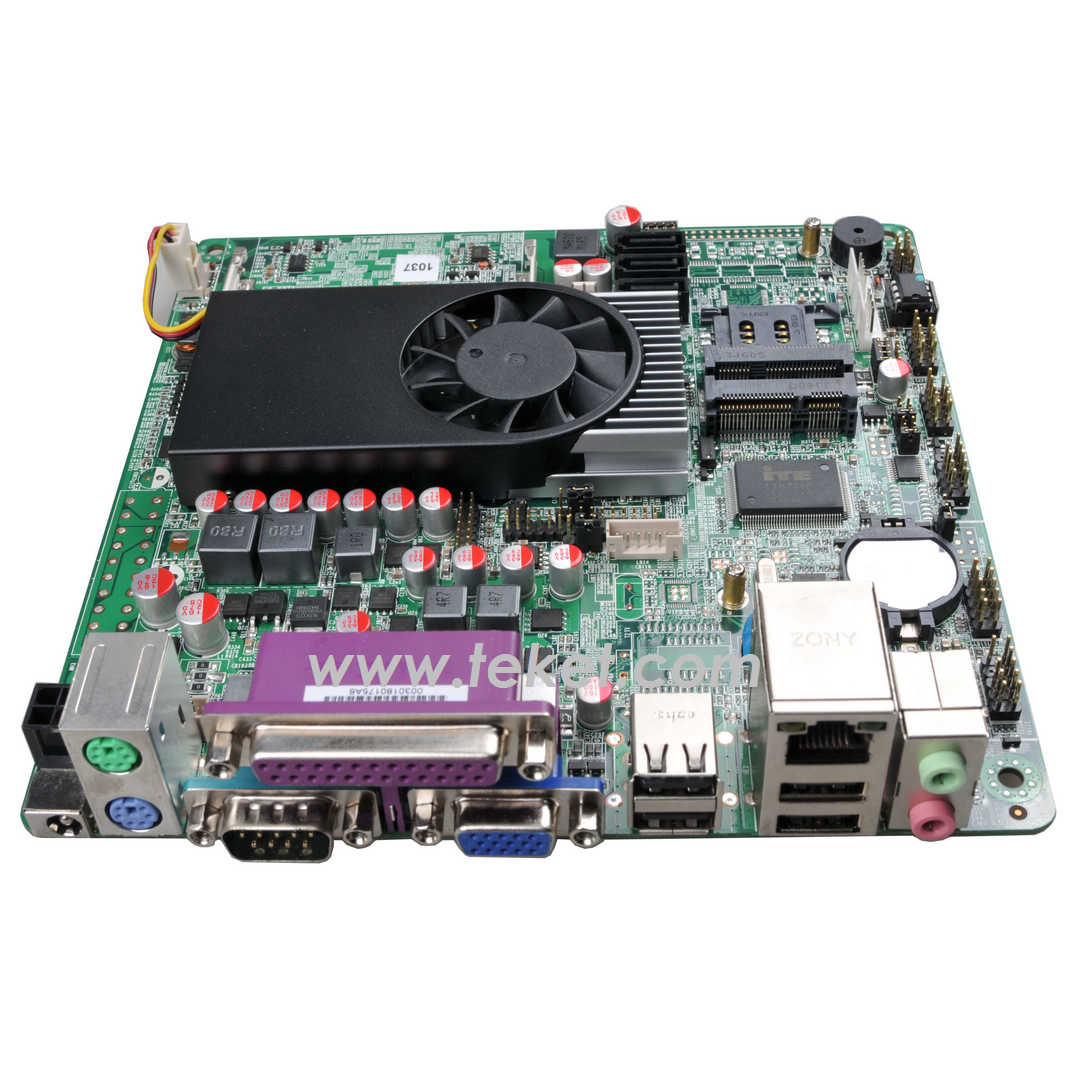

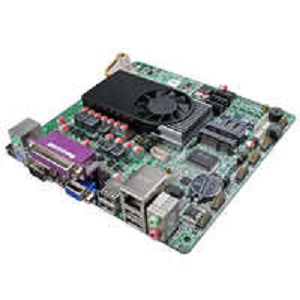

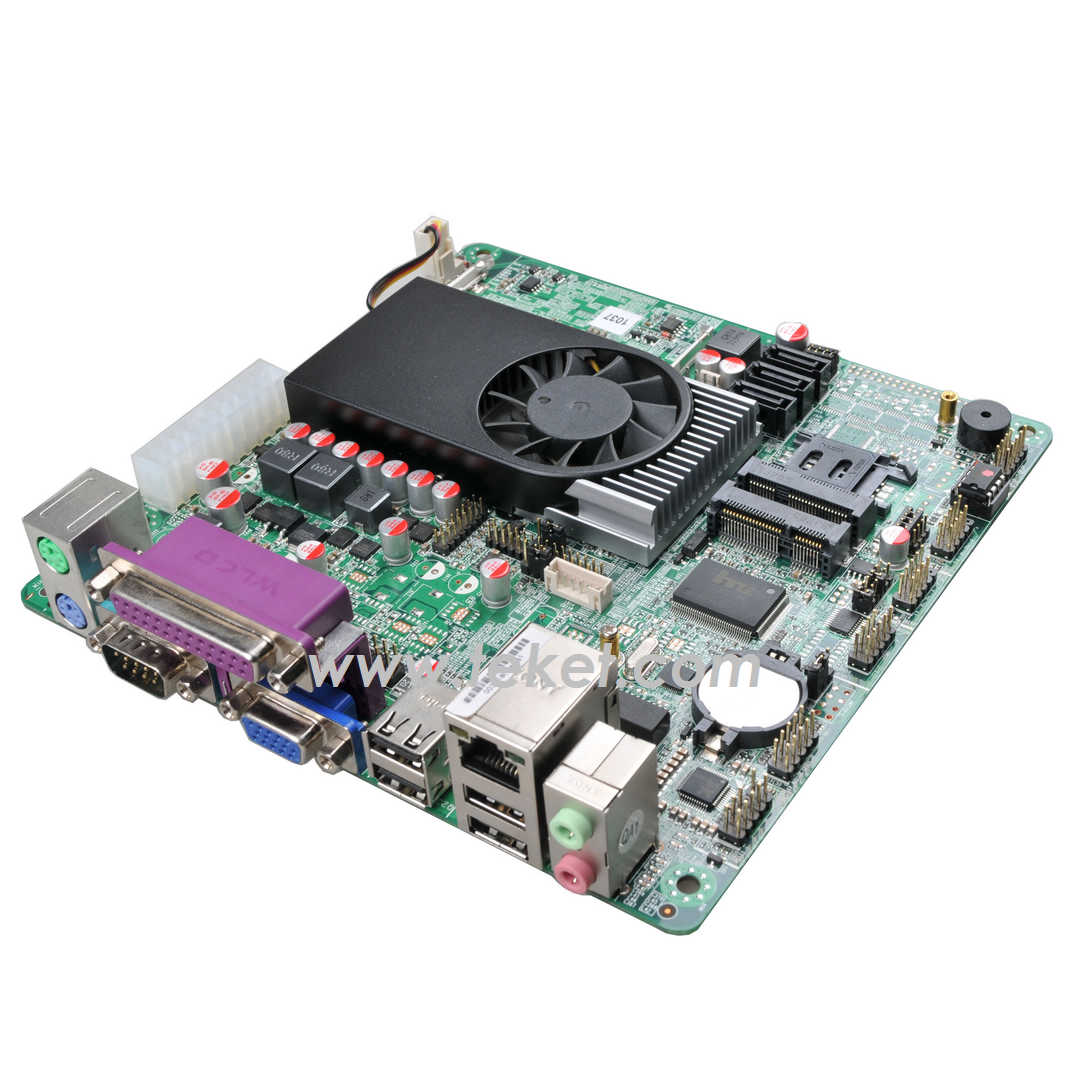

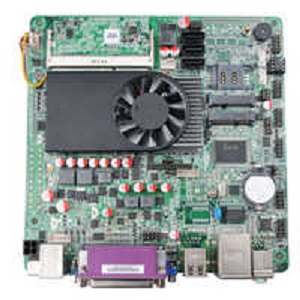

Intel Celeron 1037 1.8Ghz Mini-ITX Motherboard C1037BM DC12V or ATX Power Supply

Intel Celeron 1037 1.8GHZ, NM70,HD, 2*MINI PCIe, 2*COM, LVDS, HDI, DC12V or ATX Power Supply

C1037BM ver1.5
Integrated Intel® Celeron 1037U 1.8GHZ Dual Core Processor
Adopt Intel® NM70 Express chipset
Support Single channel DDR3 1600/1333 Memory,Up to 8GB
Integrated 1* Realtek RTL8111E(F) Gigabit Ethernet
6* RS232 serial port (COM3 supportRS232/422/485
8*USB2.0(Mini-PCIE adopt USB support 6*USB2.0
Adopt DC12V Power or ATX power input





CPU
Integrated Intel® Celeron 1037U 1.8GHZ Dual Core Processor
Compatible Intel® Sandy /Ivy Bridge Celeron/I3/I5/I7 BGA1023 Processor
Chipset
Adopt Intel® NM70 Express chipset
Memory
Support Single channel DDR3 1600/1333 Memory,Up to 8GB
Graphics
Integrated Intel® HD Graphics , Support single display,double display mode, extended mode.
Provide 1*VGA、1*HDI，1*LVDS(support double channel 24bit)
LAN
Integrated 1* Realtek RTL8111E(F) Gigabit Ethernet（can do two Gigabit Ethernet）
Support wake on LAN/PXE
Storage
Provide 3*SATA2.0
Audio
Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out,
Expansion Slots
1* Mini-PCIE slot supportWIFI/3G Module(Support the 3G module need to set the USB-SW2 Jumper)
1* MSATA slot support SSD,the transfer rate up to6Gbps

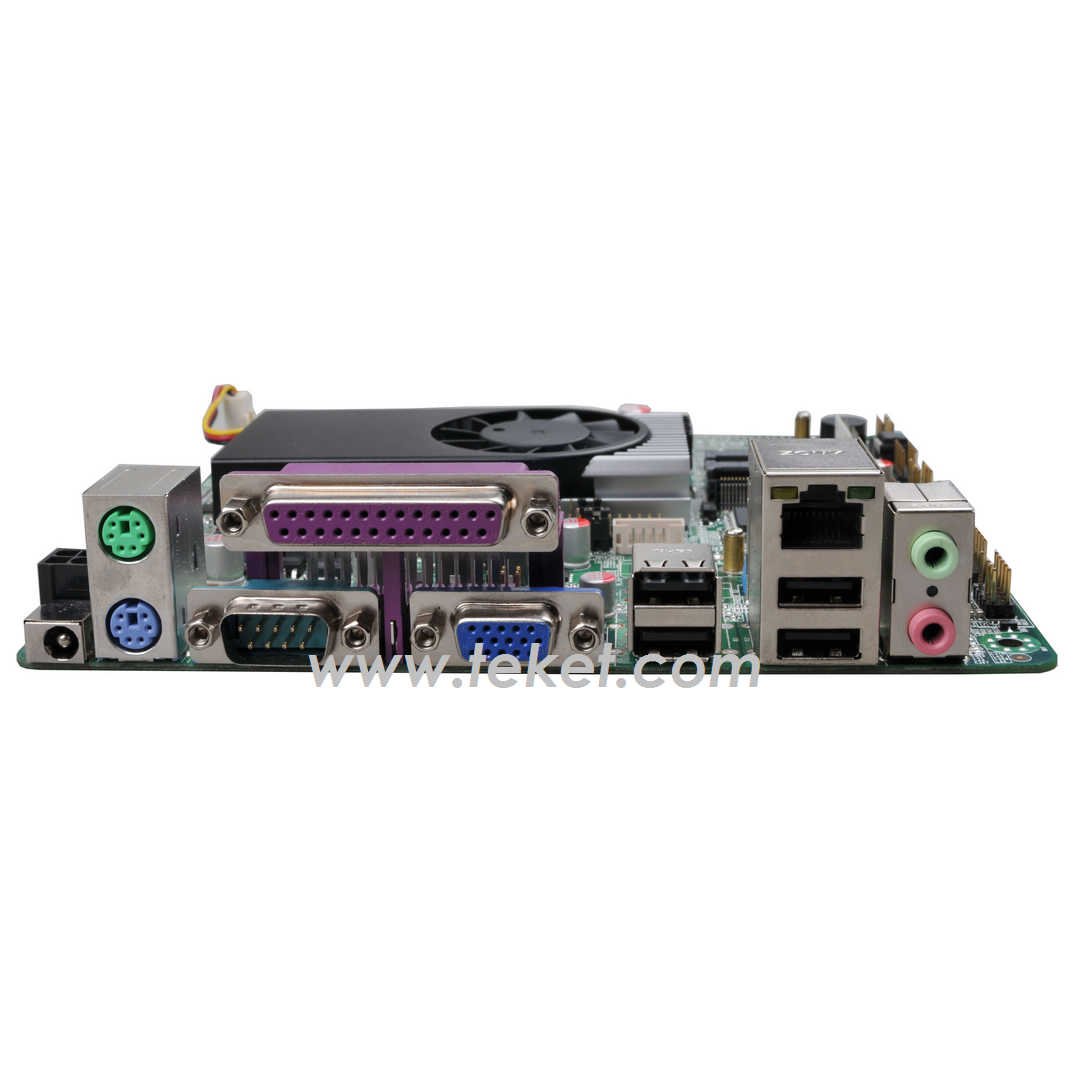

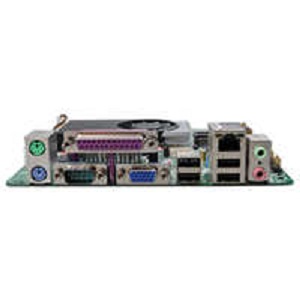

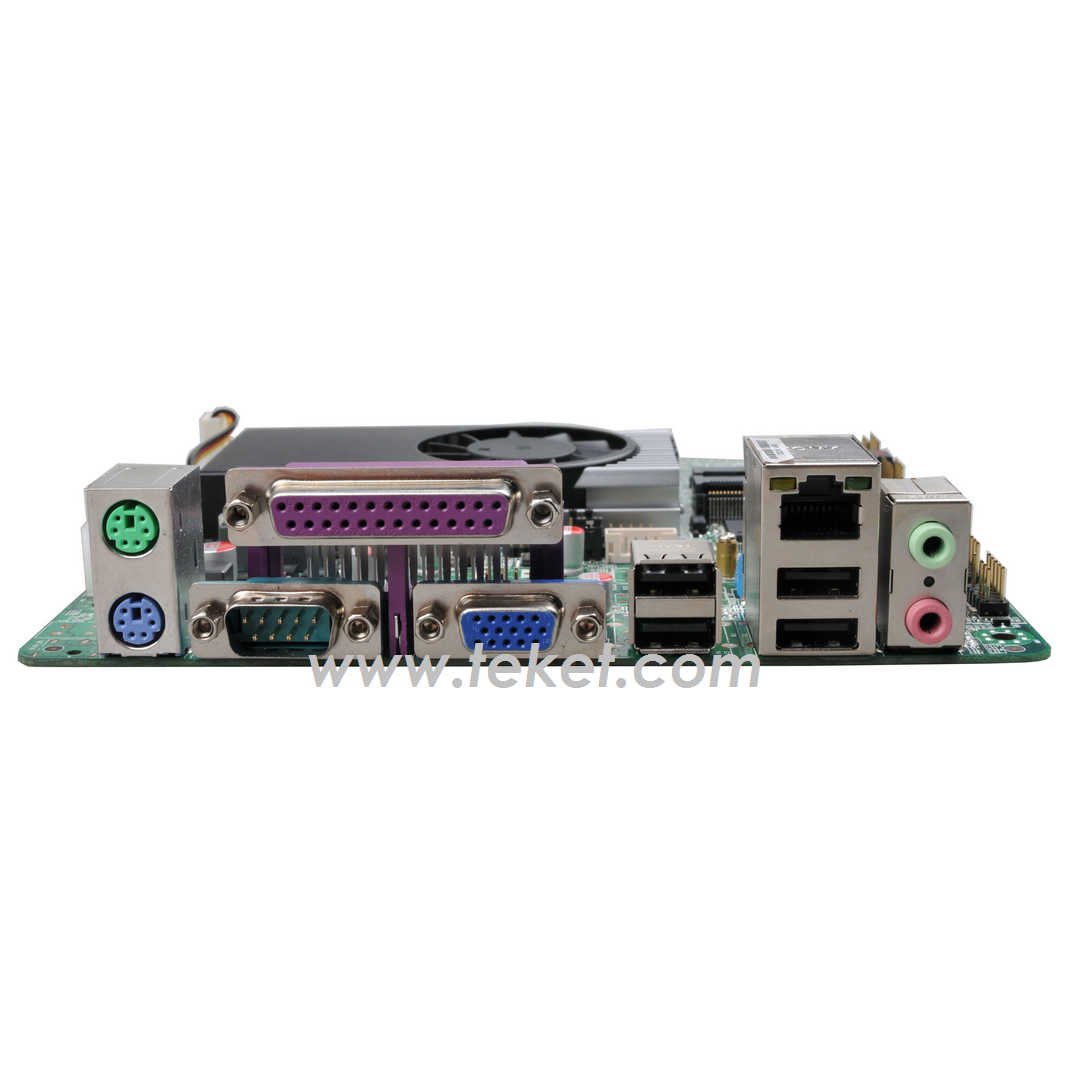

Rear I/O
1* 12V DC power input（C1037BM_D26、C1037BM_D12、C1037BM_D16 power interface）
1* PS/2 KB/MS connector
1* COM（The 9th pin of COM1 supports 5V /12V charged function）
1* LPT
1* VGA
4* USB2.0
1* RJ-45 Gigabit Ethernet（C1037BM_D26 can do support 2* Gigabit Ethernet interface）
1* Line-out(Green),1*MIC(Red)
Internal I/O
1* LVDS 2*15pin, support double channel 24BIT
1* LVDS INVERTER(Backlight power supply interface) 1*6pin
1* J_HDI 2*8Pin
1* JVGA 1*12pin,the same signal withe DB15
5* RS232 serial port (COM3 supportRS232/422/485,The 9th pin of COM2 supports 5V /12V charged function)
4* USB 2.0 2*5pin ( if the Mini-PCIE use the USB signal ,support 2 USB2.0 interface)
1* PS/2 KB/MS connector 1*6Pin
1* front panel function buttons and indicator connector 2*5pin
1* front panel audio connector 2*5pin
1* SIM card socket
1* PWROUT (HDD power supply connector) 1*4pin
1* 4pin ATX 12V power input（C1037BM_D26/D2/D6 power interface）
1*24pin ATX power input（C1037BM_A2、C1037BM_A6 power interface）
FAN interface
2* 4pin CPU intelligent fan interface
GPIO
Support 4 way input and output GPIO
BIOS
32Mb Flash ROM
WatchDog
Support hardware reset function (L256, 0~255 seconds)
Power input
Adopt DC12V Power or ATX power input
Operating Temp.
-10℃～60℃
Storage Temp.
-20℃～70℃
Humidity
5%-95% (relative humidity; non-condensing)
Dimension
170mm x 170mm

Ording information
C1037BM-D12 Ver1.5: 1037U/1.8Ghz,1*VGA,1*HDI,2*24bitLVDS,1*LAN(8111E),ALC662,8*USB,2*COM,no RS485/RS422,DC12V
C1037BM-D16 Ver1.5: 1037U/1.8Ghz,1*VGA,1*HDI,2*24bitLVDS,1*LAN(8111E),ALC662,8*USB,6*COM(COM3 for RS485/RS422),DC12V
C1037BM-D26 Ver1.5: 1037U/1.8Ghz,1*VGA,1*HDI,2*24bitLVDS,2*LAN(8111E),ALC662,8*USB,6*COM(COM3 for RS485/RS422),DC12V
C1037BM-A12 Ver1.5: 1037U/1.8Ghz,1*VGA,1*HDI,2*24bitLVDS,1*LAN(8111E),ALC662,8*USB,2*COM,no RS485/RS422,ATX
C1037BM-A16 Ver1.5: 1037U/1.8Ghz,1*VGA,1*HDI,2*24bitLVDS,1*LAN(8111E),ALC662,8*USB,6*COM(COM3 for RS485/RS422),ATX

Model Name Definition: B is for base config, A is for atx power supply, D is for DC12V, Digital string 12 is 1*LAN port and 2*COM ports.

Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client;Net top.

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
