>>Your Current Position: Intel Motherboard

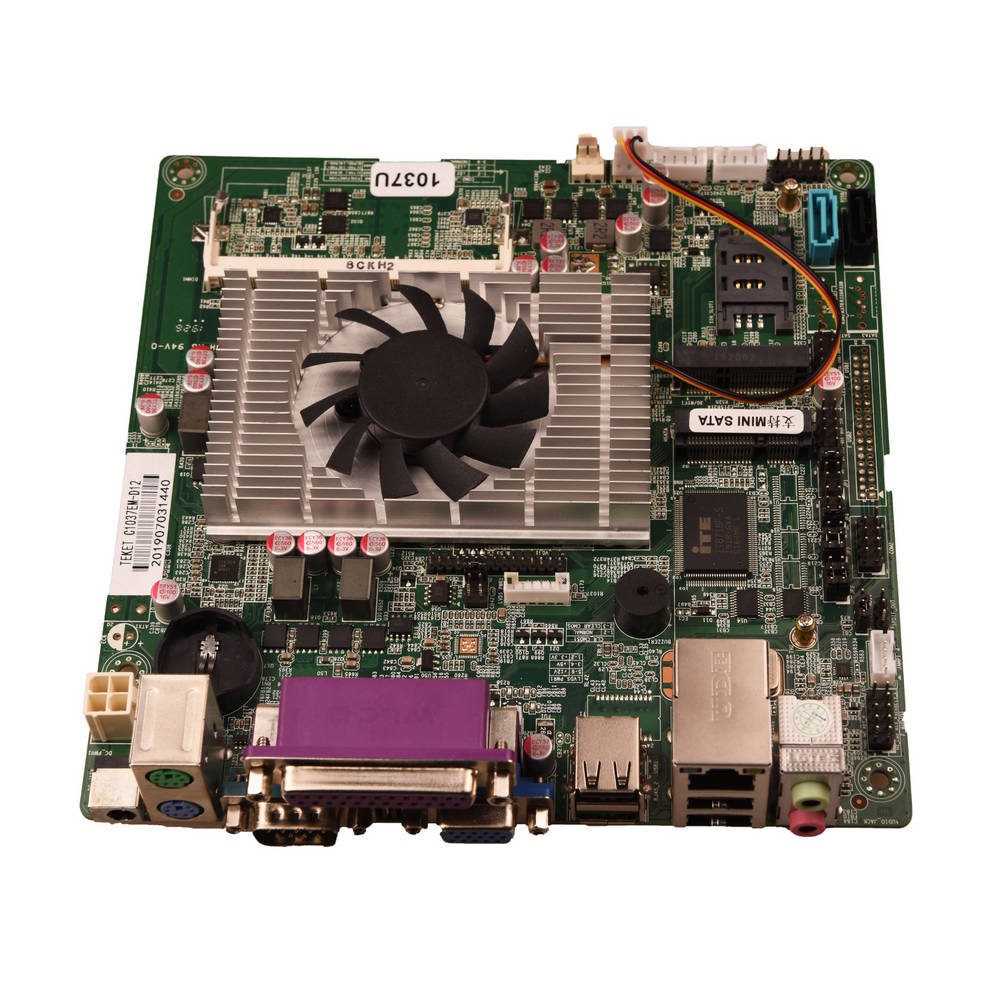

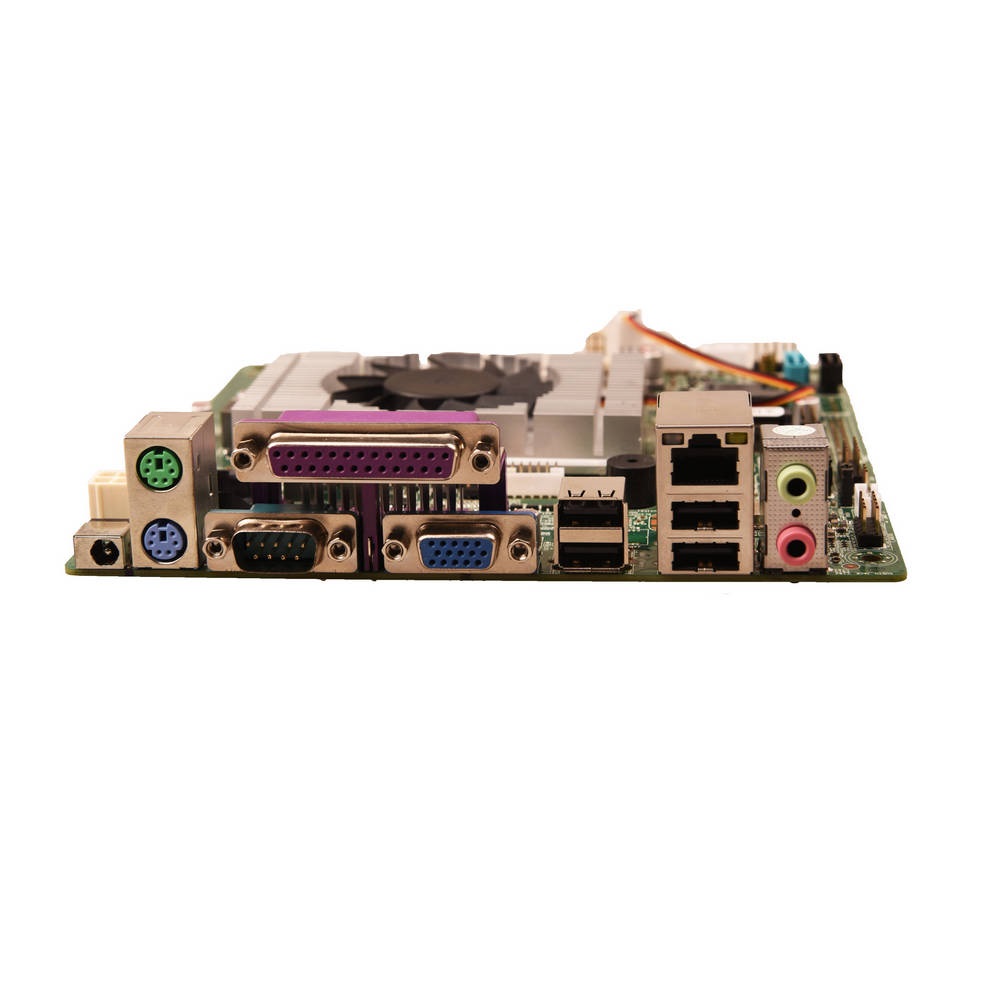

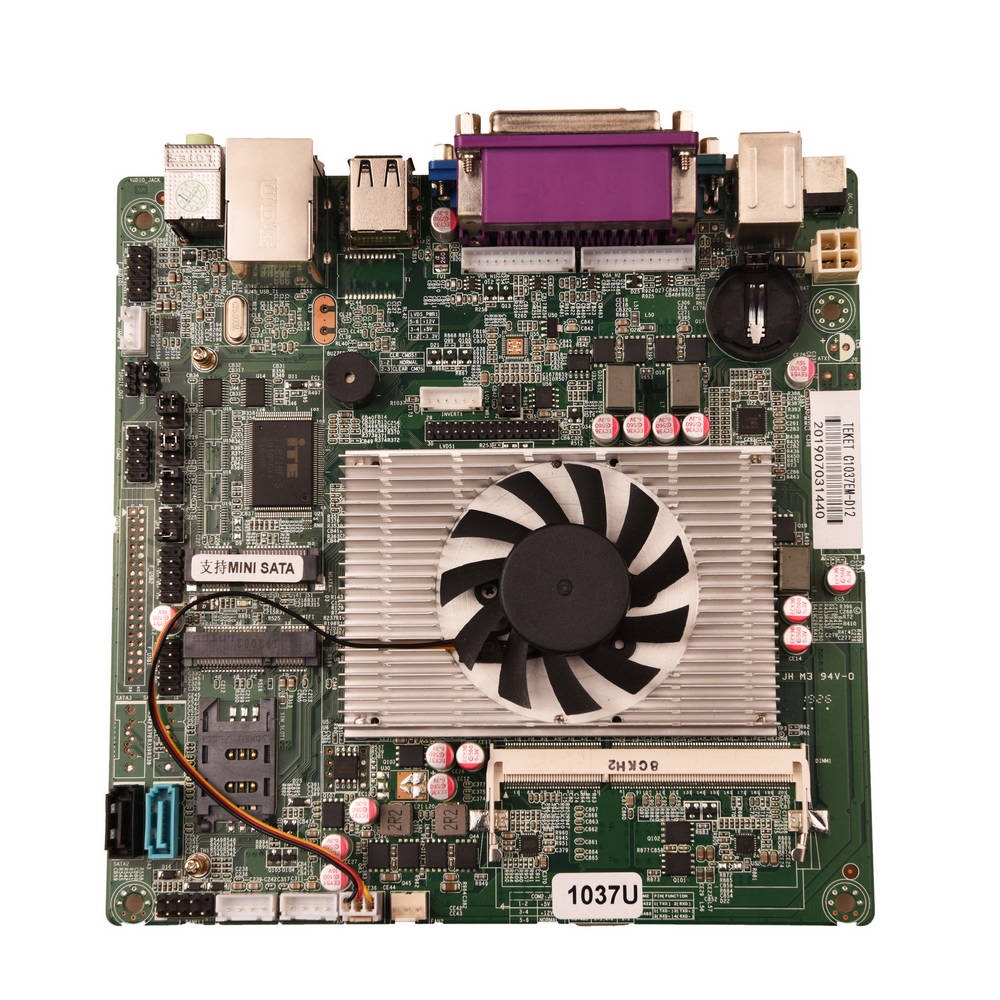

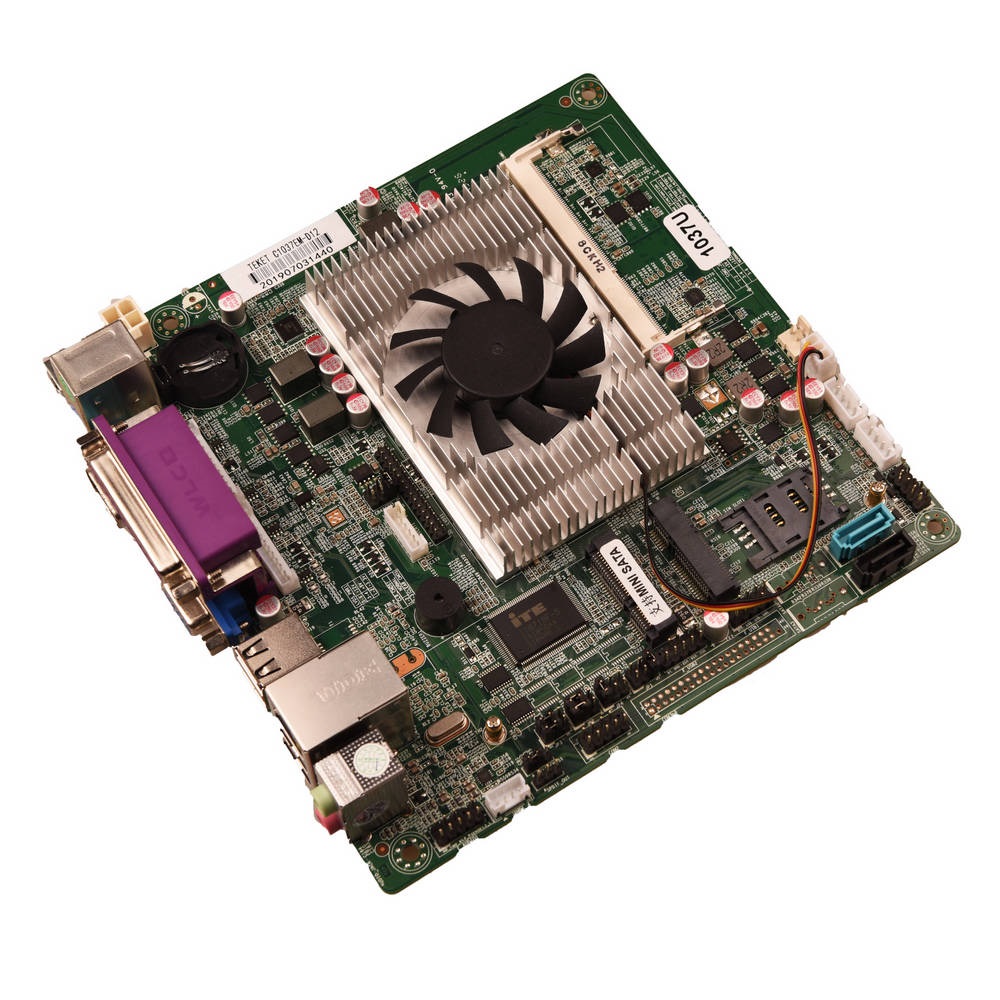

Intel Celeron 1037 1.8Ghz Mini-ITX Motherboard C1037EM Al-In-One SLIM ATX/12VDC


Intel Celeron 1037 1.8GHZ,HM76,HD Graphics,2*MINI PCIe,1*LAN,2/6*COM,LVDS,VGA,LPT,fanless option


C1037EM spec:

Intel Celeron 1037 1.8Ghz dual core cpu, HM76 chipset
1*SO DIMM DDR3, support 1066/1333 up to 8+2GB, (bulit-in 2GB onboard option for bulk order)
2*MINI-PCIe, support SSD/WIFI/3G, one for msata, other for wifi as default config
2/6*RS232 serial ports,all onboard header
1*RTL8111E, network wake up

Realtek ALC662 6 channels audio

Display Intel HD Graphics
1*VGA, 1*HDMI, 1*LVDS
Support HDMI1/VGA Synchronous/Asynchronous
Support LVDS/VGA Synchronous/Asynchronous
Support LVDS/HDMI1 Synchronous/Asynchronous
Support HDMI1/HDMI2 Synchronous/Asynchronous
1*MINI PCIe support WIFI/3G
1*MINI PCIe support SSD/WIFI SSD
Realtek ALC662 6CH support MIC Line-out
2*SATAII
1*12VDC or ATX power supply
1*fan or fanless config







Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client;Net top.

Order Information
C1037EM-A12 Intel Celeron 1037 1.8GHZ, HM76,2*MINI PCIe,1*LAN,2*COM,LVDS,VGA,LPT,fanless(option),ATX
C1037EM-A16 Intel Celeron 1037 1.8GHZ, HM76,2*MINI PCIe,1*LAN,6*COM,LVDS,VGA,LPT,fanless(option),ATX
C1037EM-D12 Intel Celeron 1037 1.8GHZ, HM76,2*MINI PCIe,1*LAN,2*COM,LVDS,VGA,LPT,fanless(option),12VDC
C1037EM-D16 Intel Celeron 1037 1.8GHZ, HM76,2*MINI PCIe,1*LAN,6*COM,LVDS,VGA,LPT,fanless(option),12VDC
I33217EM-D16 I3-3217U,HM76,2*VGA,2ch24bitLVDS,1*SODDR3,1*SATA3.0,1*SATA2.0,1*mSATA,2*MINI PCIE,1/2*LAN(RTL8111E),8*USB,2/6*COM,DC/ATX
I53317EM-D16 I5-3317U,HM76,2*VGA,2ch24bitLVDS,1*SODDR3,1*SATA3.0,1*SATA2.0,1*mSATA,2*MINI PCIE,1/2*LAN(RTL8111E),8*USB,2/6*COM,DC/ATX

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
